NDK進口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G無線網專用晶振
頻率：175MHZ
尺寸：3.2x2.5mm
NDK進口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G無線網專用晶振，日本NDK晶振公司，適用于基站、光網絡終端、SONET/SDH設備、中低端路由器和以太網設備，差動輸出SPXO，緊湊尺寸:3.2 × 2.5 × 0.9 mm，電源電壓:+2.5V或+3.3V，輸出規格:LVPECL，出色的低相位抖動(類型90fs@156.25MHz)，符合AEC-Q200標準。
訂購熱線：0755-27876565
NDK進口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G無線網專用晶振，日本NDK晶振公司，適用于基站、光網絡終端、SONET/SDH設備、中低端路由器和以太網設備，差動輸出SPXO，緊湊尺寸:3.2 × 2.5 × 0.9 mm，電源電壓:+2.5V或+3.3V，輸出規格:LVPECL，出色的低相位抖動(類型90fs@156.25MHz)，符合AEC-Q200標準。

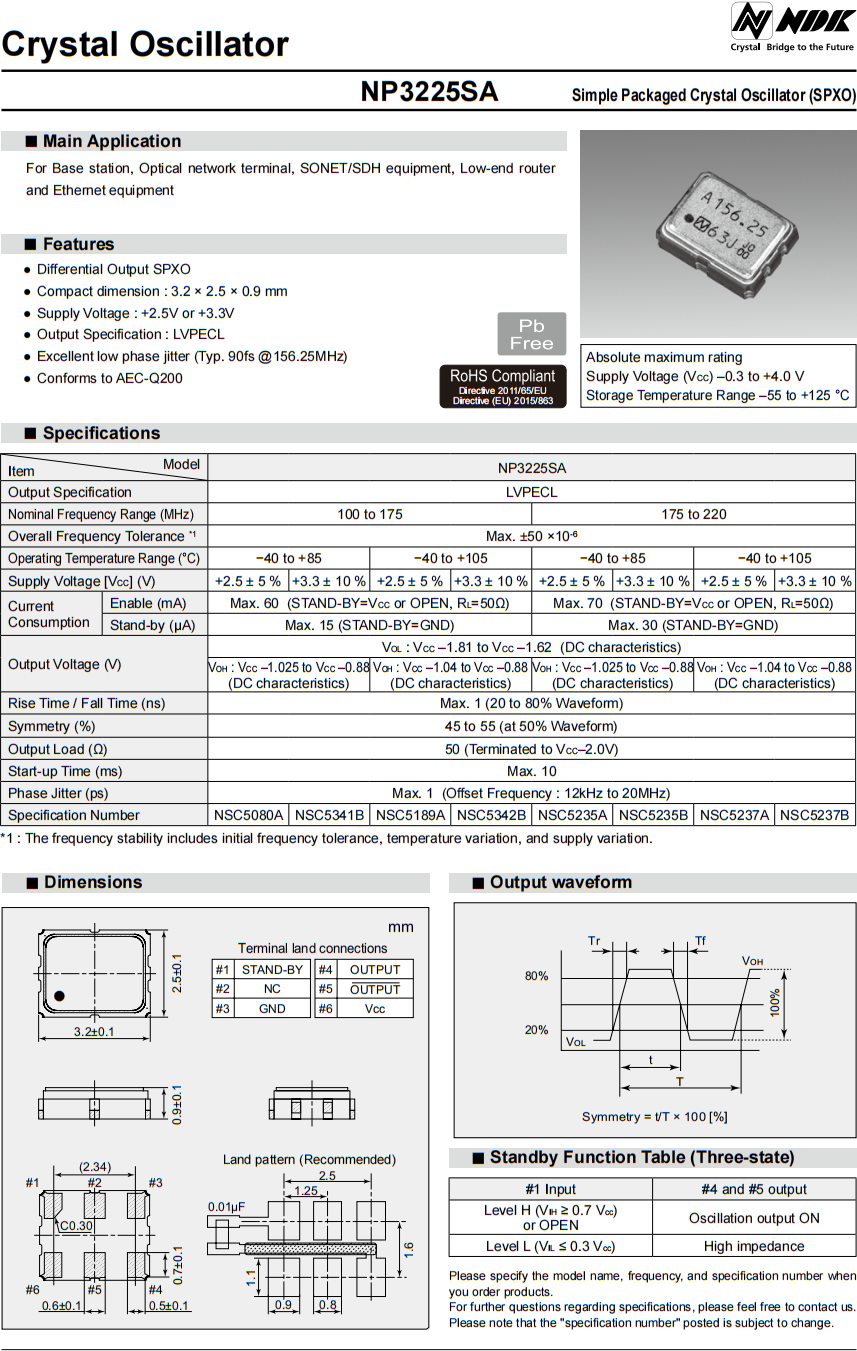

NDK進口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G無線網專用晶振
| 項目 | 型號 | NP3225SA | |||||||
| 輸出類型 | LVPECL | ||||||||
| 標稱頻率 | 100 to 175 | 175 to 220 | |||||||
| 總?cè)菰S頻率 | Max. ±50 ×10-6 | ||||||||
| 工作溫度范圍 | −40 to +85 | −40 to +105 | −40 to +85 | −40 to +105 | |||||
| 電源電壓[VCC] (V) | +2.5 ± 5 % | +3.3 ± 10 % | +2.5 ± 5 % | +3.3 ± 10 % | +2.5 ± 5 % | +3.3 ± 10 % | +2.5 ± 5 % | +3.3 ± 10 % | |
| 當前消耗量 | 使能(mA) | Max. 60 (STAND-BY=VCC or OPEN, RL=50Ω) | Max. 70 (STAND-BY=VCC or OPEN, RL=50Ω) | ||||||
| 備用（μA） | Max. 15 (STAND-BY=GND) | Max. 30 (STAND-BY=GND) | |||||||
| 輸出電壓(V) | VOL : VCC – 1.81 to VCC – 1.62 (DC characteristics) | ||||||||
|
VOH : VCC – 1.025 to VCC –0.88
(DC characteristics) |
VOH : VCC – 1.04 to VCC –0.88
(DC characteristics) |
VOH : VCC – 1.025 to VCC –0.88
(DC characteristics) |
VOH : VCC – 1.04 to VCC –0.88
(DC characteristics) |
||||||
| 上升時間/下降時間 | Max. 1 (20 to 80% Waveform) | ||||||||
| 對稱性（%） | 45 to 55 (at 50% Waveform) | ||||||||
| 輸出負載(Ω) | 50 (Terminated to VCC–2.0V) | ||||||||
| 啟動時間 | Max. 10 | ||||||||
| 相位抖動(ps) | Max. 1 (Offset Frequency : 12kHz to 20MHz) | ||||||||
| 規格編號 | NSC5080A | NSC5341B | NSC5189A | NSC5342B | NSC5235A | NSC5235B | NSC5237A | NSC5237B | |
NDK進口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G無線網專用晶振
| 型號 | 常規頻率[MHz] | 規格編碼 | 尺寸 | 輸出類型 | 工作溫度 | 儲存溫度 | 電源電壓 |
| NP3225SA | 100 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 122.88 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 125 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 156.25 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 175 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 100 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 122.88 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 125 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 156.25 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 175 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 100 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 122.88 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 125 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 156.25 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 175 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 100 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 122.88 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 125 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 156.25 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 175 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 200 | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 212.5 | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 200 | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 212.5 | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 200 | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 212.5 | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 200 | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 212.5 | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 50 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 100 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 125 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 135 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 148 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 156.25 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 200 | NSC5236A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 50 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 100 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 125 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 135 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 148 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 156.25 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 200 | NSC5236B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 50 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 100 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 125 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 135 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 148 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 156.25 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 200 | NSC5238A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 50 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 100 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 125 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 135 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 148 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 156.25 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 200 | NSC5238B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SAB | 100 | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SAB | 125 | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SAB | 156.25 | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SAB | 100 | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAB | 125 | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAB | 156.25 | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 100 | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 156.25 | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAA | 100 | NSC5390B | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SAA | 125 | NSC5390B | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SAA | 156.25 | NSC5390B | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
