M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
頻率：50M

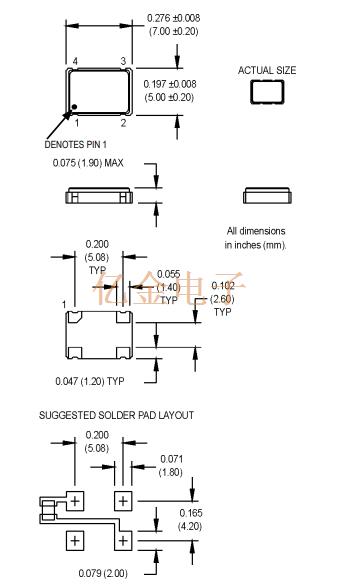

尺寸：7.00mm x 5.00mm
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振,是一款定位高精度時鐘應用的晶振產品,具備50.000000MHz的標稱頻率,頻率精度達到工業級高標準,能為設備提供穩定的高頻時鐘信號支撐.作為專為高頻場景設計的型號,其核心參數嚴格符合行業規范,例如在標準工作條件下,頻率穩定度可控制在±20ppm以內,確保信號輸出的精準性.同時,該晶振適配寬電壓輸入范圍(通常支持2.5V-5.5V),兼容不同電路供電需求,無論是低功耗設備還是高負載系統,均能穩定適配,為后續電路設計提供靈活的供電選擇空間.
訂購熱線：0755-27876565
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000貼片有源晶振的核心競爭力在于HCMOS輸出特性與高頻穩定性的結合:相較于普通TTL輸出晶振,HCMOS輸出接口具備更寬的電壓兼容性(支持3.3V/5V雙供電電壓范圍,供電電壓波動±5%內信號輸出穩定),可直接適配不同電壓架構的數字電路,無需額外電平轉換模塊,降低電路設計復雜度.同時,HCMOS輸出信號具備更高的噪聲容限(高電平噪聲容限≥0.4V,低電平噪聲容限≥0.3V),能有效抵御電路中的電壓波動與電磁干擾,確保50.000000MHz高頻信號傳輸過程中的完整性,避免因信號失真導致的設備時序錯亂.此外,HCMOS輸出的低輸出阻抗特性(典型值≤50Ω)可提升信號驅動能力,單路輸出可穩定驅動8~10個負載單元,適配多模塊共享時鐘的場景(如FPGA與多個外設共用時鐘),特別適合高速數字電路(如DDR內存控制器),高頻通信設備(如衛星通信接收機)等對信號質量要求嚴苛的應用.
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
| 原廠型號 Originalmodel： |
          M324TCN 50.000000
|
品牌brand： |
   MTRONPTI晶振
|
| Manufacturer品牌 |
  MTRONPTI麥特倫皮
|
OperatingTemperature溫度 | -40℃ to +70℃ |
| Series型號 |
   M3美國進口晶振
|
Current-Supply(Max) | - |
| Type類型 | XO (Standard) | PackageHeight高度 | 1.9MM |
| Frequency頻率 |
  50M
|
Termination 腳位 |
 4 pad
|
| 輸出方式 Output： | HCMOS | PackageType 封裝類型 | 4-SMD |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 |
      ±50 ppm
|
安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 5.0 x 7.0 mm | 最小包裝數MPQ： | 1000 |
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
| M220168MPJ 156.250000 | M220x | XO | ±20 ppm | 156.25 | ±20 ppm | ±3 ppm | 9.0 X 14.0 mm | -20°C to +70°C |
| MH13FAD-R 16.000000 | M3H and MH | XO | ±100 ppm | 16 | ±100 ppm | ±2 ppm | 8-Pin DIP | 0?C to +70?C |
| 1698-065 18.600000 | MHO+ | XO | ±25 ppm | 18.6 | ±10 ppm | ±2 ppm | 14 Pin DIP | -40?C to +85?C |
| 1674-005 44.736000 | MV3 and MV5 | VCXO | ±50 ppm | 44.736 | ±50 ppm | ±0.5 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| 1674-007 19.440000 | MV3 and MV5 | VCXO | ±50 ppm | 19.44 | ±50 ppm | ±0.5 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| 1674-008 32.768000 | MV3 and MV5 | VCXO | ±50 ppm | 32.768 | ±50 ppm | ±0.5 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| 1674-009 25.000000 | MV3 and MV5 | VCXO | ±50 ppm | 25 | ±50 ppm | ±0.5 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| 1674-013 38.880000 | MV3 and MV5 | VCXO | ±50 ppm | 38.88 | ±50 ppm | ±0.5 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| XO9085-002 | XO9085 | OCXO | ±100 ppb | 100 | ±100 ppb | ±0.5 ppm | Rackmount | 0?C to +50?C |
| XO9085-004 | XO9085 | OCXO | ±100 ppb | 100 | ±100 ppb | ±0.5 ppm | Rackmount | -40?C to +75?C |
| M60532JCN 25.000000 | M6053 and M6054 | TCXO | ±1 ppm | 25 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -40?C to +85?C |
| M60532JSN 10.000000 | M6053 and M6054 | TCXO | ±1 ppm | 10 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -40?C to +85?C |
| M6053S023 32.000000 | M6053 and M6054 | TCXO | ±2.5 ppm | 32 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -40?C to +85?C |
| M6053S036 50.000000 | M6053 and M6054 | TCXO | ±2 ppm | 50 | ±1.5 ppm | ±1 ppm | 3.2 X 5.0 mm | -40?C to +85?C |
| M60552JSN 48.000000 | M6055 and M6056 | TCXO | ±1 ppm | 48 | ±1 ppm | ±1 ppm | 2.5 X 2.0 mm | -40?C to +85?C |
| M6055S014 10.000000 | M6055 and M6056 | TCXO | ±2 ppm | 10 | ±2 ppm | ±1 ppm | 2.5 X 2.0 mm | -30?C to +75?C |
| M6056HGSN 26.000000 | M6055 and M6056 | VCTCXO | ±0.5 ppm | 26 | ±0.5 ppm | ±1 ppm | 2.5 X 3.2 mm | -30?C to +85?C |
| M60642GSN 40.000000 | M6064 and M6065 | TCXO | ±0.5 ppm | 40 | ±0.5 ppm | ±1 ppm | 2.5 X 2.0 mm | -40?C to +85?C |
| M6064S031 20.000000 | M6064 and M6065 | TCXO | ±1 ppm | 20 | ±1 ppm | ±1 ppm | 2.5 X 2.0 mm | -40?C to +85?C |
| 60103-339-R 12.000000 | M3H and MH | XO | ±100 ppm | 12 | ±100 ppm | ±2 ppm | 8-Pin Gull-Wing | -55?C to +105?C |
| 60110-239-R 1.000000 | M3H and MH | XO | ±100 ppm | 1 | ±100 ppm | ±2 ppm | 8-Pin Gull-Wing | -40?C to +85?C |
| 60153-139-R 24.576000 | M3H and MH | XO | ±100 ppm | 24.576 | ±100 ppm | ±2 ppm | 8-Pin Gull-Wing | 0?C to +70?C |
| 60184-269-R 18.432000 | M3H and MH | XO | ±25 ppm | 18.432 | ±25 ppm | ±2 ppm | 8-Pin Gull-Wing | -40?C to +70?C |
| M61612GTSN 10.000000 | M616x | VCTCXO | ±0.5 ppm | 10 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61612JFCN 20.000000 | M616x | TCXO | ±1 ppm | 20 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61612JTCN 10.000000 | M616x | VCTCXO | ±1 ppm | 10 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61612LTCN 10.000000 | M616x | VCTCXO | ±4.6 ppm | 10 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61612MFCN 10.000000 | M616x | TCXO | ±0.2 ppm | 10 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61613LFSN 50.000000 | M616x | TCXO | ±4.6 ppm | 50 | ±1 ppm | NS | 5.0 x 7.0 mm | -55°C to +105°C |
| M61616LTCN 10.000000 | M616x | VCTCXO | ±4.6 ppm | 10 | ±1 ppm | NS | 5.0 x 7.0 mm | -20°C to +70°C |
| M61641GFCN 10.000000 | M616x | TCXO | ±0.5 ppm | 10 | ±1 ppm | NS | 5.0 x 7.0 mm | 0°C to +70°C |
| M61641GFCN 40.000000 | M616x | TCXO | ±0.5 ppm | 40 | ±1 ppm | NS | 5.0 x 7.0 mm | 0°C to +70°C |
| M61642GFCN 24.000000 | M616x | TCXO | ±0.5 ppm | 24 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61642GFSN 20.000000 | M616x | TCXO | ±0.5 ppm | 20 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61642GTSN 40.000000 | M616x | VCTCXO | ±0.5 ppm | 40 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61642JFCN 20.000000 | M616x | TCXO | ±1 ppm | 20 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61642JFCN 50.000000 | M616x | TCXO | ±1 ppm | 50 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61642JFSN 10.000000 | M616x | TCXO | ±1 ppm | 10 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61642JTSN 9.600000 | M616x | VCTCXO | ±1 ppm | 9.6 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61642KFSN 10.000000 | M616x | TCXO | ±2 ppm | 10 | ±1 ppm | NS | 5.0 x 7.0 mm | -40°C to +85°C |
| M61646PTCN 50.000000 | M616x | VCTCXO | ±0.3 ppm | 50 | ±1 ppm | NS | 5.0 x 7.0 mm | -20°C to +70°C |
| M61652GFCN 10.000000 | M616x | TCXO | ±0.5 ppm | 10 | ±1 ppm | ±1 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| M61652GFSN 10.000000 | M616x | TCXO | ±0.5 ppm | 10 | ±1 ppm | ±1 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| M61812GTSN 10.000000 | M168x | VCTCXO | ±0.5 ppm | 10 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -40°C to +85°C |
| M61812MFSN 16.384000 | M618x | TCXO | ±0.2 ppm | 16.384 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -40°C to +85°C |
| M61812MTSN 16.384000 | M618x | VCTCXO | ±0.2 ppm | 16.384 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -40°C to +85°C |
| M61812PFCN 25.000000 | M168x | TCXO | ±0.3 ppm | 25 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -40°C to +85°C |
| M61812PTCN 24.576000 | M168x | VCTCXO | ±0.3 ppm | 24.576 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -40°C to +85°C |
| M61816GFCN 50.000000 | M168x | TCXO | ±0.5 ppm | 50 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -20°C to +70°C |
| M61816PTCN 50.000000 | M168x | VCTCXO | ±0.3 ppm | 50 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -20°C to +70°C |
| M6181S020 32.000000 | M618x | VCTCXO | ±0.28 ppm | 32 | ±1 ppm | ±0.5 ppm | 5.0 x 7.0 mm | -40°C to +85°C |
| M61822PFSN 8.192000 | M168x | TCXO | ±0.3 ppm | 8.192 | ±1 ppm | ±1 ppm | 3.2 X 5.0 mm | -40°C to +85°C |
| HPO-310 66.000000 | HPO | XO | ±5 ppm | 66 | ±5 ppm | NS | 5.0 x 7.0 mm | -55?C to +125?C |
| HPO-310 77.760000 | HPO | XO | ±5 ppm | 77.76 | ±5 ppm | NS | 5.0 x 7.0 mm | -55?C to +125?C |
| HPO-311 112.500000 | HPO | XO | ±5 ppm | 112.5 | ±5 ppm | NS | 5.0 x 7.0 mm | -55?C to +125?C |
| HPO-311 25.000000 | HPO | XO | ±5 ppm | 25 | ±5 ppm | NS | 5.0 x 7.0 mm | -55?C to +125?C |
| HPO-311 62.208000 | HPO | XO | ±5 ppm | 62.208 | ±5 ppm | NS | 5.0 x 7.0 mm | -55?C to +125?C |
| HPO-320 66.000000 | HPO | XO | ±5 ppm | 66 | ±5 ppm | NS | 5.0 x 7.0 mm | -55?C to +125?C |
| HPO-320 77.760000 | HPO | XO | ±5 ppm | 77.76 | ±5 ppm | NS | 5.0 x 7.0 mm | -55?C to +125?C |
| HPO-321 112.500000 | HPO | XO | ±5 ppm | 112.5 | ±5 ppm | NS | 5.0 x 7.0 mm | -55?C to +125?C |
