SXT32413BB27-44.000M 13PF 30PPM 44MHz 3225 SUNTSU

頻率：44MHZ

尺寸：3225mm

SXT32413BB27-44.000M 13PF 30PPM 44MHz 3225 SUNTSU，歐美SUNTSU晶振公司，±10ppm/±10ppm（公差/穩定性），可用-超微型封裝，AT切割基礎，RoHS兼容-磁帶和卷軸。高密度應用程序。PCMCIA。無線應用程序。計算機和調制解調器
訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息

SITIME-2

yijin-1

SXT32413BB27-44.000M 13PF 30PPM 44MHz 3225 SUNTSU，歐美SUNTSU晶振公司，±10ppm/±10ppm（公差/穩定性），可用-超微型封裝，AT切割基礎，RoHS兼容-磁帶和卷軸。高密度應用程序。PCMCIA。無線應用程序。計算機和調制解調器

yijin-2

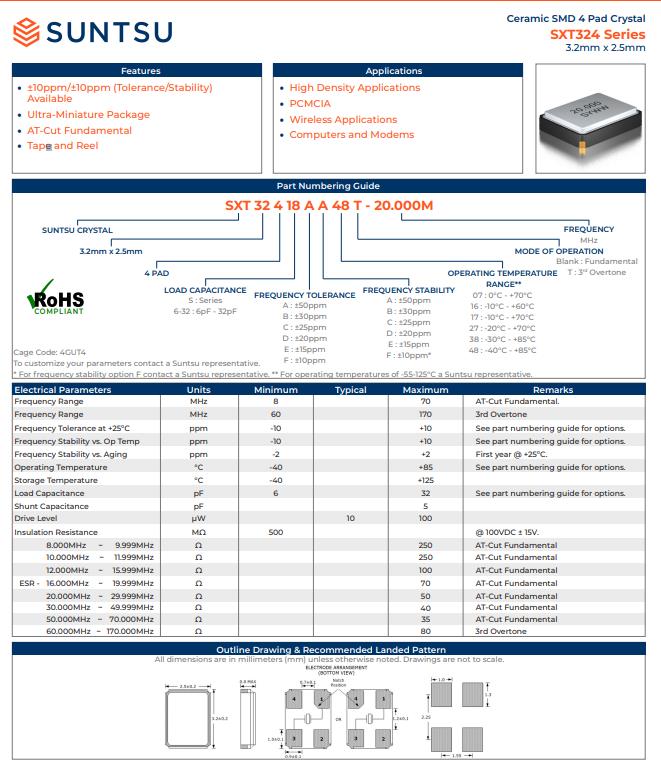

SXT32413BB27-44.000M 13PF 30PPM 44MHz 3225 SUNTSU

  ELECTRICAL PARAMETERS UNITS MIN. TYP. MAX. REMARKS
  Frequency Range MHz 12 70   AT-Cut Fundamental.
60 170   3rd Overtone.
  Frequency Tolerance at +25ºC ppm --10 +10   See part numbering guide for options.
  Frequency Stability vs. Operating Temperature (Ref. 25°C) ppm --10 +10   See part numbering guide for options.
vs. Aging --2 +2   First year @ +25ºC.
  Operating Temperature ºC --40 +85   See part numbering guide for options.
  Storage Temperature ºC --40 +125
  Load Capacitance pF 7 32   See part numbering guide for options.
  Shunt Capacitance pF 5
  Drive Level µW 10 100
  Insulation Resistance M? 500 @ 100VDC ± 15V.
  Equivalent Series Resistance 12.000MHz ~ 15.999MHz ? 100   AT-Cut Fundamental.
16.000MHz ~ 19.999MHz 70   AT-Cut Fundamental.
20.000MHz ~ 29.999MHz 50   AT-Cut Fundamental.
30.000MHz ~ 49.999MHz 40   AT-Cut Fundamental.
50.000MHz ~ 70.000MHz 35   AT-Cut Fundamental.
60.000MHz ~ 170.00MHz 80   3rd Overtone.

yijin-3

SXT32413BB27-44.000M 13PF 30PPM 44MHz 3225 SUNTSU

SXT324 3225

SXT324

SXT32413BB27-26.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 26.000M
SXT32413BB27-27.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 27.000M
SXT32413BB27-27.120M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 27.120M
SXT32413BB27-28.63636M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 28.63636M
SXT32413BB27-29.4912M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 29.4912M
SXT32413BB27-30.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 30.000M
SXT32413BB27-32.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 32.000M
SXT32413BB27-36.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 36.000M
SXT32413BB27-37.400M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 37.400M
SXT32413BB27-38.400M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 38.400M
SXT32413BB27-40.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 40.000M
SXT32413BB27-44.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 44.000M
SXT32413BB27-48.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 48.000M
SXT32413BB27-50.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 50.000M
SXT32413BB27-52.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 52.000M
SXT32413BB38-11.0592M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 11.0592M
SXT32413BB38-12.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 12.000M
SXT32413BB38-12.288M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 12.288M
SXT32413BB38-13.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 13.000M
SXT32413BB38-13.560M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 13.560M
SXT32413BB38-14.31818M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 14.31818M
SXT32413BB38-14.7456M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 14.7456M
SXT32413BB38-16.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 16.000M
SXT32413BB38-16.384M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 16.384M
SXT32413BB38-18.432M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 18.432M
SXT32413BB38-19.200M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 19.200M
SXT32413BB38-19.6608M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 19.6608M
SXT32413BB38-20.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 20.000M
SXT32413BB38-22.1184M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 22.1184M
SXT32413BB38-24.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 24.000M
SXT32413BB38-24.576M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 24.576M
SXT32413BB38-25.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 25.000M
SXT32413BB38-26.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 26.000M
SXT32413BB38-27.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 27.000M
SXT32413BB38-27.120M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 27.120M
SXT32413BB38-28.63636M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 28.63636M
SXT32413BB38-29.4912M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 29.4912M
SXT32413BB38-30.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 30.000M
SXT32413BB38-32.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 32.000M
SXT32413BB38-36.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 36.000M
SXT32413BB38-37.400M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 37.400M
SXT32413BB38-38.400M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 38.400M
SXT32413BB38-40.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 40.000M
SXT32413BB38-44.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 44.000M
SXT32413BB38-48.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 48.000M
SXT32413BB38-50.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 50.000M
SXT32413BB38-52.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 52.000M
SXT32413BB48-11.0592M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 11.0592M
SXT32413BB48-12.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 12.000M
SXT32413BB48-12.288M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 12.288M
SXT32413BB48-13.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 13.000M
SXT32413BB48-13.560M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 13.560M
SXT32413BB48-14.31818M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 14.31818M
SXT32413BB48-14.7456M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 14.7456M
SXT32413BB48-16.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 16.000M
SXT32413BB48-16.384M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 16.384M
SXT32413BB48-18.432M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 18.432M
SXT32413BB48-19.200M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 19.200M
SXT32413BB48-19.6608M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 19.6608M
SXT32413BB48-20.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 20.000M
SXT32413BB48-22.1184M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 22.1184M
SXT32413BB48-24.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 24.000M
SXT32413BB48-24.576M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 24.576M
SXT32413BB48-25.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 25.000M
SXT32413BB48-26.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 26.000M
SXT32413BB48-27.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 27.000M
SXT32413BB48-27.120M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 27.120M
SXT32413BB48-28.63636M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 28.63636M
SXT32413BB48-29.4912M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 29.4912M
SXT32413BB48-30.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 30.000M
SXT32413BB48-32.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 32.000M
SXT32413BB48-36.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 36.000M
SXT32413BB48-37.400M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 37.400M
SXT32413BB48-38.400M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 38.400M
SXT32413BB48-40.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 40.000M
SXT32413BB48-44.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 44.000M
SXT32413BB48-48.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 48.000M
SXT32413BB48-50.000M 3.2X2.5 SMD (4 PAD) CRYSTAL 13pF ±30ppm 50.000M
