SXT11410AA07-38.400M 1612 38.4MHz 10PF 50PPM

頻率：38.4MHZ

尺寸：1612mm

SXT11410AA07-38.400M 1612 38.4MHz 10PF 50PPM，歐美SUNTSU晶振公司，±10ppm/±10ppm（公差/穩定性），可用的超微型包裝切割，基本磁帶和卷軸，藍牙，無線局域網，高密度應用程序。
訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息

SITIME-2

yijin-1

SXT11410AA07-38.400M 1612 38.4MHz 10PF 50PPM，歐美SUNTSU晶振公司，±10ppm/±10ppm（公差/穩定性），可用的超微型包裝切割，基本磁帶和卷軸，藍牙，無線局域網，高密度應用程序。

yijin-2

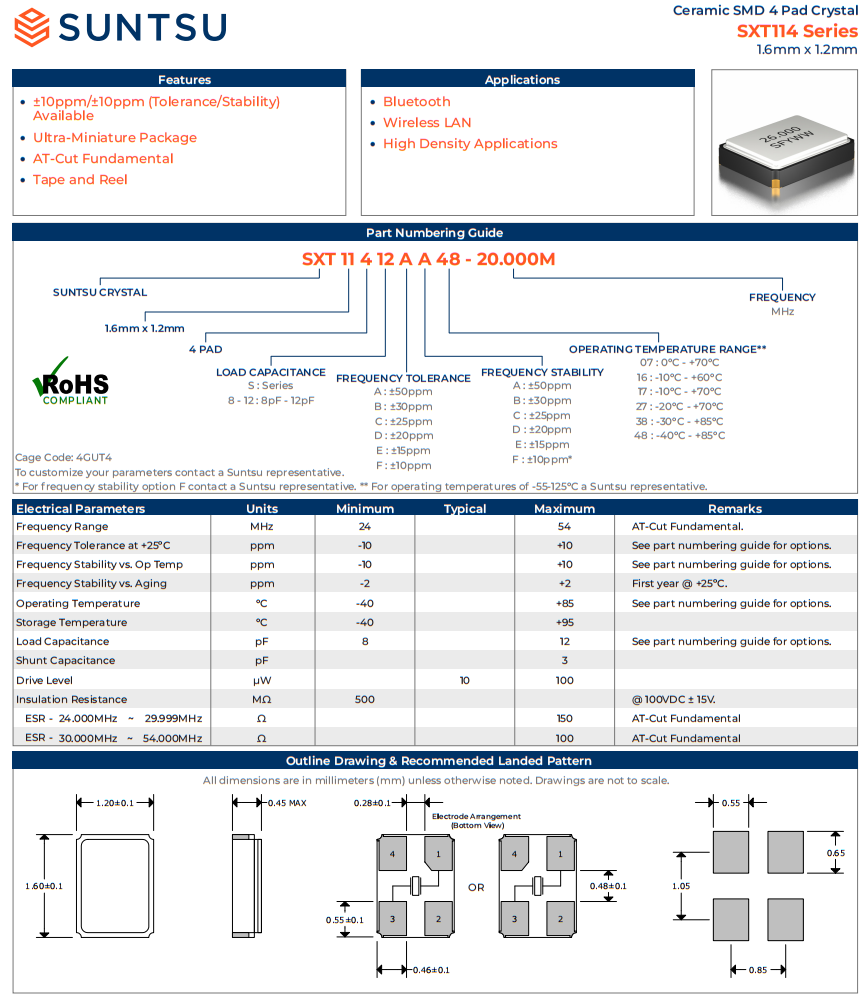

SXT11410AA07-38.400M 1612 38.4MHz 10PF 50PPM

Electrical Parameters Units Minimum Typical Maximum Remarks
Frequency Range MHz 24 54      AT-Cut Fundamental.
Frequency Tolerance at +25ºC ppm --10 +10      See part numbering guide for options.
Frequency Stability vs. Op Temp ppm --10 +10      See part numbering guide for options.
Frequency Stability vs. Aging ppm --2 +2      First year @ +25ºC.
Operating Temperature °C --40 +85      See part numbering guide for options.
Storage Temperature °C --40 +95
Load Capacitance pF 8 12      See part numbering guide for options.
Shunt Capacitance pF 3
Drive Level µW 10 100
 Insulation Resistance M? 500      @ 100VDC ± 15V.
ESR -  24.000MHz   ~   29.999MHz ? 150      AT-Cut Fundamental
ESR -  30.000MHz   ~   54.000MHz ? 100      AT-Cut Fundamental

yijin-3

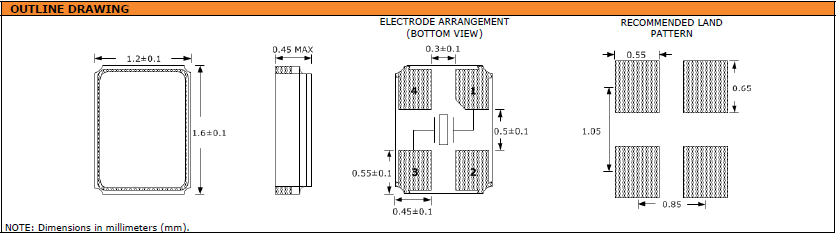

SXT11410AA07-38.400M 1612 38.4MHz 10PF 50PPM

SXT114 1612

SXT114

SUNTSU原廠編碼 尺寸封裝 負載 頻率容差度 工作溫度 頻率
SXT11410AA07-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 24.000M
SXT11410AA07-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 25.000M
SXT11410AA07-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 26.000M
SXT11410AA07-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 27.000M
SXT11410AA07-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 27.120M
SXT11410AA07-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 30.000M
SXT11410AA07-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 32.000M
SXT11410AA07-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 38.400M
SXT11410AA07-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 40.000M
SXT11410AA16-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 24.000M
SXT11410AA16-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 25.000M
SXT11410AA16-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 26.000M
SXT11410AA16-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 27.000M
SXT11410AA16-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 27.120M
SXT11410AA16-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 30.000M
SXT11410AA16-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 32.000M
SXT11410AA16-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 38.400M
SXT11410AA16-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 40.000M
SXT11410AA17-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +70°C 24.000M
SXT11410AA17-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +70°C 25.000M
SXT11410AA17-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +70°C 26.000M
SXT11410AA17-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +70°C 27.000M
SXT11410AA17-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +70°C 27.120M
SXT11410AA17-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +70°C 30.000M
SXT11410AA17-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +70°C 32.000M
SXT11410AA17-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +70°C 38.400M
SXT11410AA17-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +70°C 40.000M
SXT11410AA27-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -20°C - +70°C 24.000M
SXT11410AA27-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -20°C - +70°C 25.000M
SXT11410AA27-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -20°C - +70°C 26.000M
SXT11410AA27-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -20°C - +70°C 27.000M
SXT11410AA27-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -20°C - +70°C 27.120M
SXT11410AA27-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -20°C - +70°C 30.000M
SXT11410AA27-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -20°C - +70°C 32.000M
SXT11410AA27-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -20°C - +70°C 38.400M
SXT11410AA27-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -20°C - +70°C 40.000M
SXT11410AA38-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -30°C - +85°C 24.000M
SXT11410AA38-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -30°C - +85°C 25.000M
SXT11410AA38-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -30°C - +85°C 26.000M
SXT11410AA38-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -30°C - +85°C 27.000M
SXT11410AA38-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -30°C - +85°C 27.120M
SXT11410AA38-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -30°C - +85°C 30.000M
SXT11410AA38-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -30°C - +85°C 32.000M
SXT11410AA38-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -30°C - +85°C 38.400M
SXT11410AA38-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -30°C - +85°C 40.000M
SXT11410AA48-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -40°C - +85°C 24.000M
SXT11410AA48-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -40°C - +85°C 25.000M
SXT11410AA48-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -40°C - +85°C 26.000M
SXT11410AA48-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -40°C - +85°C 27.000M
SXT11410AA48-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -40°C - +85°C 27.120M
SXT11410AA48-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -40°C - +85°C 30.000M
SXT11410AA48-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -40°C - +85°C 32.000M
SXT11410AA48-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -40°C - +85°C 38.400M
SXT11410AA48-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -40°C - +85°C 40.000M
SXT11410BA07-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 24.000M
SXT11410BA07-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 25.000M
SXT11410BA07-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 26.000M
SXT11410BA07-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 27.000M
SXT11410BA07-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 27.120M
SXT11410BA07-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 30.000M
SXT11410BA07-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 32.000M
SXT11410BA07-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 38.400M
SXT11410BA07-40.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm 0°C - +70°C 40.000M
SXT11410BA16-24.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 24.000M
SXT11410BA16-25.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 25.000M
SXT11410BA16-26.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 26.000M
SXT11410BA16-27.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 27.000M
SXT11410BA16-27.120M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 27.120M
SXT11410BA16-30.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 30.000M
SXT11410BA16-32.000M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 32.000M
SXT11410BA16-38.400M 1.6X1.2 SMD (4 PAD) CRYSTAL 10pF ±50ppm -10°C - +60°C 38.400M
