?？怂姑绹д?FK12AEIHI0.032768-T3電動牙刷晶振,FK12A小型音叉晶振

頻率：32.768KHz

尺寸：2012mm

福克斯美國晶振,FK12AEIHI0.032768-T3電動牙刷晶振,FK12A小型音叉晶振,美國FOX晶振公司，音叉晶振，進口晶振，32.768KHz晶振，2012晶振，環保無鉛晶振，低損耗晶振，高精度晶振，二腳晶振，超小型晶振，FK12A晶振，微型晶振，汽車晶振，汽車輔助駕駛晶振，?？怂咕д?/span>，中控系統晶振，美國晶振，SMD晶振，無源晶振，工業設備晶振，移動通訊晶振，石英晶體，6G信號放大器晶振，移動網絡晶振，無源晶振，貼片晶振，智能手表晶振。
訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息

SITIME-2

yijin-1

?？怂姑绹д?/b>,FK12AEIHI0.032768-T3電動牙刷晶振,FK12A小型音叉晶振,美國FOX晶振公司，音叉晶振，進口晶振，32.768KHz晶振，2012晶振，環保無鉛晶振，低損耗晶振，高精度晶振，二腳晶振，超小型晶振，FK12A晶振，微型晶振，汽車晶振，汽車輔助駕駛晶振，?？怂咕д?/b>，中控系統晶振，美國晶振，SMD晶振，無源晶振，工業設備晶振，移動通訊晶振，石英晶體，6G信號放大器晶振，移動網絡晶振，無源晶振，貼片晶振，智能手表晶振。

yijin-2

?？怂姑绹д?/b>,FK12AEIHI0.032768-T3電動牙刷晶振,FK12A小型音叉晶振

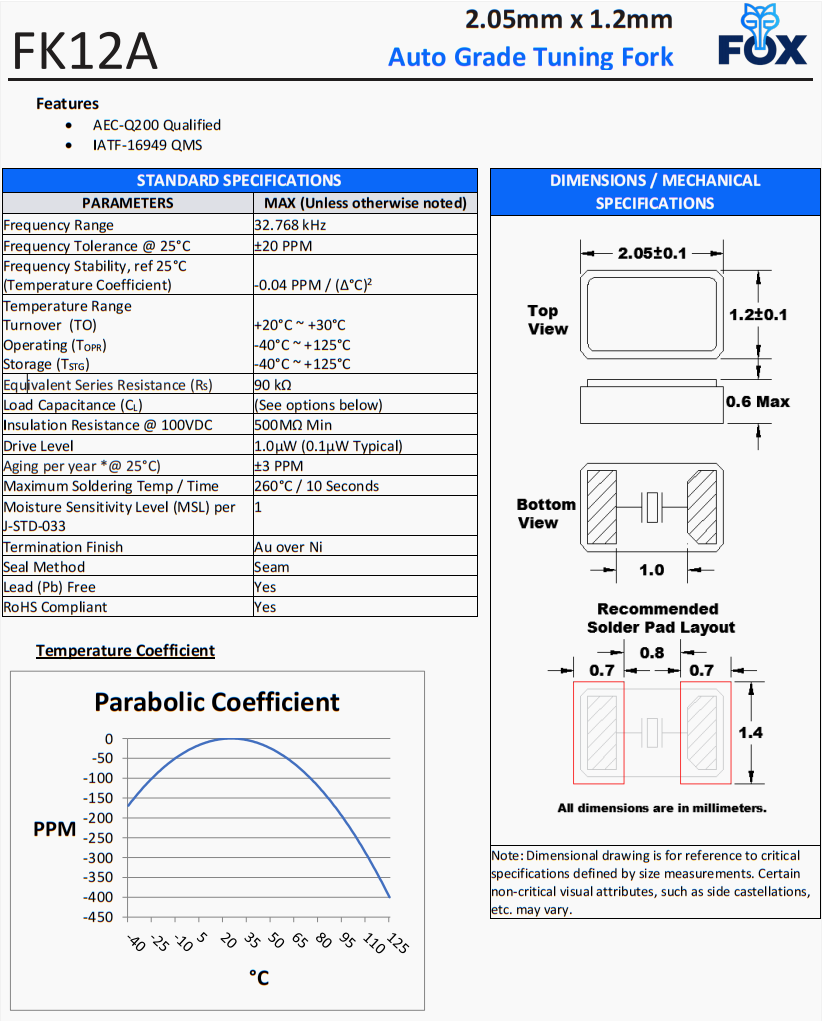

STANDARD SPECIFICATIONS
參數 MAX (Unless otherwise noted)
頻率 32.768 kHz
頻率容差 ±20 PPM
頻率穩定度 -0.04 PPM / (?°C)2

溫度范圍

運輸  (TO)

工作 (TOPR)

儲存 (TSTG)

+20°C ~ +30°C

-40°C ~ +125°C

-40°C ~ +125°C

等效串聯電阻 90 k?
負載電容 (See options below)
絕緣電阻 500M? Min
驅動電平 1.0µW (0.1µW Typical)
老化 ±3 PPM
最大焊接溫度/時間 260°C / 10 Seconds
溫度敏感度 1
終止完成 Au over Ni
密封方法 Seam
無鉛 Yes
符合RoHS Yes
yijin-3

?？怂姑绹д?/b>,FK12AEIHI0.032768-T3電動牙刷晶振,FK12A小型音叉晶振

FK12A

FK12A

編碼 品牌 型號 工作溫度 頻率 頻率穩定度 頻率容差 負載電容
FC0BSFEEN23A99675-T2 Fox FC0BS -20°C ~ 85°C 23.99675 MHz ±20ppm ±15ppm 10 pF
FC0BSFEEN23A99675-T3 Fox FC0BS -20°C ~ 85°C 23.99675 MHz ±20ppm ±15ppm 10 pF
FC1BACBEI20.0-T3 Fox FC1BA -40°C ~ 12°C 20 MHz ±50ppm ±30ppm 10 pF
FC1BAEBDI16.0-T1 Fox FC1BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 8 pF
FC1BAEBDI20.0-T1 Fox FC1BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 8 pF
FC1BAEBDI24.0-T1 Fox FC1BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 8 pF
FC1BAEBDI25.0-T1 Fox FC1BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 8 pF
FC1BAEBDI40.0-T1 Fox FC1BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 8 pF
FC1BAEBEI16.0-T1 Fox FC1BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 10 pF
FC1BAEBEI20.0-T1 Fox FC1BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 10 pF
FC1BAEBEI24.0-T1 Fox FC1BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 10 pF
FC1BAEBEI25.0-T1 Fox FC1BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 10 pF
FC1BAEBEI40.0-T1 Fox FC1BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 10 pF
FC1BAEBGI16.0-T1 Fox FC1BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 12 pF
FC1BAEBGI20.0-T1 Fox FC1BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 12 pF
FC1BAEBGI24.0-T1 Fox FC1BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 12 pF
FC1BAEBGI25.0-T1 Fox FC1BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 12 pF
FC1BAEBGI40.0-T1 Fox FC1BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 12 pF
FC1BQCCEK27.12-1 Fox FC1BQ -30°C ~ 85°C 27.12 MHz ±30ppm ±30ppm 10 pF
FC1BSCBEM27.12-T3 Fox FC1BS -40°C ~ 85°C 27.12 MHz ±50ppm ±30ppm 10 pF
FC1BSCCEM16.0-T3 Fox FC1BS -40°C ~ 85°C 16 MHz ±30ppm ±30ppm 10 pF
FC1BSHFEM32.0-T3 Fox FC1BS -40°C ~ 85°C 32 MHz ±15ppm ±10ppm 10 pF
FC1BSHHVK50.0-1-T3 Fox FC1BS -30°C ~ 85°C 50 MHz ±10ppm ±10ppm 7 pF
FC2BACBEI16.0-T1 Fox FC2BA -40°C ~ 12°C 16 MHz ±50ppm ±30ppm 10 pF
FC2BACBEI16.0-T3 Fox FC2BA -40°C ~ 12°C 16 MHz ±50ppm ±30ppm 10 pF
FC2BAEBDI12.0-T1 Fox FC2BA -40°C ~ 125°C 12 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI16.0-T1 Fox FC2BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI20.0-T1 Fox FC2BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI24.0-T1 Fox FC2BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI25.0-T1 Fox FC2BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI40.0-T1 Fox FC2BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 8 pF
FC2BAEBEI12.0-T1 Fox FC2BA -40°C ~ 125°C 12 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI16.0-T1 Fox FC2BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI20.0-T1 Fox FC2BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI24.0-T1 Fox FC2BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI25.0-T1 Fox FC2BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI40.0-T1 Fox FC2BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 10 pF
FC2BAEBGI25.0-T1 Fox FC2BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 12 pF
FC2BSBBMM16.0-T1 Fox FC2BS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC2BSBBMM16.0-T3 Fox FC2BS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC3BABBKM20.0-T3 Fox FC3BA -40°C ~ 85°C 20 MHz ±50ppm ±50ppm 16 pF
FC3BACAGI16.0-T3 Fox FC3BA -40°C ~ 12°C 16 MHz ±100ppm ±30ppm 12 pF
FC3BACALI16.0-T3 Fox FC3BA -40°C ~ 12°C 16 MHz ±100ppm ±30ppm 18 pF
FC3BACBDI16.0-T3 Fox FC3BA -40°C ~ 12°C 16 MHz ±50ppm ±30ppm 8 pF
FC3BACCGM20.0-T3 Fox FC3BA -40°C ~ 85°C 20 MHz ±30ppm ±30ppm 12 pF
FC3BACCLP12.0-T3 Fox FC3BA -40°C ~ 10°C 12 MHz ±30ppm ±30ppm 18 pF
FC3BAEBDI12.0-T1 Fox FC3BA -40°C ~ 125°C 12 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI16.0-T1 Fox FC3BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI20.0-T1 Fox FC3BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI24.0-T1 Fox FC3BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI25.0-T1 Fox FC3BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI40.0-T1 Fox FC3BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI8.0-T1 Fox FC3BA -40°C ~ 125°C 8 MHz ±50ppm ±20ppm 8 pF
FC3BAEBGI12.0-T1 Fox FC3BA -40°C ~ 125°C 12 MHz ±50ppm ±20ppm 12 pF
FC3BAEBGI24.0-T1 Fox FC3BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 12 pF
FC3BAEBGI25.0-T1 Fox FC3BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 12 pF
FC3BAEBGI40.0-T1 Fox FC3BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 12 pF
FC3BQBBDM20.0-T3 Fox FC3BQ -40°C ~ 85°C 20 MHz ±50ppm ±50ppm 8 pF
FC3BQBBME12.0-T3 Fox FC3BQ -10°C ~ 70°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME16.0-T1 Fox FC3BQ -10°C ~ 70°C 16 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME24.0-T1 Fox FC3BQ -10°C ~ 70°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME25.0-T1 Fox FC3BQ -10°C ~ 70°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME25.0-T3 Fox FC3BQ -10°C ~ 70°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME27.0-T1 Fox FC3BQ -10°C ~ 70°C 27 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM12.0-T1 Fox FC3BQ -40°C ~ 85°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM12.0-T3 Fox FC3BQ -40°C ~ 85°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM24.0-T1 Fox FC3BQ -40°C ~ 85°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM24.0-T3 Fox FC3BQ -40°C ~ 85°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM25.0-T1 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM25.0-T3 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBVM25.0-T3 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 7 pF
FC3BSBBEM26.0-T3 Fox FC3BS -40°C ~ 85°C 26 MHz ±50ppm ±50ppm 10 pF
FC3BSBBLM25.0-T3 Fox FC3BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 18 pF
FC3BSBBMM25.0-T3 Fox FC3BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BSHFEM12.0-T3 Fox FC3BS -40°C ~ 85°C 12 MHz ±15ppm ±10ppm 10 pF
FC3BSHHEF26.0-T3 Fox FC3BS -20°C ~ 70°C 26 MHz ±10ppm ±10ppm 10 pF
FC3BSHHEF32.0-T3 Fox FC3BS -20°C ~ 70°C 32 MHz ±10ppm ±10ppm 10 pF
FC3BSHLGA27.0-1-T3 Fox FC3BS 0°C ~ 50°C 27 MHz ±5ppm ±10ppm 12 pF
FC3VAEEGM50.0-T3 Fox FC3VA -40°C ~ 85°C 50 MHz ±20ppm ±20ppm 12 pF
FC3VREEDM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM38.88-T1 Fox FC3VR -40°C ~ 85°C 38.88 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM40.0-T1 Fox FC3VR -40°C ~ 85°C 40 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM48.0-T1 Fox FC3VR -40°C ~ 85°C 48 MHz ±20ppm ±20ppm 8 pF
FC3VREEEM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 10 pF
FC3VREEGM36.0-T1 Fox FC3VR -40°C ~ 85°C 36 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM38.88-T1 Fox FC3VR -40°C ~ 85°C 38.88 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM40.0-T1 Fox FC3VR -40°C ~ 85°C 40 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM50.0-T1 Fox FC3VR -40°C ~ 85°C 50 MHz ±20ppm ±20ppm 12 pF
FC4SDBBMF3.2-T1 Fox FC4SD -20°C ~ 70°C 3.2 MHz ±50ppm ±50ppm 20 pF
FC4SDCBGF24.0-T1 Fox FC4SD -20°C ~ 70°C 24 MHz ±50ppm ±30ppm 12 pF
FC4SDCBGF4.194304-T1 Fox FC4SD -20°C ~ 70°C 4.194304 MHz ±50ppm ±30ppm 12 pF
FC4SDCBGM8.0-T1 Fox FC4SD -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 12 pF
FC4SDCBKF24.0-T1 Fox FC4SD -20°C ~ 70°C 24 MHz ±50ppm ±30ppm 16 pF
