當前位置：首頁 » 歐美晶振 » 日蝕晶振 » ECLIPTEK日蝕晶振,E1UAA20-20.000M插件晶振,E1UAA室外6G通訊晶振

prevnext

ECLIPTEK日蝕晶振,E1UAA20-20.000M插件晶振,E1UAA室外6G通訊晶振

頻率：20MHZ

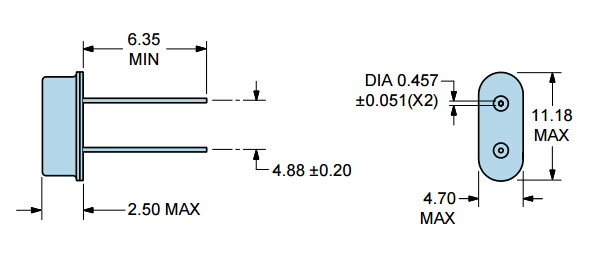

尺寸：11.18X4.7mm

ECLIPTEK日蝕晶振,E1UAA20-20.000M插件晶振,E1UAA室外6G通訊晶振，美國ECLIPTEK晶振公司，日蝕晶振，美國晶振，進口晶振，高性能晶振，插件晶振，49S晶振，二腳晶振，可發揮優秀的電氣特性，室外基站晶振，6G通訊設備晶振，石英晶體諧振器,無源晶振,高品質晶振,低損耗晶振,11.18X4.7mm晶振

訂購熱線：0755-27876565

RS-1

yijin-1

yijin-2

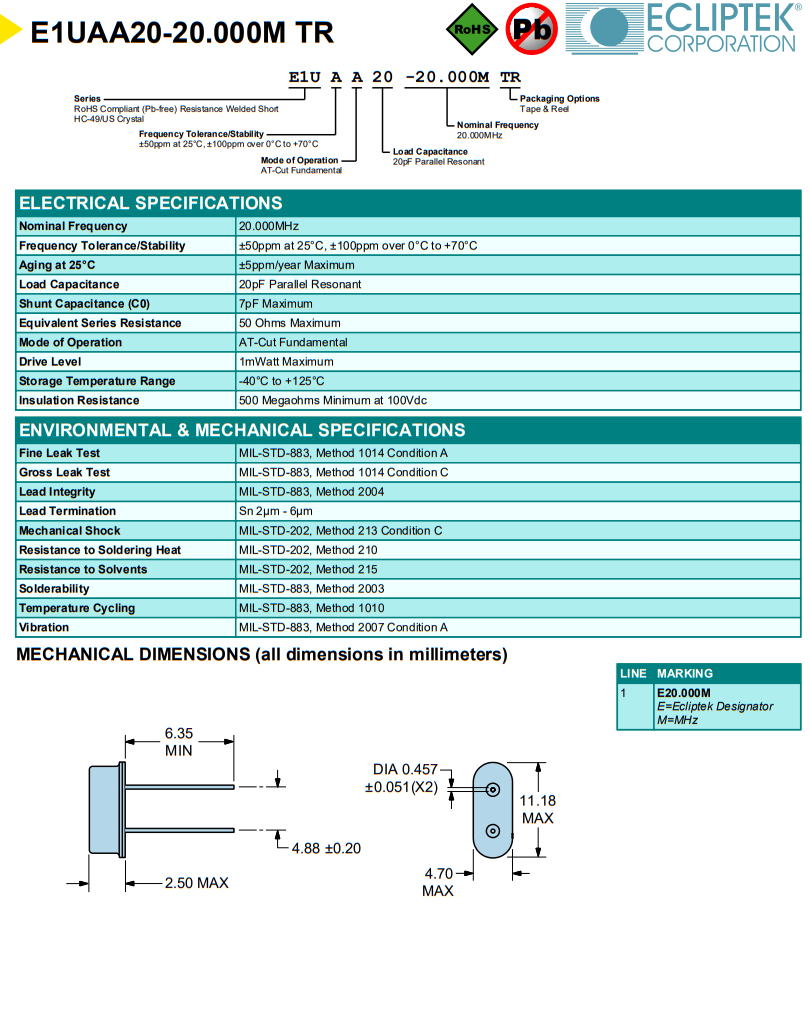

電氣規范
標稱頻率	20.000MHz
頻率容差/穩定度	±50ppm at 25°C, ±100ppm over 0°C to +70°C
老化	±5ppm/year Maximum
負載電容	20pF Parallel Resonant
分流電容 (C0)	7pF Maximum
等效串聯電阻	50 Ohms Maximum
工作模式	AT-Cut Fundamental
驅動電平	1mWatt Maximum
儲存溫度范圍	-40°C to +125°C
絕緣電阻	500 Megaohms Minimum at 100Vdc

yijin-3

Ecliptek原廠編碼	生產商	系列	頻率	頻率穩定性	頻率容差	負載電容	工作溫度
E8WSDC12-32.768K TR	Ecliptek晶振	E8WS	32.768 kHz	-	±20ppm	12.5pF	-40°C ~ 85°C
EA2532LA18-24.000M TR	Ecliptek晶振	EA2532	24 MHz	±30ppm	±15ppm	18pF	-40°C ~ 85°C
E1SJA18-7.3728M TR	Ecliptek晶振	E1S	7.3728 MHz	±30ppm	±15ppm	18pF	-40°C ~ 85°C
E1SCA18-8.000M TR	Ecliptek晶振	E1S	8 MHz	±100ppm	±50ppm	18pF	-40°C ~ 85°C
E1SFA18-25.000M TR	Ecliptek晶振	E1S	25 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
E1SJA18-4.000M TR	Ecliptek晶振	E1S	4 MHz	±30ppm	±15ppm	18pF	-40°C ~ 85°C
E1SJA18-25.000M TR	Ecliptek晶振	E1S	25 MHz	±30ppm	±15ppm	18pF	-40°C ~ 85°C
E1SEA18-8.000M TR	Ecliptek晶振	E1S	8 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
E1SDA12-25.000M TR	Ecliptek晶振	E1S	25 MHz	±50ppm	±30ppm	12pF	0°C ~ 70°C
EA2532LA18-16.000M TR	Ecliptek晶振	EA2532	16 MHz	±30ppm	±15ppm	18pF	-40°C ~ 85°C
EA2532LA18-20.000M TR	Ecliptek晶振	EA2532	20 MHz	±30ppm	±15ppm	18pF	-40°C ~ 85°C
EA2532QA18-24.000M TR	Ecliptek晶振	EA2532	24 MHz	±20ppm	±15ppm	18pF	-40°C ~ 85°C
EA2532QA18-14.7456M TR	Ecliptek晶振	EA2532	14.7456 MHz	±20ppm	±15ppm	18pF	-40°C ~ 85°C
EA2532QA18-25.000M TR	Ecliptek晶振	EA2532	25 MHz	±20ppm	±15ppm	18pF	-40°C ~ 85°C
EA2532QA08-16.000M TR	Ecliptek晶振	EA2532	16 MHz	±20ppm	±15ppm	8pF	-40°C ~ 85°C
EB1620JA10-27.120M TR	Ecliptek晶振	EB1620	27.12 MHz	±30ppm	±15ppm	10pF	-40°C ~ 85°C
EB1620JA10-20.000M TR	Ecliptek晶振	EB1620	20 MHz	±30ppm	±15ppm	10pF	-40°C ~ 85°C
EB1620JA10-19.200M TR	Ecliptek晶振	EB1620	19.2 MHz	±30ppm	±15ppm	10pF	-40°C ~ 85°C
EB1620JA10-26.000M TR	Ecliptek晶振	EB1620	26 MHz	±30ppm	±15ppm	10pF	-40°C ~ 85°C
EB1620JA10-27.000M TR	Ecliptek晶振	EB1620	27 MHz	±30ppm	±15ppm	10pF	-40°C ~ 85°C
EB2532JA12-24.000M TR	Ecliptek晶振	EB2532	24 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-28.63636M TR	Ecliptek晶振	EB2532	28.63636 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-13.560M TR	Ecliptek晶振	EB2532	13.56 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-27.000M TR	Ecliptek晶振	EB2532	27 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB2532JA12-40.000M TR	Ecliptek晶振	EB2532	40 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB1620YA10-24.000M TR	Ecliptek晶振	EB1620	24 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
EB1620YA10-26.000M TR	Ecliptek晶振	EB1620	26 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
EB1620YA10-24.576M TR	Ecliptek晶振	EB1620	24.576 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
EB1620YA10-25.000M TR	Ecliptek晶振	EB1620	25 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
EB2532YA12-40.000M TR	Ecliptek晶振	EB2532	40 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-25.000M TR	Ecliptek晶振	EB2532	25 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-12.288M TR	Ecliptek晶振	EB2532	12.288 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-27.000M TR	Ecliptek晶振	EB2532	27 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-20.000M TR	Ecliptek晶振	EB2532	20 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-26.000M TR	Ecliptek晶振	EB2532	26 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB2532YA12-28.63636M TR	Ecliptek晶振	EB2532	28.63636 MHz	±50ppm	±30ppm	12pF	-40°C ~ 125°C
EB1216JA10-27.120M TR	Ecliptek晶振	EB1216	27.12 MHz	±30ppm	±15ppm	10pF	-40°C ~ 85°C
EB1216JA10-27.000M TR	Ecliptek晶振	EB1216	27 MHz	±30ppm	±15ppm	10pF	-40°C ~ 85°C
EB1620YA10-32.000M TR	Ecliptek晶振	EB1620	32 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
EB1620YA10-27.120M TR	Ecliptek晶振	EB1620	27.12 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
EB1216YA10-27.000M TR	Ecliptek晶振	EB1216	27 MHz	±50ppm	±30ppm	10pF	-40°C ~ 85°C
EB1216YA10-26.000M TR	Ecliptek晶振	EB1216	26 MHz	±50ppm	±30ppm	10pF	-40°C ~ 85°C
EB1216YA10-25.000M TR	Ecliptek晶振	EB1216	25 MHz	±50ppm	±30ppm	10pF	-40°C ~ 85°C
EA2025JA18-25.000M TR	Ecliptek晶振	EA2025	25 MHz	±30ppm	±15ppm	18pF	-40°C ~ 85°C
EA3250MA10-14.7456M TR	Ecliptek晶振	EA3250	14.7456 MHz	±20ppm	±15ppm	10pF	-40°C ~ 85°C
EB3250JA12-12.000M TR	Ecliptek晶振	EB3250	12 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EB3250JA12-24.000M TR	Ecliptek晶振	EB3250	24 MHz	±30ppm	±15ppm	12pF	-40°C ~ 85°C
EA3250FA18-25.000M TR	Ecliptek晶振	EA3250	25 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
E1SFA12-3.6864M TR	Ecliptek晶振	E1S	3.6864 MHz	±50ppm	±30ppm	12pF	-40°C ~ 85°C
EA2532LA18-32.000M TR	Ecliptek晶振	EA2532	32 MHz	±30ppm	±15ppm	18pF	-40°C ~ 85°C
