E2SB32E00000YE|鴻星品牌|2520mm|6G路由器晶振

頻率：32MHz

尺寸：2.5mm×2.0mm

E2SB32E00000YE|鴻星品牌|2520mm|6G路由器晶振,臺灣鴻星晶振,E2SB無源晶振,E2SB32E00000YE晶振,進口晶振,石英晶體諧振器,2520貼片晶振,SMD晶體,頻率32MHz,負載12pF,頻率穩定性10ppm,工作溫度-40~105°C,高可靠性晶振,耐高溫晶振,高品質晶振,6G路由器晶振,無線局域網晶振,工業自動化晶振,監控攝像頭晶振.

訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息

yijin-1E2SB32E00000YE|鴻星品牌|2520mm|6G路由器晶振,臺灣鴻星晶振,E2SB無源晶振,E2SB32E00000YE晶振,進口晶振,石英晶體諧振器,2520貼片晶振,SMD晶體,頻率32MHz,負載12pF,頻率穩定性10ppm,工作溫度-40~105°C,高可靠性晶振,耐高溫晶振,高品質晶振,6G路由器晶振,無線局域網晶振,工業自動化晶振,監控攝像頭晶振.

E2SB32E00000YE|鴻星品牌|2520mm|6G路由器晶振特點：

-非常緊湊和薄(2.5*2.0*0.65毫米最大)

-頻率范圍為12M至62.5M，帶Fund

-優異的電氣性能，辦公自動化，AV(視聽)，藍牙和無線局域網應用的理想選擇

-優異的耐熱性和抗震性

-無鉛，滿足使用無鉛焊料的回流剖面要求

yijin-2

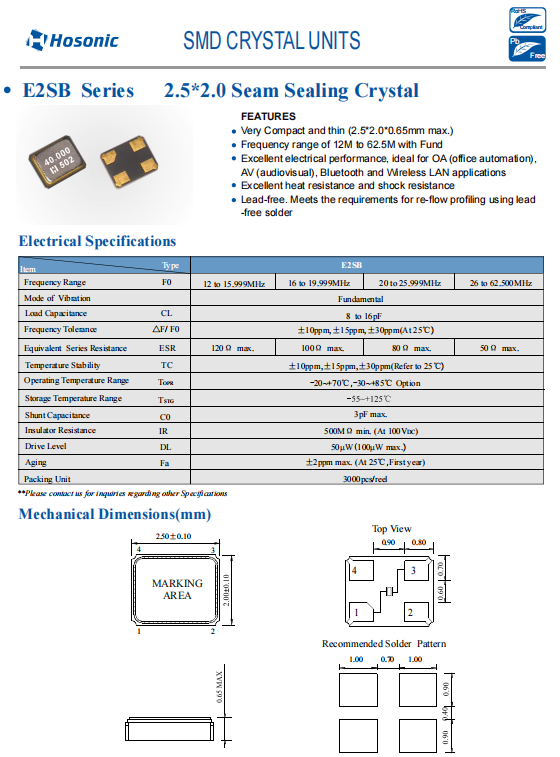

E2SB32E00000YE|鴻星品牌|2520mm|6G路由器晶振規格表

Item   Type E2SB
Frequency Range   F0 32 MHz
Mode of Vibration
Fundamental
Load Capacitance   CL 12pF
Frequency Tolerance ΔF/ F0 ±10ppm (At 25℃)
Equivalent  Series Resistance ESR 50 Ω max.
Temperature Stability TC ±10ppm  (Refer to 25℃)
Operating Temperature Range TOPR -40~+105℃
Storage Temperature Range TSTG -55~+125℃
Shunt Capacitance C0 3pF max.
Insulator Resistance IR 500MΩ min. (At 100VDC)
Drive Level DL 50μW(100μW max.)
Aging Fa ±2ppm max. (At 25℃,First year)
Packing Unit
3000pcs/reel

yijin-3

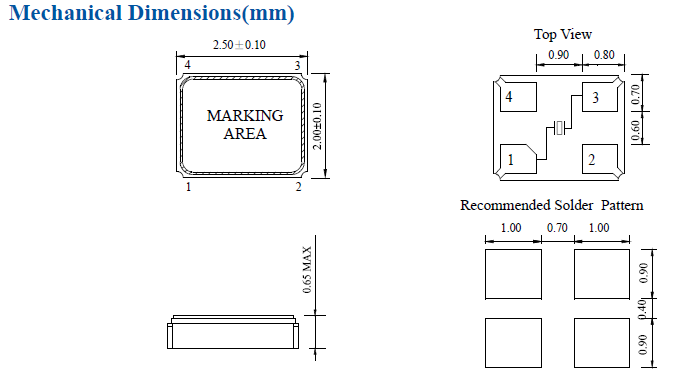

E2SB32E00000YE|鴻星品牌|2520mm|6G路由器晶振尺寸圖

E2SB(Former HCX-2SB) 2520

E2SB

原廠編碼 制造廠家 型號 頻率 負載電容 頻率容差 頻率穩定度 尺寸
E3FB16.0000F18E33 Hosonic晶振 E3FB 16MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB17.0000F18E33 Hosonic晶振 E3FB 17MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB18.0000F18E33 Hosonic晶振 E3FB 18MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB19.0000F18E33 Hosonic晶振 E3FB 19MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB20.0000F18E33 Hosonic晶振 E3FB 20MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB21.0000F18E33 Hosonic晶振 E3FB 21MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB22.0000F18E33 Hosonic晶振 E3FB 22MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB23.0000F18E33 Hosonic晶振 E3FB 23MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB24.0000F18E33 Hosonic晶振 E3FB 24MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB25.0000F18E33 Hosonic晶振 E3FB 25MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB26.0000F18E33 Hosonic晶振 E3FB 26MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB27.0000F18E33 Hosonic晶振 E3FB 27MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB28.0000F18E33 Hosonic晶振 E3FB 28MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB29.0000F18E33 Hosonic晶振 E3FB 29MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB30.0000F18E33 Hosonic晶振 E3FB 30MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB31.0000F18E33 Hosonic晶振 E3FB 31MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB32.0000F18E33 Hosonic晶振 E3FB 32MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB33.0000F18E33 Hosonic晶振 E3FB 33MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB34.0000F18E33 Hosonic晶振 E3FB 34MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB35.0000F18E33 Hosonic晶振 E3FB 35MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB36.0000F18E33 Hosonic晶振 E3FB 36MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB37.0000F18E33 Hosonic晶振 E3FB 37MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB38.0000F18E33 Hosonic晶振 E3FB 38MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB39.0000F18E33 Hosonic晶振 E3FB 39MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB40.0000F18E33 Hosonic晶振 E3FB 40MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB41.0000F18E33 Hosonic晶振 E3FB 41MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB42.0000F18E33 Hosonic晶振 E3FB 42MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB43.0000F18E33 Hosonic晶振 E3FB 43MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB44.0000F18E33 Hosonic晶振 E3FB 44MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB45.0000F18E33 Hosonic晶振 E3FB 45MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB46.0000F18E33 Hosonic晶振 E3FB 46MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB47.0000F18E33 Hosonic晶振 E3FB 47MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB48.0000F18E33 Hosonic晶振 E3FB 48MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB49.0000F18E33 Hosonic晶振 E3FB 49MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB50.0000F18E33 Hosonic晶振 E3FB 50MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB51.0000F18E33 Hosonic晶振 E3FB 51MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB52.0000F18E33 Hosonic晶振 E3FB 52MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB53.0000F18E33 Hosonic晶振 E3FB 53MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB54.0000F18E33 Hosonic晶振 E3FB 54MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB55.0000F18E33 Hosonic晶振 E3FB 55MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB56.0000F18E33 Hosonic晶振 E3FB 56MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB57.0000F18E33 Hosonic晶振 E3FB 57MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB58.0000F18E33 Hosonic晶振 E3FB 58MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB59.0000F18E33 Hosonic晶振 E3FB 59MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB60.0000F18E33 Hosonic晶振 E3FB 60MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB61.0000F18E33 Hosonic晶振 E3FB 61MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB62.0000F18E33 Hosonic晶振 E3FB 62MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB63.0000F18E33 Hosonic晶振 E3FB 63MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB64.0000F18E33 Hosonic晶振 E3FB 64MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB65.0000F18E33 Hosonic晶振 E3FB 65MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E3FB66.0000F18E33 Hosonic晶振 E3FB 66MHz 18pF ±30ppm ±30ppm 3.2 x 2.5 x 0.8 mm
E2SB10.0000F10E12 Hosonic晶振 E2SB 10MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB12.0000F10E11 Hosonic晶振 E2SB 12MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.55 mm
E2SB16.0000F10E12 Hosonic晶振 E2SB 16MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB17.0000F10E12 Hosonic晶振 E2SB 17MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB18.4320F10E12 Hosonic晶振 E2SB 18.432MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB18.0000F10E12 Hosonic晶振 E2SB 18MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB19.0000F10E12 Hosonic晶振 E2SB 19MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB20.0000F10E12 Hosonic晶振 E2SB 20MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB21.0000F10E12 Hosonic晶振 E2SB 21MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB22.0000F10E12 Hosonic晶振 E2SB 22MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB23.0000F10E12 Hosonic晶振 E2SB 23MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB24.0000F10E12 Hosonic晶振 E2SB 24MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB25.0000F10E12 Hosonic晶振 E2SB 25MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E49A12E00000ME Hosonic晶振 E49A 12 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A13E00000ME Hosonic晶振 E49A 13 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A14E00000ME Hosonic晶振 E49A 14 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A15E00000ME Hosonic晶振 E49A 15 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A16E00000ME Hosonic晶振 E49A 16 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A17E00000ME Hosonic晶振 E49A 17 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A18E00000ME Hosonic晶振 E49A 18 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A19E00000ME Hosonic晶振 E49A 19 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A20E00000ME Hosonic晶振 E49A 20 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A21E00000ME Hosonic晶振 E49A 21 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A22E00000ME Hosonic晶振 E49A 22 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A23E00000ME Hosonic晶振 E49A 23 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A24E00000ME Hosonic晶振 E49A 24 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A25E00000ME Hosonic晶振 E49A 25 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A26E00000ME Hosonic晶振 E49A 26 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A27E00000ME Hosonic晶振 E49A 27 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A28E00000ME Hosonic晶振 E49A 28 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A29E00000ME Hosonic晶振 E49A 29 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A30E00000ME Hosonic晶振 E49A 30 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A31E00000ME Hosonic晶振 E49A 31 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A32E00000ME Hosonic晶振 E49A 32 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A33E00000ME Hosonic晶振 E49A 33 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A34E00000ME Hosonic晶振 E49A 34 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A35E00000ME Hosonic晶振 E49A 35 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A36E00000ME Hosonic晶振 E49A 36 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A37E00000ME Hosonic晶振 E49A 37 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A38E00000ME Hosonic晶振 E49A 38 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A39E00000ME Hosonic晶振 E49A 39 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A40E00000ME Hosonic晶振 E49A 40 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A41E00000ME Hosonic晶振 E49A 41 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A42E00000ME Hosonic晶振 E49A 42 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A43E00000ME Hosonic晶振 E49A 43 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A44E00000ME Hosonic晶振 E49A 44 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A45E00000ME Hosonic晶振 E49A 45 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A46E00000ME Hosonic晶振 E49A 46 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A47E00000ME Hosonic晶振 E49A 47 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A48E00000ME Hosonic晶振 E49A 48 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A49E00000ME Hosonic晶振 E49A 49 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A50E00000ME Hosonic晶振 E49A 50 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A51E00000ME Hosonic晶振 E49A 51 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A52E00000ME Hosonic晶振 E49A 52 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A53E00000ME Hosonic晶振 E49A 53 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A54E00000ME Hosonic晶振 E49A 54 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A55E00000ME Hosonic晶振 E49A 55 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A56E00000ME Hosonic晶振 E49A 56 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E49A57E00000ME Hosonic晶振 E49A 57 MHz 20 pF ±30 ppm ±30 ppm 11.05×4.65mm
E2SB26.0000F10E12 Hosonic晶振 E2SB 26MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB27.0000F10E12 Hosonic晶振 E2SB 27MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB28.0000F10E12 Hosonic晶振 E2SB 28MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB29.0000F10E12 Hosonic晶振 E2SB 29MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB30.0000F10E12 Hosonic晶振 E2SB 30MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB31.0000F10E12 Hosonic晶振 E2SB 31MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB32.0000F10E12 Hosonic晶振 E2SB 32MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB33.0000F10E12 Hosonic晶振 E2SB 33MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB34.0000F10E12 Hosonic晶振 E2SB 34MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB35.0000F10E12 Hosonic晶振 E2SB 35MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB36.0000F10E12 Hosonic晶振 E2SB 36MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB37.0000F10E12 Hosonic晶振 E2SB 37MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB38.0000F10E12 Hosonic晶振 E2SB 38MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB39.0000F10E12 Hosonic晶振 E2SB 39MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB40.0000F10E12 Hosonic晶振 E2SB 40MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB41.0000F10E12 Hosonic晶振 E2SB 41MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB42.0000F10E12 Hosonic晶振 E2SB 42MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB43.0000F10E12 Hosonic晶振 E2SB 43MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB44.0000F10E12 Hosonic晶振 E2SB 44MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB45.0000F10E12 Hosonic晶振 E2SB 45MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB46.0000F10E12 Hosonic晶振 E2SB 46MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB47.0000F10E12 Hosonic晶振 E2SB 47MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB48.0000F10E12 Hosonic晶振 E2SB 48MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB49.0000F10E12 Hosonic晶振 E2SB 49MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB50.0000F10E12 Hosonic晶振 E2SB 50MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB51.0000F10E12 Hosonic晶振 E2SB 51MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB52.0000F10E12 Hosonic晶振 E2SB 52MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB53.0000F10E12 Hosonic晶振 E2SB 53MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB54.0000F10E12 Hosonic晶振 E2SB 54MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB55.0000F10E12 Hosonic晶振 E2SB 55MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E2SB56.0000F10E12 Hosonic晶振 E2SB 56MHz 10pF ±10ppm ±10ppm 2.5 x 2 x 0.56 mm
E3SB13.0000F18E22 Hosonic晶振 E3SB 13 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB14.0000F18E22 Hosonic晶振 E3SB 14 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB15.0000F18E22 Hosonic晶振 E3SB 15 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB16.0000F18E22 Hosonic晶振 E3SB 16 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB17.0000F18E22 Hosonic晶振 E3SB 17 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB18.0000F18E22 Hosonic晶振 E3SB 18 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB19.0000F18E22 Hosonic晶振 E3SB 19 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB20.0000F18E22 Hosonic晶振 E3SB 20 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB21.0000F18E22 Hosonic晶振 E3SB 21 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB22.0000F18E22 Hosonic晶振 E3SB 22 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB23.0000F18E22 Hosonic晶振 E3SB 23 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB24.0000F18E22 Hosonic晶振 E3SB 24 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB25.0000F18E22 Hosonic晶振 E3SB 25 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB26.0000F18E22 Hosonic晶振 E3SB 26 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB27.0000F18E22 Hosonic晶振 E3SB 27 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB28.0000F18E22 Hosonic晶振 E3SB 28 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB29.0000F18E22 Hosonic晶振 E3SB 29 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB30.0000F18E22 Hosonic晶振 E3SB 30 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB31.0000F18E22 Hosonic晶振 E3SB 31 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB32.0000F18E22 Hosonic晶振 E3SB 32 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB33.0000F18E22 Hosonic晶振 E3SB 33 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB34.0000F18E22 Hosonic晶振 E3SB 34 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB35.0000F18E22 Hosonic晶振 E3SB 35 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB36.0000F18E22 Hosonic晶振 E3SB 36 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB37.0000F18E22 Hosonic晶振 E3SB 37 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB38.0000F18E22 Hosonic晶振 E3SB 38 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB39.0000F18E22 Hosonic晶振 E3SB 39 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB40.0000F18E22 Hosonic晶振 E3SB 40 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB41.0000F18E22 Hosonic晶振 E3SB 41 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB42.0000F18E22 Hosonic晶振 E3SB 42 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB43.0000F18E22 Hosonic晶振 E3SB 43 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB44.0000F18E22 Hosonic晶振 E3SB 44 MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB45.0000F18E22 Hosonic晶振 E3SB 45MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB46.0000F18E22 Hosonic晶振 E3SB 46MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB47.0000F18E22 Hosonic晶振 E3SB 47MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB48.0000F18E22 Hosonic晶振 E3SB 48MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB49.0000F18E22 Hosonic晶振 E3SB 49MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB50.0000F18E22 Hosonic晶振 E3SB 50MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB51.0000F18E22 Hosonic晶振 E3SB 51MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB52.0000F18E22 Hosonic晶振 E3SB 52MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB53.0000F18E22 Hosonic晶振 E3SB 53MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB54.0000F18E22 Hosonic晶振 E3SB 54MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB55.0000F18E22 Hosonic晶振 E3SB 55MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm
E3SB56.0000F18E22 Hosonic晶振 E3SB 56MHz 18 pF ±20 ppm ±20 ppm 3.2 x 2.5 x 0.65 mm


yijin-5

YJ-6

深圳市億金電子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone聯系人黃娜：18924600166

QQ工作QQ:857950243

myt貿易通：yijindz2014

tel座機：0755-27876565

email郵箱:yijindz@163.com

inter 網址：http://www.yijindz.com

mwx微信：yijindz，公眾號：NDKcrystal

home地址：廣東省深圳市寶安區107國道旁甲岸路

wxewm

跟此產品相關的產品 / Related Products

M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振
M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振
M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振,具備70.656000MHz的精準標稱頻率,頻率精度達工業級高標準,可滿足高頻場景下對時鐘信號的嚴苛要求.作為有源VCXO壓控晶振,其核心參數設計貼合復雜電路需求:標準工作條件下頻率穩定度控制在±25ppm以內,同時支持寬電壓輸入(典型范圍3.0V-3.6V),適配不同供電體系的設備.此外,該型號的壓控電壓范圍(通常為0.5V-2.5V)覆蓋行業通用標準,通過外部電壓調節可實現±100ppm的頻率牽引范圍,為設備時鐘信號的動態校準提供充足調整空間,尤其適配需實時頻率補償的場景.
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振,是一款定位高精度時鐘應用的晶振產品,具備50.000000MHz的標稱頻率,頻率精度達到工業級高標準,能為設備提供穩定的高頻時鐘信號支撐.作為專為高頻場景設計的型號,其核心參數嚴格符合行業規范,例如在標準工作條件下,頻率穩定度可控制在±20ppm以內,確保信號輸出的精準性.同時,該晶振適配寬電壓輸入范圍(通常支持2.5V-5.5V),兼容不同電路供電需求,無論是低功耗設備還是高負載系統,均能穩定適配,為后續電路設計提供靈活的供電選擇空間.
CMX309FLC2.000MT,CMX-309貼片晶振,汽車設備晶振
CMX309FLC2.000MT,CMX-309貼片晶振,汽車設備晶振

CMX309FLC2.000MT,CMX-309貼片晶振,汽車設備晶振,采用緊湊型貼片封裝的CMX-309系列晶振(含CMX309FLC2.000MT型號),尺寸適配汽車電子設備的小型化布局需求,可直接通過SMT(表面貼裝技術)批量生產,減少人工焊接成本與誤差.相較于傳統插件晶振,其抗震性能提升30%以上,能抵御車輛行駛中的顛簸,震動沖擊,同時節省PCB板空間,助力車載晶振,雷達,智能座艙等高密度集成模塊的設計優化,滿足汽車電子對空間利用率與生產效率的雙重要求.

億金電子產品中心 Product Center

晶振系列

日本進口晶振

臺產晶振

歐美晶振

有源晶振

霧化片

貼片晶振

32.768K

聲表面濾波器

石英晶振

KDS晶振

愛普生晶振

NDK晶振

溫補晶振

聯系億金電子Contact us
咨詢熱線：0755-27876565

手機：189 2460 0166

QQ：857950243

郵箱：yijindz@163.com

地址：深圳市寶安區新安107國道旁甲岸路

Fast Track
快速通道

國內晶振分類：
Domestic Crystal
進口晶振分類：
Import Crystal
