IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振

頻率：32.768MHz

尺寸：3.2mm×2.5mm

IQD晶振|CFPX-180晶振|LFXTAL065272RL3K |3225進口晶振,IQD晶振,CFPX-180無源晶振,石英晶體,LFXTAL065272RL3K晶振,晶體諧振器,3225進口晶振,四腳貼片晶振,SMD晶振,頻率32.768MHz,負載20pF,頻率容差50ppm,工作溫度范圍-40~85°C,輕薄小晶振,高品質晶振,無鉛環保晶振,消費電子產品晶振,家用網關晶振,調制解調器晶振,顯示和控制面板晶振.

訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息

yijin-1

Y-2IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振,IQD晶振,CFPX-180無源晶振,石英晶體,LFXTAL065272RL3K晶振,晶體諧振器,3225進口晶振,四腳貼片晶振,SMD晶振,頻率32.768MHz,負載20pF,頻率容差50ppm,工作溫度范圍-40~85°C,輕薄小晶振,高品質晶振,無鉛環保晶振,消費電子產品晶振,家用網關晶振,調制解調器晶振,顯示和控制面板晶振.

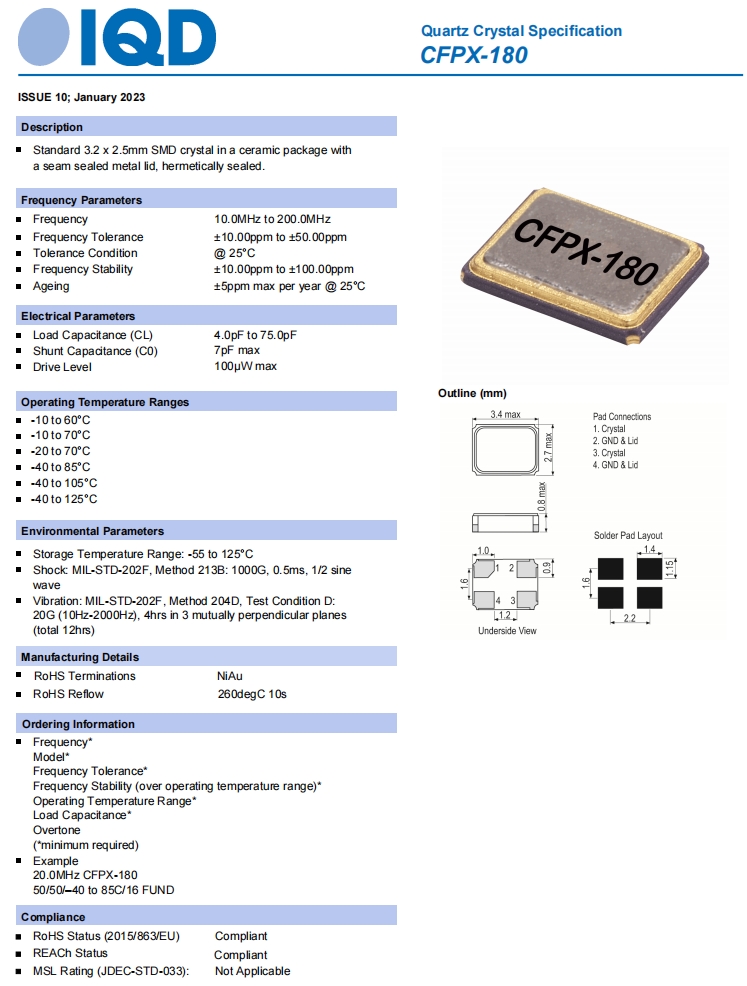

yijin-2IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振規格表

參數 數值
頻率 32.768MHz
頻率容差@ 25°C ± 3°C ±50ppm
頻率穩定性 ±50ppm
工作溫度 -40~85°C
儲存溫度 -55~125°C
負載 20pF
并聯電容 7pF max
驅動電平
300µW max.
老化@ 25°C ± 3°C
±5.0ppm  per year max

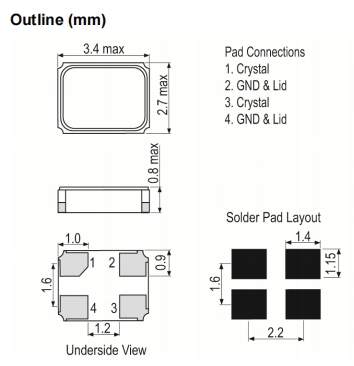

yijin-3IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振尺寸圖

CFPX-180-1

CFPX-180

編碼 型號 頻率 頻率容差 頻率穩定性 工作溫度 負載
LFXTAL071952RL3K  CFPX-218 12.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL072016Reel  CFPX-218 12.0MHz ±10ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL072016RL3K  CFPX-218 12.0MHz ±10ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL079264Reel  CFPX-218 12.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL079389Cutt  CFPX-218 12.0MHz ±20ppm ±30ppm -10°C to 60°C 10.00pF
LFXTAL052180Cutt  CFPX-218 16.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL052180RL3K  CFPX-218 16.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL052895Bulk  CFPX-218 16.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL054342Cutt  CFPX-218 16.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL061817RL3K  CFPX-218 16.0MHz ±10ppm ±20ppm -30°C to 85°C 8.00pF
LFXTAL062065Cutt  CFPX-218 16.0MHz ±10ppm ±15ppm -30°C to 85°C 8.00pF
LFXTAL062065RL3K  CFPX-218 16.0MHz ±10ppm ±15ppm -30°C to 85°C 8.00pF
LFXTAL062487Cutt  CFPX-218 16.0MHz ±10ppm ±15ppm -10°C to 60°C 22.00pF
LFXTAL068297RL3K  CFPX-218 16.0MHz ±10ppm ±10ppm -20°C to 75°C 8.00pF
LFXTAL069392Cutt  CFPX-218 16.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069392Reel  CFPX-218 16.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069392RL3K  CFPX-218 16.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL071094RL3K  CFPX-218 16.0MHz ±15ppm ±15ppm -10°C to 70°C 8.00pF
LFXTAL078960Cutt  CFPX-218 16.0MHz ±15ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL069395Cutt  CFPX-218 16.384MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069395Reel  CFPX-218 16.384MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069395RL3K  CFPX-218 16.384MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069400Cutt  CFPX-218 18.432MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL069400Reel  CFPX-218 18.432MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL069400RL3K  CFPX-218 18.432MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL061682Cutt  CFPX-218 19.2MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL069404Cutt  CFPX-218 19.2MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069404Reel  CFPX-218 19.2MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069404RL3K  CFPX-218 19.2MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082080Cutt  CFPX-218 19.2MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082080RL3K  CFPX-218 19.2MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL090565RL3K CFPX-218 19.2MHz ±25ppm ±25ppm -40°C to 105°C 8.00pF
LFXTAL090181Reel  CFPX-218 19.6608MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL052896Bulk  CFPX-218 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL052896Cutt  CFPX-218 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL069381Cutt  CFPX-218 20.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069381Reel  CFPX-218 20.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069381RL3K  CFPX-218 20.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082081Cutt  CFPX-218 20.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082081RL3K  CFPX-218 20.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL053106Bulk  CFPX-218 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL053106Cutt  CFPX-218 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL053106Reel  CFPX-218 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL061685Cutt  CFPX-218 24.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL069383Cutt  CFPX-218 24.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069383Reel  CFPX-218 24.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069383RL3K  CFPX-218 24.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL071973Cutt  CFPX-218 24.0MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081439RL3K  CFPX-218 24.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL081970RL3K  CFPX-218 24.0MHz ±10ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL082082Cutt  CFPX-218 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082082RL3K  CFPX-218 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082790RL3K  CFPX-218 24.0MHz ±20ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL090514RL3K  CFPX-218 24.0MHz ±30ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL052183Cutt  CFPX-218 24.576MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL053107Bulk  CFPX-218 24.576MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL053107Cutt  CFPX-218 24.576MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL069387Cutt  CFPX-218 24.576MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069387Reel  CFPX-218 24.576MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069387RL3K  CFPX-218 24.576MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL036577Cutt  CFPX-218 25.0MHz ±10ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL037011Cutt  CFPX-218 25.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL053108Bulk  CFPX-218 25.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL059198Cutt  CFPX-218 25.0MHz ±10ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL061687Cutt  CFPX-218 25.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL061687RL3K  CFPX-218 25.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL063334Cutt  CFPX-218 25.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL063334Reel  CFPX-218 25.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL063334RL3K  CFPX-218 25.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL063742RL3K  CFPX-218 25.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL064865Cutt  CFPX-218 25.0MHz ±10ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL064865Reel CFPX-218 25.0MHz ±10ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL069179Cutt  CFPX-218 25.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL075452RL3K  CFPX-218 25.0MHz ±15ppm ±25ppm -40°C to 85°C 8.00pF
LFXTAL078719Cutt  CFPX-218 25.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078719RL3K  CFPX-218 25.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL079273Cutt  CFPX-218 25.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL050991Cutt  CFPX-218 26.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL050991Reel  CFPX-218 26.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL050991RL3K  CFPX-218 26.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL052185Cutt  CFPX-218 26.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL056504RL3K  CFPX-218 26.0MHz ±30ppm ±30ppm -10°C to 60°C 15.00pF
LFXTAL062381Cutt  CFPX-218 26.0MHz ±10ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL063922Cutt  CFPX-218 26.0MHz ±20ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL081865Cutt  CFPX-218 26.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL081865RL3K  CFPX-218 26.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL061689RL3K  CFPX-218 27.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL069405Cutt  CFPX-218 27.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL069405Reel  CFPX-218 27.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL069405RL3K  CFPX-218 27.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL079297Cutt  CFPX-218 27.0MHz ±30ppm ±15ppm -30°C to 85°C 10.00pF
LFXTAL079297RL3K  CFPX-218 27.0MHz ±30ppm ±15ppm -30°C to 85°C 10.00pF
LFXTAL082084Cutt  CFPX-218 27.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082084RL3K  CFPX-218 27.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL072522Cutt  CFPX-218 27.12MHz ±15ppm ±15ppm -10°C to 70°C 8.00pF
LFXTAL036792RL3K  CFPX-218 30.0MHz ±10ppm ±20ppm -10°C to 60°C 12.00pF
LFXTAL065132RL3K  CFPX-218 30.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL069407Cutt  CFPX-218 30.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069407Reel  CFPX-218 30.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069407RL3K  CFPX-218 30.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072844Cutt  CFPX-218 30.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL072844RL3K  CFPX-218 30.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL052187Cutt  CFPX-218 32.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL053109Cutt  CFPX-218 32.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL056767RL3K  CFPX-218 32.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL069268Cutt  CFPX-218 32.0MHz ±15ppm ±18ppm -40°C to 85°C 10.00pF
LFXTAL069390Cutt  CFPX-218 32.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069390Reel  CFPX-218 32.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069390RL3K  CFPX-218 32.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL075523Cutt  CFPX-218 32.0MHz ±10ppm ±15ppm -40°C to 85°C 12.00pF
LFXTAL078207Cutt  CFPX-218 32.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078207RL3K  CFPX-218 32.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078382Reel CFPX-218 32.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082427RL3K  CFPX-218 32.0MHz ±10ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL053110Cutt  CFPX-218 40.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL081564RL3K  CFPX-218 40.0MHz ±20ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082087Cutt  CFPX-218 40.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082087RL3K  CFPX-218 40.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082854RL3K  CFPX-218 40.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL083762RL3K  CFPX-218 40.0MHz ±10ppm ±10ppm -20°C to 70°C 15.00pF
LFXTAL090186RL3K  CFPX-218 48.0MHz ±10ppm ±20ppm -20°C to 70°C 20.00pF
LFXTAL061851Cutt  CFPX-218 50.0MHz ±20ppm ±20ppm -10°C to 60°C 18.00pF
LFXTAL082088Cutt  CFPX-218 50.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082088RL3K  CFPX-218 50.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL086178RL3K  CFPX-218 62.5MHz ±15ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL065272RL3K  CFPX-180 32.768MHz ±50ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL088666RL3K  CFPX-180 32.768MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL059672Cutt  CFPX-180 36.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL075445RL3K  CFPX-180 38.4MHz ±10ppm ±10ppm -20°C to 75°C 8.50pF
LFXTAL076107RL3K  CFPX-180 38.4MHz ±30ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL082763RL3K  CFPX-180 38.4MHz ±30ppm ±30ppm -20°C to 70°C 9.00pF
LFXTAL083279Cutt  CFPX-180 38.4MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL035270Bulk  CFPX-180 40.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL035270Cutt  CFPX-180 40.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL059648Cutt  CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059648Reel  CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059648RL3K  CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL076900Cutt  CFPX-180 40.0MHz ±10ppm ±10ppm -20°C to 75°C 9.00pF
LFXTAL082077RL3K  CFPX-180 40.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL054093Cutt  CFPX-180 41.0MHz ±50ppm ±50ppm -10°C to 60°C 10.50pF
LFXTAL069379Cutt  CFPX-180 44.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL009549Bulk  CFPX-180 48.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL053866Cutt  CFPX-180 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL053866RL3K  CFPX-180 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055570Cutt  CFPX-180 48.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL062288RL3K  CFPX-180 48.0MHz ±30ppm ±30ppm -10°C to 60°C 18.00pF
LFXTAL071958Cutt  CFPX-180 48.0MHz ±30ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL079244Cutt  CFPX-180 48.0MHz ±15ppm ±25ppm -40°C to 85°C 8.00pF
LFXTAL080495RL3K  CFPX-180 48.0MHz ±50ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL080873RL3K  CFPX-180 48.0MHz ±30ppm ±50ppm -20°C to 70°C 10.00pF
LFXTAL082068RL3K  CFPX-180 48.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL083249Cutt  CFPX-180 48.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL084993RL3K  CFPX-180 48.0MHz ±20ppm ±20ppm -20°C to 70°C 18.00pF
LFXTAL090184RL3K  CFPX-180 48.0MHz ±10ppm ±20ppm -20°C to 70°C 20.00pF
LFXTAL060843Cutt  CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL060843Reel  CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL060843RL3K  CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL069349Cutt  CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL072787Cutt  CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072787RL3K  CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL082006Cutt  CFPX-180 50.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL082006RL3K  CFPX-180 50.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL082078Cutt  CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082078Reel  CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082078RL3K  CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082568RL3K  CFPX-180 50.0MHz ±10ppm ±15ppm -40°C to 85°C 12.00pF
LFXTAL082637RL3K  CFPX-180 50.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL083481RL3K  CFPX-180 50.0MHz ±20ppm ±20ppm -40°C to 85°C 16.00pF
LFXTAL062546Cutt  CFPX-180 54.0MHz ±15ppm ±20ppm -20°C to 70°C 19.00pF
LFXTAL062546RL3K  CFPX-180 54.0MHz ±15ppm ±20ppm -20°C to 70°C 19.00pF
LFXTAL083943Cutt  CFPX-180 200.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF

yijin-5

YJ-6

深圳市億金電子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone聯系人黃娜：18924600166

QQ工作QQ:857950243

myt貿易通：yijindz2014

tel座機：0755-27876565

email郵箱:yijindz@163.com

inter 網址：http://www.yijindz.com

mwx微信：yijindz，公眾號：NDKcrystal

home地址：廣東省深圳市寶安區107國道旁甲岸路

wxewm

跟此產品相關的產品 / Related Products

M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振
M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振
M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振,具備70.656000MHz的精準標稱頻率,頻率精度達工業級高標準,可滿足高頻場景下對時鐘信號的嚴苛要求.作為有源VCXO壓控晶振,其核心參數設計貼合復雜電路需求:標準工作條件下頻率穩定度控制在±25ppm以內,同時支持寬電壓輸入(典型范圍3.0V-3.6V),適配不同供電體系的設備.此外,該型號的壓控電壓范圍(通常為0.5V-2.5V)覆蓋行業通用標準,通過外部電壓調節可實現±100ppm的頻率牽引范圍,為設備時鐘信號的動態校準提供充足調整空間,尤其適配需實時頻率補償的場景.
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振,是一款定位高精度時鐘應用的晶振產品,具備50.000000MHz的標稱頻率,頻率精度達到工業級高標準,能為設備提供穩定的高頻時鐘信號支撐.作為專為高頻場景設計的型號,其核心參數嚴格符合行業規范,例如在標準工作條件下,頻率穩定度可控制在±20ppm以內,確保信號輸出的精準性.同時,該晶振適配寬電壓輸入范圍(通常支持2.5V-5.5V),兼容不同電路供電需求,無論是低功耗設備還是高負載系統,均能穩定適配,為后續電路設計提供靈活的供電選擇空間.
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮,具備精準的7.372800MHz標稱頻率,這一頻率值專為需高精度晶振時鐘信號的場景設計,如串口通信,實時時鐘(RTC)模塊等.作為M2532系列的代表性產品,其采用工業級標準封裝,尺寸與電氣接口符合系列統一規范,可與同系列其他頻率型號實現無縫替換,極大降低了設備迭代時的適配成本.同時,該型號支持寬電壓輸入范圍與穩定的負載電容特性,在-40℃~85℃的工業級工作溫度區間內,能保持頻率穩定度在±20ppm以內,滿足惡劣環境下的長期可靠運行需求.
億金電子產品中心 Product Center

晶振系列

日本進口晶振

臺產晶振

歐美晶振

有源晶振

霧化片

貼片晶振

32.768K

聲表面濾波器

石英晶振

KDS晶振

愛普生晶振

NDK晶振

溫補晶振

聯系億金電子Contact us
咨詢熱線：0755-27876565

手機：189 2460 0166

QQ：857950243

郵箱：yijindz@163.com

地址：深圳市寶安區新安107國道旁甲岸路

Fast Track
快速通道

國內晶振分類：
Domestic Crystal
進口晶振分類：
Import Crystal
