357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz
頻率：74.25MHZ
尺寸：7050mm

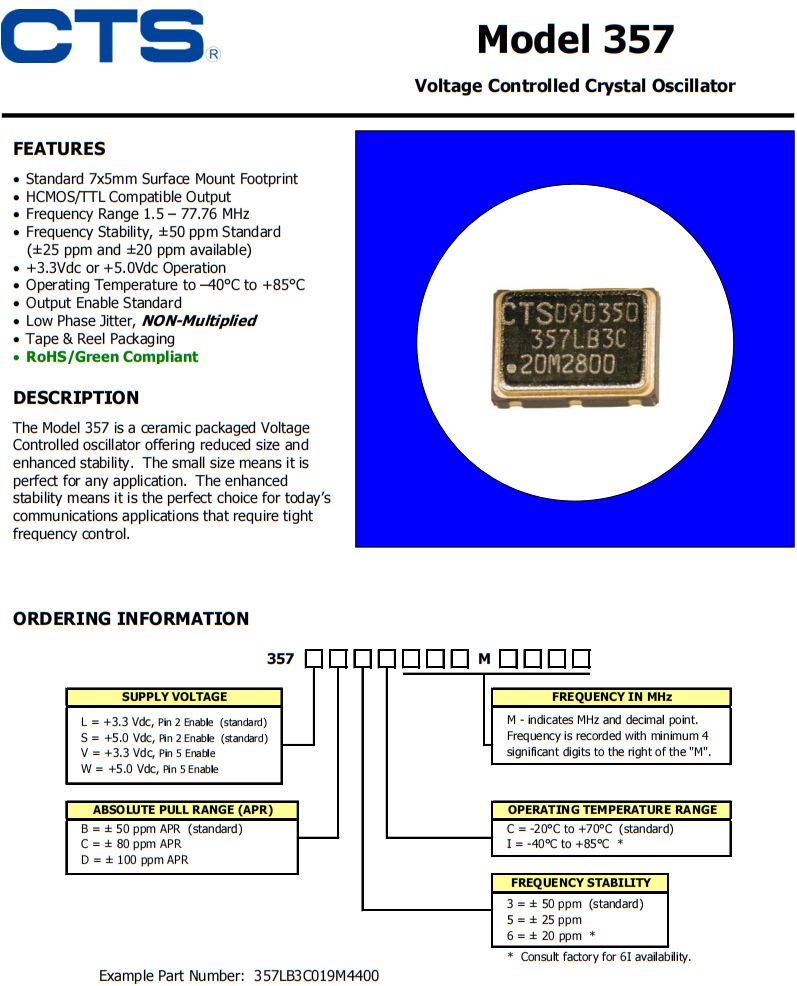

357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz,美國CTS晶振公司,進口貼片晶振,標準7x5mm表面安裝足跡HCMOS/TTL兼容輸出頻率范圍1.5-77.76MHz頻率穩定，±50 ppm標準（±25 ppm和±20ppm）+3.3直流或+5.0直流操作工作溫度-40°C+85°C輸出使標準低相抖動，非相帶和卷軸包裝RoHS/綠色兼容.357型是一個陶瓷封裝的電壓控制振蕩器，提供減小的尺寸和增強的穩定性。較小的尺寸意味著它非常適合任何應用程序。增強的穩定性意味著它是當今需要嚴格的頻率控制的通信應用程序的完美選擇。
357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz,美國CTS晶振公司,進口貼片晶振,標準7x5mm表面安裝足跡HCMOS/TTL兼容輸出頻率范圍1.5-77.76MHz頻率穩定，±50 ppm標準（±25 ppm和±20ppm）+3.3直流或+5.0直流操作工作溫度-40°C+85°C輸出使標準低相抖動，非相帶和卷軸包裝RoHS/綠色兼容.357型是一個陶瓷封裝的電壓控制振蕩器，提供減小的尺寸和增強的穩定性。較小的尺寸意味著它非常適合任何應用程序。增強的穩定性意味著它是當今需要嚴格的頻率控制的通信應用程序的完美選擇。
357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz
參數
代號
環境
最小值
典型的
最大值
單位
最大供應電壓
VCC
-
-0.5
-
7
V
最大控制電壓
VC
-
-0.5
-
VCC
V
儲存溫度
TSTG
-
-55
-
125
°C
頻率范圍
O
-
1.5
-
77.76
MHz
頻率容差 (請參見注1和訂購信息)
?f/fO
20, 25 or 50
± ppm
絕對拉力范圍（見注2和訂購信息）
APR
-
50, 80 or 100
-
-
± ppm
工作溫度
TA
-
-20
70
°C
商業的
-40
25
85
工業的
供應電壓
VCC
± 10 %
4.5
5
5.5
V
Model 357S, 357W
2.97
3.3
3.63
Model 357L, 357V
源電流
CL = 15 pF
5
20
ICC
1.5 MHz to 20 MHz
-
8
30
mA
20.1 MHz to 40 MHz
-
10
40
40.1 MHz to 60 MHz
-
12
45
60.1 MHz to 80 MHz
-
輸出負載
CL
-
-
30
pF
頻率[次數]離差
?f
25°C at Time of Shipment, over VC range
-
135
-
± ppm
輸出占空比
SYM
@ 50% Level
45
-
55
%
上升和下降時間
TR, TF
@ 10% - 90% Levels
-
3.5
5
ns
輸入抗阻
ZC
-
50
-
-
kOhms
轉移上課
-
-
-
Positive
-
-
投產期
TS
Application of VCC
-
-
10
ms
調制卷取
-
@ -3dB
10
-
-
kHz
相位抖動
tjms
Bandwidth 12 kHz - 20 MHz
-
-
1
ps RMS
啟動時間
TPLZ
Pin 2 or Pin 5 Logic '1'
-
-
100
ns
357LC5C074M2500,VCXO,3.3V,25PPM,7050,74.25MHz
| CTS原廠代碼 | 生產商品牌 | 型號 | 類型 | 頻率 | 輸出 | 電壓 |
| 357LB3I032M7680 | CTS-Frequency Controls | 357 | VCXO | 32.768MHz | HCMOS, TTL | 3.3V |
| 357LB3I032M7680 | CTS-Frequency Controls | 357 | VCXO | 32.768MHz | HCMOS, TTL | 3.3V |
| 357LB3I032M7680 | CTS-Frequency Controls | 357 | VCXO | 32.768MHz | HCMOS, TTL | 3.3V |
| 357LB3I040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I002M0480 | CTS-Frequency Controls | 357 | VCXO | 2.048MHz | HCMOS, TTL | 3.3V |
| 357LB3I002M0480 | CTS-Frequency Controls | 357 | VCXO | 2.048MHz | HCMOS, TTL | 3.3V |
| 357LB3I002M0480 | CTS-Frequency Controls | 357 | VCXO | 2.048MHz | HCMOS, TTL | 3.3V |
| 357LB3I027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I004M0960 | CTS-Frequency Controls | 357 | VCXO | 4.096MHz | HCMOS, TTL | 3.3V |
| 357LB3I004M0960 | CTS-Frequency Controls | 357 | VCXO | 4.096MHz | HCMOS, TTL | 3.3V |
| 357LB3I004M0960 | CTS-Frequency Controls | 357 | VCXO | 4.096MHz | HCMOS, TTL | 3.3V |
| 357LB3I019M4400 | CTS-Frequency Controls | 357 | VCXO | 19.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I019M4400 | CTS-Frequency Controls | 357 | VCXO | 19.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I019M4400 | CTS-Frequency Controls | 357 | VCXO | 19.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I001M5440 | CTS-Frequency Controls | 357 | VCXO | 1.544MHz | HCMOS, TTL | 3.3V |
| 357LB3I001M5440 | CTS-Frequency Controls | 357 | VCXO | 1.544MHz | HCMOS, TTL | 3.3V |
| 357LB3I001M5440 | CTS-Frequency Controls | 357 | VCXO | 1.544MHz | HCMOS, TTL | 3.3V |
| 357LB3I006M1760 | CTS-Frequency Controls | 357 | VCXO | 6.176MHz | HCMOS, TTL | 3.3V |
| 357LB3I016M3840 | CTS-Frequency Controls | 357 | VCXO | 16.384MHz | HCMOS, TTL | 3.3V |
| 357LB3I016M3840 | CTS-Frequency Controls | 357 | VCXO | 16.384MHz | HCMOS, TTL | 3.3V |
| 357LB3I016M3840 | CTS-Frequency Controls | 357 | VCXO | 16.384MHz | HCMOS, TTL | 3.3V |
| 357LB3I020M0000 | CTS-Frequency Controls | 357 | VCXO | 20MHz | HCMOS, TTL | 3.3V |
| 357LB3I020M0000 | CTS-Frequency Controls | 357 | VCXO | 20MHz | HCMOS, TTL | 3.3V |
| 357LB3I020M0000 | CTS-Frequency Controls | 357 | VCXO | 20MHz | HCMOS, TTL | 3.3V |
| 357LB3C024M5760 | CTS-Frequency Controls | 357 | VCXO | 24.576MHz | HCMOS, TTL | 3.3V |
| 357LB3C027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I025M6000 | CTS-Frequency Controls | 357 | VCXO | 25.6MHz | HCMOS, TTL | 3.3V |
| 357LB3I035M3280 | CTS-Frequency Controls | 357 | VCXO | 35.328MHz | HCMOS, TTL | 3.3V |
| 357LB3I035M3280 | CTS-Frequency Controls | 357 | VCXO | 35.328MHz | HCMOS, TTL | 3.3V |
| 357LB3I035M3280 | CTS-Frequency Controls | 357 | VCXO | 35.328MHz | HCMOS, TTL | 3.3V |
| 357LB3I038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LB3I038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LB3I038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LB5C038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LD3C027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LD3I012M2880 | CTS-Frequency Controls | 357 | VCXO | 12.288MHz | HCMOS, TTL | 3.3V |
| 357LC5C027M1450 | CTS-Frequency Controls | 357 | VCXO | 27.145MHz | HCMOS, TTL | 3.3V |
| 357LD5C027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I044M7360 | CTS-Frequency Controls | 357 | VCXO | 44.736MHz | HCMOS, TTL | 3.3V |
| 357LB5C049M1520 | CTS-Frequency Controls | 357 | VCXO | 49.152MHz | HCMOS, TTL | 3.3V |
| 357LD5C040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I061M4400 | CTS-Frequency Controls | 357 | VCXO | 61.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I065M3600 | CTS-Frequency Controls | 357 | VCXO | 65.36MHz | HCMOS, TTL | 3.3V |
| 357LB3I065M3600 | CTS-Frequency Controls | 357 | VCXO | 65.36MHz | HCMOS, TTL | 3.3V |
| 357LB3I065M3600 | CTS-Frequency Controls | 357 | VCXO | 65.36MHz | HCMOS, TTL | 3.3V |
| 357LB3I060M0000 | CTS-Frequency Controls | 357 | VCXO | 60MHz | HCMOS, TTL | 3.3V |
| 357LB3I077M7600 | CTS-Frequency Controls | 357 | VCXO | 77.76MHz | HCMOS, TTL | 3.3V |
| 357LB3I077M7600 | CTS-Frequency Controls | 357 | VCXO | 77.76MHz | HCMOS, TTL | 3.3V |
| 357LB3I077M7600 | CTS-Frequency Controls | 357 | VCXO | 77.76MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M1758 | CTS-Frequency Controls | 357 | VCXO | 74.1758MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M1758 | CTS-Frequency Controls | 357 | VCXO | 74.1758MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M1758 | CTS-Frequency Controls | 357 | VCXO | 74.1758MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M2500 | CTS-Frequency Controls | 357 | VCXO | 74.25MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M2500 | CTS-Frequency Controls | 357 | VCXO | 74.25MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M2500 | CTS-Frequency Controls | 357 | VCXO | 74.25MHz | HCMOS, TTL | 3.3V |
