357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD

頻率：1.544MHZ

尺寸：7050mm

357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD,美國CTS晶振公司,進口貼片晶振,標準7x5mm表面安裝足跡HCMOS/TTL兼容輸出頻率范圍1.5-77.76MHz頻率穩定，±50 ppm標準（±25 ppm和±20ppm）+3.3直流或+5.0直流操作工作溫度-40°C+85°C輸出使標準低相抖動，非相帶和卷軸包裝RoHS/綠色兼容.357型是一個陶瓷封裝的電壓控制振蕩器，提供減小的尺寸和增強的穩定性。較小的尺寸意味著它非常適合任何應用程序。增強的穩定性意味著它是當今需要嚴格的頻率控制的通信應用程序的完美選擇。

訂購熱線：0755-27876565

CTS-2 yijin-1

357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD,美國CTS晶振公司,進口貼片晶振,標準7x5mm表面安裝足跡HCMOS/TTL兼容輸出頻率范圍1.5-77.76MHz頻率穩定，±50 ppm標準（±25 ppm和±20ppm）+3.3直流或+5.0直流操作工作溫度-40°C+85°C輸出使標準低相抖動，非相帶和卷軸包裝RoHS/綠色兼容.357型是一個陶瓷封裝的電壓控制振蕩器，提供減小的尺寸和增強的穩定性。較小的尺寸意味著它非常適合任何應用程序。增強的穩定性意味著它是當今需要嚴格的頻率控制的通信應用程序的完美選擇。

357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD

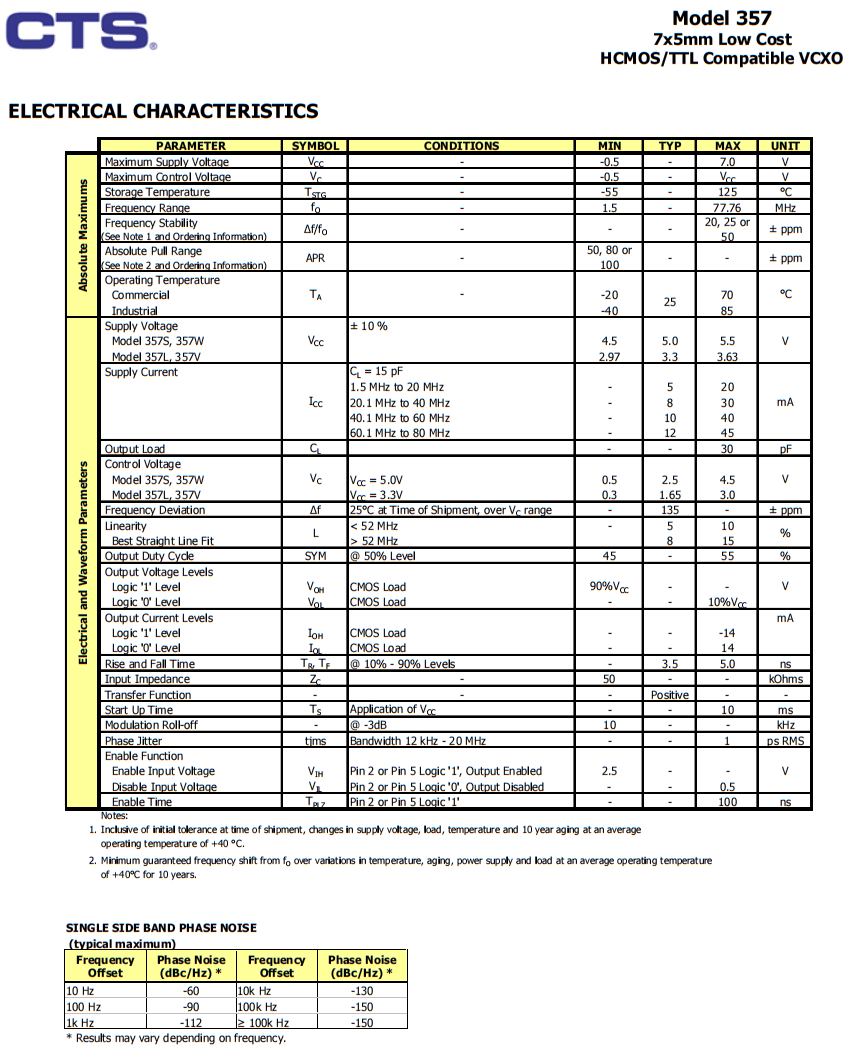

PARAMETER		SYMBOL		CONDITIONS		MIN		TYP		MAX		UNIT
Maximum Supply Voltage	VCC		-		-0.5		-		7.0		V
Maximum Control Voltage	VC		-		-0.5		-		VCC		V
Storage Temperature	TSTG		-		-55		-		125		°C
Frequency Range	O		-		1.5		-		77.76		MHz
Frequency Stability (See Note 1 and Ordering Information)	?f/fO								20, 25 or 50		± ppm

Absolute Pull Range (See Note 2 and Ordering Information)	APR		-		50, 80 or 100		-		-		± ppm
Operating Temperature Commercial Industrial	TA		-		-20 -40		25		70 85		°C
Supply Voltage Model 357S, 357W Model 357L, 357V	VCC		± 10 %		4.5 2.97		5.0 3.3		5.5 3.63		V
Supply Current	ICC		CL = 15 pF 1.5 MHz to 20 MHz 20.1 MHz to 40 MHz 40.1 MHz to 60 MHz 60.1 MHz to 80 MHz		- - - -		5 8 10 12		20 30 40 45		mA
Output Load	CL				-		-		30		pF
Control Voltage Model 357S, 357W Model 357L, 357V	VC		VCC = 5.0V VCC = 3.3V		0.5 0.3		2.5 1.65		4.5 3.0		V
Frequency Deviation	?f		25°C at Time of Shipment, over VC range		-		135		-		± ppm
Linearity Best Straight Line Fit	L		< 52 MHz > 52 MHz		-		5 8		10 15		%
Output Duty Cycle	SYM		@ 50% Level		45		-		55		%
Output Voltage Levels Logic '1' Level Logic '0' Level	VOH VOL		CMOS Load CMOS Load		90%VCC -		- -		- 10%VCC		V
Output Current Levels Logic '1' Level Logic '0' Level	IOH IOL		CMOS Load CMOS Load		- -		- -		-14 14		mA
Rise and Fall Time	TR, TF		@ 10% - 90% Levels		-		3.5		5.0		ns
Input Impedance	ZC		-		50		-		-		kOhms
Transfer Function	-		-		-		Positive		-		-
Start Up Time	TS		Application of VCC		-		-		10		ms
Modulation Roll-off	-		@ -3dB		10		-		-		kHz
Phase Jitter	tjms		Bandwidth 12 kHz - 20 MHz		-		-		1		ps RMS
Enable Function Enable Input Voltage Disable Input Voltage	VIH VIL		Pin 2 or Pin 5 Logic '1', Output Enabled Pin 2 or Pin 5 Logic '0', Output Disabled		2.5 -		- -		- 0.5		V
Enable Time	TPLZ		Pin 2 or Pin 5 Logic '1'		-		-		100		ns

yijin-3

357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD

357(1)

357(2)

CTS原廠代碼	生產商品牌	型號	類型	頻率	輸出	電壓
357LB3I032M7680	CTS-Frequency Controls	357	VCXO	32.768MHz	HCMOS, TTL	3.3V
357LB3I032M7680	CTS-Frequency Controls	357	VCXO	32.768MHz	HCMOS, TTL	3.3V
357LB3I032M7680	CTS-Frequency Controls	357	VCXO	32.768MHz	HCMOS, TTL	3.3V
357LB3I040M0000	CTS-Frequency Controls	357	VCXO	40MHz	HCMOS, TTL	3.3V
357LB3I040M0000	CTS-Frequency Controls	357	VCXO	40MHz	HCMOS, TTL	3.3V
357LB3I040M0000	CTS-Frequency Controls	357	VCXO	40MHz	HCMOS, TTL	3.3V
357LB3I002M0480	CTS-Frequency Controls	357	VCXO	2.048MHz	HCMOS, TTL	3.3V
357LB3I002M0480	CTS-Frequency Controls	357	VCXO	2.048MHz	HCMOS, TTL	3.3V
357LB3I002M0480	CTS-Frequency Controls	357	VCXO	2.048MHz	HCMOS, TTL	3.3V
357LB3I027M0000	CTS-Frequency Controls	357	VCXO	27MHz	HCMOS, TTL	3.3V
357LB3I027M0000	CTS-Frequency Controls	357	VCXO	27MHz	HCMOS, TTL	3.3V
357LB3I027M0000	CTS-Frequency Controls	357	VCXO	27MHz	HCMOS, TTL	3.3V
357LB3I004M0960	CTS-Frequency Controls	357	VCXO	4.096MHz	HCMOS, TTL	3.3V
357LB3I004M0960	CTS-Frequency Controls	357	VCXO	4.096MHz	HCMOS, TTL	3.3V
357LB3I004M0960	CTS-Frequency Controls	357	VCXO	4.096MHz	HCMOS, TTL	3.3V
357LB3I019M4400	CTS-Frequency Controls	357	VCXO	19.44MHz	HCMOS, TTL	3.3V
357LB3I019M4400	CTS-Frequency Controls	357	VCXO	19.44MHz	HCMOS, TTL	3.3V
357LB3I019M4400	CTS-Frequency Controls	357	VCXO	19.44MHz	HCMOS, TTL	3.3V
357LB3I001M5440	CTS-Frequency Controls	357	VCXO	1.544MHz	HCMOS, TTL	3.3V
357LB3I001M5440	CTS-Frequency Controls	357	VCXO	1.544MHz	HCMOS, TTL	3.3V
357LB3I001M5440	CTS-Frequency Controls	357	VCXO	1.544MHz	HCMOS, TTL	3.3V
357LB3I006M1760	CTS-Frequency Controls	357	VCXO	6.176MHz	HCMOS, TTL	3.3V
357LB3I016M3840	CTS-Frequency Controls	357	VCXO	16.384MHz	HCMOS, TTL	3.3V
357LB3I016M3840	CTS-Frequency Controls	357	VCXO	16.384MHz	HCMOS, TTL	3.3V
357LB3I016M3840	CTS-Frequency Controls	357	VCXO	16.384MHz	HCMOS, TTL	3.3V
357LB3I020M0000	CTS-Frequency Controls	357	VCXO	20MHz	HCMOS, TTL	3.3V
357LB3I020M0000	CTS-Frequency Controls	357	VCXO	20MHz	HCMOS, TTL	3.3V
357LB3I020M0000	CTS-Frequency Controls	357	VCXO	20MHz	HCMOS, TTL	3.3V
357LB3C024M5760	CTS-Frequency Controls	357	VCXO	24.576MHz	HCMOS, TTL	3.3V
357LB3C027M0000	CTS-Frequency Controls	357	VCXO	27MHz	HCMOS, TTL	3.3V
357LB3I025M6000	CTS-Frequency Controls	357	VCXO	25.6MHz	HCMOS, TTL	3.3V
357LB3I035M3280	CTS-Frequency Controls	357	VCXO	35.328MHz	HCMOS, TTL	3.3V
357LB3I035M3280	CTS-Frequency Controls	357	VCXO	35.328MHz	HCMOS, TTL	3.3V
357LB3I035M3280	CTS-Frequency Controls	357	VCXO	35.328MHz	HCMOS, TTL	3.3V
357LB3I038M8800	CTS-Frequency Controls	357	VCXO	38.88MHz	HCMOS, TTL	3.3V
357LB3I038M8800	CTS-Frequency Controls	357	VCXO	38.88MHz	HCMOS, TTL	3.3V
357LB3I038M8800	CTS-Frequency Controls	357	VCXO	38.88MHz	HCMOS, TTL	3.3V
357LB5C038M8800	CTS-Frequency Controls	357	VCXO	38.88MHz	HCMOS, TTL	3.3V
357LD3C027M0000	CTS-Frequency Controls	357	VCXO	27MHz	HCMOS, TTL	3.3V
357LD3I012M2880	CTS-Frequency Controls	357	VCXO	12.288MHz	HCMOS, TTL	3.3V
357LC5C027M1450	CTS-Frequency Controls	357	VCXO	27.145MHz	HCMOS, TTL	3.3V
357LD5C027M0000	CTS-Frequency Controls	357	VCXO	27MHz	HCMOS, TTL	3.3V
357LB3I044M7360	CTS-Frequency Controls	357	VCXO	44.736MHz	HCMOS, TTL	3.3V
357LB5C049M1520	CTS-Frequency Controls	357	VCXO	49.152MHz	HCMOS, TTL	3.3V
357LD5C040M0000	CTS-Frequency Controls	357	VCXO	40MHz	HCMOS, TTL	3.3V
357LB3I061M4400	CTS-Frequency Controls	357	VCXO	61.44MHz	HCMOS, TTL	3.3V
357LB3I065M3600	CTS-Frequency Controls	357	VCXO	65.36MHz	HCMOS, TTL	3.3V
357LB3I065M3600	CTS-Frequency Controls	357	VCXO	65.36MHz	HCMOS, TTL	3.3V
357LB3I065M3600	CTS-Frequency Controls	357	VCXO	65.36MHz	HCMOS, TTL	3.3V
357LB3I060M0000	CTS-Frequency Controls	357	VCXO	60MHz	HCMOS, TTL	3.3V
357LB3I077M7600	CTS-Frequency Controls	357	VCXO	77.76MHz	HCMOS, TTL	3.3V
357LB3I077M7600	CTS-Frequency Controls	357	VCXO	77.76MHz	HCMOS, TTL	3.3V
357LB3I077M7600	CTS-Frequency Controls	357	VCXO	77.76MHz	HCMOS, TTL	3.3V
357LC5C074M1758	CTS-Frequency Controls	357	VCXO	74.1758MHz	HCMOS, TTL	3.3V
357LC5C074M1758	CTS-Frequency Controls	357	VCXO	74.1758MHz	HCMOS, TTL	3.3V
357LC5C074M1758	CTS-Frequency Controls	357	VCXO	74.1758MHz	HCMOS, TTL	3.3V
357LC5C074M2500	CTS-Frequency Controls	357	VCXO	74.25MHz	HCMOS, TTL	3.3V
357LC5C074M2500	CTS-Frequency Controls	357	VCXO	74.25MHz	HCMOS, TTL	3.3V
357LC5C074M2500	CTS-Frequency Controls	357	VCXO	74.25MHz	HCMOS, TTL	3.3V
