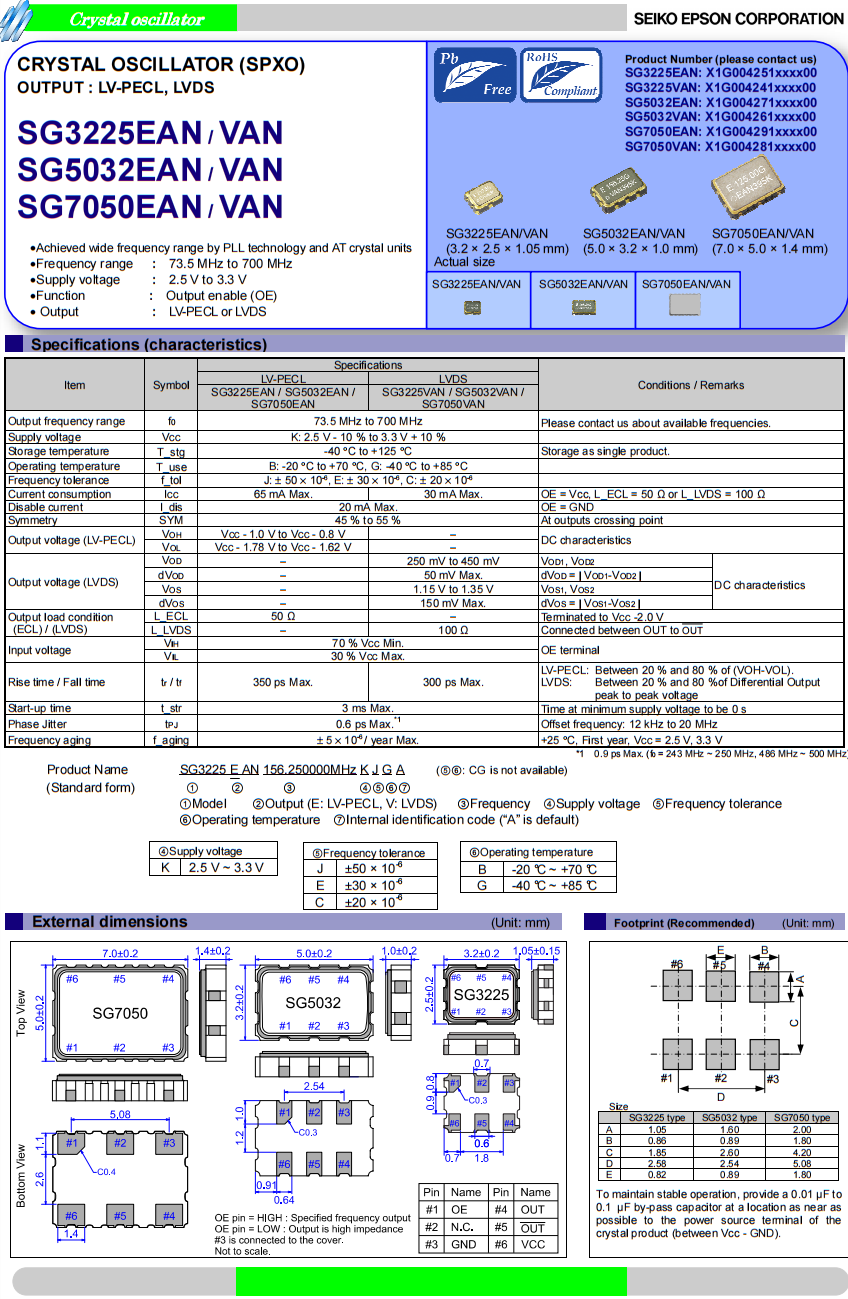

愛普生高精度測量設備差分晶振,SG5032VAN 300.000000M-KJGA3晶振
頻率：300MHZ

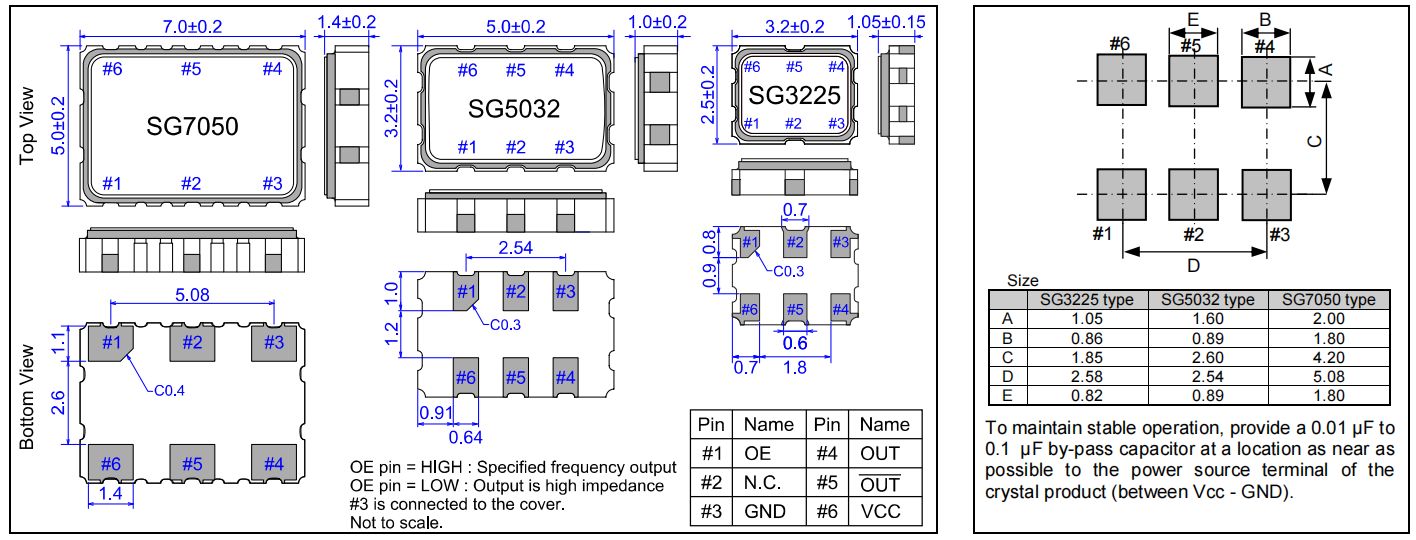

尺寸：5.0x3.2mm
愛普生高精度測量設備差分晶振,SG5032VAN 300.000000M-KJGA3晶振，日本EPSON晶振公司，5032晶振,貼片晶振 ,愛普生晶振,SG5032VAN 300.000000M-KJGA3晶振,高頻晶振,高品質晶振,SG5032晶振,高精度測量設備差分晶振，工業級差分晶振，6G模塊晶振，6G通訊晶振
愛普生高精度測量設備差分晶振,SG5032VAN 300.000000M-KJGA3晶振
參數
符號
規格說明
條件
LV-PECL
LVDS
SG3225EAN / SG5032EAN /
SG7050EAN
SG3225VAN / SG5032VAN /
SG7050VAN
輸出頻率范圍
0
73.5MHz ~ 700 MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
VCC
K: 2.5V ~ 3.3V
VCC= 10%
儲存溫度范圍
T_stg
-40 oC ~ +125 oC
裸存
工作溫度范圍
T_use
B: -20 oC ~ +70 oC, G: -40 oC ~ +85 oC
頻率穩定度
f_tol
J: 50 10-6 , E: 30 10-6 , C: 20 10-6
功耗
ICC
65 mA Max.
30 mA Max.
OE=Vcc, L_ECL=50 or L_LVDS=100
輸出禁用電流
I_dis
20 mA Max.
OE=GND
占空比
SYM
45 % ~ 55 %
在輸出交叉點
輸出電壓(LV-PECL)
VOH
VCC-1.0 V ~ VCC-0.8 V
一
DC 特征
VOL
VCC-1.78 V ~ VCC-1.62 V
一
輸出電壓(LVDS)
VOD
一
250 mV ~ 450mV
VOD1 , VOD2
DC 特征
dVOD
一
50 mV Max.
dVOD = VOD1-VOD2
VOS
一
1.15 V ~ 1.35 V
VOS1 , VOS2
dVOS
一
150 mV Max.
dVOS = VOS1-VOS2
輸出負載條件
(ECL) / (LVDS)
L_ECL
50
一
終止于 VCC -2.0 V
L_LVDS
一
100
連接到 OUT 與 OUT 之間
輸入電壓
VIH
70 % VCC Min.
OE 終端
VIL
30 % VCC Max.
上升/下降時間
tr / tf
350 ps Max.
300 ps Max.
20% ~ 80% (VOH-VOL).
20% ~ 80% 微分輸出 峰-峰值
振蕩啟動時間
t_str
3 ms Max.
在電源電壓最低時，所需時間為 0 秒
相位抖動
PJ
0.6 ps Max.*1
抵消頻率: 12 kHz ~ 20 MHz
頻率老化
f_aging
5 10-6 / year Max.
+25 oC, 第一年, VCC=2.5 V,3.3 V
愛普生高精度測量設備差分晶振,SG5032VAN 300.000000M-KJGA3晶振
| 愛普生原廠編碼 | 生產商品牌 | 型號 | 類型 | 頻率 | 輸出類型 | 電壓 | 頻率偏差度 |
| SG5032VAN 156.250000M-KJGA0 | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 50.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 50 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 100.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 100 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 106.250000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 106.25 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 125.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 133.333300M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 133.3333 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 148.500000M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 148.5 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 148.500000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 148.5 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 150.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 150 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 155.520000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 155.52 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 156.250000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 200.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 212.500000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 212.5 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 312.500000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 312.5 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 400.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 400 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 74.250000M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 74.25 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 74.250000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 74.25 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 75.000000M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 75 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 75.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 75 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 300.000000M-KJGA3 | EPSON | SG5032VAN | XO (Standard) | 300 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 322.265625M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 322.265625 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 200.000000M-KCBA3 | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±20ppm |
| SG5032VAN 100.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 100 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 106.250000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 106.25 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 125.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 133.333300M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 133.3333 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 148.500000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 148.5 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 148.500000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 148.5 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 150.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 150 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 155.520000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 155.52 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 156.244531M-KCBAB | EPSON | SG5032VAN | XO (Standard) | 156.244531 MHz | LVDS | 2.5V ~ 3.3V | ±20ppm |
| SG5032VAN 156.250000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 200.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 200.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 212.500000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 212.5 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 300.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 300 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 312.500000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 312.5 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 312.500000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 312.5 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 400.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 400 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 50.000000M-KJGBB | EPSON | SG5032VAN | XO (Standard) | 50 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 74.250000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 74.25 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 74.250000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 74.25 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 75.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 75 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 75.000000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 75 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 78.125000M-KJGAB | EPSON | SG5032VAN | XO (Standard) | 78.125 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 156.250000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 400.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 400 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 78.125000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 78.125 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 156.2500M-KJBAB | EPSON | SG5032VAN | XO (Standard) | 156.25 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 200.000000M-KCBAB | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±20ppm |
| SG5032VAN 125.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 135.0000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 135 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 322.265625M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 322.265625 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 106.2500000M-KEGA3 | EPSON | SG5032VAN | XO (Standard) | 106.25 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 250.000000M-KEGAB | EPSON | SG5032VAN | XO (Standard) | 250 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 644.531250M-KJGA0 | EPSON | SG5032VAN | XO (Standard) | 644.53125 MHz | LVDS | 2.5V ~ 3.3V | ±50ppm |
| SG5032VAN 400.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 400 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 250.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 250 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 100.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 100 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 200.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 200 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 322.265625M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 322.265625 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
| SG5032VAN 125.000000M-KEGA0 | EPSON | SG5032VAN | XO (Standard) | 125 MHz | LVDS | 2.5V ~ 3.3V | ±30ppm |
