D2SX54E000000E|Hosonic品牌|6G無線模塊晶振

頻率：54MHz

尺寸：2.5mm×2.0mm

D2SX54E000000E|Hosonic品牌|6G無線模塊晶振,Hosonic品牌,D2SX有源晶振,石英晶體振蕩器,D2SX54E000000E晶振,四腳貼片晶振,2520mm晶振,頻率54MHz,電壓3.3V,頻率穩定性25ppm,工作溫度-40~85°C,高品質晶振,高可靠性晶振,抗沖擊晶振,6G無線模塊晶振,家庭安防設備晶振,節能應用晶振,移動應用晶振.

訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息

yijin-1

D2SX54E000000E|Hosonic品牌|6G無線模塊晶振,Hosonic品牌,D2SX有源晶振,石英晶體振蕩器,D2SX54E000000E晶振,四腳貼片晶振,2520mm晶振,頻率54MHz,電壓3.3V,頻率穩定性25ppm,工作溫度-40~85°C,高品質晶振,高可靠性晶振,抗沖擊晶振,6G無線模塊晶振,家庭安防設備晶振,節能應用晶振,移動應用晶振.

D2SX54E000000E|Hosonic品牌|6G無線模塊晶振特點：

- 2.5X2.0X0.9微型封裝

-三態啟用/禁用

-TTL / CMOS兼容

-家庭安防設備，節能應用，以及低頻規格電路設計尋求更小的封裝

-3.3 v, 2.8 v (2.5 v), 1.8 v, 1.5 v選項

yijin-2

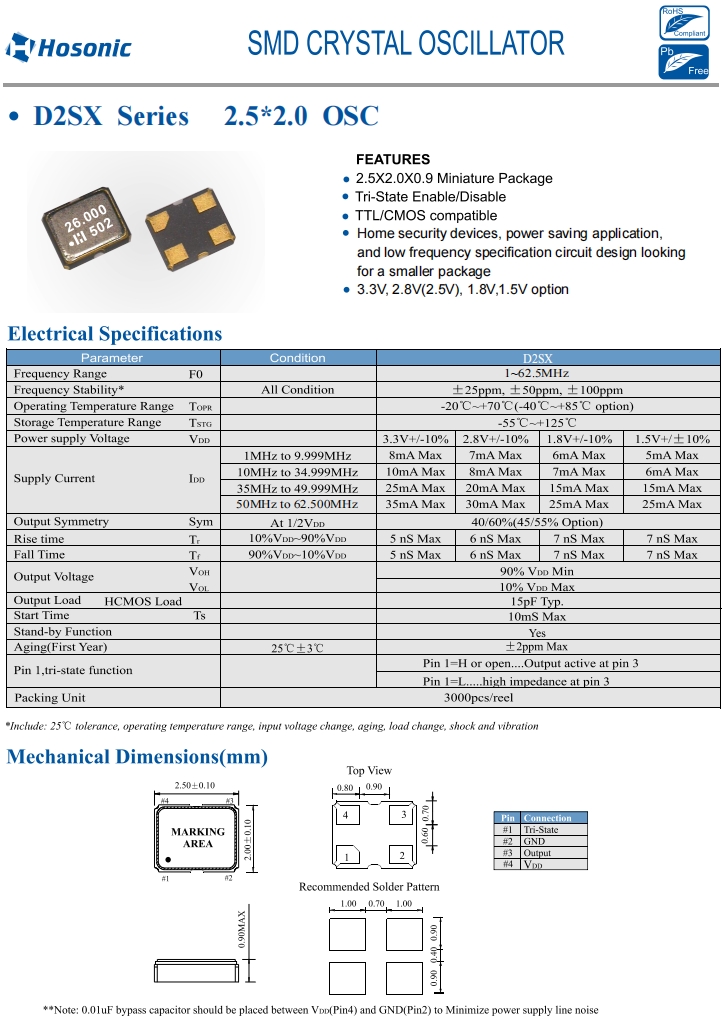

D2SX54E000000E|Hosonic品牌|6G無線模塊晶振規格表

Parameter Condition D2SX
Frequency Range      54MHz
Frequency Stability* AIl Condition 士25ppm
Operating Temperature Range   -40'C~+85'℃
Storage Temperature Range       -55*C-+125℃
Power supply Voltage     3.3V+/-10%
Supply Current Ipo    1MHz to 9.999MHz 8mA Max
10MHz to 34.999MHz 10mA Max
35MHz 10 49.999MHz 25mA Max
50MHz to 62,500MHz 35mA Max
Output Symmetry At 1/2Vop 40/60%(45/ /55% Option)
Rise time    10%Vpp-90%VDD 5 ns Max
Fall Time   90%Vpp-10%VDD 5 ns Max
Output Voltage     VOH 90% Vop Min
VOL 10% Voo Max
VoI Output Load        15pF Typ.
Start Time    10mS Max
Stand-by Function Yes
Aging(First Year) 25℃+3℃ +2ppm Max
Pin 1,tri-state function Pin 1-H or open.... Output active at pin 3
Pin 1-L......high impedance at pin 3
Packing Unit 3000pcs/reel

yijin-3

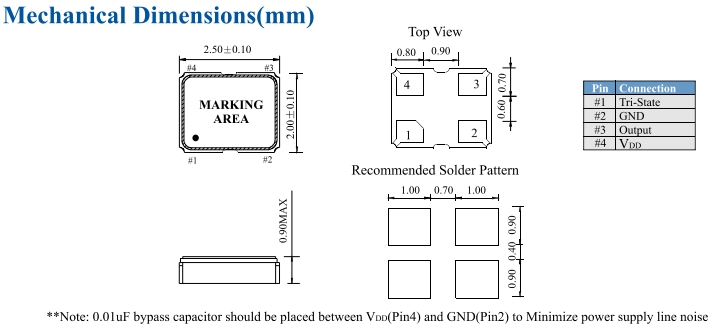

D2SX54E000000E|Hosonic品牌|6G無線模塊晶振尺寸圖

D2SX-1

D2SX

Jauch晶振原廠編碼 制造商 型號 頻率 頻率容差 負載電容 Operating Mode 工作溫度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C

yijin-5

YJ-6

深圳市億金電子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone聯系人黃娜：18924600166

QQ工作QQ:857950243

myt貿易通：yijindz2014

tel座機：0755-27876565

email郵箱:yijindz@163.com

inter 網址：http://www.yijindz.com

mwx微信：yijindz，公眾號：NDKcrystal

home地址：廣東省深圳市寶安區107國道旁甲岸路

wxewm

跟此產品相關的產品 / Related Products

M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振
M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振
M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振,具備70.656000MHz的精準標稱頻率,頻率精度達工業級高標準,可滿足高頻場景下對時鐘信號的嚴苛要求.作為有源VCXO壓控晶振,其核心參數設計貼合復雜電路需求:標準工作條件下頻率穩定度控制在±25ppm以內,同時支持寬電壓輸入(典型范圍3.0V-3.6V),適配不同供電體系的設備.此外,該型號的壓控電壓范圍(通常為0.5V-2.5V)覆蓋行業通用標準,通過外部電壓調節可實現±100ppm的頻率牽引范圍,為設備時鐘信號的動態校準提供充足調整空間,尤其適配需實時頻率補償?shù)膱?chǎng)景.
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振,是一款定位高精度時鐘應用的晶振產品,具備50.000000MHz的標稱頻率,頻率精度達到工業級高標準,能為設備提供穩定的高頻時鐘信號支撐.作為專為高頻場景設計的型號,其核心參數嚴格符合行業規范,例如在標準工作條件下,頻率穩定度可控制在±20ppm以內,確保信號輸出的精準性.同時,該晶振適配寬電壓輸入范圍(通常支持2.5V-5.5V),兼容不同電路供電需求,無論是低功耗設備還是高負載系統,均能穩定適配,為后續電路設計提供靈活的供電選擇空間.
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮,具備精準的7.372800MHz標稱頻率,這一頻率值專為需高精度晶振時鐘信號的場景設計,如串口通信,實時時鐘(RTC)模塊等.作為M2532系列的代表性產品,其采用工業級標準封裝,尺寸與電氣接口符合系列統一規范,可與同系列其他頻率型號實現無縫替換,極大降低了設備迭代時的適配成本.同時,該型號支持寬電壓輸入范圍與穩定的負載電容特性,在-40℃~85℃的工業級工作溫度區間內,能保持頻率穩定度在±20ppm以內,滿足惡劣環境下的長期可靠運行需求.
億金電子產品中心 Product Center

晶振系列

日本進口晶振

臺產晶振

歐美晶振

有源晶振

霧化片

貼片晶振

32.768K

聲表面濾波器

石英晶振

KDS晶振

愛普生晶振

NDK晶振

溫補晶振

聯系億金電子Contact us
咨詢熱線：0755-27876565

手機：189 2460 0166

QQ：857950243

郵箱：yijindz@163.com

地址：深圳市寶安區新安107國道旁甲岸路

Fast Track
快速通道

國內晶振分類：
Domestic Crystal
進口晶振分類：
Import Crystal
