Skyworks晶振,7050mm,599BFC000159DGR,6G信號接收器晶振
頻率：148.5MHz
尺寸：7.0×5.0mm
Skyworks晶振,7050mm,599BFC000159DGR,6G信號接收器晶振,Skyworks晶振,壓控晶振,Si599 有源晶振采用Skyworks Solutions先進的DSPLL®電路,在任何頻率下提供低抖動時鐘,它們是用戶可編程到從10到810兆赫的任何輸出頻率,分辨率為28萬億分之一(PPT),該器件通過2引腳I2C兼容串行接口編程,寬頻率范圍和超精細的編程分辨率使這些器件非常適合需要在線動態頻率調節或非整數相關速率的多速率操作的應用,6G信號接收器晶振,便攜式多媒體設備晶振,以太網晶振,光纖通道晶振.
訂購熱線：0755-27876565
Skyworks晶振,7050mm,599BFC000159DGR,6G信號接收器晶振,Skyworks晶振,壓控晶振,Si599 有源晶振采用Skyworks Solutions先進的DSPLL®電路,在任何頻率下提供低抖動時鐘,它們是用戶可編程到從10到810兆赫的任何輸出頻率,分辨率為28萬億分之一(PPT),該器件通過2引腳I2C兼容串行接口編程,寬頻率范圍和超精細的編程分辨率使這些器件非常適合需要在線動態頻率調節或非整數相關速率的多速率操作的應用,6G信號接收器晶振,便攜式多媒體設備晶振,以太網晶振,光纖通道晶振.

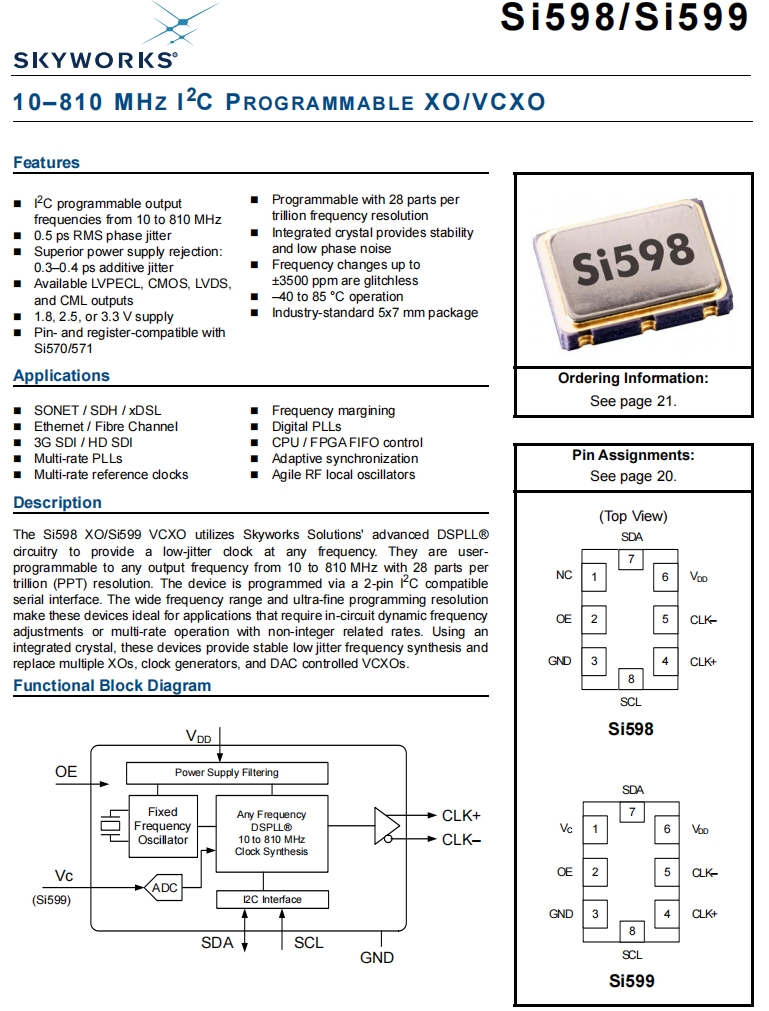

Skyworks晶振,7050mm,599BFC000159DGR,6G信號接收器晶振特點：
•I2C可編程輸出頻率從10MHz到810MHz
•0.5ps RMS相位抖動
•優越的電源拒絕能力:0.3-0.4 ps附加抖動
•引腳和寄存器兼容Si570/571
•可編程的28萬億分之一的頻率分辨率
•集成晶體提供穩定性和低相位噪聲
•頻率變化到±3500ppm無故障
•具備CMOS, LVPECL，LVDS和CML輸出
•3.3, 2.5和1.8 V電源選項
•行業標準的5 × 7mm封裝和引腳
•工作溫度-40~85°C
Skyworks晶振,7050mm,599BFC000159DGR,6G信號接收器晶振規格表
項目
符號
規格說明
條件
額定頻率
f_nom
148.5MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±50 ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
110mA Max
LVDS
對稱性（占空比）
SYM
48%~52%
在輸出交叉點
輸出電壓
VOD
0.9VPP Max
LVDS
VO
1.275V Max
輸入電壓
VIH
0.75 x VDD Min
VIL
0.5V Max
上升下降時間
tr/tf
350ps Max
LVDS
起始時間
t str
10ms Max
相位抖動
tpj
0.5ps Typ

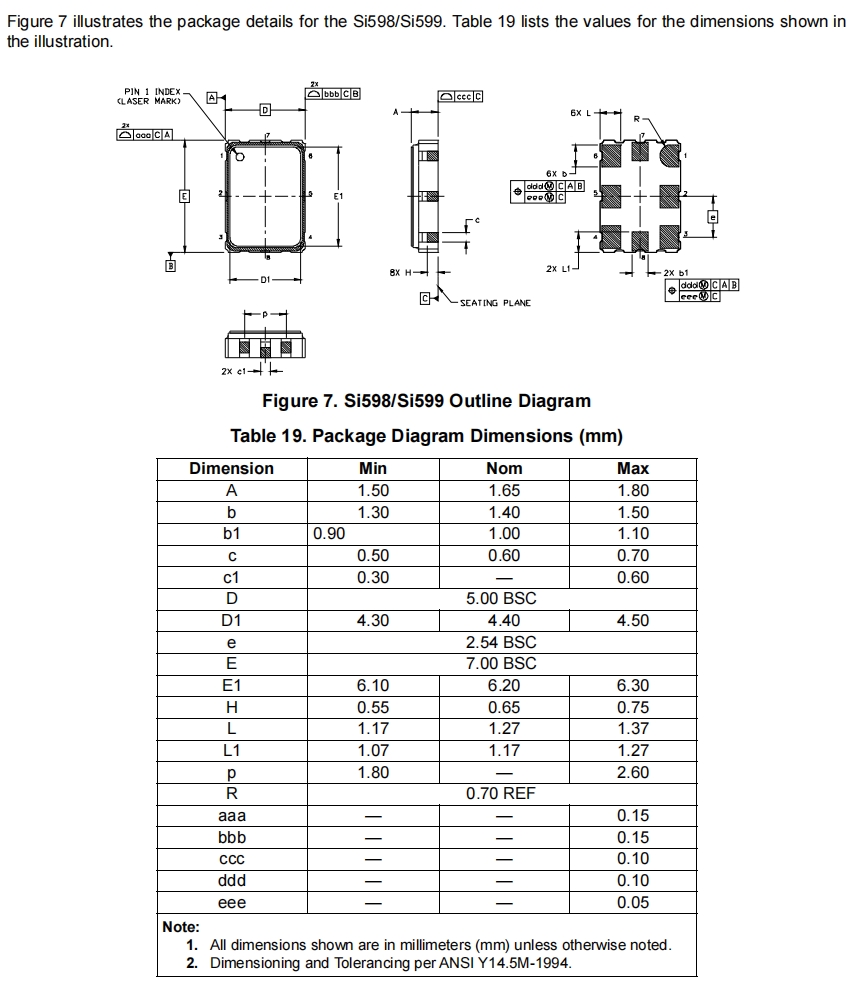

Skyworks晶振,7050mm,599BFC000159DGR,6G信號接收器晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 | 工作溫度 |
| 599BFC000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599NGC000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BFC000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599NGC000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BAC000780DG | Skyworks Solutions Inc. | Si599 | 30 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAC000780DGR | Skyworks Solutions Inc. | Si599 | 30 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ACC000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGC000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000770DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ACC000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGC000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000770DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ADC000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAC001795DG | Skyworks Solutions Inc. | Si599 | 133.3125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBC000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BCB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BEC000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000642DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000770DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHC000348DG | Skyworks Solutions Inc. | Si599 | 16.384 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599EBC000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ECB000103DG | Skyworks Solutions Inc. | Si599 | 155.52 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599ECB000553DG | Skyworks Solutions Inc. | Si599 | 155 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599MHC000775DG | Skyworks Solutions Inc. | Si599 | 36.864 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADC000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAC001795DGR | Skyworks Solutions Inc. | Si599 | 133.3125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBC000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BCB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BEC000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000642DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000770DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHC000348DGR | Skyworks Solutions Inc. | Si599 | 16.384 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599EBC000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ECB000103DGR | Skyworks Solutions Inc. | Si599 | 155.52 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599ECB000553DGR | Skyworks Solutions Inc. | Si599 | 155 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599MHC000775DGR | Skyworks Solutions Inc. | Si599 | 36.864 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADA000105DG | Skyworks Solutions Inc. | Si599 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000141DG | Skyworks Solutions Inc. | Si599 | 56.32 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001603DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDA000372DG | Skyworks Solutions Inc. | Si599 | 800 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000110DG | Skyworks Solutions Inc. | Si599 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000642DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000282DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599MDA000118DG | Skyworks Solutions Inc. | Si599 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001207DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AEA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADA000105DGR | Skyworks Solutions Inc. | Si599 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000141DGR | Skyworks Solutions Inc. | Si599 | 56.32 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001603DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDA000372DGR | Skyworks Solutions Inc. | Si599 | 800 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000110DGR | Skyworks Solutions Inc. | Si599 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000642DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000282DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599MDA000118DGR | Skyworks Solutions Inc. | Si599 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001207DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AEA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ACA000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AFA000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BCA000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BFA000313DG | Skyworks Solutions Inc. | Si599 | 300 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ECA000113DG | Skyworks Solutions Inc. | Si599 | 311.04 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FFA001058DG | Skyworks Solutions Inc. | Si599 | 644.53 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599AGA000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGA000164DG | Skyworks Solutions Inc. | Si599 | 400 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599FGA000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599AGA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ADA900001DGR | Skyworks Solutions Inc. | Si599 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB000704DG | Skyworks Solutions Inc. | Si599 | 146 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ACA000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AFA000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BCA000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BFA000313DGR | Skyworks Solutions Inc. | Si599 | 300 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ECA000113DGR | Skyworks Solutions Inc. | Si599 | 311.04 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FFA001058DGR | Skyworks Solutions Inc. | Si599 | 644.53 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599AGA000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGA000164DGR | Skyworks Solutions Inc. | Si599 | 400 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599FGA000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599BGA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599FDB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599MDB000707DGR | Skyworks Solutions Inc. | Si599 | 164 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599FAB000274DGR | Skyworks Solutions Inc. | Si599 | 148 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599FBB002378DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ADB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB000704DGR | Skyworks Solutions Inc. | Si599 | 146 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB001054DGR | Skyworks Solutions Inc. | Si599 | 162 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000262DGR | Skyworks Solutions Inc. | Si599 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBB000909DGR | Skyworks Solutions Inc. | Si599 | 62.914 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000653DGR | Skyworks Solutions Inc. | Si599 | 161.132812 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB001054DG | Skyworks Solutions Inc. | Si599 | 162 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000262DG | Skyworks Solutions Inc. | Si599 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBB000909DG | Skyworks Solutions Inc. | Si599 | 62.914 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000653DG | Skyworks Solutions Inc. | Si599 | 161.132812 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599FDB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599MDB000707DG | Skyworks Solutions Inc. | Si599 | 164 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599FAB000274DG | Skyworks Solutions Inc. | Si599 | 148 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599FBB002378DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ADA000372DGR | Skyworks Solutions Inc. | Si599 | 800 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000800DGR | Skyworks Solutions Inc. | Si599 | 289 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADA000372DG | Skyworks Solutions Inc. | Si599 | 800 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000800DG | Skyworks Solutions Inc. | Si599 | 289 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
