智能交通燈控制器專用晶振X1E000251001100
愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

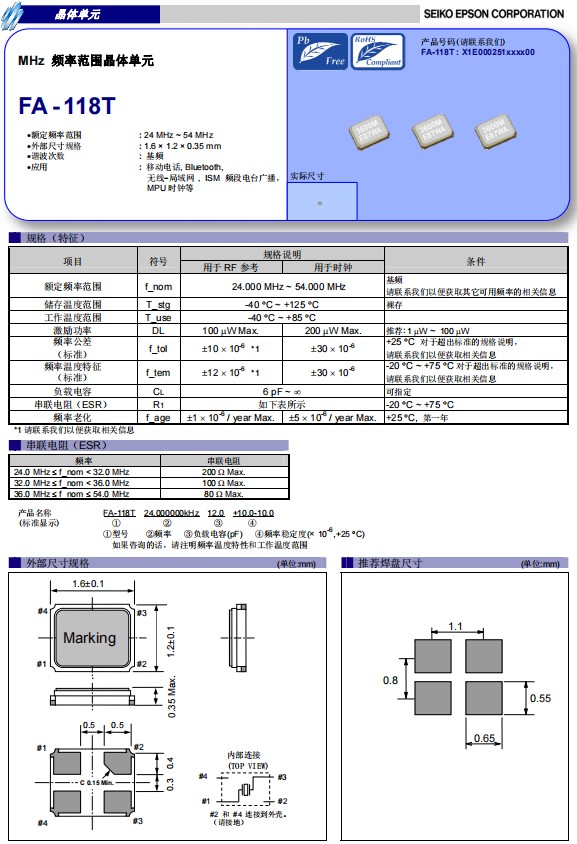

愛普生晶振推出的這款FA-118T，超小型尺寸1.6x1.2x0.35mm四腳貼片石英晶振，石英晶體諧振器，無源晶振，工作溫度范圍:-40℃至+85℃，具有超小型，輕薄型，耐熱及耐環境特性，是當今很受歡迎的小尺寸晶振，被廣泛用于小型便捷式設備，可穿戴設備，智能手機，移動電話，通訊網絡，智能交通燈控制器，無線-局域網，ISM頻段電臺廣播，MPU時鐘等。
智能交通燈控制器專用晶振X1E000251001100
| 產品編碼 |
 貼片晶振
|
 型號
|
 頻率
|
 負載電容
|
 頻率
|
  頻率公差
|
 工作溫度
|
| X1E000251000900 | 1.6x1.2x0.35mm | FA-118T | 27.120000MHz | 10pF | +/-30ppm | +/-50ppm | -20to+75°C |
| X1E000251001100 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251001400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251001600 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251003100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-7ppm | +/-10ppm | -30to+85°C |
| X1E000251003200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251003300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251003400 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251003500 | 1.6x1.2x0.35mm | FA-118T | 30.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
| X1E000251004600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251005000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251005600 | 1.6x1.2x0.35mm | FA-118T | 52.000000MHz | 9pF | +/-15ppm | +/-12ppm | -20to+75°C |
| X1E000251005700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251005900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251006000 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251006400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 12pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251006500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251006800 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251006900 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251007100 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-8ppm | +/-10ppm | -30to+85°C |
| X1E000251007500 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251007700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251007800 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 7pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251007900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251008000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251008600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
| X1E000251009900 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 6pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251010200 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 8pF | +/-30ppm | +/-30ppm | -40to+85°C |
| X1E000251010400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-20ppm | +/-30ppm | -40to+85°C |
| X1E000251011100 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+75°C |
| X1E000251011300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 8pF | +/-10ppm | +/-15ppm | -30to+85°C |
| X1E000251012100 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251012600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251013400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-12ppm | -20to+85°C |
| X1E000251013800 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-15ppm | -20to+70°C |
| X1E000251014100 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -40to+85°C |
| X1E000251014400 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251015000 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 20pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251015200 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251015300 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251015500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251015800 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 12pF | +/-10ppm | +/-15ppm | -40to+85°C |
| X1E000251016100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251016600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251019000 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251019700 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251020100 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251021200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 6pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251021500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-20ppm | +/-20ppm | -40to+85°C |
| X1E000251021900 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
晶振是利用石英本身所具有的壓電效應、高穩定性、高品質因數、低損耗的物理特性，提供標準頻率源和時鐘脈沖信號的基礎電子元器件，是電子信息產業的基礎支持產業，廣泛應用于資訊設備、移動終端、通訊及網絡設備、汽車電子、智能家居、可穿戴、智能家居產品等。
