CMOS輸出晶體振蕩器X1G004801004000適用于無線數據傳輸

來源：億金電子查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-09-23 10:48:34【大中小】

分享到：

愛普生是日本有名的頻率元件制造商,專業生產銷售石英晶振,石英晶體振蕩器,貼片晶振,晶體濾波器等.發展至今已是國際有名的晶體元件制造商,致力于為客戶提供高性能,高可靠,高品質晶振產品。

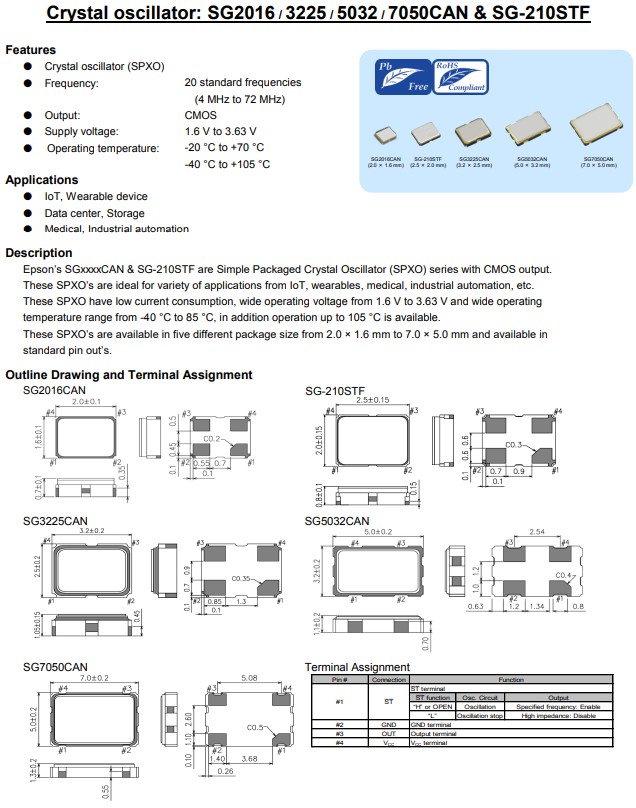

愛普生晶振SG2016CAN是一款CMOS輸出石英晶體振蕩器(SPXO)，小體積晶振尺寸2.0x1.6mm四腳貼片晶振，有源晶振，電源電壓1.6V至3.63V，頻率范圍4MHz至72MHz，工作溫度范圍-20℃至+70℃/-40℃至+105℃，該產品具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能等特點，被廣泛用于5G移動通訊設備，工業控制，消費電子，智能安防，物聯網，車載電子，無線數據傳輸，光電技術及各種變頻調速設備等通訊設備。

CMOS輸出晶體振蕩器X1G004801004000適用于無線數據傳輸

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G004801000200	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801000300	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801000700	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001200	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001300	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001400	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002000	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801002100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002400	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801002600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801002700	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002800	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002900	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801003000	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801003100	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003500	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003600	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003900	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004000	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004400	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801004500	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801004600	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004900	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C

X1G004801005000	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005100	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005200	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005300	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005400	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801005500	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005600	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005700	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801005900	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801006000	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006200	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006300	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006400	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006500	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006700	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006800	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801006900	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801007000	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801007100	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS	1.710 to 3.630V	-20 to 70°C
X1G004801007200	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS	1.710 to 3.630V	-40 to 85°C
X1G004801007300	SG2016CAN	72.000000MHz	2.00x1.60x0.70mm	CMOS	2.250 to 3.630V	-40 to 105°C
X1G004801007600	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801007700	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C

CMOS輸出晶體振蕩器X1G004801004000適用于無線數據傳輸

石英晶體振蕩器優點：
1、石英鐘走時準、耗電省、經久耐用為其最大優點。不論是老式石英鐘或是新式多功能石英鐘都是以石英晶體振蕩器為核心電路，其頻率精度決定了電子鐘表的走時精度。
2、隨著電視技術的發展，近來彩電多采用500kHz或503kHz的晶體振蕩器作為行、場電路的振蕩源，經1/3的分頻得到15625Hz的行頻，其穩定性和可靠性大為提高。而且晶振價格便宜，更換容易。
3、在通信系統產品中，石英晶體振蕩器的價值得到了更廣泛的體現，同時也得到了更快的發展。許多高性能的石英晶振主要應用于通信網絡、無線數據傳輸、高速數字數據傳輸等。
