Jauch品牌|O 12.8-JT33V-B-K-2.8-1.5-LF|3225晶振|6G基站晶振

頻率：12.8MHz

尺寸：3.2mm×2.5mm

Jauch品牌|O 12.8-JT33V-B-K-2.8-1.5-LF|3225晶振|6G基站晶振,歐美進口晶振,Jauch品牌,JT33V有源晶振,O 12.8-JT33V-B-K-2.8-1.5-LF晶振,3225晶振,VC-TCXO晶振,四腳貼片晶振,石英晶體振蕩器,頻率12.8MHz,電壓2.8V,頻率穩定性2.0ppm,工作溫度-40~85°C,無鉛環保晶振,低功耗晶振,低老化晶振,6G基站晶振,電纜調制解調器晶振,數字視頻廣播晶振,音頻系統晶振.
訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息

yijin-1

Jauch品牌|O 12.8-JT33V-B-K-2.8-1.5-LF|3225晶振|6G基站晶振,歐美進口晶振,Jauch品牌,JT33V有源晶振,O 12.8-JT33V-B-K-2.8-1.5-LF晶振,3225晶振,VC-TCXO晶振,四腳貼片晶振,石英晶體振蕩器,頻率12.8MHz,電壓2.8V,頻率穩定性2.0ppm,工作溫度-40~85°C,無鉛環保晶振,低功耗晶振,低老化晶振,6G基站晶振,電纜調制解調器晶振,數字視頻廣播晶振,音頻系統晶振.

Jauch品牌|O 12.8-JT33V-B-K-2.8-1.5-LF|3225晶振|6G基站晶振特點：

- 低功耗VCTCXO或TCXO

-溫度范圍-40℃~ +85℃可選

-回流焊溫度:最高260°C

-陶瓷/金屬封裝

yijin-2

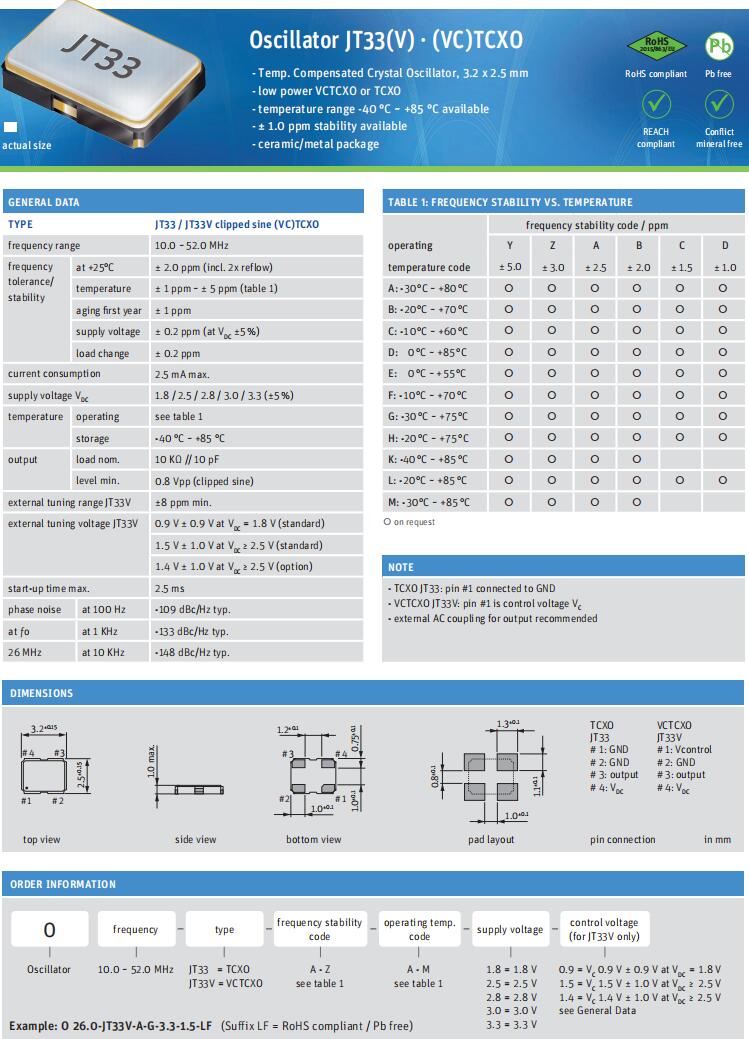

Jauch品牌|O 12.8-JT33V-B-K-2.8-1.5-LF|3225晶振|6G基站晶振規格表

TYPE JT33 /JT33V
frequency range 12.8 MHz
frequency stability at +25°℃ ± 1.5 ppm (incl. 2x reflow)
temperature ±2.0ppm
aging hrst year ±1.0 ppm
supply voltage ±0.2 ppm (at Vuc±5%)
load change ±0.2ppm
current consumption 2.5 mA max. <52 MHz
supply voltage VDC 2.8V (±5%)
temperature operating -40℃-+85°C
storage -40℃-+85℃
output load nom 10 KΩ // 10 pF
level min. 0.8 Vpp (clipped sine)
external tuning range JT21SV ±8 ppm min.
external tuning voltage JT21SV 0.9 V ± 0.9 V at VDC = 1.8 V (standard)
1.5 V ± 1.0 V at VDC ≥ 2.5 V (standard)
1.4 V ± 1.0 V at VDC ≥ 2.5 V (option)
start-up time max. 2.5 ms
phase noise at 100 Hz -109 dBc/Hz typ
at ƒo at 1 KHz -133 dBc/Hz typ
26 MHz at 10 KHz -148 dBc/Hz typ.
yijin-3

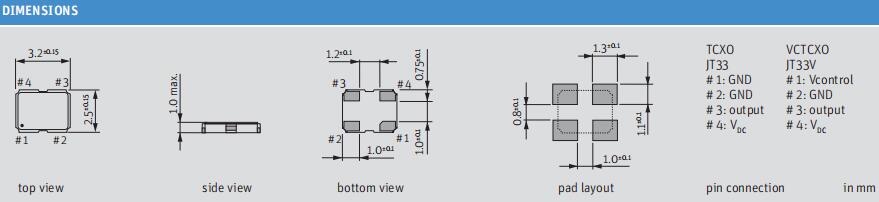

Jauch品牌|O 12.8-JT33V-B-K-2.8-1.5-LF|3225晶振|6G基站晶振尺寸圖

JT33-2

JT33-1

Jauch晶振原廠編碼 制造商 型號 頻率 頻率容差 負載電容 Operating Mode 工作溫度
Q 0.032768-JTX410-7-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF Jauch晶振 JTX410 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF Jauch晶振 JTX410 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 8pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF Jauch晶振 JTX410 32.768kHz ±30ppm 10pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 7pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF Jauch晶振 JTX310 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF Jauch晶振 JTX210 32.768kHz ±20ppm 9pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF Jauch晶振 JTX310 32.768kHz ±20ppm 6pF Fundamental -40°C ~ 125°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF Jauch晶振 JTX210 32.768kHz ±20ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF Jauch晶振 JTX310 32.768kHz ±10ppm 12.5pF Fundamental -40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF Jauch晶振 JXS22-WA 19.2MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 20MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 24MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF Jauch晶振 JXS21-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 8pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF Jauch晶振 JXS22-WA 26MHz ±10ppm 9pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 10pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 12pF Fundamental -20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF Jauch晶振 JXS21-WA 27.12MHz ±10ppm 8pF Fundamental -20°C ~ 70°C

yijin-5

YJ-6

深圳市億金電子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone聯系人黃娜：18924600166

QQ工作QQ:857950243

myt貿易通：yijindz2014

tel座機：0755-27876565

email郵箱:yijindz@163.com

inter 網址：http://www.yijindz.com

mwx微信：yijindz，公眾號：NDKcrystal

home地址：廣東省深圳市寶安區107國道旁甲岸路

wxewm

跟此產品相關的產品 / Related Products

M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振
M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振
M3028S00970.656000,M3028差分晶振,VCXO有源壓控晶振,具備70.656000MHz的精準標稱頻率,頻率精度達工業級高標準,可滿足高頻場景下對時鐘信號的嚴苛要求.作為有源VCXO壓控晶振,其核心參數設計貼合復雜電路需求:標準工作條件下頻率穩定度控制在±25ppm以內,同時支持寬電壓輸入(典型范圍3.0V-3.6V),適配不同供電體系的設備.此外,該型號的壓控電壓范圍(通常為0.5V-2.5V)覆蓋行業通用標準,通過外部電壓調節可實現±100ppm的頻率牽引范圍,為設備時鐘信號的動態校準提供充足調整空間,尤其適配需實時頻率補償?shù)膱?chǎng)景.
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振
M324TCN50.000000,HCMOS輸出晶振,7050表面貼裝晶振,是一款定位高精度時鐘應用的晶振產品,具備50.000000MHz的標稱頻率,頻率精度達到工業級高標準,能為設備提供穩定的高頻時鐘信號支撐.作為專為高頻場景設計的型號,其核心參數嚴格符合行業規范,例如在標準工作條件下,頻率穩定度可控制在±20ppm以內,確保信號輸出的精準性.同時,該晶振適配寬電壓輸入范圍(通常支持2.5V-5.5V),兼容不同電路供電需求,無論是低功耗設備還是高負載系統,均能穩定適配,為后續電路設計提供靈活的供電選擇空間.
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮,具備精準的7.372800MHz標稱頻率,這一頻率值專為需高精度晶振時鐘信號的場景設計,如串口通信,實時時鐘(RTC)模塊等.作為M2532系列的代表性產品,其采用工業級標準封裝,尺寸與電氣接口符合系列統一規范,可與同系列其他頻率型號實現無縫替換,極大降低了設備迭代時的適配成本.同時,該型號支持寬電壓輸入范圍與穩定的負載電容特性,在-40℃~85℃的工業級工作溫度區間內,能保持頻率穩定度在±20ppm以內,滿足惡劣環境下的長期可靠運行需求.
億金電子產品中心 Product Center

晶振系列

日本進口晶振

臺產晶振

歐美晶振

有源晶振

霧化片

貼片晶振

32.768K

聲表面濾波器

石英晶振

KDS晶振

愛普生晶振

NDK晶振

溫補晶振

聯系億金電子Contact us
咨詢熱線：0755-27876565

手機：189 2460 0166

QQ：857950243

郵箱：yijindz@163.com

地址：深圳市寶安區新安107國道旁甲岸路

Fast Track
快速通道

國內晶振分類：
Domestic Crystal
進口晶振分類：
Import Crystal
