當前位置：首頁 » 歐美晶振 » ECScrystal晶振 » ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

prevnext

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

頻率：30MHZ

尺寸：2.5x2.0mm

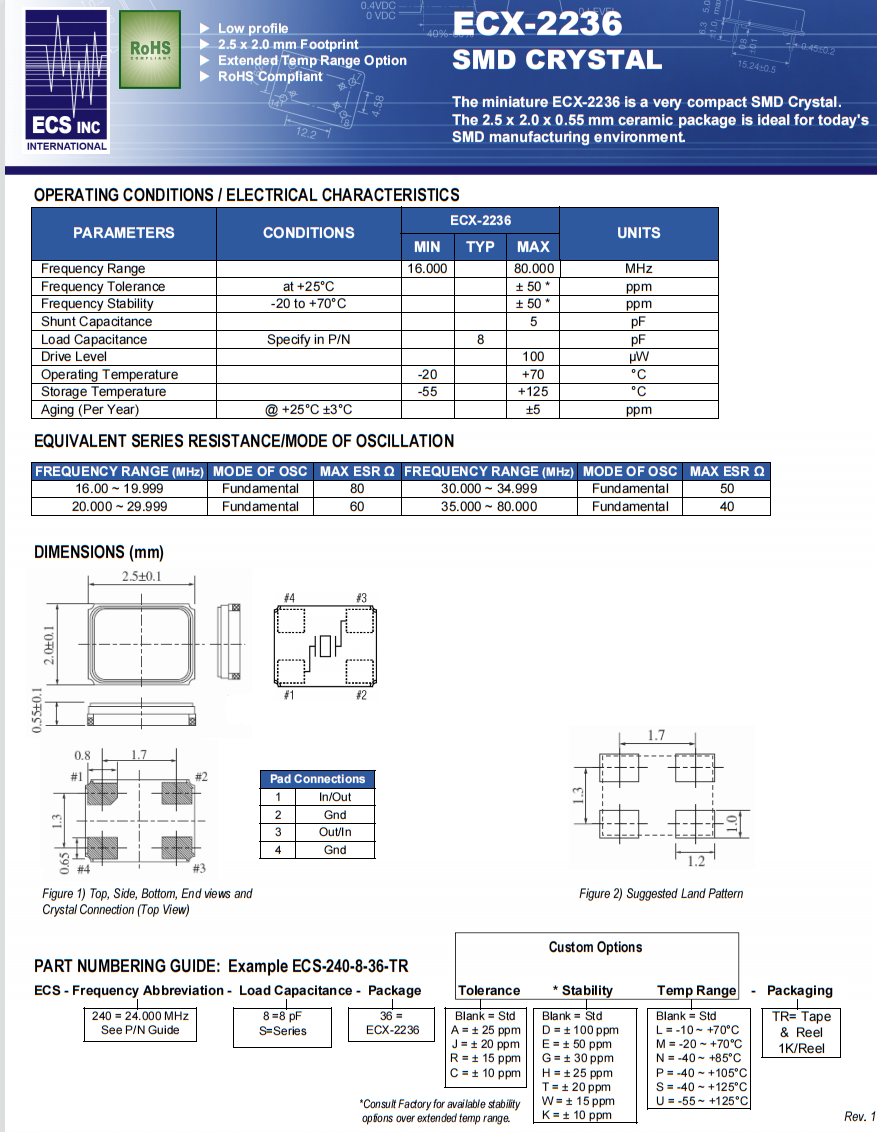

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520,美國ECS晶振,微型的ECX-2236是一個非常緊湊的SMD晶體。2.5 x 2.0 x 0.55 mm陶瓷封裝是當今SMD制造環境的理想選擇。低輪廓，2.5 x 2.0 mm足跡，擴展溫度范圍選項， RoHS兼容。

訂購熱線：0755-27876565

ECS-1

yijin-1

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520,美國ECS晶振,微型的ECX-2236是一個非常緊湊的SMD晶體。2.5 x 2.0 x 0.55 mm陶瓷封裝是當今SMD制造環境的理想選擇。低輪廓，2.5 x 2.0 mm足跡，擴展溫度范圍選項， RoHS兼容。

yijin-2

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

參數	環境	ECX-2236			單位
參數	環境	最小值	典型的	最大值	單位
頻率		16.000		80.000	MHz
頻率容差	at +25°C			± 50 *	ppm
頻率偏差度	-20 to +70°C			± 50 *	ppm
并聯電容				5	pF
負載電容	Specify in P/N		8		pF
驅動電平				100	µW
工作溫度		--20		+70	°C
儲存溫度		--55		+125	°C
老化	@ +25°C ±3°C			±5	ppm

yijin-3

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

ECX-2236

ECS原廠編碼	型號	頻率	頻率容差	頻率偏差度	負載電容	工作溫度
ECS-160-8-36CKM	ECX-2236	16MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-184-8-36CKM	ECX-2236	18.432MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-192-8-36CKM	ECX-2236	19.2MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-196-8-36CKM	ECX-2236	19.6608MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-200-8-36CKM	ECX-2236	20MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-240-8-36CKM	ECX-2236	24MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-245.7-8-36CKM	ECX-2236	24.576MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-250-8-36CKM	ECX-2236	25MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-260-8-36CKM	ECX-2236	26MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-270-8-36CKM	ECX-2236	27MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-300-8-36CKM	ECX-2236	30MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-320-8-36CKM	ECX-2236	32MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-360-8-36CKM	ECX-2236	36MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-400-8-36CKM	ECX-2236	40MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-480-8-36CKM	ECX-2236	48MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-800-8-36CKM	ECX-2236	80MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
ECS-120-10-36Q-ES-TR	ECX-2236Q	12MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-160-10-36Q-ES-TR	ECX-2236Q	16MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-200-10-36Q-ES-TR	ECX-2236Q	20MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-240-10-36Q-ES-TR	ECX-2236Q	24MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-245.7-10-36Q-ES-TR	ECX-2236Q	24.576MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-250-10-36Q-ES-TR	ECX-2236Q	25MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-260-10-36Q-ES-TR	ECX-2236Q	26MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-270-10-36Q-ES-TR	ECX-2236Q	27MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-300-10-36Q-ES-TR	ECX-2236Q	30MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-320-10-36Q-ES-TR	ECX-2236Q	32MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-120-10-36Q-JEN-TR	ECX-2236Q	12MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-160-10-36Q-JEN-TR	ECX-2236Q	16MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-200-10-36Q-JEN-TR	ECX-2236Q	20MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-240-10-36Q-JEN-TR	ECX-2236Q	24MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-245.7-10-36Q-JEN-TR	ECX-2236Q	24.576MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-250-10-36Q-JEN-TR	ECX-2236Q	25MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-260-10-36Q-JEN-TR	ECX-2236Q	26MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-270-10-36Q-JEN-TR	ECX-2236Q	27MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-300-10-36Q-JEN-TR	ECX-2236Q	30MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-320-10-36Q-JEN-TR	ECX-2236Q	32MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-400-10-36Q-JEN-TR	ECX-2236Q	40MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-480-10-36Q-JEN-TR	ECX-2236Q	48MHz	±50ppm	±20ppm	10pF	-40°C ~ 85°C
ECS-400-10-36Q-DS-TR	ECX-2236Q	40MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-480-10-36Q-DS-TR	ECX-2236Q	48MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-160-10-36Q-DS-TR	ECX-2236Q	16MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-240-10-36Q-DS-TR	ECX-2236Q	24MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-250-10-36Q-DS-TR	ECX-2236Q	25MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-270-10-36Q-DS-TR	ECX-2236Q	27MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-320-10-36Q-DS-TR	ECX-2236Q	32MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-120-10-36Q-DS-TR	ECX-2236Q	12MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-200-10-36Q-DS-TR	ECX-2236Q	20MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-245.7-10-36Q-DS-TR	ECX-2236Q	24.576MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-260-10-36Q-DS-TR	ECX-2236Q	26MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-300-10-36Q-DS-TR	ECX-2236Q	30MHz	±100ppm	±30ppm	10pF	-40°C ~ 125°C
ECS-120-10-36Q-EP-TR	ECX-2236Q	12MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-160-10-36Q-EP-TR	ECX-2236Q	16MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-200-10-36Q-EP-TR	ECX-2236Q	20MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-240-10-36Q-EP-TR	ECX-2236Q	24MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-245.7-10-36Q-EP-TR	ECX-2236Q	24.576MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-250-10-36Q-EP-TR	ECX-2236Q	25MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-260-10-36Q-EP-TR	ECX-2236Q	26MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-270-10-36Q-EP-TR	ECX-2236Q	27MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-300-10-36Q-EP-TR	ECX-2236Q	30MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-320-10-36Q-EP-TR	ECX-2236Q	32MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-400-10-36Q-EP-TR	ECX-2236Q	40MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-480-10-36Q-EP-TR	ECX-2236Q	48MHz	±50ppm	±30ppm	10pF	-40°C ~ 105°C
ECS-240-8-36-RWN-TR	ECX-2236	24MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-160-8-36-RWN-TR	ECX-2236	16MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-250-8-36-RWN-TR	ECX-2236	25MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-300-8-36-RWN-TR	ECX-2236	30MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-184.3-8-36-RWN-TR	ECX-2236	18.432MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-192.0-8-36-RWN-TR	ECX-2236	19.2MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-260-8-36-RWN-TR	ECX-2236	26MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-480-8-36-RWN-TR	ECX-2236	48MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-200-8-36-RWN-TR	ECX-2236	20MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-245.7-8-36-RWN-TR	ECX-2236	24.576MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-270-8-36-RWN-TR	ECX-2236	27MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
ECS-320-8-36-RWN-TR	ECX-2236	32MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
