ECS-1633-270-BN-TR|ECS|27M|3.3V|50PPM|2016

頻率：27MHZ

尺寸：2016mm

ECS-1633-270-BN-TR|ECS|27M|3.3V|50PPM|2016,美國ECS晶振,ECS-1633 SMD時鐘振蕩器，ECS-1633（3.3V）亞微型SMD振蕩器。非常適合今天的高密度應用程序。

訂購熱線：0755-27876565

ECS-1

yijin-1

ECS-1633-270-BN-TR|ECS|27M|3.3V|50PPM|2016,美國ECS晶振,ECS-1633 SMD時鐘振蕩器，ECS-1633（3.3V）亞微型SMD振蕩器。非常適合今天的高密度應用程序。

yijin-2

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

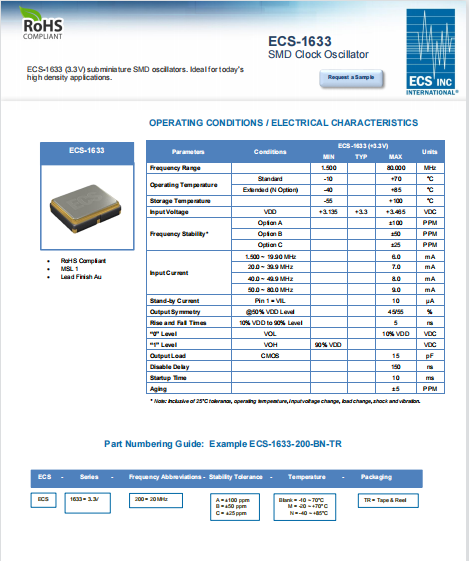

參數	環境	ECS-1633 (+3.3V)			單位
參數	環境	最小值	典型的	最大值	單位
頻率		1.500		80.000	MHz
工作溫度	Standard	--10		+70	°C
工作溫度	Extended (N Option)	--40		+85	°C
儲存溫度		--55		+100	°C
電源電壓	VDD	+3.135	+3.3	+3.465	VDC
頻率穩定性	Option A			±100	PPM
	Option B			±50	PPM
	Option C			±25	PPM
輸入電流	1.500 ~ 19.90 MHz			6.0	mA
	20.0 ~ 39.9 MHz			7.0	mA
	40.0 ~ 49.9 MHz			8.0	mA
	50.0 ~ 80.0 MHz			9.0	mA
維持電流	Pin 1 = VIL			10	μA
輸出對稱性	@50% VDD Level			45/55	%
上升和下降時間	10% VDD to 90% Level			5	ns
0級別	VOL			10% VDD	VDC
1級別	VOH	90% VDD			VDC
輸出負載	CMOS			15	pF
禁用延遲				150	ns
啟動時間				10	ms
老化				±5	PPM

ECS-ECS-300-8-36CKM-30MHz-10PPM-8PF-2520

ECS-1633

ECS-1633(2)

ECS原廠編碼	型號	類型	頻率	輸出	電源電壓	頻率偏差度
ECS-1618-192-BN-TR	ECS-1618	XO (Standard)	19.2MHz	CMOS	1.8V	±50ppm
ECS-1618-300-BN-TR	ECS-1618	XO (Standard)	30MHz	CMOS	1.8V	±50ppm
ECS-1618-060-BN-TR	ECS-1618	XO (Standard)	6MHz	CMOS	1.8V	±50ppm
ECS-1618-120-BN-TR	ECS-1618	XO (Standard)	12MHz	CMOS	1.8V	±50ppm
ECS-1618-260-BN-TR	ECS-1618	XO (Standard)	26MHz	CMOS	1.8V	±50ppm
ECS-1618-270-BN-TR	ECS-1618	XO (Standard)	27MHz	CMOS	1.8V	±50ppm
ECS-1618-240-BN-TR	ECS-1618	XO (Standard)	24MHz	CMOS	1.8V	±50ppm
ECS-1618-480-BN-TR	ECS-1618	XO (Standard)	48MHz	CMOS	1.8V	±50ppm
ECS-1633-480-BN-TR	ECS-1633	XO (Standard)	48MHz	CMOS	3.3V	±50ppm
ECS-1633-270-BN-TR	ECS-1633	XO (Standard)	27MHz	CMOS	3.3V	±50ppm
ECS-1633-300-BN-TR	ECS-1633	XO (Standard)	30MHz	CMOS	3.3V	±50ppm
ECS-1633-240-BN-TR	ECS-1633	XO (Standard)	24MHz	CMOS	3.3V	±50ppm
ECS-1633-260-BN-TR	ECS-1633	XO (Standard)	26MHz	CMOS	3.3V	±50ppm
ECS-1633-060-BN-TR	ECS-1633	XO (Standard)	6MHz	CMOS	3.3V	±50ppm
ECS-1633-120-BN-TR	ECS-1633	XO (Standard)	12MHz	CMOS	3.3V	±50ppm
ECS-1633-192-BN-TR	ECS-1633	XO (Standard)	19.2MHz	CMOS	3.3V	±50ppm
ECS-2018-250-BN	ECS-2018	XO (Standard)	25MHz	HCMOS	1.8V	±50ppm
ECS-2018-200-BN	ECS-2018	XO (Standard)	20MHz	HCMOS	1.8V	±50ppm
ECS-2018-270-BN	ECS-2018	XO (Standard)	27MHz	HCMOS	1.8V	±50ppm
ECS-2018-120-BN	ECS-2018	XO (Standard)	12MHz	HCMOS	1.8V	±50ppm
ECS-2018-480-BN	ECS-2018	XO (Standard)	48MHz	HCMOS	1.8V	±50ppm
ECS-2018-080-BN	ECS-2018	XO (Standard)	8MHz	HCMOS	1.8V	±50ppm
ECS-2018-240-BN	ECS-2018	XO (Standard)	24MHz	HCMOS	1.8V	±50ppm
ECS-2018-500-BN	ECS-2018	XO (Standard)	50MHz	HCMOS	1.8V	±50ppm
ECS-2018-160-BN	ECS-2018	XO (Standard)	16MHz	HCMOS	1.8V	±50ppm
ECS-2018-400-BN	ECS-2018	XO (Standard)	40MHz	HCMOS	1.8V	±50ppm
ECS-2018-300-BN	ECS-2018	XO (Standard)	30MHz	HCMOS	1.8V	±50ppm
ECS-2018-100-BN	ECS-2018	XO (Standard)	10MHz	HCMOS	1.8V	±50ppm
ECS-2018-073-BN	ECS-2018	XO (Standard)	7.3728MHz	HCMOS	1.8V	±50ppm
ECS-2018-130-BN	ECS-2018	XO (Standard)	13MHz	HCMOS	1.8V	±50ppm
ECS-2018-147.4-BN	ECS-2018	XO (Standard)	14.7456MHz	HCMOS	1.8V	±50ppm
ECS-2018-035-BN	ECS-2018	XO (Standard)	3.579545MHz	HCMOS	1.8V	±50ppm
ECS-2018-040-BN	ECS-2018	XO (Standard)	4MHz	HCMOS	1.8V	±50ppm
ECS-2018-320-BN	ECS-2018	XO (Standard)	32MHz	HCMOS	1.8V	±50ppm
ECS-2018-143-BN	ECS-2018	XO (Standard)	14.31818MHz	HCMOS	1.8V	±50ppm
ECS-2018-060-BN	ECS-2018	XO (Standard)	6MHz	HCMOS	1.8V	±50ppm
ECS-2018-036-BN	ECS-2018	XO (Standard)	3.6864MHz	HCMOS	1.8V	±50ppm
ECS-2018-1000-BN	ECS-2018	XO (Standard)	100MHz	HCMOS	1.8V	±50ppm
ECS-2018-1250-BN	ECS-2018	XO (Standard)	125MHz	HCMOS	1.8V	±50ppm
ECS-2033-147.4-AU	ECS-2033	XO (Standard)	14.7456MHz	CMOS	3.3V	±100ppm
ECS-2033-240-BN	ECS-2033	XO (Standard)	24MHz	CMOS	3.3V	±50ppm
ECS-2033-060-BN	ECS-2033	XO (Standard)	6MHz	CMOS	3.3V	±50ppm
ECS-2033-147.4-BN	ECS-2033	XO (Standard)	14.7456MHz	CMOS	3.3V	±50ppm
ECS-2033-080-BN	ECS-2033	XO (Standard)	8MHz	CMOS	3.3V	±50ppm
ECS-2033-160-BN	ECS-2033	XO (Standard)	16MHz	CMOS	3.3V	±50ppm
ECS-2033-500-BN	ECS-2033	XO (Standard)	50MHz	CMOS	3.3V	±50ppm
ECS-2033-130-BN	ECS-2033	XO (Standard)	13MHz	CMOS	3.3V	±50ppm
ECS-2033-480-BN	ECS-2033	XO (Standard)	48MHz	CMOS	3.3V	±50ppm
ECS-2033-100-BN	ECS-2033	XO (Standard)	10MHz	CMOS	3.3V	±50ppm
ECS-2033-270-BN	ECS-2033	XO (Standard)	27MHz	CMOS	3.3V	±50ppm
ECS-2033-320-BN	ECS-2033	XO (Standard)	32MHz	CMOS	3.3V	±50ppm
ECS-2033-100-AU	ECS-2033	XO (Standard)	10MHz	CMOS	3.3V	±100ppm
ECS-2033-400-AU	ECS-2033	XO (Standard)	40MHz	CMOS	3.3V	±100ppm
ECS-2033-073-BN	ECS-2033	XO (Standard)	7.3728MHz	CMOS	3.3V	±50ppm
ECS-2033-320-AU	ECS-2033	XO (Standard)	32MHz	CMOS	3.3V	±100ppm
ECS-2033-035-BN	ECS-2033	XO (Standard)	3.579545MHz	CMOS	3.3V	±50ppm
ECS-2033-036-AU	ECS-2033	XO (Standard)	3.6864MHz	CMOS	3.3V	±100ppm
ECS-2033-143-AU	ECS-2033	XO (Standard)	14.31818MHz	CMOS	3.3V	±100ppm
ECS-2033-270-AU	ECS-2033	XO (Standard)	27MHz	CMOS	3.3V	±100ppm
ECS-2033-120-AU	ECS-2033	XO (Standard)	12MHz	CMOS	3.3V	±100ppm
ECS-2033-040-AU	ECS-2033	XO (Standard)	4MHz	CMOS	3.3V	±100ppm
ECS-2033-130-AU	ECS-2033	XO (Standard)	13MHz	CMOS	3.3V	±100ppm
ECS-2033-250-AU	ECS-2033	XO (Standard)	25MHz	CMOS	3.3V	±100ppm
ECS-2033-035-AU	ECS-2033	XO (Standard)	3.579545MHz	CMOS	3.3V	±100ppm
ECS-2033-060-AU	ECS-2033	XO (Standard)	6MHz	CMOS	3.3V	±100ppm
ECS-2033-240-AU	ECS-2033	XO (Standard)	24MHz	CMOS	3.3V	±100ppm
ECS-2033-200-AU	ECS-2033	XO (Standard)	20MHz	CMOS	3.3V	±100ppm
ECS-2033-300-AU	ECS-2033	XO (Standard)	30MHz	CMOS	3.3V	±100ppm
ECS-2033-500-AU	ECS-2033	XO (Standard)	50MHz	CMOS	3.3V	±100ppm
ECS-2033-400-BN	ECS-2033	XO (Standard)	40MHz	CMOS	3.3V	±50ppm
ECS-2033-143-BN	ECS-2033	XO (Standard)	14.31818MHz	CMOS	3.3V	±50ppm
ECS-2033-040-BN	ECS-2033	XO (Standard)	4MHz	CMOS	3.3V	±50ppm
ECS-2033-300-BN	ECS-2033	XO (Standard)	30MHz	CMOS	3.3V	±50ppm
ECS-2033-120-BN	ECS-2033	XO (Standard)	12MHz	CMOS	3.3V	±50ppm
ECS-2033-250-BN	ECS-2033	XO (Standard)	25MHz	CMOS	3.3V	±50ppm
ECS-2033-200-BN	ECS-2033	XO (Standard)	20MHz	CMOS	3.3V	±50ppm
ECS-2033-036-BN	ECS-2033	XO (Standard)	3.6864MHz	CMOS	3.3V	±50ppm
ECS-2033-073-AU	ECS-2033	XO (Standard)	7.3728MHz	CMOS	3.3V	±100ppm
ECS-2033-080-AU	ECS-2033	XO (Standard)	8MHz	CMOS	3.3V	±100ppm
ECS-2033-160-AU	ECS-2033	XO (Standard)	16MHz	CMOS	3.3V	±100ppm
ECS-2033-1000-BN	ECS-2033	XO (Standard)	100MHz	CMOS	3.3V	±50ppm
ECS-2033-1250-BN	ECS-2033	XO (Standard)	125MHz	CMOS	3.3V	±50ppm
