進口Skyworks晶振,差分6G信號放大器晶振,540AAA100M000BBG貼片晶振
頻率：100MHz

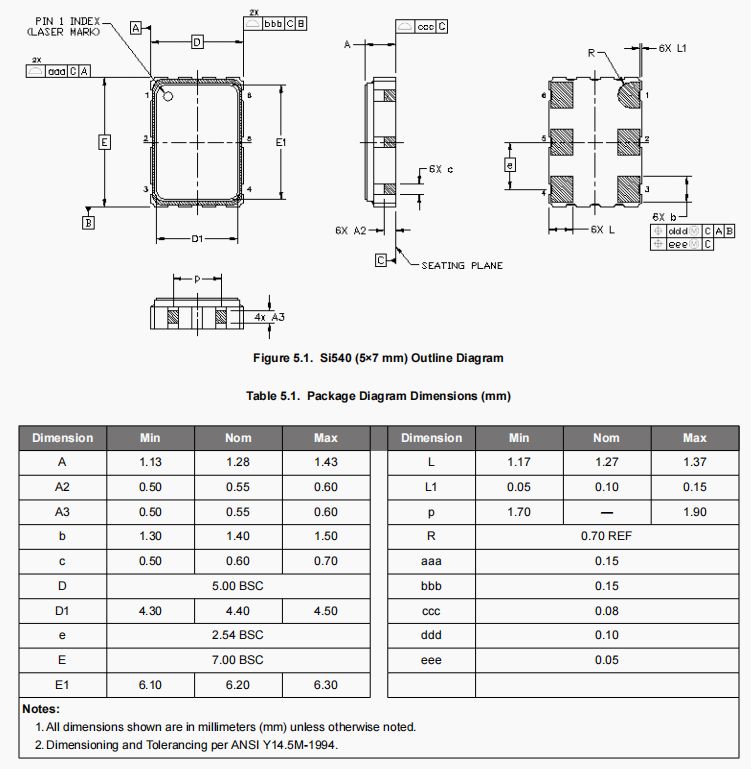

尺寸：7.0x5.0mm
進口Skyworks晶振,差分6G信號放大器晶振,540AAA100M000BBG貼片晶振，美國Skyworks晶振公司，高品質進口晶振，歐美晶振，有源晶振，貼片晶振，7050晶振，小體積晶振，差分晶振 ，LVPECL晶振，Si540晶振，石英晶振，金屬面晶振，100G/200G/400G OTN、相干光學、10G/40G/100G光以太網、3G-SDI/12G-SDI/24G-SDI廣播視頻、服務器、交換機、存儲、網卡、搜索、加速、測試和測量、時鐘和數據恢復、FPGA/ASIC時鐘
進口高性能IDT晶振,差分LVPECL晶振,XUP736212.500JU6I晶振
Parameter
Symbol
Test Condition/Comment
Min
Typ
Max
Unit
溫度范圍
TA
–40
—
85
ºC
頻率范圍
FCLK
LVPECL, LVDS, CML
0.2
—
1500
MHz
HCSL
0.2
—
400
MHz
CMOS, Dual CMOS
0.2
—
250
MHz
電源電壓
VDD
3.3 V
3.135
3.3
3.465
V
2.5 V
2.375
2.5
2.625
V
1.8 V
1.71
1.8
1.89
V
供應電流
IDD
LVPECL (output enabled)
—
100
145
mA
LVDS/CML (output enabled)
—
75
111
mA
HCSL (output enabled)
—
80
125
mA
HCSL-Fast (output enabled)
—
88
137
mA
CMOS (output enabled)
—
74
108
mA
Dual CMOS (output enabled)
—
80
125
mA
Tristate Hi-Z (output disabled)
—
64
100
mA
溫度穩定性
Frequency stability Grade A
–20
—
20
ppm
Frequency stability Grade B
–10
—
10
ppm
Frequency stability Grade C
–7
—
7
ppm
升降時間 (20% to 80% VPP)
TR/TF
LVPECL/LVDS/CML
—
—
350
ps
CMOS / Dual CMOS (CL = 5 pF)
—
0.5
1.5
ns
HCSL, FCLK >50 MHz
—
—
550
ps
HCSL-Fast, FCLK >50 MHz
—
—
275
ps
占空比
DC
All formats
45
—
55
%
輸出啟動 (OE)2
VIH
0.7 × VDD
—
—
V
VIL
—
—
0.3 × VDD
V
TD
Output Disable Time, FCLK >10 MHz
—
—
3
µs
TE
Output Enable Time, FCLK >10 MHz
—
—
20
µs
通電時間
tOSC
Time from 0.9 × VDD until output fre- quency (FCLK) within spec
—
—
10
ms
進口高性能IDT晶振,差分LVPECL晶振,XUP736212.500JU6I晶振
| Skywork原廠編碼 | 生產商 | 型號 | 類型 | 頻率 | 輸出 | 電源電壓 |
| 540BAA000274BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 322.265625 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540AAA100M000BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA156M250BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 540BAA125M000BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA100M000BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA122M880BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540DAA156M250BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 156.25 MHz | CML | 1.8V, 2.5V, 3.3V |
| 540BAA000244BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 148.351648 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BCA000127BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 644.53125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA100M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540AAA100M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA10M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 10 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA114M285BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 114.285 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA122M880BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 122.88 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA125M000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA24M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 24 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA25M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 25 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA48M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 48 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA50M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 50 MHz | LVPECL | 2.5V, 3.3V |
| 540AAC100M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVPECL | 2.5V, 3.3V |
| 540AAC70M6560BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 70.656 MHz | LVPECL | 2.5V, 3.3V |
| 540BAA106M250BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA10M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA125M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA125M000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA38M400BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 38.4 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA70M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA70M6560BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 70 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA80M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA96M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAC116M000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 116 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAC70M6560BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540CAA100M000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA10M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 10 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA10M2300BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 10.23 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA125M000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA125M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA20M9715BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 20.9715 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA25M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA38M400BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 38.4 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA48M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 48 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA52M4288BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 52.4288 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA8M00000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 8 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA9M93125BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 9.93125 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAA9M96125BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 9.96125 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAB125M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAB24M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 24 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAB48M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 48 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540CAC70M6560BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 70.656 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540EAA100M000ABGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V |
| 540EAA100M000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V |
| 540EAA100M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | HCSL | 1.8V, 2.5V, 3.3V |
| 540EAA27M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V |
| 540FAA10M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 10 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540FAA25M0000BAGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540BAA122M880BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 122.88 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540AAA50M0000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 50 MHz | LVPECL | 2.5V, 3.3V |
| 540CAC50M0000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 50 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540AAA125M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | LVPECL | 2.5V, 3.3V |
| 540CAA100M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540AAA10M0000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 10 MHz | LVPECL | 2.5V, 3.3V |
| 540AAA122M880BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 122.88 MHz | LVPECL | 2.5V, 3.3V |
| 540BAA106M250BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 106.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BAA80M0000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 80 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540EAA27M0000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V |
| 540BBA125M000BCGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | LVDS | 1.8V ~ 3.3V |
| 540BBA100M000BCGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 540ABC121M109ACGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 121.109 MHz | LVPECL | 2.5V ~ 3.3V |
| 540ABA25M0000ACGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 25 MHz | LVPECL | 2.5V ~ 3.3V |
| 540ABA25M0000BCGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 25 MHz | LVPECL | 2.5V ~ 3.3V |
| 540BBA100M000CCGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540ABC25M0000BCGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 25 MHz | LVPECL | 2.5V, 3.3V |
| 540CBA25M0000BCGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 25 MHz | CMOS | 1.8V, 2.5V, 3.3V |
| 540BBA125M000CCGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540ABA74M1758ACGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 74.1758 MHz | LVPECL | 2.5V, 3.3V |
| 540ABA78M1758ACGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 78.1758 MHz | LVPECL | 2.5V, 3.3V |
| 540BBA33M3330BCGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 33.333 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA100M000ABG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA100M000BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA125M000BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540EBC27M0000BBG | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V |
| 540BBA100M000ABGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA100M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540BBA125M000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 540EBC27M0000BBGR | Skyworks晶振 | Ultra™ Si540 | XO (Standard) | 27 MHz | HCSL | 1.8V, 2.5V, 3.3V |
