歐美Skyworks晶振,530FC200M000DG六腳晶振,6G通訊LVDS晶振
頻率：200MHz
尺寸：7050mm
歐美Skyworks晶振,530FC200M000DG六腳晶振,6G通訊LVDS晶振，美國Skyworks晶振公司，高品質進口晶振，歐美晶振，有源晶振，貼片晶振，7050晶振，六腳晶振，小體積晶振，差分晶振 ，LVDS晶振，530FC200M000DG晶振，石英晶振，金屬面晶振，可提供10 MHz至945 MHz的任意速率輸出頻率，并可選擇頻率至1.4 GHz的第三代DSPLL®，具有卓越的抖動性能，頻率穩定性比基于saw的振蕩器高3倍。內部固定晶體頻率確保高可靠性和低老化。可提供CMOS, LVPECL, LVDS和CML輸出3.3,2.5和1.8 V電源選項，行業標準5 x 7 mm封裝和引腳無pb / rohs兼容
歐美Skyworks晶振,530FC200M000DG六腳晶振,6G通訊LVDS晶振
參數
標志
條件
最小值
典型的
最大值
單位
電源電壓
VDD
3.3 V option
2.97
3.3
3.63
V
2.5 V option
2.25
2.5
2.75
V
1.8 V option
1.71
1.8
1.89
V
供應電流
IDD
Output enabled LVPECL
CML LVDS CMOS
—
—
—
—
111
99
90
81
121
108
98
88
mA
Tristate mode
—
60
75
mA
輸出啟用(OE)2
VIH
0.75 x VDD
—
—
V
VIL
—
—
0.5
V
工作溫度范圍
TA
–40
—
85
ºC
標稱頻率
fO
LVPECL/LVDS/CML
10
—
945
MHz
CMOS
10
—
160
MHz
最初的準確性
fi
Measured at +25 °C at time of shipping
—
±1.5
—
ppm
溫度穩定度
–7
–20
–50
—
—
—
+7
+20
+50
ppm
老化
fa
Frequency drift over first year
—
—
±3
ppm
Frequency drift over 20 year life
—
—
±10
ppm
歐美Skyworks晶振,530FC200M000DG六腳晶振,6G通訊LVDS晶振

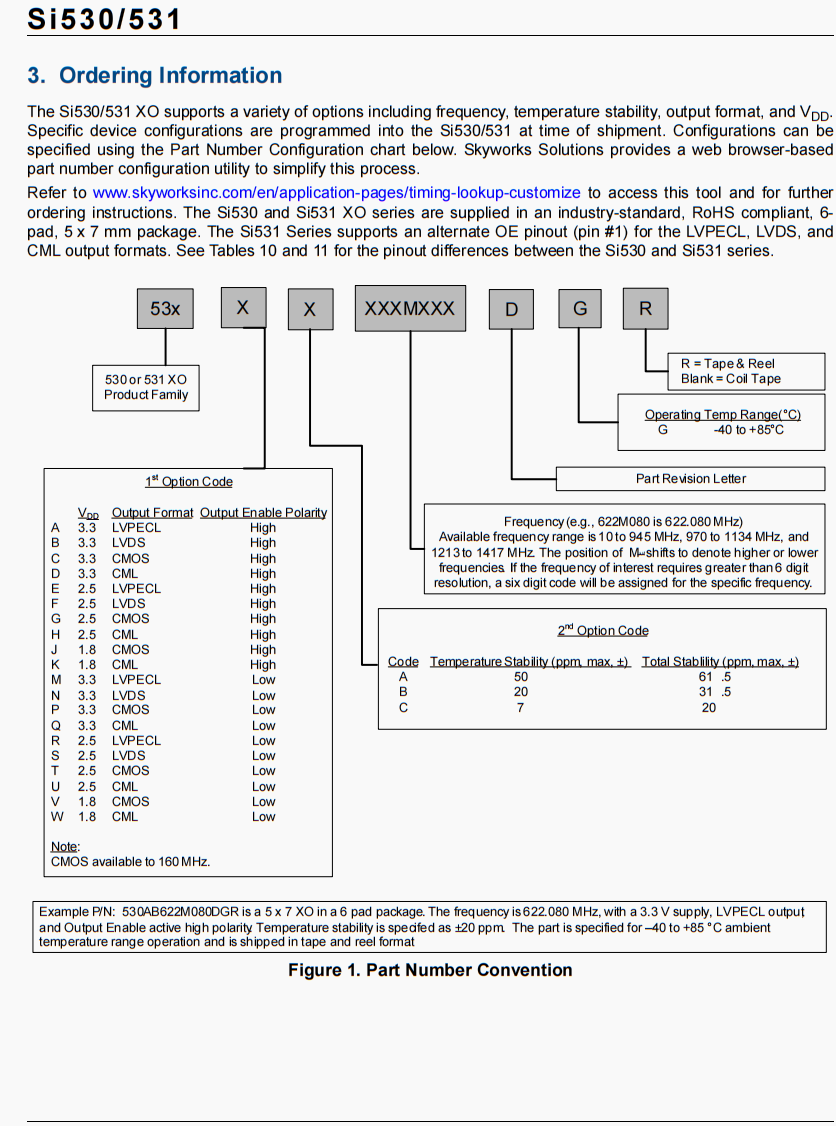

| Skywork原廠編碼 | 生產商 | 型號 | 類型 | 頻率 | 輸出 | 電源電壓 |
| 530BB125M000DG | Skyworks晶振 | Si530 | XO (Standard) | 125 MHz | LVDS | 3.3V |
| 530BA125M000DG | Skyworks晶振 | Si530 | XO (Standard) | 125 MHz | LVDS | 3.3V |
| 530CA25M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 25 MHz | CMOS | 3.3V |
| 530CA28M6000DG | Skyworks晶振 | Si530 | XO (Standard) | 28.6 MHz | CMOS | 3.3V |
| 530GB25M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 25 MHz | CMOS | 2.5V |
| 530FC200M000DG | Skyworks晶振 | Si530 | XO (Standard) | 200 MHz | LVDS | 2.5V |
| 530EC125M000DG | Skyworks晶振 | Si530 | XO (Standard) | 125 MHz | LVPECL | 2.5V |
| 530BC100M000DG | Skyworks晶振 | Si530 | XO (Standard) | 100 MHz | LVDS | 3.3V |
| 530AC622M080DGR | Skyworks晶振 | Si530 | XO (Standard) | 622.08 MHz | LVPECL | 3.3V |
| 530CB20M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 20 MHz | CMOS | 3.3V |
| 530BC114M285DG | Skyworks晶振 | Si530 | XO (Standard) | 114.285 MHz | LVDS | 3.3V |
| 530CC19M2000DG | Skyworks晶振 | Si530 | XO (Standard) | 19.2 MHz | CMOS | 3.3V |
| 530CA26M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 26 MHz | CMOS | 3.3V |
| 530EB50M0000DGR | Skyworks晶振 | Si530 | XO (Standard) | 50 MHz | LVPECL | 2.5V |
| 530EA312M500DG | Skyworks晶振 | Si530 | XO (Standard) | 312.5 MHz | LVPECL | 2.5V |
| 530FC311M040DG | Skyworks晶振 | Si530 | XO (Standard) | 311.04 MHz | LVDS | 2.5V |
| 530FC233M250DGR | Skyworks晶振 | Si530 | XO (Standard) | 233.25 MHz | LVDS | 2.5V |
| 530AB25M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 25 MHz | LVPECL | 3.3V |
| 530FB125M000DG | Skyworks晶振 | Si530 | XO (Standard) | 125 MHz | LVDS | 2.5V |
| 530EB121M109DG | Skyworks晶振 | Si530 | XO (Standard) | 121.109 MHz | LVPECL | 2.5V |
| 530AC125M000DG | Skyworks晶振 | Si530 | XO (Standard) | 125 MHz | LVPECL | 3.3V |
| 530BC125M000DG | Skyworks晶振 | Si530 | XO (Standard) | 125 MHz | LVDS | 3.3V |
| 530FC125M000DG | Skyworks晶振 | Si530 | XO (Standard) | 125 MHz | LVDS | 2.5V |
| 530BA156M250DG | Skyworks晶振 | Si530 | XO (Standard) | 156.25 MHz | LVDS | 3.3V |
| 530FA200M000DG | Skyworks晶振 | Si530 | XO (Standard) | 200 MHz | LVDS | 2.5V |
| 530AC156M250DG | Skyworks晶振 | Si530 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| 530BC156M250DG | Skyworks晶振 | Si530 | XO (Standard) | 156.25 MHz | LVDS | 3.3V |
| 530FC156M250DG | Skyworks晶振 | Si530 | XO (Standard) | 156.25 MHz | LVDS | 2.5V |
| 530AC200M000DG | Skyworks晶振 | Si530 | XO (Standard) | 200 MHz | LVPECL | 3.3V |
| 530BC148M500DG | Skyworks晶振 | Si530 | XO (Standard) | 148.5 MHz | LVDS | 3.3V |
| 530FB100M000DG | Skyworks晶振 | Si530 | XO (Standard) | 100 MHz | LVDS | 2.5V |
| 530CB50M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 50 MHz | CMOS | 3.3V |
| 530FA156M250DG | Skyworks晶振 | Si530 | XO (Standard) | 156.25 MHz | LVDS | 2.5V |
| 530FB200M000DG | Skyworks晶振 | Si530 | XO (Standard) | 200 MHz | LVDS | 2.5V |
| 530FC50M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 50 MHz | LVDS | 2.5V |
| 530AC250M000DG | Skyworks晶振 | Si530 | XO (Standard) | 250 MHz | LVPECL | 3.3V |
| 530BC622M080DG | Skyworks晶振 | Si530 | XO (Standard) | 622.08 MHz | LVDS | 3.3V |
| 530CB50M0000DGR | Skyworks晶振 | Si530 | XO (Standard) | 50 MHz | CMOS | 3.3V |
| 530BC125M000DGR | Skyworks晶振 | Si530 | XO (Standard) | 125 MHz | LVDS | 3.3V |
| 530AC155M520DGR | Skyworks晶振 | Si530 | XO (Standard) | 155.52 MHz | LVPECL | 3.3V |
| 530BB156M250DG | Skyworks晶振 | Si530 | XO (Standard) | 156.25 MHz | LVDS | 3.3V |
| 530EC156M250DG | Skyworks晶振 | Si530 | XO (Standard) | 156.25 MHz | LVPECL | 2.5V |
| 530BC187M500DG | Skyworks晶振 | Si530 | XO (Standard) | 187.5 MHz | LVDS | 3.3V |
| 530BC200M000DG | Skyworks晶振 | Si530 | XO (Standard) | 200 MHz | LVDS | 3.3V |
| 530BB100M000DG | Skyworks晶振 | Si530 | XO (Standard) | 100 MHz | LVDS | 3.3V |
| 530BC312M500DG | Skyworks晶振 | Si530 | XO (Standard) | 312.5 MHz | LVDS | 3.3V |
| 530BC250M000DG | Skyworks晶振 | Si530 | XO (Standard) | 250 MHz | LVDS | 3.3V |
| 530AC106M250DG | Skyworks晶振 | Si530 | XO (Standard) | 106.25 MHz | LVPECL | 3.3V |
| 530FC106M250DG | Skyworks晶振 | Si530 | XO (Standard) | 106.25 MHz | LVDS | 2.5V |
| 530EB50M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 50 MHz | LVPECL | 2.5V |
| 530AA156M250DG | Skyworks晶振 | Si530 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| 530EC148M500DG | Skyworks晶振 | Si530 | XO (Standard) | 148.5 MHz | LVPECL | 2.5V |
| 530FC148M500DG | Skyworks晶振 | Si530 | XO (Standard) | 148.5 MHz | LVDS | 2.5V |
| 530AB156M250DG | Skyworks晶振 | Si530 | XO (Standard) | 156.25 MHz | LVPECL | 3.3V |
| 530AC25M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 25 MHz | LVPECL | 3.3V |
| 530CA36M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 36 MHz | CMOS | 3.3V |
| 530AA40M0790DGR | Skyworks晶振 | Si530 | XO (Standard) | 40.079 MHz | LVPECL | 3.3V |
| 530FA40M0790DGR | Skyworks晶振 | Si530 | XO (Standard) | 40.079 MHz | LVDS | 2.5V |
| 530CA36M0000DGR | Skyworks晶振 | Si530 | XO (Standard) | 36 MHz | CMOS | 3.3V |
| 530AA127M000DGR | Skyworks晶振 | Si530 | XO (Standard) | 127 MHz | LVPECL | 3.3V |
| 530AA40M0790DG | Skyworks晶振 | Si530 | XO (Standard) | 40.079 MHz | LVPECL | 3.3V |
| 530FA40M0790DG | Skyworks晶振 | Si530 | XO (Standard) | 40.079 MHz | LVDS | 2.5V |
| 530AA127M000DG | Skyworks晶振 | Si530 | XO (Standard) | 127 MHz | LVPECL | 3.3V |
| 530AB24M0000DGR | Skyworks晶振 | Si530 | XO (Standard) | 24 MHz | LVPECL | 3.3V |
| 530AB24M5760DGR | Skyworks晶振 | Si530 | XO (Standard) | 24.576 MHz | LVPECL | 3.3V |
| 530BB122M880DGR | Skyworks晶振 | Si530 | XO (Standard) | 122.88 MHz | LVDS | 3.3V |
| 530DB10M0000DGR | Skyworks晶振 | Si530 | XO (Standard) | 10 MHz | CML | 3.3V |
| 530NB122M880DGR | Skyworks晶振 | Si530 | XO (Standard) | 122.88 MHz | LVDS | 3.3V |
| 530AB24M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 24 MHz | LVPECL | 3.3V |
| 530AB24M5760DG | Skyworks晶振 | Si530 | XO (Standard) | 24.576 MHz | LVPECL | 3.3V |
| 530BB122M880DG | Skyworks晶振 | Si530 | XO (Standard) | 122.88 MHz | LVDS | 3.3V |
| 530DB10M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 10 MHz | CML | 3.3V |
| 530NB122M880DG | Skyworks晶振 | Si530 | XO (Standard) | 122.88 MHz | LVDS | 3.3V |
| 530CA96M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 96 MHz | CMOS | 3.3V |
| 530CA98M3040DG | Skyworks晶振 | Si530 | XO (Standard) | 98.304 MHz | CMOS | 3.3V |
| 530GA100M000DG | Skyworks晶振 | Si530 | XO (Standard) | 100 MHz | CMOS | 2.5V |
| 530GA103M000DG | Skyworks晶振 | Si530 | XO (Standard) | 103 MHz | CMOS | 2.5V |
| 530GA106M250DG | Skyworks晶振 | Si530 | XO (Standard) | 106.25 MHz | CMOS | 2.5V |
| 530GA125M000DG | Skyworks晶振 | Si530 | XO (Standard) | 125 MHz | CMOS | 2.5V |
| 530GA12M4000DG | Skyworks晶振 | Si530 | XO (Standard) | 12.4 MHz | CMOS | 2.5V |
| 530GA13M5000DG | Skyworks晶振 | Si530 | XO (Standard) | 13.5 MHz | CMOS | 2.5V |
| 530GA16M8000DG | Skyworks晶振 | Si530 | XO (Standard) | 16.8 MHz | CMOS | 2.5V |
| 530GA22M5792DG | Skyworks晶振 | Si530 | XO (Standard) | 22.5792 MHz | CMOS | 2.5V |
| 530GA24M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 24 MHz | CMOS | 2.5V |
| 530GA24M2500DG | Skyworks晶振 | Si530 | XO (Standard) | 24.25 MHz | CMOS | 2.5V |
| 530GA24M5760DG | Skyworks晶振 | Si530 | XO (Standard) | 24.576 MHz | CMOS | 2.5V |
| 530GA25M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 25 MHz | CMOS | 2.5V |
| 530GA25M7500DG | Skyworks晶振 | Si530 | XO (Standard) | 25.75 MHz | CMOS | 2.5V |
| 530GA28M8000DG | Skyworks晶振 | Si530 | XO (Standard) | 28.8 MHz | CMOS | 2.5V |
| 530GA30M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 30 MHz | CMOS | 2.5V |
| 530GA35M3280DG | Skyworks晶振 | Si530 | XO (Standard) | 35.328 MHz | CMOS | 2.5V |
| 530GA36M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 36 MHz | CMOS | 2.5V |
| 530GA40M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 40 MHz | CMOS | 2.5V |
| 530GA48M0000DG | Skyworks晶振 | Si530 | XO (Standard) | 48 MHz | CMOS | 2.5V |
| 530GA50M0000DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 50 MHz | CMOS | 2.5V |
| 530GA60M0000DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 60 MHz | CMOS | 2.5V |
| 530GA96M0000DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 96 MHz | CMOS | 2.5V |
| 530GA97M0000DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 97 MHz | CMOS | 2.5V |
| 530JA100M000DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 100 MHz | CMOS | 1.8V |
| 530JA10M0000DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 10 MHz | CMOS | 1.8V |
| 530JA125M000DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 125 MHz | CMOS | 1.8V |
| 530JA24M0000DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 24 MHz | CMOS | 1.8V |
| 530JA25M0000DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 25 MHz | CMOS | 1.8V |
| 530JA28M6363DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 28.6363 MHz | CMOS | 1.8V |
| 530JA35M8400DG | Skyworks Solutions Inc. | Si530 | XO (Standard) | 35.84 MHz | CMOS | 1.8V |
