X1G005351000300差分石英晶體振蕩器能夠很容易地識別小信號

來源：億金電子查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2022-08-24 10:28:44【大中小】

分享到：

日本愛普生LVDS晶振也就是我們所說的EPSON差分晶振,具有多種輸出功能，能夠輕易識別網絡信號以及精確的處理雙極信號.差分貼片晶體振蕩器使用于產品中能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的.

日本進口愛普生晶振SG3225VEN，小體積晶振尺寸3.2x2.5mm有源晶振，是一款六腳貼片晶振，LVDS差分石英晶體振蕩器，電源電壓2.5V,3.3V低消耗電流，頻率范圍:25MHz至200MHz，任一頻點,具有低電源電壓，滿足產品低消耗電流的特點，工作溫度可達到-40~+85以及-40~+105℃，具有低相位抖動。在電源電壓最低時,震蕩啟動時間所需時間僅0秒，

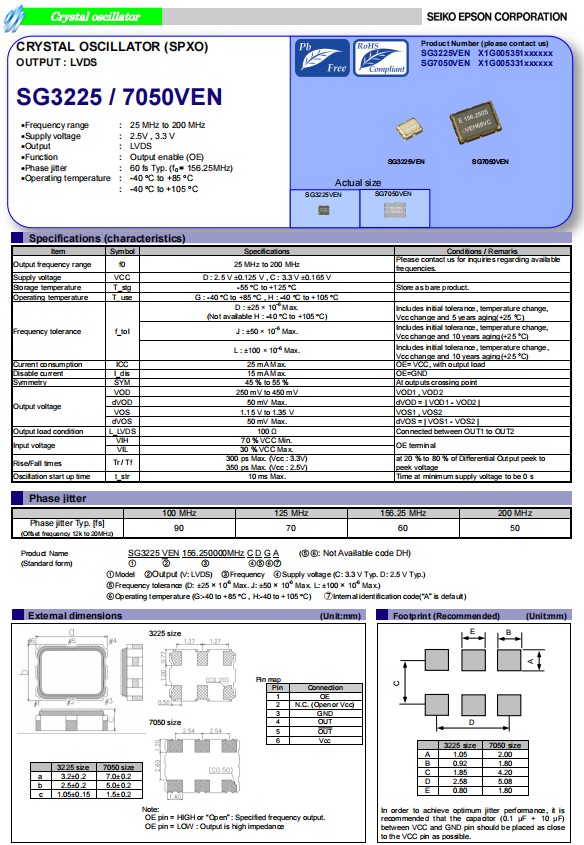

X1G005351000300差分石英晶體振蕩器能夠很容易地識別小信號

Product Number	Model	Frequency	愛普生晶振	Output Wave	Supply Voltage	Ope Temperature
X1G005351000100	SG3225VEN	72.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005351000200	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351000300	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G005351000700	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351000800	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351001100	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351001200	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351001900	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351002000	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002100	SG3225VEN	148.351640 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002200	SG3225VEN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002300	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002400	SG3225VEN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351002600	SG3225VEN	30.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351002700	SG3225VEN	36.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351002800	SG3225VEN	42.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351002900	SG3225VEN	48.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351003000	SG3225VEN	54.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351003100	SG3225VEN	60.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351003200	SG3225VEN	70.656000 MHz	3.20 x 2.50 x 1.20 mm	LVDS晶振	3.135 to 3.465 V	-40 to 85 °C
X1G005351003300	SG3225VEN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351003400	SG3225VEN	182.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C

X1G005351003600	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351003700	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004100	SG3225VEN	135.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004200	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004400	SG3225VEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004500	SG3225VEN	27.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004600	SG3225VEN	160.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004700	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004800	SG3225VEN	156.253906 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351004900	SG3225VEN	48.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351005100	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351005200	SG3225VEN	150.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351005400	SG3225VEN	130.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351005500	SG3225VEN	70.656000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351005600	SG3225VEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351006100	SG3225VEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351006200	SG3225VEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G005351006500	SG3225VEN	135.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351006900	SG3225VEN	161.132812 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351007100	SG3225VEN	60.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351007200	SG3225VEN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G005351007300	SG3225VEN	148.351648 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C

X1G005351000300差分石英晶體振蕩器能夠很容易地識別小信號

差分晶振有不同的輸出信號,LV-PECL,LVDS,HCSL,是差分晶振通用的輸出信號.一般為六腳貼片晶振,能夠很容易地識別小信號,能夠從容精確地處理'雙極'信號,對外部電磁干擾（EMI）是高度免疫的.實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性,具有高性能,低功耗,低噪聲,低抖動,低損耗等特點.被廣泛用于通訊設備,機頂盒,光端機,安防設備及各種頻率控制設備上.
