FK135EIHM0.032768-T3小體積3215mm音叉表晶32.768KHZ晶振

來源：億金電子查看手機網址

掃一掃!

FK135EIHM0.032768-T3小體積3215mm音叉表晶32.768KHZ晶振

掃一掃!

瀏覽：- 發布日期：2022-08-22 10:22:03【大中小】

分享到：

32.768KHZ晶振最初在日本開始它的大量發展，并形成全球之勢。人們利用晶體的獨特物理特性，加工成一個標準的時鐘晶振。從而應用到各種電子行業，給電子行業帶來了一個歷史的變革；隨著人們技術水平的提高，晶振的精度和性能越來越高,體積也越來越小，有很多的IC集成電路公司己將這小小的晶振放在里面，更加的精密度。

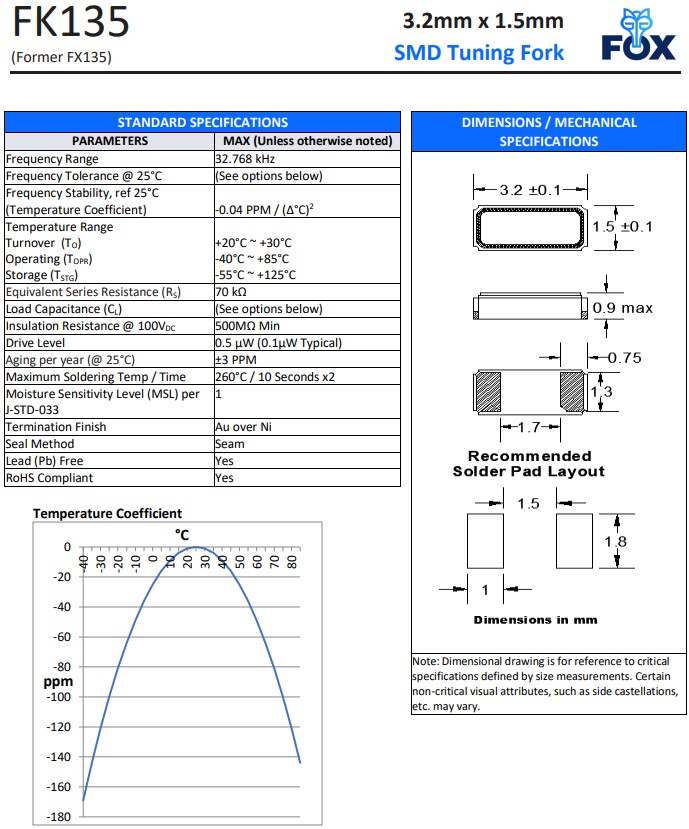

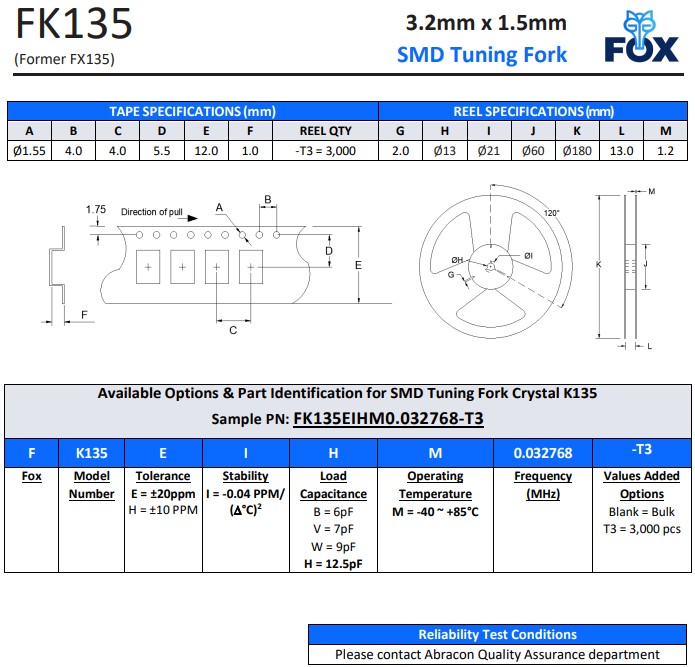

FOX晶振FK135系列，編碼FK135EIHM0.032768-T3，頻率:32.768kHz，無源晶振，小體積晶振尺寸：3.2x1.5mm，兩腳貼片晶振，SMD音叉表晶，石英晶體諧振器，具有超小型，輕薄型，耐熱及耐環境特性，適用于移動通訊，智能手機，平板電腦，鐘表電子，汽車電子等應用。

FK135EIHM0.032768-T3小體積3215mm音叉表晶32.768KHZ晶振

Manufacturer Part Number原廠編碼	Manufacturer廠家	Series型號	福克斯晶振	Frequency	Package / Case包裝/封裝
FX135A-327	Fox Crystal	FX135A	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
FX135A-327	Fox Crystal	FX135A	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
FX135A-327	Fox Crystal	FX135A	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
FSRLF327	Fox Crystal	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SOJ, 5.50mm pitch
FSRLF327	Fox Crystal	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SOJ, 5.50mm pitch
FSRLF327	Fox Crystal	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SOJ, 5.50mm pitch
FSXLF327	Fox Crystal	FSXLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SMD, Flat Lead, 3 Leads
FSXLF327	Fox Crystal	FSXLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SMD, Flat Lead, 3 Leads
FSXLF327	Fox Crystal	FSXLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SMD, Flat Lead, 3 Leads
FSMLF327	Fox Crystal	FSMLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SOJ, 2.29mm pitch
FSMLF327	Fox Crystal	FSMLF	kHz Crystal (Tuning Fork)	32.768k	4-SOJ, 2.29mm pitch
FSMLF327	Fox Crystal	FSMLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SOJ, 2.29mm pitch
FOXSDLF/240F-20	Fox Crystal	HC49SDLF	MHz Crystal	24MHz	HC49/US
FOXSDLF/240F-20	Fox Crystal	HC49SDLF	MHz Crystal	24MHz	HC49/US
FOXSDLF/240F-20	Fox Crystal	HC49SDLF	MHz Crystal	24MHz	HC49/US
NC38LF-327	Fox Crystal	NC38LF	kHz Crystal (Tuning Fork)	32.768kHz	Cylindrical Can, Radial
NC26LF-327	Fox Crystal	NC26LF	kHz Crystal (Tuning Fork)	32.768kHz	Cylindrical Can, Radial
FSRLF327-6	Fox Crystal	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SOJ, 5.50mm pitch
FSRLF327-6	Fox Crystal	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SOJ, 5.50mm pitch
FSRLF327-6	Fox Crystal	FSRLF	kHz Crystal (Tuning Fork)	32.768kHz	4-SOJ, 5.50mm pitch
FQ3225B-24.000	Fox Crystal	FQ3225B	MHz Crystal	24MHz	4-SMD, No Lead

FK135EIHM0.032768-T3小體積3215mm音叉表晶32.768KHZ晶振

FQ3225B-24.000	Fox Crystal	FQ3225B	MHz Crystal	24MHz	4-SMD, No Lead
FQ3225B-24.000	Fox Crystal	FQ3225B	MHz Crystal	24MHz	4-SMD, No Lead
FX252BS-24.000	Fox Crystal	FX252B	MHz Crystal	24MHz	4-SMD, No Lead
FX252BS-24.000	Fox Crystal	FX252B	MHz Crystal	24MHz	4-SMD, No Lead
FX252BS-24.000	Fox Crystal	FX252B	MHz Crystal	24MHz	4-SMD, No Lead
FX122-327	Fox Crystal	FX122	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
FX122-327	Fox Crystal	FX122	kHz Crystal (Tuning Fork)	32.768kHz	2-SMD, No Lead
FX122-327	Fox Crystal	FX122	kHz Crystal (Tuning Fork)	32.768k晶體	2-SMD, No Lead
FOXSLF/240F-20	Fox Crystal	HC49SLF	MHz Crystal	24MHz	HC49/US
FQ5032B-24.000	Fox Crystal	C5BQ	MHz Crystal	24MHz	4-SMD, No Lead
FQ5032B-24.000	Fox Crystal	C5BQ	MHz Crystal	24MHz	4-SMD, No Lead
FQ5032B-24.000	Fox Crystal	C5BQ	MHz Crystal	24MHz	4-SMD, No Lead
FQ5032BR-24.000	Fox Crystal	C5BQ	MHz Crystal	24MHz	4-SMD, No Lead
FQ5032BR-24.000	Fox Crystal	C5BQ	MHz Crystal	24MHz	4-SMD, No Lead
FQ5032BR-24.000	Fox Crystal	C5BQ	MHz Crystal	24MHz	4-SMD, No Lead
FQ3225BR-24.000	Fox Crystal	FQ3225B	MHz Crystal	24MHz	4-SMD, No Lead
FQ3225BR-24.000	Fox Crystal	FQ3225B	MHz Crystal	24MHz	4-SMD, No Lead
FQ3225BR-24.000	Fox Crystal	FQ3225B	MHz Crystal	24MHz	4-SMD, No Lead
FOXSDLF/240FR-20/TR	Fox Crystal	HC49SDLF	MHz Crystal	24MHz	HC49/US
FOXSDLF/240FR-20/TR	Fox Crystal	HC49SDLF	MHz Crystal	24MHz	HC49/US
FOXSDLF/240FR-20/TR	Fox Crystal	HC49SDLF	MHz Crystal	24MHz	HC49/US
FX532B-24.000	Fox Crystal	FX532B	MHz Crystal	24MHz	4-SMD, No Lead
FX425B-24.000	Fox Crystal	FX425B	MHz Crystal	24MHz	4-SMD, No Lead

FK135EIHM0.032768-T3小體積3215mm音叉表晶32.768KHZ晶振

貼片表晶32.768K系列具有超小型,薄型,質地輕的表面貼片音叉型石英晶體諧振器,晶振產品本身具備優良的耐熱性,耐環境特性,在辦公自動化,家電領域,移動通信領域可發揮優良的電氣特性,符合無鉛標準,滿足無鉛焊接的回流溫度曲線要求,金屬外殼的石英晶振使得產品在封裝時能發揮比陶瓷晶振外殼更好的耐沖擊性能.
