ECS-240-18-33-JEN-TR3非常適合電路板空間至關重要的應用

來源：億金電子查看手機網址

掃一掃!

ECS-240-18-33-JEN-TR3非常適合電路板空間至關重要的應用

掃一掃!

瀏覽：- 發布日期：2023-02-13 09:28:11【大中小】

分享到：

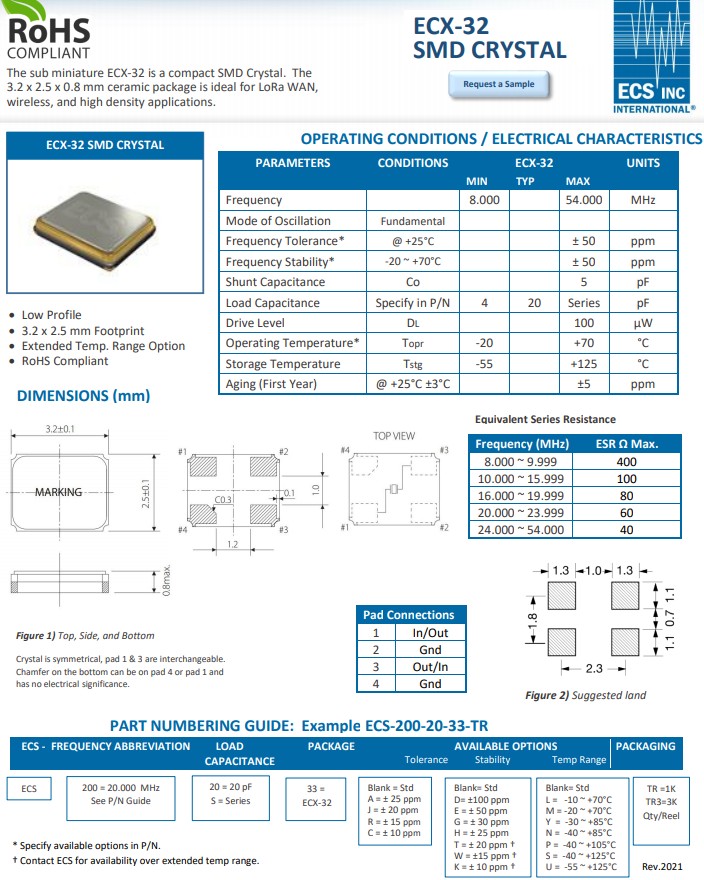

ECS晶振ECX-32系列緊湊型3.2毫米x2.5毫米x0.8mm陶瓷封裝，四腳貼片晶振，MHz石英晶體提供8MHz至54MHz的寬頻率范圍。這些晶體具有10ppm的嚴格穩定性和容差選項，以及-50°C至+125°C的擴展溫度范圍選項。標準器件提供20pF負載電容，但額外提供8pF、10pF、12pF和18pF負載電容選項。這些石英晶體ECS-240-18-33-JEN-TR3非常適合電路板空間至關重要的應用，是LoRa WAN、無線、移動、物聯網、Wi-Fi和藍牙的理想選擇。

圖片	編碼	頻率	頻率穩定性	操作溫度范圍
	ECS-240-18-33-JEN-TR3	24 MHz	±50ppm	-40°C ~ +85°C
	ECS-80-10-33-CKM-TR3	8 MHz	±10ppm	-20°C ~ +70°C
	ECS-160-18-33-AEN-TR3	16 MHz	±50ppm	-40°C ~ +85°C
	ECS-200-18-33-JGN-TR3	20 MHz	±30ppm	-40°C ~ +85°C
	ECS-250-10-33-AGM-TR3	25 MHz	±30ppm	-20°C ~ +70°C
	ECS-100-18-33-AGM-TR3	10 MHz	±30ppm	-20°C ~ +70°C

ECS-240-18-33-JEN-TR3非常適合電路板空間至關重要的應用

特點:
小體積尺寸：3.2x2.5x0.8mm四腳貼片晶振
頻率范圍:8兆赫~ 54兆赫
標準工業溫度范圍:-20℃至+70℃
提供擴展溫度范圍選項
嚴格的10ppm容差
緊密的10ppm穩定性
符合RoHS和REACH標準
應用:
無線的
移動的
無線保真
藍牙
物聯網

無源晶振	廠家	型號	頻率	工作溫度	包裝/封裝
ECS-250-20-33-CKM-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-CKM-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-CKM-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-CKM-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-CKM-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-CKM-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-CKM-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-CKM-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-CKM-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-20-33-CKM-TR	ECS Crystal	ECX-32	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-20-33-CKM-TR	ECS Crystal	ECX-32	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-270-20-33-CKM-TR	ECS Crystal	ECX-32	27MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-CKM-TR	ECS Crystal	ECX-32	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-CKM-TR	ECS Crystal	ECX-32	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-CKM-TR	ECS Crystal	ECX-32	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-184-20-33-DU-TR	ECS Crystal	ECX-32	18.432MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-184-20-33-DU-TR	ECS Crystal	ECX-32	18.432MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-184-20-33-DU-TR	ECS Crystal	ECX-32	18.432MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-120-20-33-DU-TR	ECS Crystal	ECX-32	12MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-120-20-33-DU-TR	ECS Crystal	ECX-32	12MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-120-20-33-DU-TR	ECS Crystal	ECX-32	12MHz	-55°C ~ 125°C	4-SMD, No Lead
ECS-250-20-33-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-250-20-33-TR	ECS Crystal	ECX-32	25MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-120-20-33-TR	ECS Crystal	ECX-32	12MHz	-20°C ~ 70°C	SMD晶振
ECS-240-20-33-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-240-20-33-TR	ECS Crystal	ECX-32	24MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-20-33-TR	ECS Crystal	ECX-32	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-20-33-TR	ECS Crystal	ECX-32	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-160-20-33-TR	ECS Crystal	ECX-32	16MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-162.57-20-33-TR	ECS Crystal	ECX-32	16.257MHz	-20°C ~ 70°C	4-SMD, No Lead
ECS-162.57-20-33-TR	ECS Crystal	ECX-32	16.257MHz	-20°C ~ 70°C	4-SMD, No Lead
