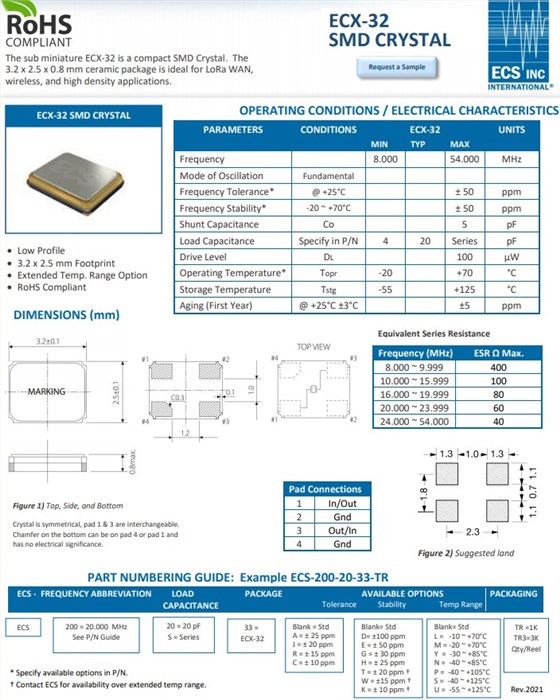

ECS晶振ECX-32系列緊湊型3.2毫米x2.5毫米x0.8mm陶瓷封裝，四腳貼片晶振，MHz石英晶體提供8MHz至54MHz的寬頻率范圍。這些晶體具有10ppm的嚴格穩定性和容差選項，以及-50°C至+125°C的擴展溫度范圍選項。標準器件提供20pF負載電容，但額外提供8pF、10pF、12pF和18pF負載電容選項。這些石英晶體ECS-240-18-33-JEN-TR3非常適合電路板空間至關重要的應用，是LoRa WAN、無線、移動、物聯網、Wi-Fi和藍牙的理想選擇。
±50ppm
圖片
編碼
頻率
頻率穩定性
操作溫度范圍
ECS-240-18-33-JEN-TR3
24 MHz
-40°C ~ +85°C
ECS-80-10-33-CKM-TR3
8 MHz
±10ppm
-20°C ~ +70°C
ECS-160-18-33-AEN-TR3
16 MHz
±50ppm
-40°C ~ +85°C
ECS-200-18-33-JGN-TR3
20 MHz
±30ppm
-40°C ~ +85°C
ECS-250-10-33-AGM-TR3
25 MHz
±30ppm
-20°C ~ +70°C
ECS-100-18-33-AGM-TR3
10 MHz
±30ppm
-20°C ~ +70°C
ECS-240-18-33-JEN-TR3非常適合電路板空間至關重要的應用
特點:
小體積尺寸：3.2x2.5x0.8mm四腳貼片晶振
頻率范圍:8兆赫~ 54兆赫
標準工業溫度范圍:-20℃至+70℃
提供擴展溫度范圍選項
嚴格的10ppm容差
緊密的10ppm穩定性
符合RoHS和REACH標準
應用:
無線的
移動的
無線保真
藍牙
物聯網
無源晶振
廠家
型號
頻率
工作溫度
包裝/封裝
ECS-250-20-33-CKM-TR
ECS Crystal
ECX-32
25MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-250-20-33-CKM-TR
ECS Crystal
ECX-32
25MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-250-20-33-CKM-TR
ECS Crystal
ECX-32
25MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-120-20-33-CKM-TR
ECS Crystal
ECX-32
12MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-120-20-33-CKM-TR
ECS Crystal
ECX-32
12MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-120-20-33-CKM-TR
ECS Crystal
ECX-32
12MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-240-20-33-CKM-TR
ECS Crystal
ECX-32
24MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-240-20-33-CKM-TR
ECS Crystal
ECX-32
24MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-240-20-33-CKM-TR
ECS Crystal
ECX-32
24MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-270-20-33-CKM-TR
ECS Crystal
ECX-32
27MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-270-20-33-CKM-TR
ECS Crystal
ECX-32
27MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-270-20-33-CKM-TR
ECS Crystal
ECX-32
27MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-184-20-33-CKM-TR
ECS Crystal
ECX-32
18.432MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-184-20-33-CKM-TR
ECS Crystal
ECX-32
18.432MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-184-20-33-CKM-TR
ECS Crystal
ECX-32
18.432MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-184-20-33-DU-TR
ECS Crystal
ECX-32
18.432MHz
-55°C ~ 125°C
4-SMD, No Lead
ECS-184-20-33-DU-TR
ECS Crystal
ECX-32
18.432MHz
-55°C ~ 125°C
4-SMD, No Lead
ECS-184-20-33-DU-TR
ECS Crystal
ECX-32
18.432MHz
-55°C ~ 125°C
4-SMD, No Lead
ECS-120-20-33-DU-TR
ECS Crystal
ECX-32
12MHz
-55°C ~ 125°C
4-SMD, No Lead
ECS-120-20-33-DU-TR
ECS Crystal
ECX-32
12MHz
-55°C ~ 125°C
4-SMD, No Lead
ECS-120-20-33-DU-TR
ECS Crystal
ECX-32
12MHz
-55°C ~ 125°C
4-SMD, No Lead
ECS-250-20-33-TR
ECS Crystal
ECX-32
25MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-250-20-33-TR
ECS Crystal
ECX-32
25MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-250-20-33-TR
ECS Crystal
ECX-32
25MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-120-20-33-TR
ECS Crystal
ECX-32
12MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-120-20-33-TR
ECS Crystal
ECX-32
12MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-120-20-33-TR
ECS Crystal
ECX-32
12MHz
-20°C ~ 70°C
SMD晶振
ECS-240-20-33-TR
ECS Crystal
ECX-32
24MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-240-20-33-TR
ECS Crystal
ECX-32
24MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-240-20-33-TR
ECS Crystal
ECX-32
24MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-160-20-33-TR
ECS Crystal
ECX-32
16MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-160-20-33-TR
ECS Crystal
ECX-32
16MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-160-20-33-TR
ECS Crystal
ECX-32
16MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-162.57-20-33-TR
ECS Crystal
ECX-32
16.257MHz
-20°C ~ 70°C
4-SMD, No Lead
ECS-162.57-20-33-TR
ECS Crystal
ECX-32
16.257MHz
-20°C ~ 70°C
4-SMD, No Lead
