EPSON差分石英晶振,北斗導航系統SG3225VAN 128.000000M-KJBA3晶振
頻率：128MHZ
尺寸：3.2x2.5mm
EPSON差分石英晶振,北斗導航系統SG3225VAN 128.000000M-KJBA3晶振,日本愛普生晶振公司，EPSON晶振，SG3225VAN晶振，SG3225VAN 128.000000M-KJBA3晶振，高品質差分晶振, 北斗衛星導航晶振，交換機差分晶振，有源晶振，6G模塊晶振，6G基站晶振，石英晶振，差分晶振輸出信號LVDS
EPSON差分石英晶振,北斗導航系統SG3225VAN 128.000000M-KJBA3晶振,日本愛普生晶振公司，EPSON晶振，SG3225VAN晶振，SG3225VAN 128.000000M-KJBA3晶振，高品質差分晶振, 北斗衛星導航晶振，交換機差分晶振，有源晶振，6G模塊晶振，6G基站晶振，石英晶振，差分晶振輸出信號LVDS
EPSON差分石英晶振,北斗導航系統SG3225VAN 128.000000M-KJBA3晶振

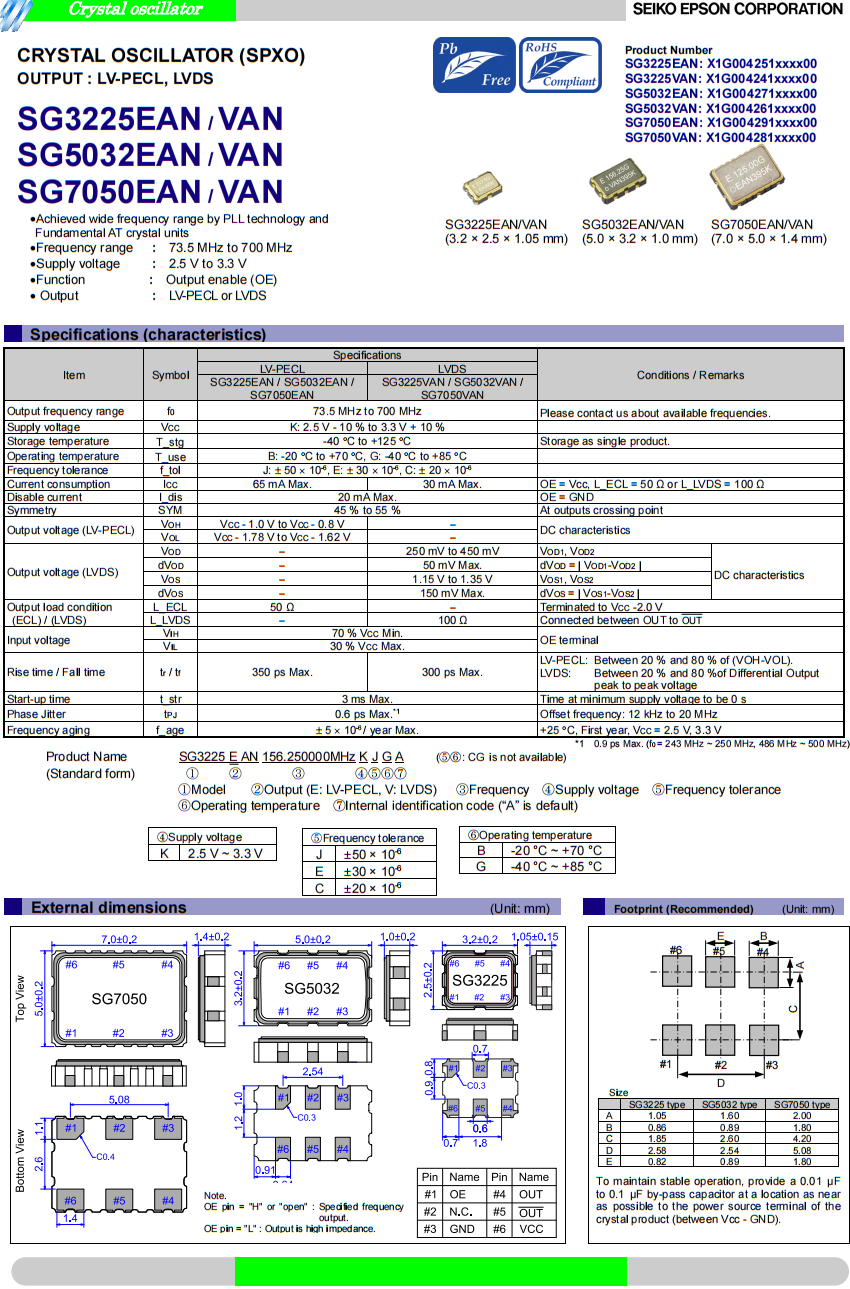

| 參數 | 符號 | 規格說明 | 條件 | ||
| LV-PECL | LVDS | ||||
|
SG3225EAN / SG5032EAN / SG7050EAN |
SG3225VAN / SG5032VAN / SG7050VAN |
||||
| 輸出頻率范圍 | 0 |
 73.5MHz ~ 700 MHz
|
請聯系我們以便獲取其它可用頻率的相關信息 | ||
| 電源電壓 | VCC | K: 2.5V ~ 3.3V | VCC= 10% | ||
| 儲存溫度范圍 | T_stg | -40 oC ~ +125 oC | 裸存 | ||
| 工作溫度范圍 | T_use | B: -20 oC ~ +70 oC, G: -40 oC ~ +85 oC | |||
| 頻率穩定度 | f_tol |
    J: 50 10-6 , E: 30 10-6 , C: 20 10-6
|

|
||
| 功耗 | ICC | 65 mA Max. | 30 mA Max. | OE=Vcc, L_ECL=50 or L_LVDS=100 | |
| 輸出禁用電流 | I_dis | 20 mA Max. | OE=GND | ||
| 占空比 | SYM | 45 % ~ 55 % | 在輸出交叉點 | ||
| 輸出電壓(LV-PECL) | VOH | VCC-1.0 V ~ VCC-0.8 V | 一 | DC 特征 | |
| VOL | VCC-1.78 V ~ VCC-1.62 V | 一 | |||
| 輸出電壓(LVDS) | VOD | 一 | 250 mV ~ 450mV | VOD1 , VOD2 | DC 特征 |
| dVOD | 一 | 50 mV Max. | dVOD = VOD1-VOD2 | ||
| VOS | 一 | 1.15 V ~ 1.35 V | VOS1 , VOS2 | ||
| dVOS | 一 | 150 mV Max. | dVOS = VOS1-VOS2 | ||
|
輸出負載條件 (ECL) / (LVDS) |
L_ECL | 50 | 一 | 終止于 VCC -2.0 V | |
| L_LVDS | 一 | 100 | 連接到 OUT 與 OUT 之間 | ||
| 輸入電壓 | VIH | 70 % VCC Min. | OE 終端 | ||
| VIL | 30 % VCC Max. | ||||
| 上升/下降時間 | tr / tf | 350 ps Max. | 300 ps Max. |
20% ~ 80% (VOH-VOL). 20% ~ 80% 微分輸出 峰-峰值 |
|
| 振蕩啟動時間 | t_str |
 3 ms Max.
|
在電源電壓最低時，所需時間為 0 秒 | ||
| 相位抖動 |
 PJ
|
0.6 ps Max.*1 | 抵消頻率: 12 kHz ~ 20 MHz | ||
| 頻率老化 | f_aging | 5 10-6 / year Max. | +25 oC, 第一年, VCC=2.5 V,3.3 V | ||
EPSON差分石英晶振,北斗導航系統SG3225VAN 128.000000M-KJBA3晶振
愛普生原廠編碼
生產商品牌
型號
類型
頻率
輸出類型
電壓
頻率偏差度
SG3225VAN 200.000000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 100.000000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 156.250000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 100.000000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 80.000000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
80 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 125.000000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 409.375000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
409.375 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 50.000000M-KCBBB
EPSON
SG3225VAN
XO (Standard)
50 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 50.000000M-KJGBB
EPSON
SG3225VAN
XO (Standard)
50 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 350.000000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
350 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 160.000000M-KJGA3
EPSON
SG3225VAN
XO (Standard)
160 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 125.000000M-KJGA3
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 156.250000M-KJGA3
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 128.000000M-KJBA3
EPSON
SG3225VAN
XO (Standard)
128 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 100.000000M-KJBAB
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 133.2620M-KJGAB
EPSON
SG3225VAN
XO (Standard)
133.262 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 148.3500M-KJGAB
EPSON
SG3225VAN
XO (Standard)
148.35 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 148.3516M-KJGAB
EPSON
SG3225VAN
XO (Standard)
148.3516 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 148.5000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
148.5 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 156.250000M-KCBAB
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 156.250000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 200.000000M-KCBAB
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 200.000000M-KJBAB
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 312.5000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
312.5 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 400.0000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
400 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 100.000000M-KCBAB
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 297.000000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
297 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 625.000000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
625 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 250.000000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
250 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 233.3330M-KJGAB
EPSON
SG3225VAN
XO (Standard)
233.333 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 625.000000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
625 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 300.000000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
300 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 243.000000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
243 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 322.265625M-KJGAB
EPSON
SG3225VAN
XO (Standard)
322.265625 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 80.000000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
80 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 212.500000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
212.5 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 250.000000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
250 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 100.000000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 155.520000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
155.52 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 156.250000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 148.500000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
148.5 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 150.000000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
150 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 128.000000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
128 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 160.000000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
160 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 128.000000M-KJBAB
EPSON
SG3225VAN
XO (Standard)
128 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 125.000000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 156.250000M-KJBAB
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 125.000000M-KJGAB
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 200.000000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 125.000000M-KJBAB
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 106.250000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
106.25 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 155.520000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
155.52 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 98.304000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
98.304 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 114.285000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
114.285 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 150.000000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
150 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 312.5000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
312.5 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 100.000000M-KJBA3
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 156.250000M-KCBA3
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 200.000000M-KCBA3
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 100.000000M-KCBA3
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 297.000000M-KJGA3
EPSON
SG3225VAN
XO (Standard)
297 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 250.000000M-KJGA3
EPSON
SG3225VAN
XO (Standard)
250 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 625.000000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
625 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 322.265625M-KJGA3
EPSON
SG3225VAN
XO (Standard)
322.265625 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 243.000000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
243 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 625.000000M-KJGA3
EPSON
SG3225VAN
XO (Standard)
625 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 148.500000M-KJGA3
EPSON
SG3225VAN
XO (Standard)
148.5 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 133.262000M-KJGA3
EPSON
SG3225VAN
XO (Standard)
133.262 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 156.250000M-KJBA3
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 148.351600M-KJGA3
EPSON
SG3225VAN
XO (Standard)
148.3516 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 200.000000M-KJBA3
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 128.000000M-KJGA3
EPSON
SG3225VAN
XO (Standard)
128 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 312.5000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
312.5 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 297.000000M-KJGA6
EPSON
SG3225VAN
XO (Standard)
297 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 80.000000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
80 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 625.000000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
625 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 80.000000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
80 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 400.000000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
400 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 233.3330M-KJGA0
EPSON
SG3225VAN
XO (Standard)
233.333 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 98.304000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
98.304 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 250.000000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
250 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 250.000000M-KJGA6
EPSON
SG3225VAN
XO (Standard)
250 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 312.500000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
312.5 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 322.265625M-KJGA0
EPSON
SG3225VAN
XO (Standard)
322.265625 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 625.000000M-KJGA6
EPSON
SG3225VAN
XO (Standard)
625 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 243.000000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
243 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 98.304000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
98.304 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 322.265625M-KJGA6
EPSON
SG3225VAN
XO (Standard)
322.265625 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 625.000000M-KJGA0
EPSON
SG3225VAN
XO (Standard)
625 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 297.000000M-KJGA0
EPSON
SG3225VAN
XO (Standard)
297 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 625.000000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
625 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 400.000000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
400 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 243.000000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
243 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 106.250000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
106.25 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 100.000000M-KJBA6
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 114.285000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
114.285 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 100.000000M-KJGA0
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 114.285000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
114.285 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 100.000000M-KCBA0
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 100.000000M-KCBA6
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 100.000000M-KJBA0
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 106.250000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
106.25 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 100.000000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 125.000000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 156.250000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 148.500000M-KJGA0
EPSON
SG3225VAN
XO (Standard)
148.5 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 150.000000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
150 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 156.250000M-KCBA6
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 156.250000M-KCBA0
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 155.520000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
155.52 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 133.262000M-KJGA0
EPSON
SG3225VAN
XO (Standard)
133.262 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 155.520000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
155.52 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 133.262000M-KJGA6
EPSON
SG3225VAN
XO (Standard)
133.262 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 156.250000M-KJBA6
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 160.000000M-KJGA0
EPSON
SG3225VAN
XO (Standard)
160 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 125.000000M-KJBA6
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 200.000000M-KCBA0
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 128.000000M-KJBA0
EPSON
SG3225VAN
XO (Standard)
128 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 148.351600M-KJGA0
EPSON
SG3225VAN
XO (Standard)
148.3516 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 125.000000M-KJBA0
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 156.250000M-KJGA0
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 160.000000M-KJGA6
EPSON
SG3225VAN
XO (Standard)
160 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 200.000000M-KEGA6
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 200.000000M-KCBA6
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±20ppm
SG3225VAN 148.351600M-KJGA6
EPSON
SG3225VAN
XO (Standard)
148.3516 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 125.000000M-KJGA6
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 200.000000M-KJBA0
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 150.000000M-KEGA0
EPSON
SG3225VAN
XO (Standard)
150 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 156.250000M-KJGA6
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 148.500000M-KJGA6
EPSON
SG3225VAN
XO (Standard)
148.5 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 128.000000M-KJGA6
EPSON
SG3225VAN
XO (Standard)
128 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 200.000000M-KJBA6
EPSON
SG3225VAN
XO (Standard)
200 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 128.000000M-KJGA0
EPSON
SG3225VAN
XO (Standard)
128 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 156.250000M-KJBA0
EPSON
SG3225VAN
XO (Standard)
156.25 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 125.000000M-KJGA0
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 128.000000M-KJBA6
EPSON
SG3225VAN
XO (Standard)
128 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 212.500000M-KEGA3
EPSON
SG3225VAN
XO (Standard)
212.5 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 125.000000M-KJBA3
EPSON
SG3225VAN
XO (Standard)
125 MHz
LVDS
2.5V ~ 3.3V
±50ppm
SG3225VAN 100.000000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
100 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 106.250000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
106.25 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 114.285000M-KEGAB
EPSON
SG3225VAN
XO (Standard)
114.285 MHz
LVDS
2.5V ~ 3.3V
±30ppm
SG3225VAN 233.3330M-KJGA6
EPSON
SG3225VAN
XO (Standard)
233.333 MHz
LVDS
2.5V ~ 3.3V
±50ppm
深圳市億金電子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD
聯系人黃娜：18924600166
工作QQ:857950243
貿易通：yijindz2014
座機：0755-27876565
郵箱:yijindz@163.com
網址：http://www.yijindz.com
微信：yijindz，公眾號：NDKcrystal
地址：廣東省深圳市寶安區107國道旁甲岸路
跟此產品相關的產品 / Related Products
- M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮
- M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮,具備精準的7.372800MHz標稱頻率,這一頻率值專為需高精度晶振時鐘信號的場景設計,如串口通信,實時時鐘(RTC)模塊等.作為M2532系列的代表性產品,其采用工業級標準封裝,尺寸與電氣接口符合系列統一規范,可與同系列其他頻率型號實現無縫替換,極大降低了設備迭代時的適配成本.同時,該型號支持寬電壓輸入范圍與穩定的負載電容特性,在-40℃~85℃的工業級工作溫度區間內,能保持頻率穩定度在±20ppm以內,滿足惡劣環境下的長期可靠運行需求.
- ECS-2520S33-200-FN-TR,無線應用晶振,HCMOS輸出
- ECS-2520S33-200-FN-TR,無線應用晶振,HCMOS輸出,針對無線設備多面臨復雜電磁環境,需長期穩定通信的特點,ECS-2520S33-200-FN-TR在性能上進行專項優化:工作溫度范圍覆蓋-40℃~+85℃,配合內部溫度補償技術,即使在戶外高溫,低溫等極端環境下,也能有效抑制頻率漂移,確保無線信號傳輸?shù)臅r序準確性,避免因時鐘偏差導致的通信中斷,具備優異的電磁抗干擾能力,通過特殊封裝屏蔽設計,抵御無線設備自身射頻模塊及外部環境的電磁輻射干擾,減少HCMOS輸出晶體振蕩器信號的噪聲疊加,提升無線通信的信噪比.此外,其低功耗特性(典型工作電流＜7mA)適配無線設備電池供電需求,延長設備續航周期,減少戶外充電或更換電池的頻率,是無線應用場景的"可靠時鐘伴侶".
- ECS-2033-240-BN-TR3,ECS-2033振蕩器,高密度晶振
- ECS-2033-240-BN-TR3,ECS-2033振蕩器,高密度晶振,ECS-2033-240-BN-TR3憑借高密度封裝,24MHz頻率及高穩定性,全面適配多領域高密度設備,在消費電子領域,可嵌入智能手機射頻模塊,智能手表主控電路,節省PCB空間,24MHz頻率支撐藍牙晶振,WiFi等高速無線通信的時序需求,在工業自動化領域,適配高密度PLC模塊,智能傳感器陣列,耐受復雜電磁環境,保障多傳感器數據采集的時序同步,避免數據錯亂,在醫療電子領域,適用于便攜醫療監測設備的高密度主板,滿足設備小型化要求,同時高穩定性可保障醫療數據采集的準確性,是一款跨領域高密度場景的通用型振蕩器.
晶振系列
日本進口晶振
- 京瓷晶振
- 精工晶振
- 西鐵城晶振
- 村田晶振
- 大河晶振
- KDS Quartz crystal
- NDK Quartz crystal
- EPSON Quartz crystal
- 富士晶振
- NAKA晶振
- SMI晶振
- NJR晶振
臺產晶振
歐美晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- 福克斯晶振
- Frequency晶振
- GEYER晶振
- ILSI晶振
- KVG晶振
- MMDCOMP晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- QuartzChnik晶振
- SUNTSU晶振
- Transko晶振
- WI2WI晶振
- 韓國三呢晶振
- ITTI晶振
- ACT晶振
- Milliren晶振
- Lihom晶振
- rubyquartz晶振
- Oscilent晶振
- SHINSUNG晶振
- PDI晶振
- C-TECH晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- 瑞薩renesas晶振
- Skyworks晶振
有源晶振
霧化片
貼片晶振
32.768K
- 32.768K有源晶振
- 8.0x3.8晶振
- 7.1x3.3晶振
- 7.0x1.5晶振
- 5.0x1.8晶振
- 4.1x1.5晶振
- 3.2x1.5晶振
- 2.0x1.2晶振
- 1.6x1.0晶振
- 1.2x1.0晶振
- 圓柱晶振
聲表面濾波器
石英晶振
KDS晶振
愛普生晶振
- EPSON 32.768K晶振
- EPSON無源晶振
- EPSON普通有源晶振
- EPSON壓控晶振
- EPSON溫補晶振
- EPSON壓控溫補晶振
- EPSON恒溫晶振
- EPSON差分晶振
- EPSON可編程晶振
億金公眾號
億金微信號
