當前位置：首頁 » 臺產晶振 » 百利通亞陶晶振 » DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃

prevnext

DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃

頻率：38.4MHZ

尺寸：3.2X2.5mm

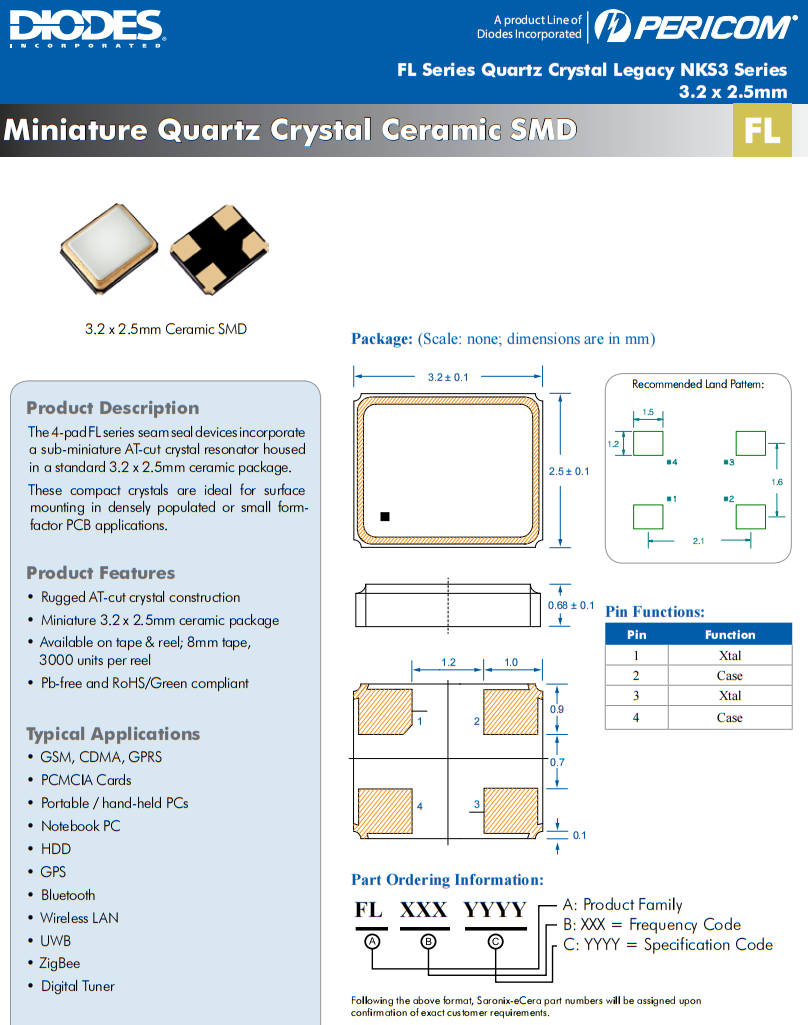

DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃，臺灣百利通亞陶晶振公司，堅固的AT-cut晶體結構微型3.2x2.5毫米陶瓷包裝可在帶和卷；8毫米帶，3000單位每卷無pb和RoHS/綠色兼容，4墊FL系列接縫密封裝置采用標準的3.2 x 2.5mm內存封裝尺寸。這些協議用于密集的塑料或小型PCB應用中的表面安裝，GSM，CDMA，GPRSpcmcia卡便攜式/手持個人電腦，筆記本電腦，硬盤，GPS，藍牙，無線局域網，UWB，無線個域網，數字調諧器。

訂購熱線：0755-27876565

BLT-1

yijin-1

DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃，臺灣百利通亞陶晶振公司，堅固的AT-cut晶體結構微型3.2x2.5毫米陶瓷包裝可在帶和卷；8毫米帶，3000單位每卷無pb和RoHS/綠色兼容，4墊FL系列接縫密封裝置采用標準的3.2 x 2.5mm內存封裝尺寸。這些協議用于密集的塑料或小型PCB應用中的表面安裝，GSM，CDMA，GPRSpcmcia卡便攜式/手持個人電腦，筆記本電腦，硬盤，GPS，藍牙，無線局域網，UWB，無線個域網，數字調諧器。

yijin-2

DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃

百利通亞陶晶振	單位	FL晶振頻率范圍	石英晶振基本條件
標準頻率	f_nom	38.4MHZ	標準頻率
儲存溫度	T_stg	-55°C ～ +125°C	裸存
工作溫度	T_use	-30°C ～ +85°C	標準溫度
激勵功率	DL	200μW Max.	推薦:1μW ～ 100μW
頻率公差	f_— l	±10 × 10-6 (標準),	+25°C 對于超出標準的規格說明, 請聯系我們以便獲取相關的信息,http://www.gslzqx.com
頻率溫度特征	f_tem	±10 × 10-6/-20°C ～ +70°C	超出標準的規格請聯系我們.
負載電容	CL	10PF	超出標準說明,請聯系我們.

DIODES|FL3840015Z|38.4MHz|10PPM|10PF|-40~85℃

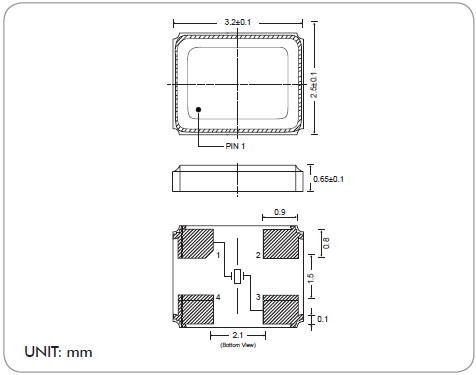

FL 3225

DIODES原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	工作溫度
FL1200112	Diodes晶振	FL	12MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL1200112	Diodes晶振	FL	12MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL1200112	Diodes晶振	FL	12MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL2000059	Diodes晶振	FL	20MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
FL2000059	Diodes晶振	FL	20MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
FL2000059	Diodes晶振	FL	20MHz	±10ppm	±10ppm	9pF	-30°C ~ 85°C
FL2400022	Diodes晶振	FL	24MHz	±10ppm	±10ppm	10pF	-25°C ~ 85°C
FL2400022	Diodes晶振	FL	24MHz	±10ppm	±10ppm	10pF	-25°C ~ 85°C
FL2400022	Diodes晶振	FL	24MHz	±10ppm	±10ppm	10pF	-25°C ~ 85°C
FL2500133	Diodes晶振	FL	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FL2500133	Diodes晶振	FL	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FL2500133	Diodes晶振	FL	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FL3000037	Diodes晶振	FL	30MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
FL3000037	Diodes晶振	FL	30MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
FL3000037	Diodes晶振	FL	30MHz	±30ppm	±30ppm	10pF	-20°C ~ 70°C
FL2400081	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400081	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400081	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL3200037	Diodes晶振	FL	32MHz	±15ppm	±15ppm	8pF	-20°C ~ 70°C
FL3200037	Diodes晶振	FL	32MHz	±15ppm	±15ppm	8pF	-20°C ~ 70°C
FL3200037	Diodes晶振	FL	32MHz	±15ppm	±15ppm	8pF	-20°C ~ 70°C
FL2400067	Diodes晶振	FL	24MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FL2400067	Diodes晶振	FL	24MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FL2400067	Diodes晶振	FL	24MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FL4000157Z	Diodes晶振	FL	40MHz	±10ppm	±7ppm	15pF	-20°C ~ 85°C
FL4000157Z	Diodes晶振	FL	40MHz	±10ppm	±7ppm	15pF	-20°C ~ 85°C
FL4000157Z	Diodes晶振	FL	40MHz	±10ppm	±7ppm	15pF	-20°C ~ 85°C
FL2600177Z	Diodes晶振	FL	26MHz	±20ppm	±10ppm	10pF	-20°C ~ 70°C
FL2600177Z	Diodes晶振	FL	26MHz	±20ppm	±10ppm	10pF	-20°C ~ 70°C
FL2600177Z	Diodes晶振	FL	26MHz	±20ppm	±10ppm	10pF	-20°C ~ 70°C
FL2700102Z	Diodes晶振	FL	27MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
FL2700102Z	Diodes晶振	FL	27MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
FL2700102Z	Diodes晶振	FL	27MHz	±30ppm	±30ppm	12pF	-20°C ~ 70°C
FL2500123Z	Diodes晶振	FL	25MHz	±50ppm	±30ppm	20pF	-20°C ~ 80°C
FL2500123Z	Diodes晶振	FL	25MHz	±50ppm	±30ppm	20pF	-20°C ~ 80°C
FL2500123Z	Diodes晶振	FL	25MHz	±50ppm	±30ppm	20pF	-20°C ~ 80°C
FL5000058Z	Diodes晶振	FL	50MHz	±15ppm	±7ppm	10pF	-40°C ~ 85°C
FL5000058Z	Diodes晶振	FL	50MHz	±15ppm	±7ppm	10pF	-40°C ~ 85°C
FL5000058Z	Diodes晶振	FL	50MHz	±15ppm	±7ppm	10pF	-40°C ~ 85°C
FL2400097	Diodes晶振	FL	24MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
FL2400097	Diodes晶振	FL	24MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
FL2400097	Diodes晶振	FL	24MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
FL3840015Z	Diodes晶振	FL	38.4MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
FL3840015Z	Diodes晶振	FL	38.4MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
FL3840015Z	Diodes晶振	FL	38.4MHz	±10ppm	±10ppm	10pF	-30°C ~ 85°C
FL1840006	Diodes晶振	FL	18.432MHz	±20ppm	±20ppm	15pF	-20°C ~ 70°C
FL1840006	Diodes晶振	FL	18.432MHz	±20ppm	±20ppm	15pF	-20°C ~ 70°C
FL1840006	Diodes晶振	FL	18.432MHz	±20ppm	±20ppm	15pF	-20°C ~ 70°C
FL2500281	Diodes晶振	FL	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
FL2500281	Diodes晶振	FL	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
FL2500281	Diodes晶振	FL	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
FL1350008	Diodes晶振	FL	13.5MHz	±20ppm	±20ppm	16pF	-20°C ~ 70°C
FL1350008	Diodes晶振	FL	13.5MHz	±20ppm	±20ppm	16pF	-20°C ~ 70°C
FL1350008	Diodes晶振	FL	13.5MHz	±20ppm	±20ppm	16pF	-20°C ~ 70°C
FL3740015	Diodes晶振	FL	37.4MHz	±15ppm	±10ppm	16pF	-40°C ~ 85°C
FL3740015	Diodes晶振	FL	37.4MHz	±15ppm	±10ppm	16pF	-40°C ~ 85°C
FL3740015	Diodes晶振	FL	37.4MHz	±15ppm	±10ppm	16pF	-40°C ~ 85°C
FL1920031	Diodes晶振	FL	19.2MHz	±10ppm	±10ppm	8.5pF	-20°C ~ 70°C
FL1920031	Diodes晶振	FL	19.2MHz	±10ppm	±10ppm	8.5pF	-20°C ~ 70°C
FL1920031	Diodes晶振	FL	19.2MHz	±10ppm	±10ppm	8.5pF	-20°C ~ 70°C
FL2400041	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400041	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400041	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FL2400072	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL2400072	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL2400072	Diodes晶振	FL	24MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FL1600087	Diodes晶振	FL	16MHz	±15ppm	±15ppm	20pF	0°C ~ 85°C
FL1600087	Diodes晶振	FL	16MHz	±15ppm	±15ppm	20pF	0°C ~ 85°C
FL1600087	Diodes晶振	FL	16MHz	±15ppm	±15ppm	20pF	0°C ~ 85°C
FL1000002	Diodes晶振	FL	10MHz	±25ppm	±25ppm	12pF	-40°C ~ 85°C
FL1000002	Diodes晶振	FL	10MHz	±25ppm	±25ppm	12pF	-40°C ~ 85°C
FL1000002	Diodes晶振	FL	10MHz	±25ppm	±25ppm	12pF	-40°C ~ 85°C
FL2600176	Diodes晶振	FL	26MHz	±40ppm	±20ppm	10pF	-40°C ~ 85°C
FL2600176	Diodes晶振	FL	26MHz	±40ppm	±20ppm	10pF	-40°C ~ 85°C
