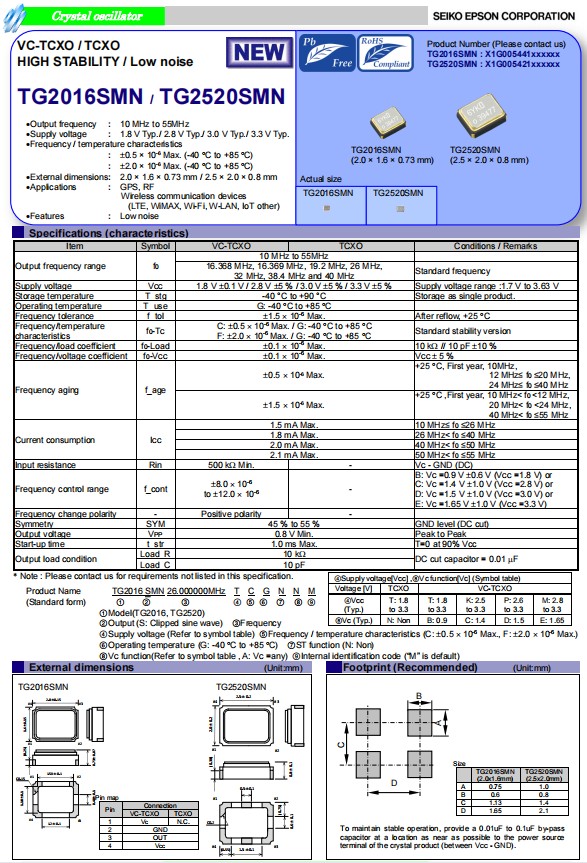

日本進口愛普生晶振TG2520SMN，是一款溫補晶振選用無鉛無害，優異材料生產，符合歐盟ROHS環保指令。此款小體積晶振尺寸2.5x2.0mm有源晶振，四腳貼片晶振，具有耐高溫-40℃至+85℃范圍，電源電壓1.8V至3.3V，頻率范圍10MHz至55MHz，具有超小型，輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，低相位噪聲，低消耗電流，低噪音，低老化，耐高溫，抗振性強，高精度等特點，符合工業級產品要求。適用于GPS，RF，無線通信設備(LTE，WiMAX，Wi-Fi，W-LAN，IoT 他)等產品中。

無線通信設備專用晶振TG2520SMN編碼X1G005421031627

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓
X1G005421002927	TG2520SMN	19.200000MHz	2.50x2.00x0.80mm	Clippedsinewave	3.135 to 3.465V
X1G005421003027	TG2520SMN	12.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	3.135 to 3.465V
X1G005421003727	TG2520SMN	16.384000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421003827	TG2520SMN	16.384000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.260 to 3.465V
X1G005421020127	TG2520SMN	16.368000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421020227	TG2520SMN	16.369000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421020327	TG2520SMN	19.200000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421020427	TG2520SMN	26.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421020527	TG2520SMN	32.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421020627	TG2520SMN	38.400000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421020727	TG2520SMN	40.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421020827	TG2520SMN	16.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421021127	TG2520SMN	20.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421021227	TG2520SMN	24.000000MHz	2.50x2.00x0.80mm	TCXO晶振	1.700 to 1.900V
X1G005421021327	TG2520SMN	25.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421021427	TG2520SMN	27.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421021527	TG2520SMN	30.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421021627	TG2520SMN	48.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421022027	TG2520SMN	52.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421022127	TG2520SMN	27.600000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V

X1G005421022227	TG2520SMN	50.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	1.700 to 1.900V
X1G005421030127	TG2520SMN	16.368000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421030227	TG2520SMN	16.369000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421030327	TG2520SMN	19.200000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421030427	TG2520SMN	26.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421030527	TG2520SMN	32.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421030627	TG2520SMN	38.400000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421030727	TG2520SMN	40.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421030827	TG2520SMN	16.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421031127	TG2520SMN	20.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421031227	TG2520SMN	24.000000MHz	2.50x2.00x0.80mm	溫補晶振	2.660 to 3.465V
X1G005421031327	TG2520SMN	25.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421031427	TG2520SMN	27.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421031527	TG2520SMN	30.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421031627	TG2520SMN	48.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421032027	TG2520SMN	52.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421032127	TG2520SMN	27.600000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421032227	TG2520SMN	50.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.660 to 3.465V
X1G005421032427	TG2520SMN	10.000000MHz	2.50x2.00x0.80mm	Clippedsinewave	2.260 to 3.465V
