為什么選擇超高性能日蝕TCXO系列EQTB31D7DH-32.768K

返回列表 來源：億金電子 查看手機網址
掃一掃!為什么選擇超高性能日蝕TCXO系列EQTB31D7DH-32.768K掃一掃!
 瀏覽：- 發布日期：2022-05-05 10:06:54【大 中 小】
分享到：

  這些OCXO解決方案采用精密SC切割高“Q”石英晶體諧振器設計，以及精密溫度監測和控制電路。這種組合使Abracon能夠通過該OCXO系列滿足Stratum3和3E要求。

RS-2

EB13K2C2H-32.768K CMOS 3.3Vdc SMD 2.0mm x 2.5mm ±100ppm 0°C to +70°C
EB13K2D2H-32.768K CMOS 3.3Vdc SMD 2.0mm x 2.5mm ±50ppm 0°C to +70°C
EB13K2E2H-32.768K CMOS 3.3Vdc SMD 2.0mm x 2.5mm ±25ppm 0°C to +70°C
EB13K2F2H-32.768K CMOS 3.3Vdc SMD 2.0mm x 2.5mm ±20ppm 0°C to +70°C
EB13K2G2H-32.768K CMOS 3.3Vdc SMD 2.0mm x 2.5mm ±100ppm -40°C to +85°C
EB13K2H2H-32.768K CMOS 3.3Vdc SMD 2.0mm x 2.5mm ±50ppm -40°C to +85°C
EB13K2J2H-32.768K CMOS 3.3Vdc SMD 2.0mm x 2.5mm ±25ppm -40°C to +85°C
EB13K4C2H-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±100ppm 0°C to +70°C
EB13K4D2H-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±50ppm 0°C to +70°C
EB13K4E2H-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±25ppm 0°C to +70°C
EB13K4G2H-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±100ppm -40°C to +85°C
EB13K4H2H-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±50ppm -40°C to +85°C
EB13K4J2H-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±25ppm -40°C to +85°C
EB13K5C2H-32.768K CMOS 3.3Vdc SMD 3.2mm x 5.0mm ±100ppm 0°C to +70°C
EB13K5D2H-32.768K CMOS 3.3Vdc SMD 3.2mm x 5.0mm ±50ppm 0°C to +70°C
EB13K5E2H-32.768K CMOS 3.3Vdc SMD 3.2mm x 5.0mm ±25ppm 0°C to +70°C
EB13K5F2H-32.768K CMOS 3.3Vdc SMD 3.2mm x 5.0mm ±20ppm 0°C to +70°C
EB13K5G2H-32.768K CMOS 3.3Vdc SMD 3.2mm x 5.0mm ±100ppm -40°C to +85°C
EB13K5H2H-32.768K CMOS 3.3Vdc SMD 3.2mm x 5.0mm ±50ppm -40°C to +85°C
EB13K5J2H-32.768K CMOS 3.3Vdc SMD 3.2mm x 5.0mm ±25ppm -40°C to +85°C

  該OCXO晶振系列非常適用于需要高頻率穩定性、低相位噪聲和精確保持性能的5G或GPS應用，例如基站、小型蜂窩平臺、互聯網數據中心以及衛星和航空航天通信。

EB13K7C2H-32.768K CMOS 3.3Vdc SMD 5.0mm x 7.0mm ±100ppm 0°C to +70°C
EB13K7D2H-32.768K CMOS 3.3Vdc SMD 5.0mm x 7.0mm ±50ppm 0°C to +70°C
EB13K7E2H-32.768K CMOS 3.3Vdc SMD 5.0mm x 7.0mm ±25ppm 0°C to +70°C
EB13K7F2H-32.768K CMOS 3.3Vdc SMD 5.0mm x 7.0mm ±20ppm 0°C to +70°C
EB13K7G2H-32.768K CMOS 3.3Vdc SMD 5.0mm x 7.0mm ±100ppm -40°C to +85°C
EB13K7H2H-32.768K CMOS 3.3Vdc SMD 5.0mm x 7.0mm ±50ppm -40°C to +85°C
EB13K7J2H-32.768K CMOS 3.3Vdc SMD 5.0mm x 7.0mm ±25ppm -40°C to +85°C
EB15K2C2H-32.768K CMOS 2.5Vdc SMD 2.0mm x 2.5mm ±100ppm 0°C to +70°C
EB15K2D2H-32.768K CMOS 2.5Vdc SMD 2.0mm x 2.5mm ±50ppm 0°C to +70°C
EB15K2E2H-32.768K CMOS 2.5Vdc SMD 2.0mm x 2.5mm ±25ppm 0°C to +70°C
EB15K2F2H-32.768K CMOS 2.5Vdc SMD 2.0mm x 2.5mm ±20ppm 0°C to +70°C
EB15K2G2H-32.768K CMOS 2.5Vdc SMD 2.0mm x 2.5mm ±100ppm -40°C to +85°C
EB15K2H2H-32.768K CMOS 2.5Vdc SMD 2.0mm x 2.5mm ±50ppm -40°C to +85°C
EB15K2J2H-32.768K CMOS 2.5Vdc SMD 2.0mm x 2.5mm ±25ppm -40°C to +85°C
EB15K4C2H-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±100ppm 0°C to +70°C
EB15K4D2H-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±50ppm 0°C to +70°C
EB15K4E2H-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±25ppm 0°C to +70°C
EB15K4G2H-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±100ppm -40°C to +85°C
EB15K4H2H-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±50ppm -40°C to +85°C
EB15K4J2H-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±25ppm -40°C to +85°C

溫度范圍內的精確穩定性與超低的±1ppb每日老化相結合，可實現±15ppb的24小時保持精度，具體取決于系統條件。如果系統失去參考時鐘，保持時間會延長其有效運行時間，這是設計射頻、網絡、電信、GPS和參考定時應用時的一個重要考慮因素。此外，嚴格的短期穩定性提高了低帶寬鎖相環的采集時間和GPS應用的整體精度。

EB15K5C2H-32.768K CMOS 2.5Vdc SMD 3.2mm x 5.0mm ±100ppm 0°C to +70°C
EB15K5D2H-32.768K CMOS 2.5Vdc SMD 3.2mm x 5.0mm ±50ppm 0°C to +70°C
EB15K5E2H-32.768K CMOS 2.5Vdc SMD 3.2mm x 5.0mm ±25ppm 0°C to +70°C
EB15K5F2H-32.768K CMOS 2.5Vdc SMD 3.2mm x 5.0mm ±20ppm 0°C to +70°C
EB15K5G2H-32.768K CMOS 2.5Vdc SMD 3.2mm x 5.0mm ±100ppm -40°C to +85°C
EB15K5H2H-32.768K CMOS 2.5Vdc SMD 3.2mm x 5.0mm ±50ppm -40°C to +85°C
EB15K5J2H-32.768K CMOS 2.5Vdc SMD 3.2mm x 5.0mm ±25ppm -40°C to +85°C
EB15K7C2H-32.768K CMOS 2.5Vdc SMD 5.0mm x 7.0mm ±100ppm 0°C to +70°C
EB15K7D2H-32.768K CMOS 2.5Vdc SMD 5.0mm x 7.0mm ±50ppm 0°C to +70°C
EB15K7E2H-32.768K CMOS 2.5Vdc SMD 5.0mm x 7.0mm ±25ppm 0°C to +70°C
EB15K7F2H-32.768K CMOS 2.5Vdc SMD 5.0mm x 7.0mm ±20ppm 0°C to +70°C
EB15K7G2H-32.768K CMOS 2.5Vdc SMD 5.0mm x 7.0mm ±100ppm -40°C to +85°C
EB15K7H2H-32.768K CMOS 2.5Vdc SMD 5.0mm x 7.0mm ±50ppm -40°C to +85°C
EB15K7J2H-32.768K CMOS 2.5Vdc SMD 5.0mm x 7.0mm ±25ppm -40°C to +85°C
EB16K2C2H-32.768K CMOS 1.8Vdc SMD 2.0mm x 2.5mm ±100ppm 0°C to +70°C
EB16K2D2H-32.768K CMOS 1.8Vdc SMD 2.0mm x 2.5mm ±50ppm 0°C to +70°C
EB16K2E2H-32.768K CMOS 1.8Vdc SMD 2.0mm x 2.5mm ±25ppm 0°C to +70°C
EB16K2F2H-32.768K CMOS 1.8Vdc SMD 2.0mm x 2.5mm ±20ppm 0°C to +70°C
EB16K2G2H-32.768K CMOS 1.8Vdc SMD 2.0mm x 2.5mm ±100ppm -40°C to +85°C
EB16K2H2H-32.768K CMOS 1.8Vdc SMD 2.0mm x 2.5mm ±50ppm -40°C to +85°C
EB16K2J2H-32.768K CMOS 1.8Vdc SMD 2.0mm x 2.5mm ±25ppm -40°C to +85°C
EB16K4C2H-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±100ppm 0°C to +70°C

  AOC1409在小型14.9x9.7x7.0（6引腳）封裝中支持20MHz頻率。AOC2012采用20.32x12.70x11.00mmSMD（4引腳）封裝，工作溫度范圍為-20°C至+70°C。AOC2522系列具有±750ppb的長期老化特性，采用25.4x22x12.7mm（5焊盤）封裝尺寸。AOC1409和AOC2522提供-40°C至+85°C的工作溫度范圍。該系列OCXO現在可通過Abracon的全球分銷www.yijindz.com購買。

EQTB35D7DH-32.768K CMOS 3.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +85°C
EQTB35D8DH-32.768K CMOS 3.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -40°C to +85°C
EQTB3AD1DH-32.768K CMOS 5.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +50°C
EQTB3AD2DH-32.768K CMOS 5.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -10°C to +60°C
EQTB3AD3DH-32.768K CMOS 5.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +70°C
EQTB3AD4DH-32.768K CMOS 5.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -20°C to +70°C
EQTB3AD5DH-32.768K CMOS 5.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +60°C
EQTB3AD6DH-32.768K CMOS 5.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +75°C
EQTB3AD7DH-32.768K CMOS 5.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +85°C
EQTB3AD8DH-32.768K CMOS 5.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -40°C to +85°C

  Abracon,LLC成立于1992年，是無源元件的行業領導者，通過全球分銷網絡提供頻率控制和定時設備、射頻和天線以及電感器和連接解決方案。Abracon總部位于德克薩斯州斯派斯伍德，在全球擁有銷售、工程和運營團隊。Abracon以服務、質量和技術專長為公司核心，為AELCrystals、Ecliptek、Fox、ILSI和ProAnt品牌提供支持，同時在通信、運輸、工業、醫療、消費、航空航天等市場實現創新的互聯物聯網解決方案和防御，以及超越。訪問www.yijindz.com了解更多信息。

EB16K4D2H-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±50ppm 0°C to +70°C
EB16K4E2H-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±25ppm 0°C to +70°C
EB16K4G2H-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±100ppm -40°C to +85°C
EB16K4H2H-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±50ppm -40°C to +85°C
EB16K4J2H-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±25ppm -40°C to +85°C
EMRB61B-32.768K CMOS 1.8Vdc SMD 1.2mm x 2.0mm ±75ppm -10°C to +70°C
EMRB61C-32.768K CMOS 1.8Vdc SMD 1.2mm x 2.0mm ±100ppm -40°C to +85°C
EMRB62B-32.768K CMOS 2.5Vdc SMD 1.2mm x 2.0mm ±75ppm -10°C to +70°C
EMRB62C-32.768K CMOS 2.5Vdc SMD 1.2mm x 2.0mm ±100ppm -40°C to +85°C
EMRB63B-32.768K CMOS 3.3Vdc SMD 1.2mm x 2.0mm ±75ppm -10°C to +70°C
EMRB63C-32.768K CMOS 3.3Vdc SMD 1.2mm x 2.0mm ±100ppm -40°C to +85°C
EMRB64B-32.768K CMOS 2.8Vdc SMD 1.2mm x 2.0mm ±75ppm -10°C to +70°C
EMRB64C-32.768K CMOS 2.8Vdc SMD 1.2mm x 2.0mm ±100ppm -40°C to +85°C
EMRB65B-32.768K CMOS 3.0Vdc SMD 1.2mm x 2.0mm ±75ppm -10°C to +70°C
EMRB65C-32.768K CMOS 3.0Vdc SMD 1.2mm x 2.0mm ±100ppm -40°C to +85°C
EMRB81B-32.768K CMOS 1.8Vdc CSP 0.8mm x 1.5mm ±75ppm -10°C to +70°C
EMRB81C-32.768K CMOS 1.8Vdc CSP 0.8mm x 1.5mm ±100ppm -40°C to +85°C
EMRB82B-32.768K CMOS 2.5Vdc CSP 0.8mm x 1.5mm ±75ppm -10°C to +70°C
EMRB82C-32.768K CMOS 2.5Vdc CSP 0.8mm x 1.5mm ±100ppm -40°C to +85°C
EMRB83B-32.768K CMOS 3.3Vdc CSP 0.8mm x 1.5mm ±75ppm -10°C to +70°C
EMRB83C-32.768K CMOS 3.3Vdc CSP 0.8mm x 1.5mm ±100ppm -40°C to +85°C
EMRB84B-32.768K CMOS 2.8Vdc CSP 0.8mm x 1.5mm ±75ppm -10°C to +70°C
EMRB84C-32.768K CMOS 2.8Vdc CSP 0.8mm x 1.5mm ±100ppm -40°C to +85°C
EMRB85B-32.768K CMOS 3.0Vdc CSP 0.8mm x 1.5mm ±75ppm -10°C to +70°C
EMRB85C-32.768K CMOS 3.0Vdc CSP 0.8mm x 1.5mm ±100ppm -40°C to +85°C

  包括所有條件：25°C時的校準容差，工作溫度范圍內的頻率穩定性、范圍、電源電壓變化、輸出負載變化、25°C下的第一年老化、沖擊和振動，±100ppm最大值、±50ppm最大值

20220505001

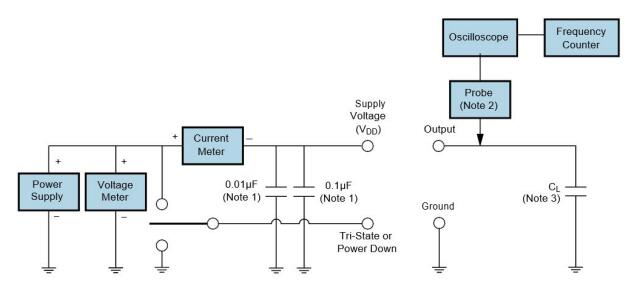

  注1：需要一個外部0.01µF陶瓷旁路電容與一個0.1µF高頻陶瓷旁路電容并聯，靠近（小于2mm）封裝接地和電源電壓引腳。

  注2：建議使用低輸入電容(<12pF)、10X衰減系數、高阻抗(>10Mohms)和高帶寬(>300MHz)無源探頭。

  注3：電容值CL包括所有探頭和夾具電容的總和。參見適用的“負載驅動能力”規格表

EMTB81A3D-32.768K CMOS 1.8Vdc CSP 0.8mm x 1.5mm ±5.0ppm 0°C to +70°C
EMTB81A8D-32.768K CMOS 1.8Vdc CSP 0.8mm x 1.5mm ±5.0ppm -40°C to +85°C
EMTB82A3D-32.768K CMOS 2.5Vdc CSP 0.8mm x 1.5mm ±5.0ppm 0°C to +70°C
EMTB82A8D-32.768K CMOS 2.5Vdc CSP 0.8mm x 1.5mm ±5.0ppm -40°C to +85°C
EMTB83A3D-32.768K CMOS 3.3Vdc CSP 0.8mm x 1.5mm ±5.0ppm 0°C to +70°C
EMTB83A8D-32.768K CMOS 3.3Vdc CSP 0.8mm x 1.5mm ±5.0ppm -40°C to +85°C
EMTB84A3D-32.768K CMOS 2.8Vdc CSP 0.8mm x 1.5mm ±5.0ppm 0°C to +70°C
EMTB84A8D-32.768K CMOS 2.8Vdc CSP 0.8mm x 1.5mm ±5.0ppm -40°C to +85°C
EMTB85A3D-32.768K CMOS 3.0Vdc CSP 0.8mm x 1.5mm ±5.0ppm 0°C to +70°C
EMTB85A8D-32.768K CMOS 3.0Vdc CSP 0.8mm x 1.5mm ±5.0ppm -40°C to +85°C
EQTB31D1DH-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +50°C
EQTB31D2DH-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±5.0ppm -10°C to +60°C
EQTB31D3DH-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +70°C
EQTB31D4DH-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±5.0ppm -20°C to +70°C
EQTB31D5DH-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +60°C
EQTB31D6DH-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +75°C
EQTB31D7DH-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +85°C
EQTB31D8DH-32.768K CMOS 1.8Vdc SMD 2.5mm x 3.2mm ±5.0ppm -40°C to +85°C
EQTB32D1DH-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +50°C
EQTB32D2DH-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±5.0ppm -10°C to +60°C
EQTB32D3DH-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +70°C
EQTB32D4DH-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±5.0ppm -20°C to +70°C
EQTB32D5DH-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +60°C
EQTB32D6DH-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +75°C
EQTB32D7DH-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +85°C
EQTB32D8DH-32.768K CMOS 2.5Vdc SMD 2.5mm x 3.2mm ±5.0ppm -40°C to +85°C
EQTB33D1DH-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +50°C
EQTB33D2DH-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±5.0ppm -10°C to +60°C
EQTB33D3DH-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +70°C
EQTB33D4DH-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±5.0ppm -20°C to +70°C
EQTB33D5DH-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +60°C
EQTB33D6DH-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +75°C
EQTB33D7DH-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +85°C
EQTB33D8DH-32.768K CMOS 3.3Vdc SMD 2.5mm x 3.2mm ±5.0ppm -40°C to +85°C
EQTB35D1DH-32.768K CMOS 3.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +50°C
EQTB35D2DH-32.768K CMOS 3.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -10°C to +60°C
EQTB35D3DH-32.768K CMOS 3.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm 0°C to +70°C
EQTB35D4DH-32.768K CMOS 3.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -20°C to +70°C
EQTB35D5DH-32.768K CMOS 3.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +60°C
EQTB35D6DH-32.768K CMOS 3.0Vdc SMD 2.5mm x 3.2mm ±5.0ppm -30°C to +75°C
