IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032進口晶振

頻率：11.0592MHZ

尺寸：5.0mm×3.2mm

IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032進口晶振,IQD晶振,IQXC-49石英晶振,無源晶振,LFXTAL084712Reel晶振,5032進口晶振,SMD晶體,晶體諧振器,二腳貼片晶振,頻率11.0592MHz,負載18pF,頻率容差30ppm,工作溫度范圍-20~70°C,高可靠性晶振,無鉛環保晶振,小體積晶振,網絡附屬存儲晶振,無線接入點晶振,音頻系統晶振,智能家居晶振.

訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息

yijin-1IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032進口晶振,IQD晶振,IQXC-49石英晶振,無源晶振,LFXTAL084712Reel晶振,5032進口晶振,SMD晶體,晶體諧振器,二腳貼片晶振,頻率11.0592MHz,負載18pF,頻率容差30ppm,工作溫度范圍-20~70°C,高可靠性晶振,無鉛環保晶振,小體積晶振,網絡附屬存儲晶振,無線接入點晶振,音頻系統晶振,智能家居晶振.

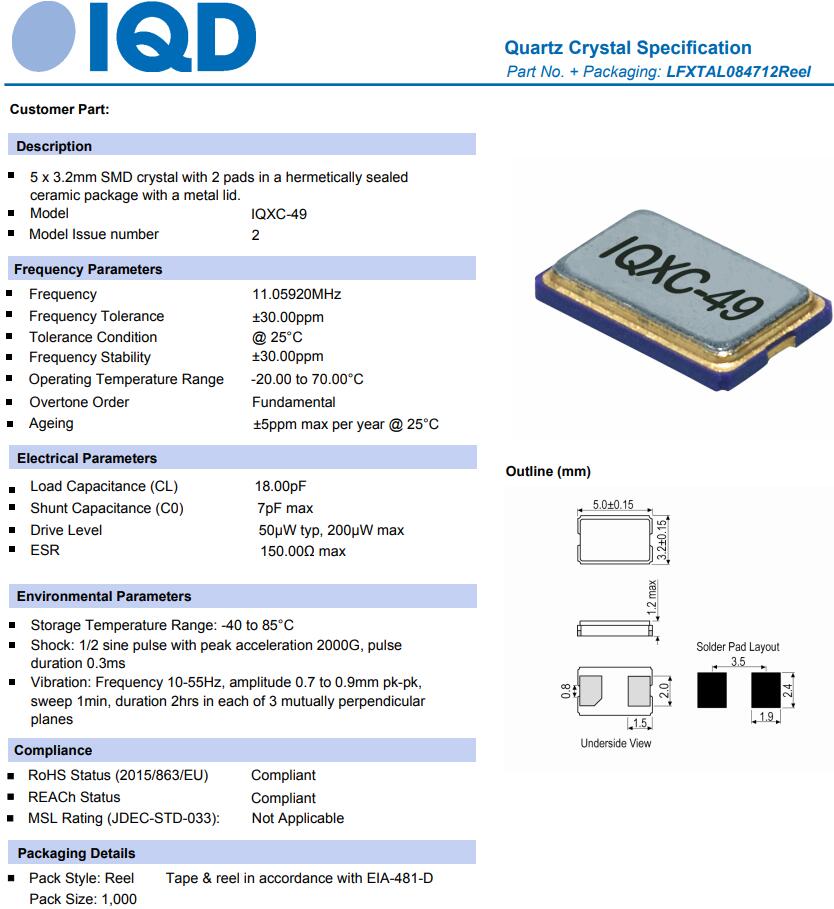

yijin-2IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032進口晶振規格表

參數 數值
頻率 11.0592 MHz
頻率容差@ 25°C ± 3°C ±30ppm
頻率穩定性 ±30ppm
工作溫度 -20~70°C
儲存溫度 -40~85°C
負載 18 pF
并聯電容 7pF max
驅動電平
200µW max
老化@ 25°C ± 3°C
±5.0ppm  max per year

yijin-3IQD晶振|IQXC-42 AUTO晶振|LFXTAL071267Reel|汽車應用晶振尺寸圖

IQXC-49-1

IQXC-49-2

編碼 型號 頻率 頻率容差 頻率穩定性 工作溫度 負載
LFXTAL078795Cutt IQXC-42 16.0MHz ±15ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL081780RL3K IQXC-42 16.0MHz ±10ppm ±20ppm -30°C to 85°C 8.00pF
LFXTAL081781RL3K IQXC-42 16.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081821Cutt IQXC-42 16.0MHz ±10ppm ±15ppm -30°C to 85°C 12.00pF
LFXTAL082887RL3K IQXC-42 16.0MHz ±10ppm ±30ppm -40°C to 105°C 10.00pF
LFXTAL059585Cutt IQXC-42 20.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059585Reel IQXC-42 20.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059585RL3K IQXC-42 20.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL064174RL3K IQXC-42 24.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL066139Cutt IQXC-42 24.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069476RL3K IQXC-42 24.0MHz ±10ppm ±10ppm -20°C to 75°C 12.00pF
LFXTAL069493Cutt IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069493Reel IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069493RL3K IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072577RL3K IQXC-42 24.0MHz ±10ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL076411Cutt IQXC-42 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL076411RL3K IQXC-42 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL081531RL3K IQXC-42 24.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL081646RL3K IQXC-42 24.0MHz ±15ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082123Cutt IQXC-42 24.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082123RL3K IQXC-42 24.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL090516RL3K IQXC-42 24.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL054026Cutt IQXC-42 25.0MHz ±25ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059552Reel IQXC-42 25.0MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL064933Cutt IQXC-42 25.0MHz ±30ppm ±30ppm 0°C to 50°C 10.00pF
LFXTAL066140Cutt IQXC-42 25.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494Bulk IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494Cutt IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494Reel IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069494RL3K IQXC-42 25.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL075431RL3K IQXC-42 25.0MHz ±30ppm ±40ppm -30°C to 85°C 6.00pF
LFXTAL082125Cutt IQXC-42 25.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082125RL3K IQXC-42 25.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL085846RL3K IQXC-42 25.0MHz ±25ppm ±50ppm -40°C to 125°C 10.00pF
LFXTAL090436RL3K IQXC-42 25.0MHz ±10ppm ±20ppm -40°C to 105°C 10.00pF
LFXTAL059591Cutt IQXC-42 26.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059591Reel IQXC-42 26.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059591RL3K IQXC-42 26.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL066141Cutt IQXC-42 26.0MHz ±15ppm ±15ppm -20°C to 70°C 10.00pF
LFXTAL076879Bulk IQXC-42 26.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL078377RL3K IQXC-42 26.0MHz ±10ppm ±10ppm -20°C to 75°C 12.00pF
LFXTAL081595Cutt IQXC-42 26.0MHz ±10ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL082126Cutt IQXC-42 26.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082126Reel IQXC-42 26.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082126RL3K IQXC-42 26.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL083241Cutt IQXC-42 26.0MHz ±15ppm ±20ppm -20°C to 70°C 8.00pF
LFXTAL059592Cutt IQXC-42 27.0MHz ±15ppm ±15ppm -40°C to 85°C 10.00pF
LFXTAL072543Cutt IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072543Reel IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072543RL3K IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL081349Reel IQXC-42 27.0MHz ±15ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL083147RL3K IQXC-42 27.0MHz ±10ppm ±10ppm -20°C to 70°C 18.00pF
LFXTAL063227Reel IQXC-42 27.12MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL063227RL3K IQXC-42 27.12MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL071489Bulk IQXC-42 27.12MHz ±30ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL071489Cutt IQXC-42 27.12MHz ±30ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL071489RL3K IQXC-42 27.12MHz ±30ppm ±30ppm -20°C to 70°C 10.00pF
LFXTAL076164Cutt IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL076164Reel IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081630Cutt IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081630RL3K IQXC-42 27.12MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL082127Cutt IQXC-42 27.12MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082127RL3K IQXC-42 27.12MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL059596Cutt IQXC-42 30.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059596Reel IQXC-42 30.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059596RL3K IQXC-42 30.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082128Cutt IQXC-42 30.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082128RL3K IQXC-42 30.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL058002RL3K IQXC-42 32.0MHz ±10ppm ±10ppm 0°C to 50°C 8.00pF
LFXTAL058004Cutt IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL058004RL3K IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL058067Cutt IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL058130RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL058699Cutt IQXC-42 32.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL058962RL3K IQXC-42 32.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL059597Cutt IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059597Reel IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059597RL3K IQXC-42 32.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL061700Cutt IQXC-42 32.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL061700Reel IQXC-42 32.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL072861RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL073170RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL077362RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 85°C 6.00pF
LFXTAL081227RL3K IQXC-42 32.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL081538RL3K IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 75°C 8.00pF
LFXTAL081567Cutt IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 75°C 8.00pF
LFXTAL081839RL3K IQXC-42 32.0MHz ±30ppm ±30ppm -40°C to 85°C 6.00pF
LFXTAL082129Cutt IQXC-42 32.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082129RL3K IQXC-42 32.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL083004RL3K IQXC-42 32.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL085946RL3K IQXC-42 32.0MHz ±10ppm ±20ppm -40°C to 105°C 12.00pF
LFXTAL088678RL3K IQXC-42 32.768MHz ±30ppm ±50ppm -20°C to 70°C 8.00pF
LFXTAL082130Cutt IQXC-42 37.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082130RL3K IQXC-42 37.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL059627Cutt IQXC-42 38.4MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL059627Reel IQXC-42 38.4MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL059627RL3K IQXC-42 38.4MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL075418Cutt IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL075418Reel IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078271Cutt IQXC-42 38.4MHz ±10ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL081635Cutt IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081635RL3K IQXC-42 38.4MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081883RL3K IQXC-42 38.4MHz ±10ppm ±15ppm -35°C to 85°C 8.00pF
LFXTAL082131Cutt IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082131RL3K IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082468Cutt IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 10.00pF
LFXTAL082468RL3K IQXC-42 38.4MHz ±10ppm ±15ppm -40°C to 85°C 10.00pF
LFXTAL059632Cutt IQXC-42 40.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059632Reel IQXC-42 40.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL059632RL3K IQXC-42 40.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082132Cutt IQXC-42 40.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082132Reel IQXC-42 40.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082132RL3K IQXC-42 40.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL090469RL3K IQXC-42 43.935MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL090628Reel IQXC-42 45.761MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL066363Cutt IQXC-42 48.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL072546Cutt IQXC-42 48.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072546Reel IQXC-42 48.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072546RL3K IQXC-42 48.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082135Cutt IQXC-42 48.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082135RL3K IQXC-42 48.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL079374Cutt IQXC-42 50.0MHz ±15ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL085859RL3K IQXC-42 50.0MHz ±10ppm ±50ppm -40°C to 125°C 8.00pF
LFXTAL071255Cutt IQXC-42 AUTO 16.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071255Reel IQXC-42 AUTO 16.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071256Cutt IQXC-42 AUTO 20.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071256Reel IQXC-42 AUTO 20.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL082989Cutt IQXC-42 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL082989Reel IQXC-42 AUTO 20.0MHz ±50ppm ±150ppm -40°C to 150°C 8.00pF
LFXTAL083912Cutt IQXC-42 AUTO 20.0MHz ±30ppm ±45ppm -40°C to 125°C 8.00pF
LFXTAL071257Cutt IQXC-42 AUTO 24.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071257Reel IQXC-42 AUTO 24.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071258Cutt IQXC-42 AUTO 24.576MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071258Reel IQXC-42 AUTO 24.576MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071259Cutt IQXC-42 AUTO 25.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071259Reel IQXC-42 AUTO 25.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071260Cutt IQXC-42 AUTO 26.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071260Reel IQXC-42 AUTO 26.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071261Cutt IQXC-42 AUTO 27.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071261Reel IQXC-42 AUTO 27.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071262Cutt IQXC-42 AUTO 32.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071262Reel IQXC-42 AUTO 32.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL084010Reel IQXC-42 AUTO 32.0MHz ±10ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL082907Cutt IQXC-42 AUTO 38.4MHz ±20ppm ±80ppm -40°C to 125°C 8.00pF
LFXTAL070734Cutt IQXC-42 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL070734Reel IQXC-42 AUTO 40.0MHz ±50ppm ±100ppm -40°C to 125°C 8.00pF
LFXTAL071265Cutt IQXC-42 AUTO 40.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071265Reel IQXC-42 AUTO 40.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL090472Reel IQXC-42 AUTO 43.935MHz ±20ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL071266Cutt IQXC-42 AUTO 48.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071266Reel IQXC-42 AUTO 48.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071267Cutt IQXC-42 AUTO 50.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL071267Reel  IQXC-42 AUTO 50.0MHz ±10ppm ±100ppm -40°C to 125°C 10.00pF
LFXTAL077082Cutt  IQXC-49 8.0MHz ±50ppm ±100ppm -20°C to 70°C 16.00pF
LFXTAL077089Cutt  IQXC-49 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077089Reel  IQXC-49 8.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL084035Reel  IQXC-49 8.0MHz ±30ppm ±30ppm -20°C to 70°C 12.00pF
LFXTAL084673Reel  IQXC-49 8.0MHz ±50ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL085089Reel  IQXC-49 8.0MHz ±20ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL077084Reel  IQXC-49 10.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077086Reel  IQXC-49 10.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL084712Reel  IQXC-49 11.0592MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL077079Reel  IQXC-49 18.432MHz ±30ppm ±50ppm -40°C to 85°C 18.00pF
LFXTAL084840Reel  IQXC-49 20.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL077077Reel  IQXC-49 24.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL081544Cutt  IQXC-49 24.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077078Reel  IQXC-49 25.0MHz ±30ppm ±30ppm -40°C to 85°C 20.00pF
LFXTAL077083Bulk  IQXC-49 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077083Cutt  IQXC-49 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077083Reel  IQXC-49 25.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL077085Cutt  IQXC-49 25.0MHz ±20ppm ±50ppm -20°C to 70°C 18.00pF
LFXTAL083868Reel  IQXC-49 25.0MHz ±30ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL080861Bulk  IQXC-49 27.12MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL084410Cutt  IQXC-49 30.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL084410Reel  IQXC-49 30.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF


yijin-5

YJ-6

深圳市億金電子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone聯系人黃娜：18924600166

QQ工作QQ:857950243

myt貿易通：yijindz2014

tel座機：0755-27876565

email郵箱:yijindz@163.com

inter 網址：http://www.yijindz.com

mwx微信：yijindz，公眾號：NDKcrystal

home地址：廣東省深圳市寶安區107國道旁甲岸路

wxewm

跟此產品相關的產品 / Related Products

M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮
M2532S1357.372800,M2532系列晶振,MTRONPTI麥特倫皮,具備精準的7.372800MHz標稱頻率,這一頻率值專為需高精度晶振時鐘信號的場景設計,如串口通信,實時時鐘(RTC)模塊等.作為M2532系列的代表性產品,其采用工業級標準封裝,尺寸與電氣接口符合系列統一規范,可與同系列其他頻率型號實現無縫替換,極大降低了設備迭代時的適配成本.同時,該型號支持寬電壓輸入范圍與穩定的負載電容特性,在-40℃~85℃的工業級工作溫度區間內,能保持頻率穩定度在±20ppm以內,滿足惡劣環境下的長期可靠運行需求.
ECS-2520S33-200-FN-TR,無線應用晶振,HCMOS輸出
ECS-2520S33-200-FN-TR,無線應用晶振,HCMOS輸出
ECS-2520S33-200-FN-TR,無線應用晶振,HCMOS輸出,針對無線設備多面臨復雜電磁環境,需長期穩定通信的特點,ECS-2520S33-200-FN-TR在性能上進行專項優化:工作溫度范圍覆蓋-40℃~+85℃,配合內部溫度補償技術,即使在戶外高溫,低溫等極端環境下,也能有效抑制頻率漂移,確保無線信號傳輸的時序準確性,避免因時鐘偏差導致的通信中斷,具備優異的電磁抗干擾能力,通過特殊封裝屏蔽設計,抵御無線設備自身射頻模塊及外部環境的電磁輻射干擾,減少HCMOS輸出晶體振蕩器信號的噪聲疊加,提升無線通信的信噪比.此外,其低功耗特性(典型工作電流＜7mA)適配無線設備電池供電需求,延長設備續航周期,減少戶外充電或更換電池的頻率,是無線應用場景的"可靠時鐘伴侶".
ECS-2033-240-BN-TR3,ECS-2033振蕩器,高密度晶振
ECS-2033-240-BN-TR3,ECS-2033振蕩器,高密度晶振
ECS-2033-240-BN-TR3,ECS-2033振蕩器,高密度晶振,ECS-2033-240-BN-TR3憑借高密度封裝,24MHz頻率及高穩定性,全面適配多領域高密度設備,在消費電子領域,可嵌入智能手機射頻模塊,智能手表主控電路,節省PCB空間,24MHz頻率支撐藍牙晶振,WiFi等高速無線通信的時序需求,在工業自動化領域,適配高密度PLC模塊,智能傳感器陣列,耐受復雜電磁環境,保障多傳感器數據采集的時序同步,避免數據錯亂,在醫療電子領域,適用于便攜醫療監測設備的高密度主板,滿足設備小型化要求,同時高穩定性可保障醫療數據采集的準確性,是一款跨領域高密度場景的通用型振蕩器.
億金電子產品中心 Product Center

晶振系列

日本進口晶振

臺產晶振

歐美晶振

有源晶振

霧化片

貼片晶振

32.768K

聲表面濾波器

石英晶振

KDS晶振

愛普生晶振

NDK晶振

溫補晶振

聯系億金電子Contact us
咨詢熱線：0755-27876565

手機：189 2460 0166

QQ：857950243

郵箱：yijindz@163.com

地址：深圳市寶安區新安107國道旁甲岸路

Fast Track
快速通道

國內晶振分類：
Domestic Crystal
進口晶振分類：
Import Crystal
