日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振

頻率：32.768KHZ

尺寸：2012mm

日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，2012晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，貼片晶振，6G通訊專用晶振，6G網絡晶振，高品質晶振，F(xiàn)CT-2M晶振，超小尺寸2.0×1.2×0.6 mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛
訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息 日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振

NDK-2

yijin-1

日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，2012晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，貼片晶振，6G通訊專用晶振，6G網絡晶振，高品質晶振，F(xiàn)CT-2M晶振，超小尺寸2.0×1.2×0.6 mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛

yijin-2

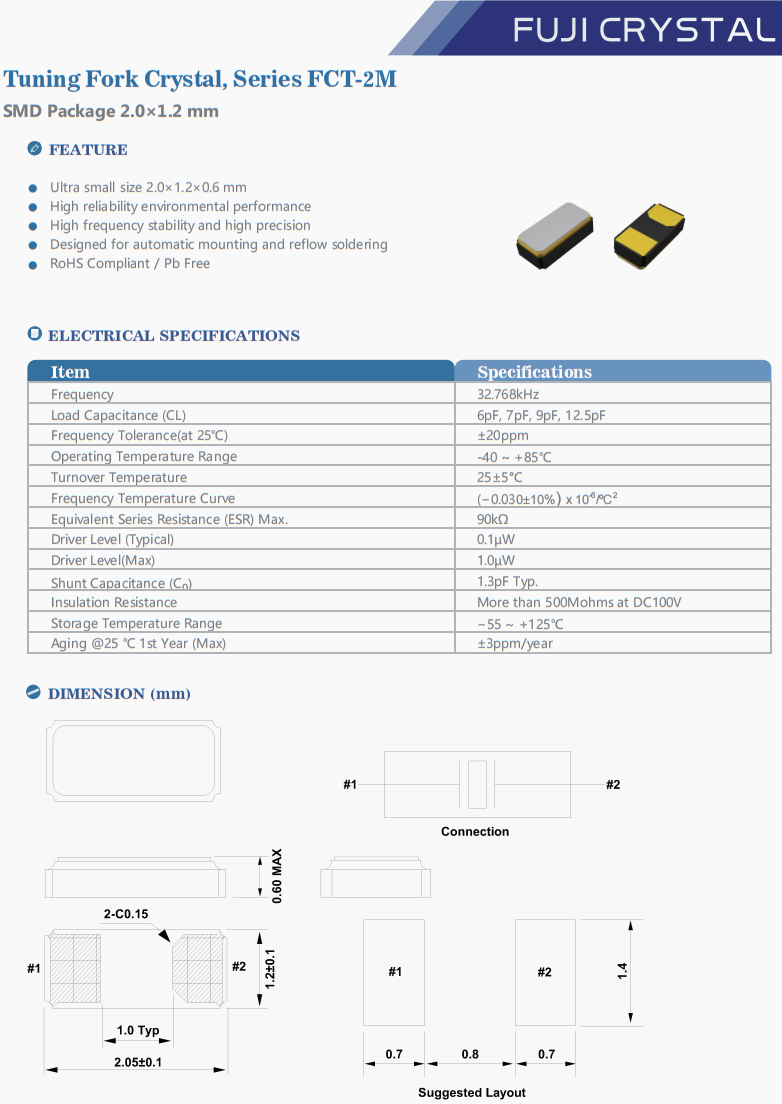

日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振

項目 技術規格
頻率      32.768kHz
負載電容      6pF, 7pF, 9pF, 12.5pF
頻率容差      ±20ppm
工作溫度      -40 ~ +85℃
周轉溫度      25±5°C
頻率溫度曲線      (−0.030± 10%) x 10-6/ºC2
等效串聯電阻最大值      90kΩ
驅動電平（標準）      0.1µW
驅動電平（最大）      1.0µW
分流電容      1.3pF Typ.
絕緣電阻      More than 500Mohms at DC100V
儲存溫度      − 55 ~ +125℃
老化      ±3ppm/year
yijin-3

日產2012富士晶振,6G通訊設備晶振,FCT2M03276807E1晶振

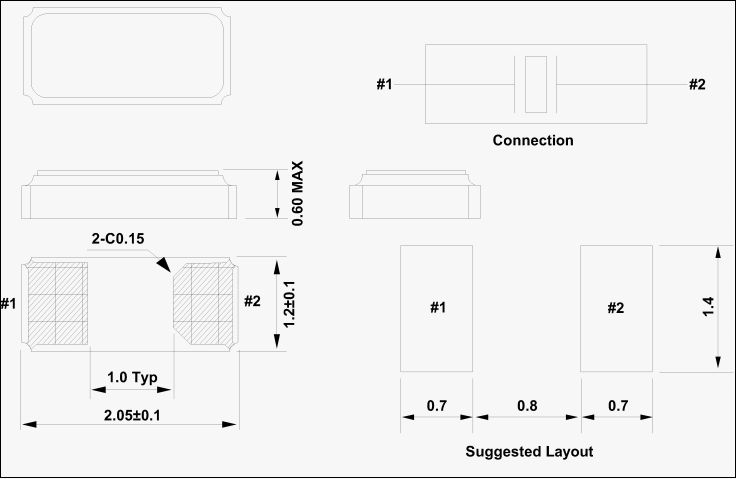

FCT-2M

FCT-2M

FUJI原廠編碼 生產商品牌 型號 類型 頻率 頻率容差 負載電容 工作溫度
FCT2M03276805W6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF 0°C ~ 70°C
FCT2M03276807E5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 70°C
FCT2M03276806Y5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 85°C
FCT2M032768C5E3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -20°C ~ 70°C
FCT2M03276807E6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 70°C
FCT2M03276806Y3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 85°C
FCT2M03276812U6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -40°C ~ 105°C
FCT2M03276804D1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -10°C ~ 70°C
FCT2M03276810U6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 10pF -40°C ~ 105°C
FCT2M03276807D5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -10°C ~ 70°C
FCT2M03276807S5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 75°C
FCT2M03276812Y1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -40°C ~ 85°C
FCT2M03276806W3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF 0°C ~ 70°C
FCT2M03276809I6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 125°C
FCT2M03276809W5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF 0°C ~ 70°C
FCT2M03276806W6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF 0°C ~ 70°C
FCT2M03276804U6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -40°C ~ 105°C
FCT2M03276812D1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -10°C ~ 70°C
FCT2M03276804W3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF 0°C ~ 70°C
FCT2M03276803W3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF 0°C ~ 70°C
FCT2M03276812S3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -20°C ~ 75°C
FCT2M03276803U5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -40°C ~ 105°C
FCT2M03276805P5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF -10°C ~ 60°C
FCT2M03276803P5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -10°C ~ 60°C
FCT2M03276803I6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -40°C ~ 125°C
FCT2M03276804P5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -10°C ~ 60°C
FCT2M032768C5R6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -30°C ~ 70°C
FCT2M03276809P3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 60°C
FCT2M032768C5D3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -10°C ~ 70°C
FCT2M03276805P3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF -10°C ~ 60°C
FCT2M032768C5D5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -10°C ~ 70°C
FCT2M03276809P5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 60°C
FCT2M03276805W1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF 0°C ~ 70°C
FCT2M032768C5S6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -20°C ~ 75°C
FCT2M03276807P3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -10°C ~ 60°C
FCT2M03276806I3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 125°C
FCT2M03276812S6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -20°C ~ 75°C
FCT2M03276805P1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF -10°C ~ 60°C
FCT2M03276806P1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -10°C ~ 60°C
FCT2M03276806U3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 105°C
FCT2M03276806E6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 70°C
FCT2M03276807T6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 85°C
FCT2M032768C5Y5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 85°C
FCT2M03276812P3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -10°C ~ 60°C
FCT2M032768C5I3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 125°C
FCT2M03276807E3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 70°C
FCT2M03276812U3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -40°C ~ 105°C
FCT2M03276806R6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 70°C
FCT2M03276804S3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -20°C ~ 75°C
FCT2M03276804Y5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -40°C ~ 85°C
FCT2M03276804U3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -40°C ~ 105°C
FCT2M03276807T1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 85°C
FCT2M03276804D6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -10°C ~ 70°C
FCT2M03276812W3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF 0°C ~ 70°C
FCT2M03276805S6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF -20°C ~ 75°C
FCT2M03276805E5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF -20°C ~ 70°C
FCT2M03276812R3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -30°C ~ 70°C
FCT2M03276806S6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 75°C
FCT2M03276812T3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -30°C ~ 85°C
FCT2M03276809R5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -30°C ~ 70°C
FCT2M03276809R6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -30°C ~ 70°C
FCT2M03276812E3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -20°C ~ 70°C
FCT2M03276809Y1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 85°C
FCT2M03276809Y3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 85°C
FCT2M03276806R3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 70°C
FCT2M03276806S1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 75°C
FCT2M03276805Y5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF -40°C ~ 85°C
FCT2M03276807Y5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 85°C
FCT2M03276809Y6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 85°C
FCT2M03276804S5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -20°C ~ 75°C
FCT2M032768C5I5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 125°C
FCT2M03276809S3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -20°C ~ 75°C
FCT2M03276806E3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 70°C
FCT2M03276804T3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -30°C ~ 85°C
FCT2M03276809D6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 70°C
FCT2M03276806T6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 85°C
FCT2M03276807T5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 85°C
FCT2M03276806T3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 85°C
FCT2M03276803E3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -20°C ~ 70°C
FCT2M032768C5P3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -10°C ~ 60°C
FCT2M03276803T5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -30°C ~ 85°C
FCT2M03276812U5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -40°C ~ 105°C
FCT2M03276807R6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 70°C
FCT2M03276807Y1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 85°C
FCT2M03276805D3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF -10°C ~ 70°C
FCT2M03276809D1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 70°C
FCT2M03276807D6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -10°C ~ 70°C
FCT2M03276812W6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF 0°C ~ 70°C
FCT2M03276807S6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 75°C
FCT2M03276803Y5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -40°C ~ 85°C
FCT2M03276812P5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -10°C ~ 60°C
FCT2M03276809T3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -30°C ~ 85°C
FCT2M03276807W6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF 0°C ~ 70°C
FCT2M03276804Y6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -40°C ~ 85°C
FCT2M03276806D5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -10°C ~ 70°C
FCT2M03276812W5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF 0°C ~ 70°C
FCT2M03276803I3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -40°C ~ 125°C
FCT2M03276805Y6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF -40°C ~ 85°C
FCT2M03276807E1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 70°C
FCT2M03276809P6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 60°C
FCT2M03276809E6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -20°C ~ 70°C
FCT2M03276807Y3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 85°C
FCT2M032768C5W5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF 0°C ~ 70°C
FCT2M03276803S3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -20°C ~ 75°C
FCT2M032768C5U3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 105°C
FCT2M03276812E1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -20°C ~ 70°C
FCT2M03276809E5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -20°C ~ 70°C
FCT2M03276805T1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 5pF -30°C ~ 85°C
FCT2M03276812T6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -30°C ~ 85°C
FCT2M03276807R1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 70°C
FCT2M03276806S3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 75°C
FCT2M032768C5T6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -30°C ~ 85°C
FCT2M03276807S1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 75°C
FCT2M03276804D5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -10°C ~ 70°C
FCT2M03276812R5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12pF -30°C ~ 70°C
FCT2M03276803U3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -40°C ~ 105°C
FCT2M03276803Y3 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 3pF -40°C ~ 85°C
FCT2M032768C5I6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 125°C
FCT2M032768C5Y1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 85°C
FCT2M03276804W5 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF 0°C ~ 70°C
FCT2M032768C5U6 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 105°C
FCT2M03276804R1 Fuji晶振 FCT-2M kHz Crystal (Tuning Fork) 32.768 kHz - 4pF -30°C ~ 70°C
