日本進口Fujicom晶振,小尺寸6G信號接收器晶振,FCT1M03276806E3高品質二腳晶振

頻率：32.768KHZ

尺寸：1610mm

日本進口Fujicom晶振,小尺寸6G信號接收器晶振,FCT1M03276806E3高品質二腳晶振，日本富士晶振公司，Fujicom晶振，高精度晶振，1610晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，貼片晶振，6G信號接收器晶振，6G網絡晶振，高品質晶振，FCT-1M晶振，超小尺寸1.6×1.0×0.5mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛
訂購熱線：0755-27876565
QQ咨詢 點擊這里給我發消息 日本進口Fujicom晶振,小尺寸6G信號接收器晶振,FCT1M03276806E3高品質二腳晶振

NDK-2

yijin-1

日本進口Fujicom晶振,小尺寸6G信號接收器晶振,FCT1M03276806E3高品質二腳晶振，日本富士晶振公司，Fujicom晶振，高精度晶振，1610晶振，石英晶振，二腳晶振，無源晶振，KHz晶振，貼片晶振，6G信號接收器晶振，6G網絡晶振，高品質晶振，FCT-1M晶振，超小尺寸1.6×1.0×0.5mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛

yijin-2

日本進口Fujicom晶振,小尺寸6G信號接收器晶振,FCT1M03276806E3高品質二腳晶振

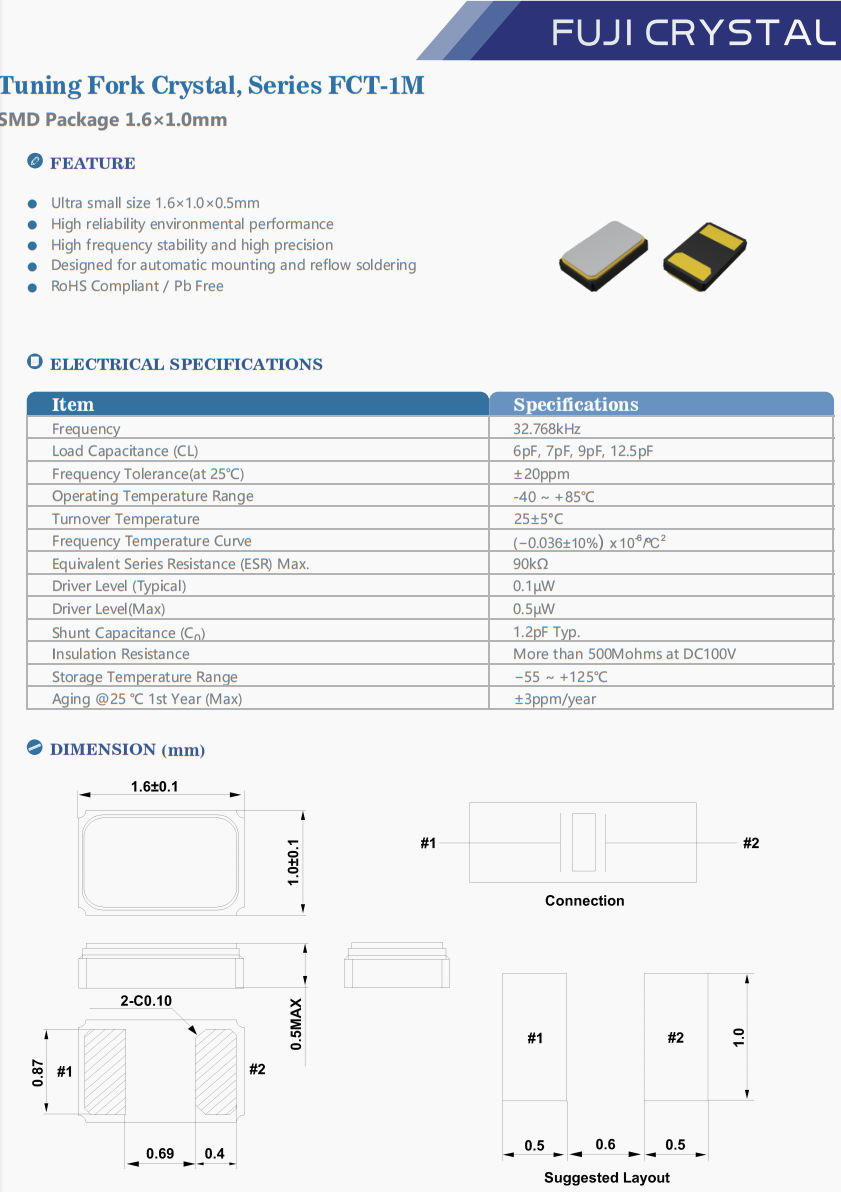

項目 技術規格
頻率      32.768kHz
負載電容      6pF, 7pF, 9pF, 12.5pF
頻率容差      ±20ppm
工作溫度      -40 ~ +85℃
周轉溫度      25±5°C
頻率溫度曲線      (−0.036± 10%) x 10-6/ºC2
等效串聯電阻最大值      90kΩ
驅動電平（標準）      0.1µW
驅動電平（最大）      0.5µW
分流電容      1.2pF Typ.
絕緣電阻      More than 500Mohms at DC100V
儲存溫度 − 55 ~ +125℃
老化      ±3ppm/year
yijin-3

日本進口Fujicom晶振,小尺寸6G信號接收器晶振,FCT1M03276806E3高品質二腳晶振

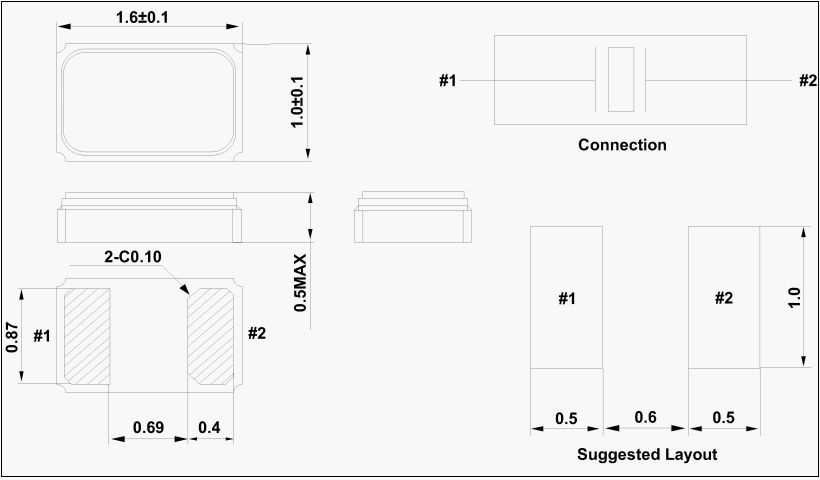

FCT-1M

FCT-1M

FUJI原廠編碼 生產商品牌 型號 類型 頻率 頻率容差 負載電容 工作溫度
FCT1M03276806E3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 70°C
FCT1M032768C5W1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF 0°C ~ 70°C
FCT1M032768C5E1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -20°C ~ 70°C
FCT1M03276806E5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 70°C
FCT1M03276807W3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF 0°C ~ 70°C
FCT1M03276807P3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -10°C ~ 60°C
FCT1M03276807I6 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 125°C
FCT1M03276806U3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 105°C
FCT1M03276807P1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -10°C ~ 60°C
FCT1M03276807Y1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 85°C
FCT1M03276806U5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 105°C
FCT1M03276807R1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 70°C
FCT1M03276809D1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 70°C
FCT1M03276807P5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -10°C ~ 60°C
FCT1M03276806U6 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 105°C
FCT1M03276806T3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 85°C
FCT1M03276809S5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -20°C ~ 75°C
FCT1M032768C5U6 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 105°C
FCT1M032768C5U9 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 105°C
FCT1M032768C5I6 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 125°C
FCT1M03276806D1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -10°C ~ 70°C
FCT1M03276809S3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -20°C ~ 75°C
FCT1M03276806E1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 70°C
FCT1M03276807Y5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 85°C
FCT1M032768C5D5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -10°C ~ 70°C
FCT1M032768C5I5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 125°C
FCT1M03276807I9 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 125°C
FCT1M03276807Y3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 85°C
FCT1M03276807W5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF 0°C ~ 70°C
FCT1M032768C5U5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 105°C
FCT1M03276809S1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -20°C ~ 75°C
FCT1M03276806I5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 125°C
FCT1M032768C5U3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 105°C
FCT1M03276806D5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -10°C ~ 70°C
FCT1M03276809T1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -30°C ~ 85°C
FCT1M032768C5E3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -20°C ~ 70°C
FCT1M03276806D3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -10°C ~ 70°C
FCT1M03276806T5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 85°C
FCT1M03276809R5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -30°C ~ 70°C
FCT1M032768C5E5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -20°C ~ 70°C
FCT1M03276807I5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 125°C
FCT1M032768C5D1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -10°C ~ 70°C
FCT1M03276809W5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF 0°C ~ 70°C
FCT1M03276806I9 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 125°C
FCT1M03276809E1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -20°C ~ 70°C
FCT1M03276806W1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF 0°C ~ 70°C
FCT1M03276806S3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 75°C
FCT1M03276809P5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 60°C
FCT1M03276807D3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -10°C ~ 70°C
FCT1M03276809E3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -20°C ~ 70°C
FCT1M032768C5Y3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 85°C
FCT1M03276809R1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -30°C ~ 70°C
FCT1M032768C5P1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -10°C ~ 60°C
FCT1M03276809D3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 70°C
FCT1M03276809T3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -30°C ~ 85°C
FCT1M03276806I6 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 125°C
FCT1M03276806P5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -10°C ~ 60°C
FCT1M03276806W5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF 0°C ~ 70°C
FCT1M03276809U9 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 105°C
FCT1M03276809Y5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 85°C
FCT1M03276809P1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 60°C
FCT1M03276806S5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 75°C
FCT1M032768C5S1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -20°C ~ 75°C
FCT1M032768C5S3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -20°C ~ 75°C
FCT1M03276807T5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 85°C
FCT1M032768C5R1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -30°C ~ 70°C
FCT1M03276806W3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF 0°C ~ 70°C
FCT1M03276809U3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 105°C
FCT1M032768C5P3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -10°C ~ 60°C
FCT1M03276807S5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 75°C
FCT1M032768C5T1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -30°C ~ 85°C
FCT1M03276806S1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -20°C ~ 75°C
FCT1M03276806R1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 70°C
FCT1M03276807U3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 105°C
FCT1M03276806P3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -10°C ~ 60°C
FCT1M032768C5R5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -30°C ~ 70°C
FCT1M03276809Y3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 85°C
FCT1M03276806U9 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 105°C
FCT1M03276807U5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 105°C
FCT1M03276806P1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -10°C ~ 60°C
FCT1M03276807E1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 70°C
FCT1M03276807W1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF 0°C ~ 70°C
FCT1M03276806R5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 70°C
FCT1M03276807R5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 70°C
FCT1M032768C5Y1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 85°C
FCT1M03276807T3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 85°C
FCT1M032768C5R3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -30°C ~ 70°C
FCT1M03276809U5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 105°C
FCT1M032768C5S5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -20°C ~ 75°C
FCT1M03276809I5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 125°C
FCT1M032768C5Y5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 85°C
FCT1M03276807R3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 70°C
FCT1M03276809I6 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 125°C
FCT1M03276807U9 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 105°C
FCT1M03276809D5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 70°C
FCT1M03276809U6 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 105°C
FCT1M03276809P3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -10°C ~ 60°C
FCT1M03276807D1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -10°C ~ 70°C
FCT1M03276807D5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -10°C ~ 70°C
FCT1M03276809E5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -20°C ~ 70°C
FCT1M03276809R3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -30°C ~ 70°C
FCT1M03276809Y1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 85°C
FCT1M03276807U6 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -40°C ~ 105°C
FCT1M03276806T1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 85°C
FCT1M03276806Y1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 85°C
FCT1M03276809T5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -30°C ~ 85°C
FCT1M032768C5P5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -10°C ~ 60°C
FCT1M032768C5I9 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -40°C ~ 125°C
FCT1M03276807T1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -30°C ~ 85°C
FCT1M03276807E5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 70°C
FCT1M03276807S3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 75°C
FCT1M032768C5T3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -30°C ~ 85°C
FCT1M03276807S1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 75°C
FCT1M032768C5D3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -10°C ~ 70°C
FCT1M03276806Y5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 85°C
FCT1M032768C5T5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF -30°C ~ 85°C
FCT1M03276809W1 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF 0°C ~ 70°C
FCT1M032768C5W3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF 0°C ~ 70°C
FCT1M03276806R3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -30°C ~ 70°C
FCT1M03276809W3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF 0°C ~ 70°C
FCT1M032768C5W5 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 12.5pF 0°C ~ 70°C
FCT1M03276806Y3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 6pF -40°C ~ 85°C
FCT1M03276807E3 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 7pF -20°C ~ 70°C
FCT1M03276809I9 Fuji晶振 FCT-1M kHz Crystal (Tuning Fork) 32.768 kHz - 9pF -40°C ~ 125°C
