ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS

頻率：11.52MHZ

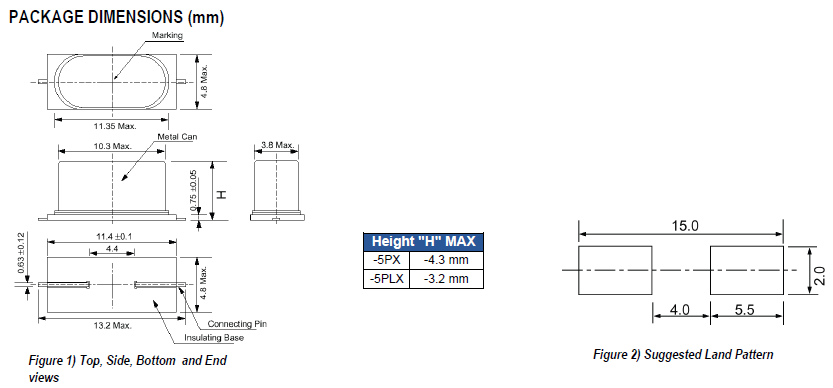

尺寸：11.35X4.8mm

ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS，國外進口晶振，CSM-7X是低成本SMD晶體的絕佳選擇。CSM-7X（5PX）的外殼高度為4.3 mm。在一個電阻焊縫金屬封裝中。較低的輪廓包裝高度，最大3.2 mm。可與（5PLX）包。成本效益高，低調的外表，行業標準，無鉛/RoHS

訂購熱線：0755-27876565

ECS-2

yijin-1

ECS-115.2-18-5PXEN|11.52MHz|18PF|30PPM|49SMD|CSM-7X|ECS，國外進口晶振，CSM-7X是低成本SMD晶體的絕佳選擇。CSM-7X（5PX）的外殼高度為4.3 mm。在一個電阻焊縫金屬封裝中。較低的輪廓包裝高度，最大3.2 mm。可與（5PLX）包。成本效益高，低調的外表，行業標準，無鉛/RoHS

yijin-2

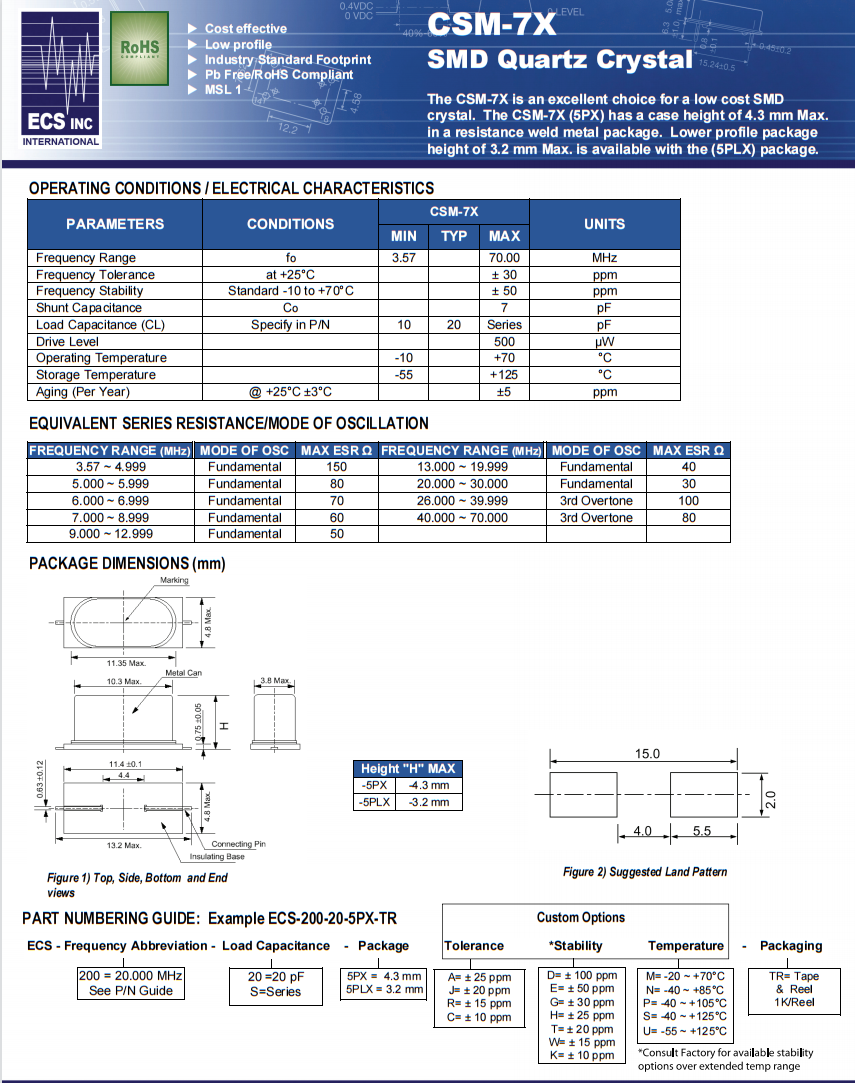

參數	環境	CSM-7X			單位
參數	環境	最小值	典型的	最大值	單位
頻率	fo	3.57		70.00	MHz
頻率容差	at +25°C			± 30	ppm
頻率穩定度	Standard -10 to +70°C			± 50	ppm
并聯電容	Co			7	pF
負載電容	Specify in P/N	10	20	Series	pF
驅動電平				500	µW
工作溫度		--10		+70	°C
儲存溫度		--55		+125	°C
老化	@ +25°C ±3°C			±5	ppm

yijin-3

csm7x

ECS原廠編碼	型號	頻率	頻率容差	頻率偏差度	負載電容	工作溫度
ECS-100-18-5PX-TR	CSM-7X	10MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-100-S-5PX-TR	CSM-7X	10MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-102.4-18-5PXEN	CSM-7X	10.24MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-102.45-16-5PX-TR	CSM-7X	10.245MHz	±50ppm	±30ppm	16pF	-10°C ~ 70°C
ECS-110.5-18-5PXEN-TR	CSM-7X	11.0592MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-110.5-20-5PX-TR	CSM-7X	11.0592MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-110.5-32-5PX-TR	CSM-7X	11.0592MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-110.5-S-5PX-TR	CSM-7X	11.0592MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-110-18-5PXEN-TR	CSM-7X	11MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-115.2-18-5PXEN	CSM-7X	11.52MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-120.003-18-5PXEN	CSM-7X	12.000393MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-120-18-5PX-TR	CSM-7X	12MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-120-32-5PX-TR	CSM-7X	12MHz	±50ppm	±30ppm	32pF	-10°C ~ 70°C
ECS-120-S-5PX-TR	CSM-7X	12MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-122.8-18-5PXEN-TR	CSM-7X	12.288MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-122.8-20-5PX-TR	CSM-7X	12.288MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-122.8-S-5PX-TR	CSM-7X	12.288MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-135.6-12-5PX-TR	CSM-7X	13.56MHz	±50ppm	±30ppm	12pF	-10°C ~ 70°C
ECS-135-18-5PXEN-TR	CSM-7X	13.5168MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-143-18-5PXEN-TR	CSM-7X	14.31818MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-143-20-5PX-TR	CSM-7X	14.31818MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-143-S-5PX-TR	CSM-7X	14.31818MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-147.4-18-5PXEN-TR	CSM-7X	14.7456MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-147.4-20-5PX-TR	CSM-7X	14.7456MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-147.4-S-5PX-TR	CSM-7X	14.7456MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-150-18-5PXEN	CSM-7X	15MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-150-S-5PX-TR	CSM-7X	15MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-160.003-18-5PXEN-TR	CSM-7X	16.000312MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-160.003-18-5PX-TR	CSM-7X	16.000312MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-160-18-5PXEN-TR	CSM-7X	16MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-160-20-5PX-TR	CSM-7X	16MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-160-S-5PX-TR	CSM-7X	16MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-162.57-18-5PXEN-TR	CSM-7X	16.257MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-163-18-5PXEN-TR	CSM-7X	16.384MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-177.3-18-5PXEN	CSM-7X	17.734475MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-180-18-5PXEN	CSM-7X	18MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-180-S-5PX-TR	CSM-7X	18MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-184-18-5PX-TR	CSM-7X	18.432MHz	±50ppm	±30ppm	18pF	-10°C ~ 70°C
ECS-184-20-5PX-TR	CSM-7X	18.432MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-184-S-5PX-TR	CSM-7X	18.432MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-196.6-18-5PXEN-TR	CSM-7X	19.6608MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-196.6-20-5PX-TR	CSM-7X	19.6608MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-200-16-5PX-TR	CSM-7X	20MHz	±50ppm	±30ppm	16pF	-10°C ~ 70°C
ECS-200-18-5PXEN-TR	CSM-7X	20MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-200-20-5PX-TR	CSM-7X	20MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-200-S-5PX-TR	CSM-7X	20MHz	±50ppm	±30ppm	Series	-10°C ~ 70°C
ECS-204.8-20-5PX	CSM-7X	20.48MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-221-18-5PXEN-TR	CSM-7X	22.1184MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-240-12-5PX-TR	CSM-7X	24MHz	±50ppm	±30ppm	12pF	-10°C ~ 70°C
ECS-240-16-5PX-TR	CSM-7X	24MHz	±50ppm	±30ppm	16pF	-10°C ~ 70°C
ECS-240-18-5PXEN-TR	CSM-7X	24MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-240-20-5PX-TR	CSM-7X	24MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
ECS-245.7-18-5PXEN-TR	CSM-7X	24.576MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
ECS-245.7-20-5PX-TR	CSM-7X	24.576MHz	±50ppm	±30ppm	20pF	-10°C ~ 70°C
