ECS-196.6-20-3X-TR 49SMD 19.6608MHz 20PF 30PPM -10~70℃
頻率：19.6608MHZ

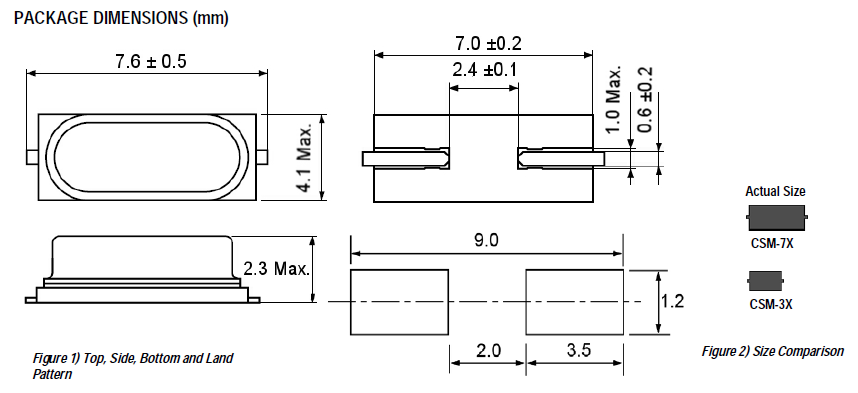

尺寸：7.6x4.1mm

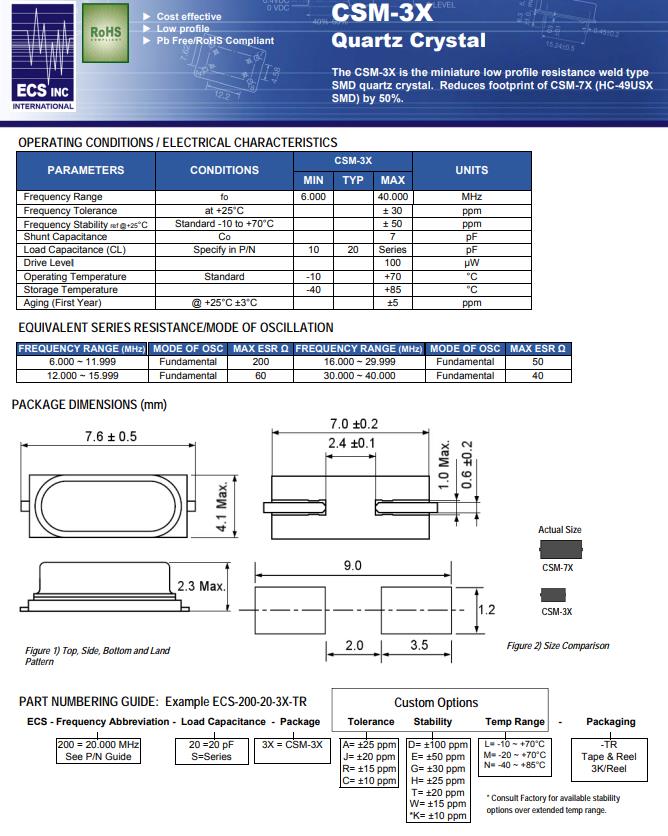

ECS-196.6-20-3X-TR 49SMD 19.6608MHz 20PF 30PPM -10~70℃， 石英晶振，美國ECS晶振公司，CSM-3X是一種小型低輪廓電阻焊縫型SMD石英晶體。將CSM-7X（HC-49USX SMD）的占用空間減少50%。
ECS-196.6-20-3X-TR 49SMD 19.6608MHz 20PF 30PPM -10~70℃
| PARAMETERS | CONDITIONS | CSM-3X | UNITS | |||||||||||||||
| MIN | TYP | MAX | ||||||||||||||||
| Frequency Range | fo | 6.000 | 40.000 | MHz | ||||||||||||||
| Frequency Tolerance | at +25°C | ± 30 | ppm | |||||||||||||||
| Frequency Stability ref @+25°C | Standard -10 to +70°C | ± 50 | ppm | |||||||||||||||
| Shunt Capacitance | Co | 7 | pF | |||||||||||||||
| Load Capacitance (CL) | Specify in P/N | 10 | 20 | Series | pF | |||||||||||||
| Drive Level | 100 | µW | ||||||||||||||||
| Operating Temperature | Standard | --10 | +70 | °C | ||||||||||||||
| Storage Temperature | --40 | +85 | °C | |||||||||||||||
| Aging (First Year) | @ +25°C ±3°C | ±5 | ppm | |||||||||||||||
ECS-196.6-20-3X-TR 49SMD 19.6608MHz 20PF 30PPM -10~70℃
ECS原廠編碼
型號
頻率
頻率偏差
負載電荷
工作溫度
ECS-120-20-3X-EN-TR
CSM-3X
12MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-120-20-3X-TR
CSM-3X
12MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-122.8-20-3X-EN-TR
CSM-3X
12.288MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-122.8-20-3X-TR
CSM-3X
12.288MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-130-20-3X-EN-TR
CSM-3X
13MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-130-20-3X-TR
CSM-3X
13MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-135.6-20-3X-EN-TR
CSM-3X
13.56MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-135.6-20-3X-TR
CSM-3X
13.56MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-143-20-3X-EN-TR
CSM-3X
14.31818MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-143-20-3X-TR
CSM-3X
14.31818MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-147.4-20-3X-EN-TR
CSM-3X
14.7456MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-147.4-20-3X-TR
CSM-3X
14.7456MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-160-20-3X-EN-TR
CSM-3X
16MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-160-20-3X-TR
CSM-3X
16MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-184-20-3X-EN-TR
CSM-3X
18.432MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-184-20-3X-TR
CSM-3X
18.432MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-196.6-20-3X-EN-TR
CSM-3X
19.6608MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-196.6-20-3X-TR
CSM-3X
19.6608MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-200-20-3X-EN-TR
CSM-3X
20MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-200-20-3X-TR
CSM-3X
20MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-200-CDX-0914
CSM-3X
20MHz
±10ppm
10pF
-60°C ~ 105°C
ECS-245.7-20-3X-EN-TR
CSM-3X
24.576MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-245.7-20-3X-TR
CSM-3X
24.576MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-250-20-3X-EN-TR
CSM-3X
25MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-250-20-3X-TR
CSM-3X
25MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-270-20-3X-EN-TR
CSM-3X
27MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-270-20-3X-TR
CSM-3X
27MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-286.3-20-3X-EN-TR
CSM-3X
28.63636MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-286.3-20-3X-TR
CSM-3X
28.63636MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-300-20-3X-EN-TR
CSM-3X
30MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-300-20-3X-TR
CSM-3X
30MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-330-20-3X-EN-TR
CSM-3X
33MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-330-20-3X-TR
CSM-3X
33MHz
±30ppm
20pF
-10°C ~ 70°C
ECS-400-20-3X-EN-TR
CSM-3X
40MHz
±30ppm
20pF
-40°C ~ 85°C
ECS-400-20-3X-TR
CSM-3X
40MHz
±30ppm
20pF
-10°C ~ 70°C
