416F44022CKR|20PPM|44MHz|8PF|1612|CTS
頻率：44MHZ

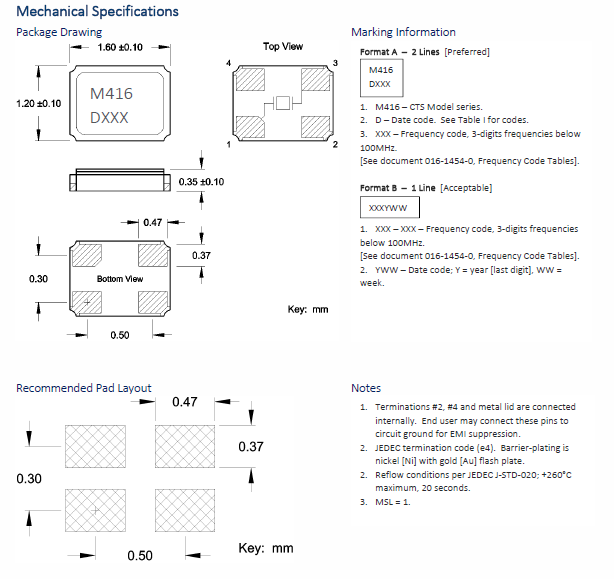

尺寸：1.6*1.2mm

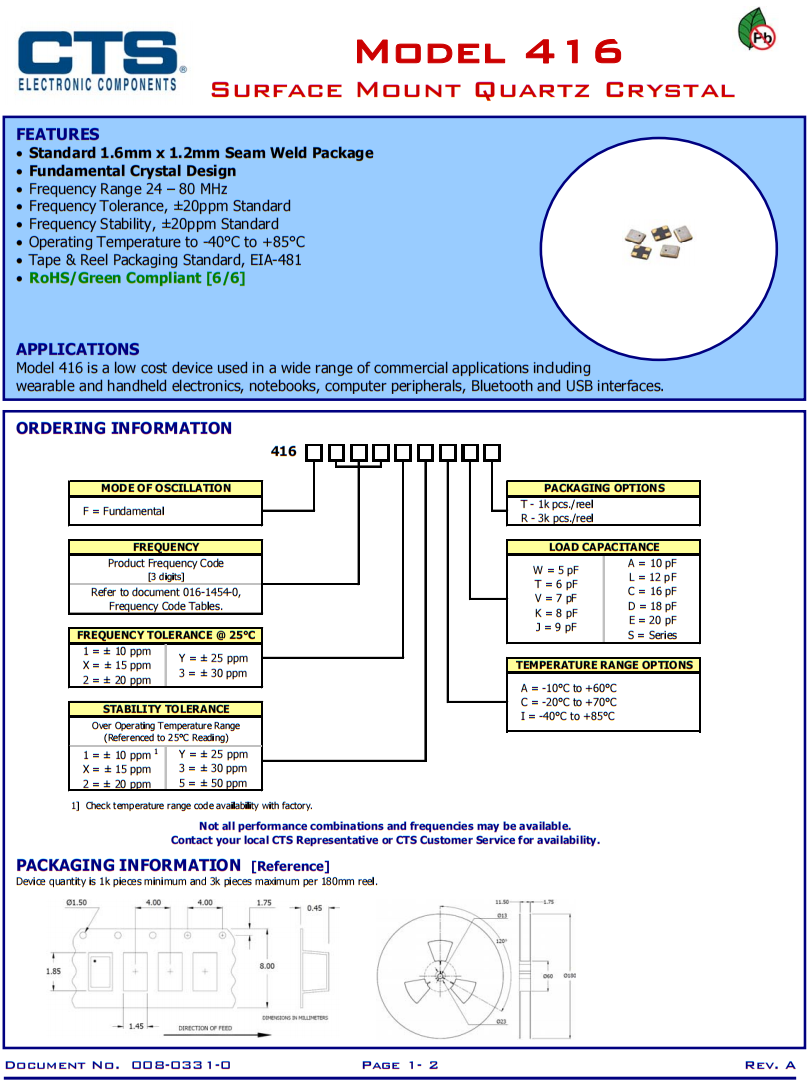

416F44022CKR|20PPM|44MHz|8PF|1612|CTS，美國進口貼片石英晶振,密封陶瓷表面安裝封裝?基本晶體設計?頻率范圍24-80MHz?頻率公差，±20ppm標準?頻率穩定性，±20ppm標準?工作溫度范圍到-40°C到+85°C?磁帶和卷軸包裝，EIA-418，可穿戴和手持式電子設備，無線通信，FPGA/微控制器，計算機外設，USB接口，測量設備，消費電子產品，高密度板布局，CTS416型采用了一個高Q石英諧振器，是支持廣泛的商業和工業應用的理想選擇。
訂購熱線：0755-27876565
416F44022CKR|20PPM|44MHz|8PF|1612|CTS，美國進口貼片石英晶振,密封陶瓷表面安裝封裝?基本晶體設計?頻率范圍24-80MHz?頻率公差，±20ppm標準?頻率穩定性，±20ppm標準?工作溫度范圍到-40°C到+85°C?磁帶和卷軸包裝，EIA-418，可穿戴和手持式電子設備，無線通信，FPGA/微控制器，計算機外設，USB接口，測量設備，消費電子產品，高密度板布局，CTS416型采用了一個高Q石英諧振器，是支持廣泛的商業和工業應用的理想選擇。
416F44022CKR|20PPM|44MHz|8PF|1612|CTS

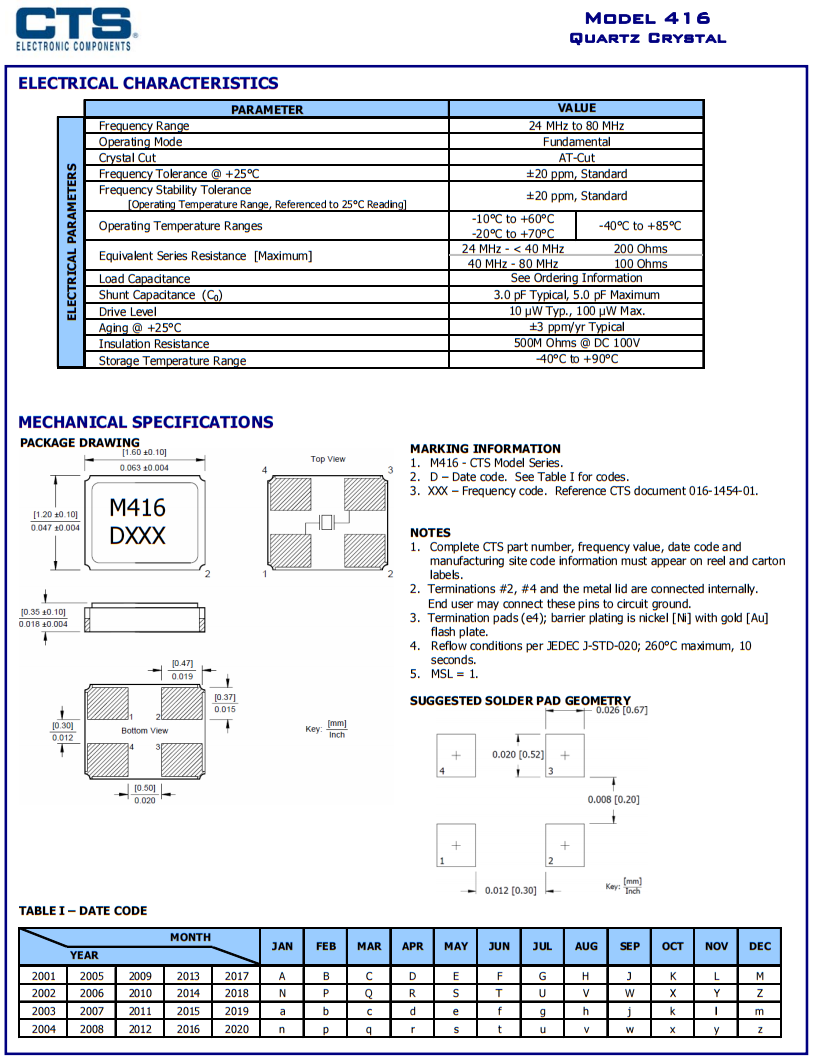

| 參數 | 標志 | 條件 | 最小值 | 典型的 | 最大值 | 單位 | |
| 工作溫度 | TA | ‐ |
‐ 10 ‐ 20 ‐30 ‐40 |
+25 |
+60 +70 +85 +85 |
°C | |
| 儲存溫度 | TSTG | ‐ | ‐40 | ‐ | +90 | °C | |
| 頻率范圍 |
 O
|
‐ | 24 ‐ 80 | MHz | |||
| 容許頻率 | Δf/fO | @ +25°C | 10, 15, 20, 25 or 30 | ±ppm | |||
| 頻率穩定性 | Δf/f25 | Referenced to +25°C reading | 10, 15, 20, 25, 30 or 50 | ±ppm | |||
| 老化 | Δf/f0 | Typical per year @ +25°C |
‐ ±3 ‐ |
ppm | |||
| 工作模式 | ‐ | ‐ | Fundamental | ‐ | |||
| 水晶切割 | ‐ | ‐ | AT‐Cut Strip | ‐ | |||
| 負載電容 | CL | ‐ | See Ordering Information | pF | |||
| 分流電容 | C0 | ‐ |
‐ 3 .0 5 .0 |
pF | |||
|
串聯電阻 基礎的 |
R1 |
24MHz ‐ <30MHz 30MHz ‐ <37MHz 37MHz ‐ <80MHz |
‐ ‐ 120 ‐ ‐ 80 ‐ ‐ 60 |
? | |||
| 驅動電平 | DL | ‐ |
‐ 10 200 |
µW | |||
| 絕緣電阻 | Ri | +100Vdc ±15Vdc |
500 ‐ ‐ |
M? | |||
416F44022CKR|20PPM|44MHz|8PF|1612|CTS
| CTS原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率偏差 | 負載電容 | Operating Temperature 工作溫度 |
| 416F26022CKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022CKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022CKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS晶振 | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS晶振 | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F27022CKR | CTS晶振 | 416 | 27MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F48022CKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F52022CKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F24022IKR | CTS晶振 | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24022IKR | CTS晶振 | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24022IKR | CTS晶振 | 416 | 24MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022IKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F48022IKR | CTS晶振 | 416 | 48MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F52022IKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F52022IKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F52022IKR | CTS晶振 | 416 | 52MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F32022CKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F32022CKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F32022CKR | CTS晶振 | 416 | 32MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F30022CKR | CTS晶振 | 416 | 30MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F30022CKR | CTS晶振 | 416 | 30MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F30022CKR | CTS晶振 | 416 | 30MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F36022CKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F36022CKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F36022CKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F40022CKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F40022CKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F40022CKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F44022CKR | CTS晶振 | 416 | 44MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F44022CKR | CTS晶振 | 416 | 44MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F44022CKR | CTS晶振 | 416 | 44MHz | ±20ppm | 8pF | -20°C ~ 70°C |
| 416F26022IKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F26022IKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F26022IKR | CTS晶振 | 416 | 26MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F36022IKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F36022IKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F36022IKR | CTS晶振 | 416 | 36MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F40022IKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F40022IKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F40022IKR | CTS晶振 | 416 | 40MHz | ±20ppm | 8pF | -40°C ~ 85°C |
| 416F24011AAR | CTS晶振 | 416 | 24MHz | ±10ppm | 10pF | -10°C ~ 60°C |
| 416F24011ADR | CTS晶振 | 416 | 24MHz | ±10ppm | 18pF | -10°C ~ 60°C |
| 416F24011AKR | CTS晶振 | 416 | 24MHz | ±10ppm | 8pF | -10°C ~ 60°C |
| 416F24011ALR | CTS晶振 | 416 | 24MHz | ±10ppm | 12pF | -10°C ~ 60°C |
| 416F24011ASR | CTS晶振 | 416 | 24MHz | ±10ppm | Series | -10°C ~ 60°C |
| 416F24011ATR | CTS晶振 | 416 | 24MHz | ±10ppm | 6pF | -10°C ~ 60°C |
| 416F24011CAR | CTS晶振 | 416 | 24MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| 416F24011CDR | CTS晶振 | 416 | 24MHz | ±10ppm | 18pF | -20°C ~ 70°C |
| 416F24011CKR | CTS晶振 | 416 | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
| 416F24011CLR | CTS晶振 | 416 | 24MHz | ±10ppm | 12pF | -20°C ~ 70°C |
| 416F24011CSR | CTS晶振 | 416 | 24MHz | ±10ppm | Series | -20°C ~ 70°C |
| 416F24011CTR | CTS晶振 | 416 | 24MHz | ±10ppm | 6pF | -20°C ~ 70°C |
| 416F24012AAR | CTS晶振 | 416 | 24MHz | ±10ppm | 10pF | -10°C ~ 60°C |
| 416F24012ADR | CTS晶振 | 416 | 24MHz | ±10ppm | 18pF | -10°C ~ 60°C |
| 416F24012AKR | CTS晶振 | 416 | 24MHz | ±10ppm | 8pF | -10°C ~ 60°C |
| 416F24012ALR | CTS晶振 | 416 | 24MHz | ±10ppm | 12pF | -10°C ~ 60°C |
| 416F24012ASR | CTS晶振 | 416 | 24MHz | ±10ppm | Series | -10°C ~ 60°C |
| 416F24012ATR | CTS晶振 | 416 | 24MHz | ±10ppm | 6pF | -10°C ~ 60°C |
| 416F24012CAR | CTS晶振 | 416 | 24MHz | ±10ppm | 10pF | -20°C ~ 70°C |
| 416F24012CDR | CTS晶振 | 416 | 24MHz | ±10ppm | 18pF | -20°C ~ 70°C |
| 416F24012CKR | CTS晶振 | 416 | 24MHz | ±10ppm | 8pF | -20°C ~ 70°C |
