產品簡介

香港NKG晶振|SCO7|SCO7-9B-16M000-ZTS|2520石英晶振,香港NKG晶振,SCO7貼片晶振,有源晶體振蕩器,SCO7-9B-16M000-ZTS晶振,2520石英晶振,四腳封裝晶振,頻率16MHz,電壓2.5V,負載15pF,頻率穩定性50ppm,工作溫度范圍-40~125°C,耐高溫晶振,高可靠性晶振,無鉛環保晶振,GPS導航晶振,信息娛樂系統晶振,環繞視圖攝像頭晶振,汽車音響控制器晶振.

產品詳情

yijin-1 香港NKG晶振|SCO7|SCO7-9B-16M000-ZTS|2520石英晶振,香港NKG晶振,SCO7貼片晶振,有源晶體振蕩器,SCO7-9B-16M000-ZTS晶振,2520石英晶振,四腳封裝晶振,頻率16MHz,電壓2.5V,負載15pF,頻率穩定性50ppm,工作溫度范圍-40~125°C,耐高溫晶振,高可靠性晶振,無鉛環保晶振,GPS導航晶振,信息娛樂系統晶振,環繞視圖攝像頭晶振,汽車音響控制器晶振.

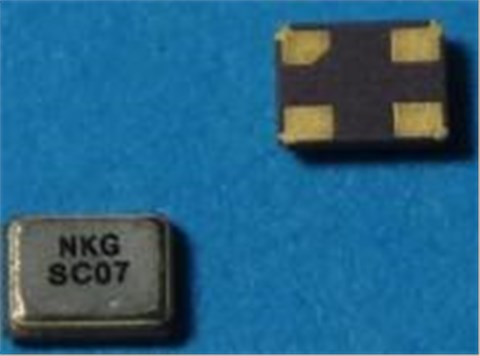

香港NKG晶振|SCO7|SCO7-9B-16M000-ZTS|2520石英晶振特點：

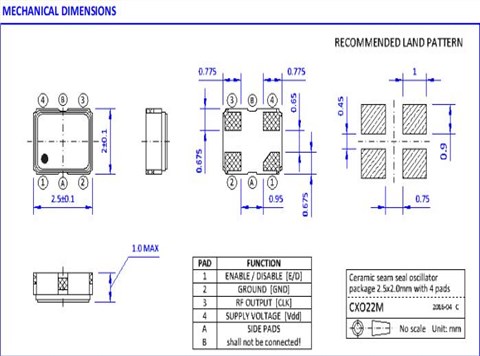

-超小尺寸的SMD封裝尺寸為2.5 x 2.0 x 1.0mm，帶有4個襯墊

-高可靠的縫封封裝，低老化

-低抖動和相位噪聲版本可用

-符合AEC-Q200標準的汽車級產品可供選擇

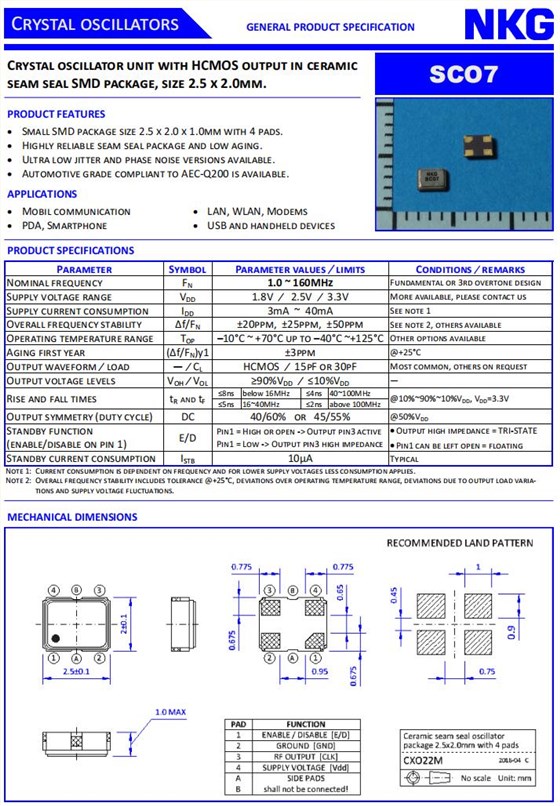

yijin-2 香港NKG晶振|SCO7|SCO7-9B-16M000-ZTS|2520石英晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	16MHz	Fundamental or 3rd overtone design
Supply voltage range	VDD	2.5V	More available, please contact us
Supply current consumption	IDD	3mA ~ 40mA
Overall frequency stability	?f/FN	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+125°C	Options available
Aging first year	(Δf/FN)y1	±3ppm	@+25°C
Output waveform ? load	— ? CL	HCMOS /15pF or 30pF	Most common, others on request
Output voltage levels	VOH ? VOL	≥90%VDD /≤10%VDD	-
Output symmetry (duty cycle)	DC	40/60% or 45/55%	@50%VDD
Standby function (enable/disable on pin 1)	E/D	Pin1 = High or open -> Output pin3 active Pin1 = Low -> Output pin3 high impedance	?Output high impedance = TRI-STATE ?Pin1 can be left open = floating
Standby current consumption	ISTB	10µA	Typical
