產品簡介

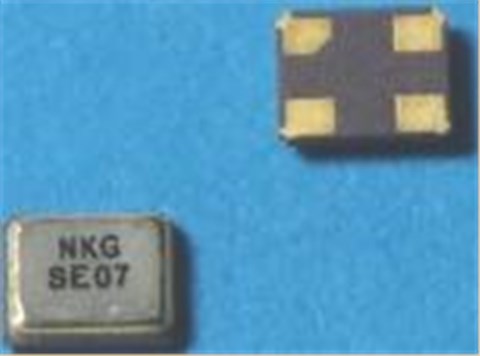

香港NKG晶振|SEO7|SEO79B-38.400-MTC1.0|低EMI晶振,香港NKG晶振,SEO7進口貼片晶振,有源晶振,SEO79B-38.400-MTC1.0晶振,晶體振蕩器,2520石英晶振,四腳封裝晶振,頻率38.4MHz,電壓2.5V,負載15pF,頻率穩定性50ppm,工作溫度范圍-10~70°C,耐老化晶振,輕薄小晶振,低EMI晶振,家庭自動化晶振,無線路由器晶振,音頻系統晶振,CD錄音機晶振.

產品詳情

yijin-1 香港NKG晶振|SEO7|SEO79B-38.400-MTC1.0|低EMI晶振,香港NKG晶振,SEO7進口貼片晶振,有源晶振,SEO79B-38.400-MTC1.0晶振,晶體振蕩器,2520石英晶振,四腳封裝晶振,頻率38.4MHz,電壓2.5V,負載15pF,頻率穩定性50ppm,工作溫度范圍-10~70°C,耐老化晶振,輕薄小晶振,低EMI晶振,家庭自動化晶振,無線路由器晶振,音頻系統晶振,CD錄音機晶振.

香港NKG晶振|SEO7|SEO79B-38.400-MTC1.0|低EMI晶振特點：

●擴頻輸出是低EMI應用的理想選擇。

●減少EMI約5 ~ 15dB(取決于設計)

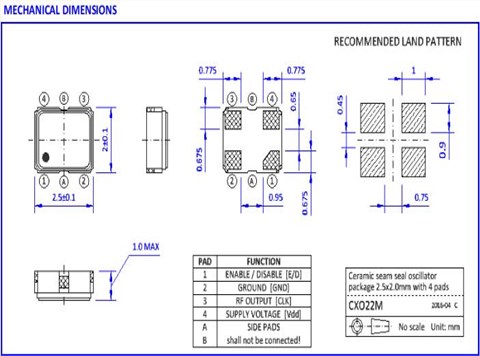

●SMD封裝尺寸為2.5 x 2.0 x 0.9mm，帶有4個襯墊。

●輸出啟用/禁用功能(輸出三狀態)。

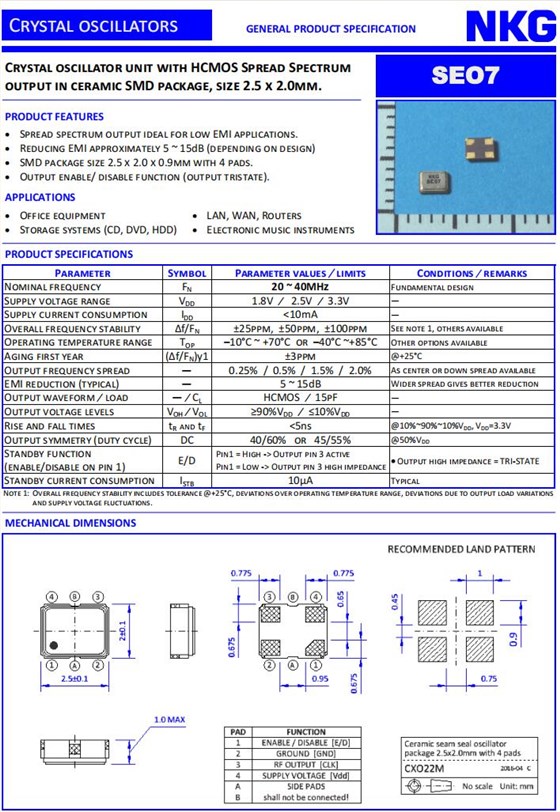

yijin-2 香港NKG晶振|SEO7|SEO79B-38.400-MTC1.0|低EMI晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	38.4MHz	Fundamental DESIGN
Supply voltage range	VDD	2.5 V	-
Supply current consumption	IDD	<10mA	-
Overall frequency stability	Δf/FN	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–10°C ~+70°C	Options available
Aging first year	(Δf/FN)y1	±3ppm	@+25°C
Output frequency spread	-	0.25% / 0.5% / 1.5% / 2.0%	As center or down spread available
EMI reduction (typical)	-	5 ~ 15dB	Wider spread gives better reduction
Output waveform /load	— /CL	HCMOS /15pF	-
Output voltage levels	VOH /VOL	≥90%VDD /≤10%VDD	-
Rise and fall times	tR and tF	<5.0ns	@10%~90%~10%VDD, VDD =3.3V
Output symmetry (duty cycle)	DC	40/60% OR45/55%	@50%VDD
Standby function (E/D on pin 1)	E/D	Pin1 = High -> Output pin 3 active Pin1 = Low -> Output pin 3 high impedance	•Output high impedance = TRI-STATE
Standby current consumption	ISTB	10µA	Typical
