產品簡介

NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032進口晶振,NKG晶振,SCO5有源晶振,貼片晶振,SCO5-6D-44M000-YTS晶振,石英晶體振蕩器,5032進口晶振,四腳封裝晶振,頻率44MHz,電壓3.3V,負載15pF,頻率穩定性30ppm,工作溫度范圍-40~105°C,低老化晶振,小體積晶振,耐高溫晶振,監控攝像頭晶振,無線局域網晶振,筆記本電腦晶振,工業自動化晶振.

產品詳情

yijin-1 NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032進口晶振,NKG晶振,SCO5有源晶振,貼片晶振,SCO5-6D-44M000-YTS晶振,石英晶體振蕩器,5032進口晶振,四腳封裝晶振,頻率44MHz,電壓3.3V,負載15pF,頻率穩定性30ppm,工作溫度范圍-40~105°C,低老化晶振,小體積晶振,耐高溫晶振,監控攝像頭晶振,無線局域網晶振,筆記本電腦晶振,工業自動化晶振.

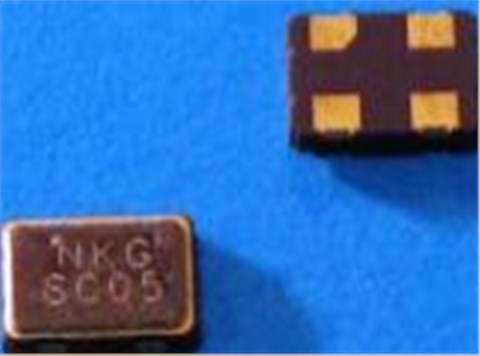

NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032進口晶振特點：

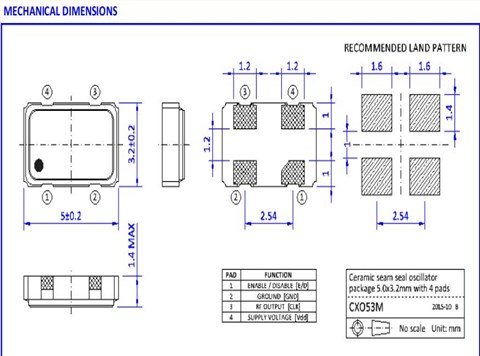

-SMD封裝尺寸為5.0x 3.2 x 1.2mm，帶有4個襯墊

-高可靠的接縫密封封裝，低老化

-超低抖動和相位噪聲版本可用

-符合AEC-Q200標準的汽車級產品可供選擇

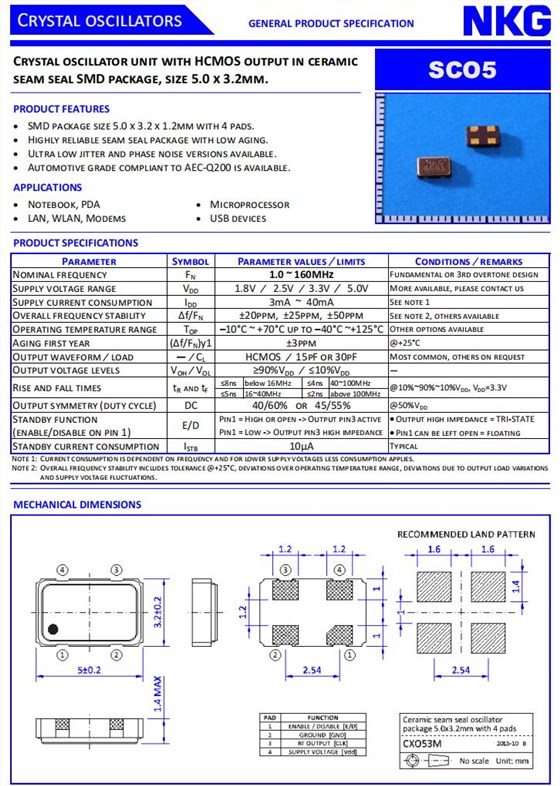

yijin-2 NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032進口晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	44MHz	Fundamental or 3rd overtone design
Supply voltage range	VDD	3.3V	More available, please contact us
Supply current consumption	IDD	3mA ~ 40mA
Overall frequency stability	?f/FN	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Aging first year	(Δf/FN)y1	±3ppm	@+25°C
Output waveform ? load	— ? CL	HCMOS /15pF or 30pF	Most common, others on request
Output voltage levels	VOH ? VOL	≥90%VDD /≤10%VDD	-
Output symmetry (duty cycle)	DC	40/60% or 45/55%	@50%VDD
Standby function (enable/disable on pin 1)	E/D	Pin1 = High or open -> Output pin3 active Pin1 = Low -> Output pin3 high impedance	?Output high impedance = TRI-STATE ?Pin1 can be left open = floating
Standby current consumption	ISTB	10µA	Typical
