產品簡介

NKG晶振|SPP5|SPP59A-150.000-WTS|LV-PECL輸出差分晶振,NKG晶振,SPP5有源晶振,進口晶振,SPP59A-150.000-WTS晶振,石英晶體振蕩器,5032貼片晶振,八腳封裝晶振,LV-PECL輸出差分晶振,頻率150MHz,電壓2.5V,頻率穩定性25ppm,工作溫度范圍-40~85°C,高可靠性晶振,無鉛環保晶振,耐老化晶振,高速網絡晶振,高速時鐘晶振,通用處理器晶振,無線電收發機晶振.

產品詳情

yijin-1 NKG晶振|SPP5|SPP59A-150.000-WTS|LV-PECL輸出差分晶振,NKG晶振,SPP5有源晶振,進口晶振,SPP59A-150.000-WTS晶振,石英晶體振蕩器,5032貼片晶振,八腳封裝晶振,LV-PECL輸出差分晶振,頻率150MHz,電壓2.5V,頻率穩定性25ppm,工作溫度范圍-40~85°C,高可靠性晶振,無鉛環保晶振,耐老化晶振,高速網絡晶振,高速時鐘晶振,通用處理器晶振,無線電收發機晶振.

NKG晶振|SPP5|SPP59A-150.000-WTS|LV-PECL輸出差分晶振特點：

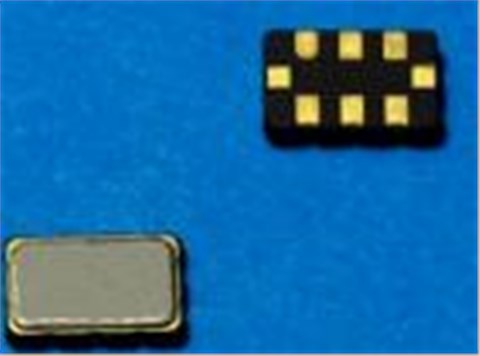

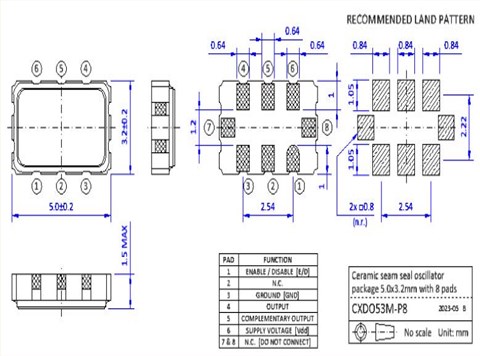

●SMD封裝尺寸為5.0 x 3.2x 1.4mm，帶有8個襯墊。

●頻率范圍150至2100MHz

●超低抖動，即在3.3V, 156.25MHz時159fs TYP。

●高可靠的接縫密封封裝，低老化。

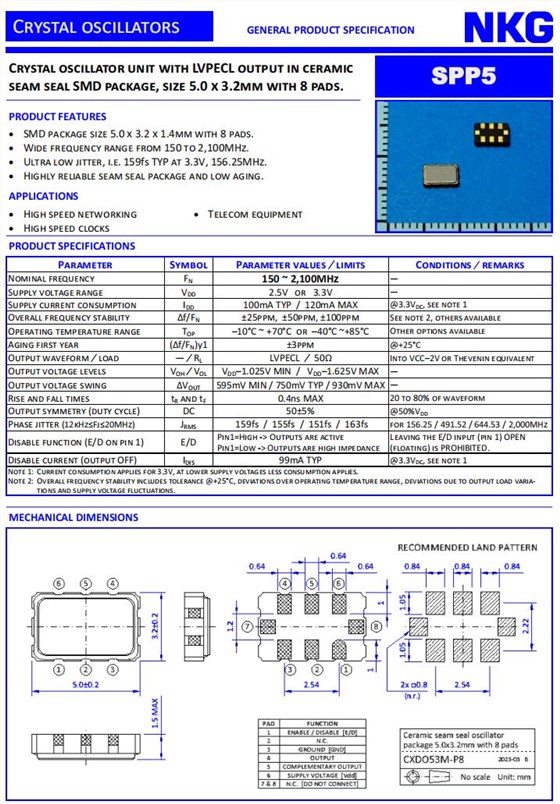

yijin-2 NKG晶振|SPP5|SPP59A-150.000-WTS|LV-PECL輸出差分晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	150MHz	Fundamental DESIGN
Supply voltage range	VDD	2.5 V	-
Supply current consumption	IDD	100mA TYP / 120mA MAX	-
Overall frequency stability	Δf/FN	±25ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Aging first year	(Δf/FN)y1	±3ppm	@+25°C
Output waveform /load	— /RL	LVPECL /50Ω	Into VCC–2V or Thevenin equivalent
Output voltage levels	VOH /VOL	VDD–1.025V MIN / VDD–1.625V MAX	-
Output voltage swing	ΔVOUT	595mV MIN / 750mV TYP / 930mV MAX	-
Rise and fall times	tR and tF	0.4ns MAX	20 to 80% of waveform
Output symmetry (duty cycle)	DC	50±5%	@50%VDD
Phase jitter (12kHz≤Fj≤20MHz)	JRMS	159fs / 155fs / 151fs / 163fs	for 156.25 / 491.52 / 644.53 / 2,000MHz
Disable function (E/D on pin 1)	E/D	Pin1=High -> Outputs are active Pin1=Low -> Outputs are high impedance	Leaving the E/D input (pin 1) OPEN (floating) is PROHIBITED.
Disable current (output OFF)	IDIS	99mA TYP	@3.3VDC, see note 1
