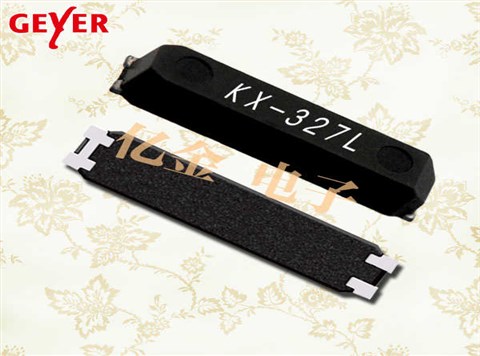

KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015諧振器

進口GEYER晶振中編碼為12.87131的KX-327L晶振，其頻率為32.768KHz，頻率公差是±20ppm，負載電容為12.5pF，是進口無源晶振，其尺寸為7.0×1.5×1.4mm，一般也稱呼為7015諧振器、32.768K時鐘晶振、7.0×1.5晶振。幾十年來，GEYER Electronic一直是頻率產品、石英晶體、振蕩器和陶瓷諧振器的領先制造商之一，成立于 1964 年，總部設在德國以及歐洲、亞洲和美國的其他地方，為全球客戶提供服務。GEYER的石英晶體和振蕩器主要在臺灣的工廠生產，在超過2000平方米的生產面積上，生產能力約為每月7500萬件，在日本和韓國還有其他較小的生產基地。

KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015諧振器

品牌	GEYER
編碼	12.87131
型號	KX-327L
頻率	32.768kHz
精度	±20ppm
負載	12.5pF

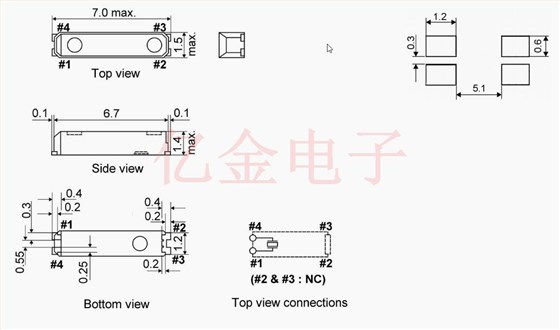

尺寸	7.0×1.5×1.4mm
工作溫度	-40℃~85℃

KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015諧振器

更多相關晶振參考

編碼	品牌	型號	尺寸	頻率	負載
12.87000	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	12.5pF
12.87001	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	9pF
12.87002	GEYER	KX-327V	1.25×1.05×0.5mm	32.768kHz	7pF
12.87034	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	4pF
12.87080	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87081	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	6pF
12.87083	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	6pF
12.87086	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	6pF
12.87090	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	7pF
12.87095	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	9pF
12.87105	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87107	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87109	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12pF
12.87110	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87111	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87112	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87113	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87114	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87115	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87116	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	12.5pF
12.87118	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87119	GEYER	KX-327S	8.2×3.8×2.5mm	32.768kHz	6pF
12.87120	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87121	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87123	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87126	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87127	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87128	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	6pF
12.87129	GEYER	KX-327XS	4.95×1.82×0.96mm	32.768kHz	12.5pF
12.87130	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87131	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87132	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87133	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87134	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87135	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87136	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87137	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	9pF
12.87138	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	12.5pF
12.87139	GEYER	KX-327L	7.0×1.5×1.4mm	32.768kHz	7pF
12.87143	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	9pF
12.87144	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	7pF
12.87145	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87146	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	9pF
12.87147	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	7pF
12.87148	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	7pF
12.87149	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	9pF
12.87150	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87151	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	9pF
12.87152	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87153	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	7pF
12.87155	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87157	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87158	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87159	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87160	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87161	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87163	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	7pF
12.87164	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87165	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87166	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87167	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87168	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87169	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
12.87180	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	9pF
12.87181	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87182	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	7pF
12.87183	GEYER	KX-327NH	3.2×1.5×0.8mm	32.768kHz	12.5pF
12.87186	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	12.5pF
12.87187	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	6pF
12.87188	GEYER	KX-327R	2.0×1.2×0.6mm	32.768kHz	9pF
