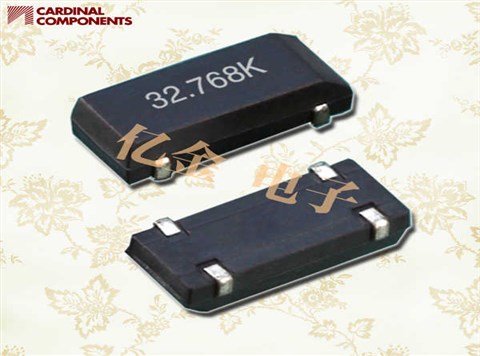

CPFBZ-A2C4-32.768KD12.5,32.768kHz,Cardinal小體積晶振,電腦晶振，美國進口晶振，Cardinal卡迪納爾晶振，型號：CPFB，編碼為：CPFBZ-A2C4-32.768KD12.5，頻率為：32.768KHz時鐘晶振，工作溫度范圍：-40℃至+85℃，負載：12.5pF，小體積晶振尺寸：8.7x3.7x2.4mm陶瓷SMD封裝，四腳貼片晶振，無源晶振，石英晶振，SMD晶振，音叉晶體，石英晶體諧振器。具有超小型，輕薄型，高性能，高品質，高質量，耐熱及耐環境等特點。被廣泛應用于：通訊設備晶振，RTC應用，時鐘晶振，電腦晶振，儀器儀表設備，數字顯示等應用。

CPFBZ-A2C4-32.768KD12.5,32.768kHz,Cardinal小體積晶振,電腦晶振，產品特點：

•封裝是自動化表面安裝組裝和回流實踐的理想選擇

•超小型石英晶振

•行業標準足跡

•頻率：32.768kHz

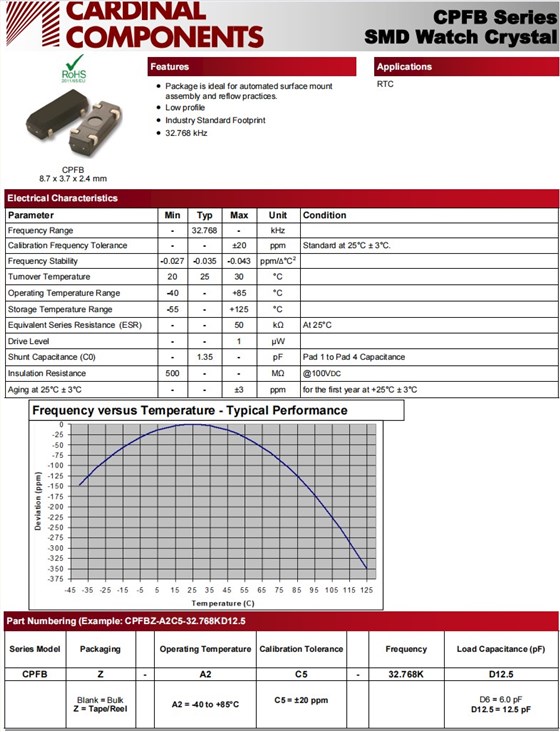

CPFBZ-A2C4-32.768KD12.5,32.768kHz,Cardinal小體積晶振,電腦晶振,參數表

Parameter									Min	Typ		Max	Unit		Condition
Frequency Range									-	32.768		-	kHz
Calibration Frequency Tolerance									-	-		±20	ppm		Standard at 25°C ± 3°C.
Frequency Stability									-0.027	-0.035		-0.043	ppm/△°C2
Turnover Temperature									20	25		30	°C
Operating Temperature Range									-40	-		+85	°C
Storage Temperature Range									-55	-		+125	°C
Equivalent Series Resistance(ESR)									-	-		50	kΩ		At 25°C
Drive Level									-	-		1	µW
Shunt Capacitance (C0)									-	1.35		-	pF		Pad 1 to Pad 4 Capacitance
Insulation Resistance									500	-		-	MΩ		@100VDC
Aging at 25°C ± 3°C									-	-		±3	ppm		for the first year at +25°C ± 3°C

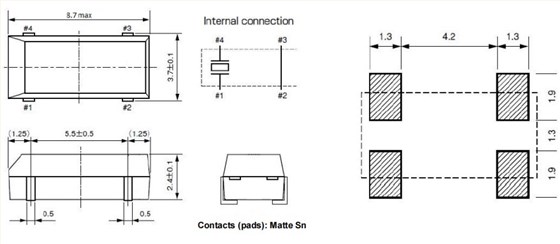

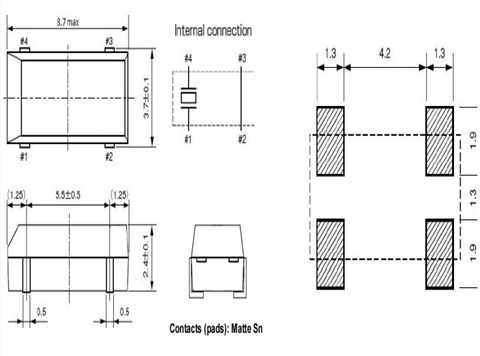

CPFBZ-A2C4-32.768KD12.5,32.768kHz,Cardinal小體積晶振,電腦晶振,尺寸圖
