低相位抖動差分NP5032SA-100MHZ-NSC5400B晶振,日本進口NDK6G路由器晶振

低相位抖動差分NP5032SA-100MHZ-NSC5400B晶振,日本進口NDK6G路由器晶振低相位抖動差分NP5032SA-100MHZ-NSC5400B晶振,日本進口NDK6G路由器晶振

產品簡介

低相位抖動差分NP5032SA-100MHZ-NSC5400B晶振,日本進口NDK6G路由器晶振，日本NDK晶振公司，貼片晶振,有源晶振,差動輸出SPXO,緊湊尺寸:5.0 × 3.2 × 1.2 mm。,供電電壓:+2.5V或+3.3V,輸出規格:LVPECL,優良的低相位抖動。0.08 ps @148.5MHz,用于超聲波、SDH和gb以太網相關的設備，光模塊差分晶振，通信差分晶振

產品詳情

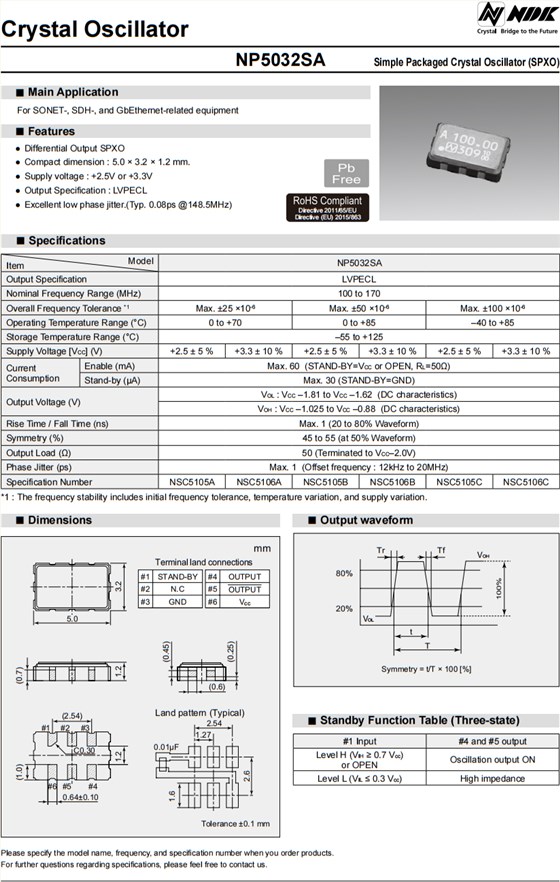

NDK-2

yijin-1

低相位抖動差分NP5032SA-100MHZ-NSC5400B晶振,日本進口NDK6G路由器晶振，日本NDK晶振公司，貼片晶振,有源晶振,差動輸出SPXO,緊湊尺寸:5.0 × 3.2 × 1.2 mm。,供電電壓:+2.5V或+3.3V,輸出規格:LVPECL,優良的低相位抖動。0.08 ps @148.5MHz,用于超聲波、SDH和gb以太網相關的設備，光模塊差分晶振，通信差分晶振

yijin-2

低相位抖動差分NP5032SA-100MHZ-NSC5400B晶振,日本進口NDK6G路由器晶振

項目 型號 NP5032SA
輸出類型 LVPECL
標稱頻率 100 to 170
總容許頻率 Max. ±25 × 10-6 Max. ±50 ×10-6 Max. ±100 ×10-6
工作溫度范圍（°C） 0 to +70 0 to +85 –40 to +85
儲存溫度范圍（°C） –55 to +125
電源電壓[VCC] (V) +2.5 ± 5 % +2.5 ± 5 % +3.3 ± 10 % +2.5 ± 5 % +3.3 ± 10 %
當前消耗量 使能(mA) Max. 60(STAND-BY=VCCor OPEN, RL=50Ω)
備用（μA） Max. 30 (STAND-BY=GND)
輸出電壓(V) VOL: VCC– 1.81 to VCC– 1.62(DC characteristics)
VOH: VCC– 1.025 to VCC–0.88(DC characteristics)
上升時間/下降時間（ns） Max. 1 (20 to 80% Waveform)
對稱性（%） 45 to 55 (at 50% Waveform)
輸出負載(Ω) 50 (Terminated to VCC–2.0V)
相位抖動(ps) Max. 1(Offset frequency : 12kHz to 20MHz)
規格編號 NSC5105A NSC5105B NSC5106B NSC5105C NSC5106C

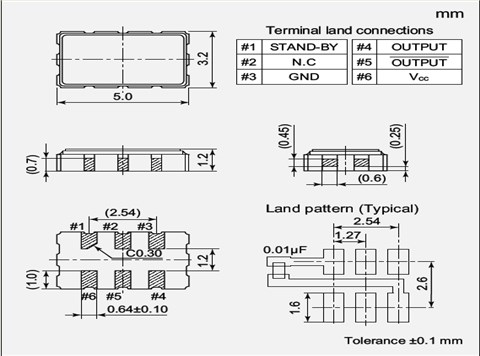

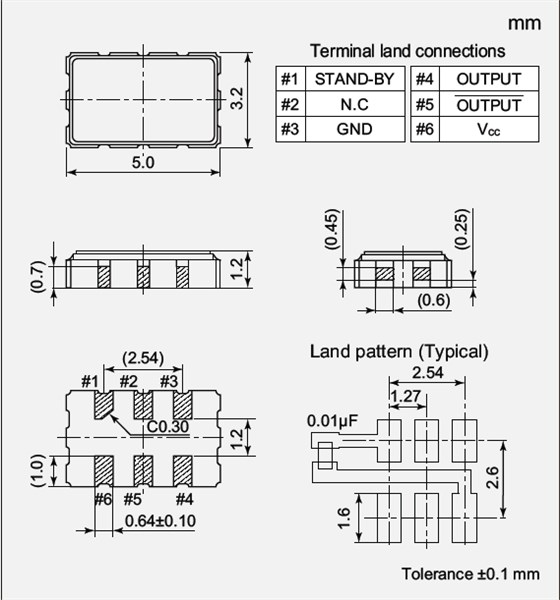

yijin-3

低相位抖動差分NP5032SA-100MHZ-NSC5400B晶振,日本進口NDK6G路由器晶振

NP5032SA_5.0_3.2 SPXO

NP5032SA

型號 常規頻率[MHz] 規格編碼 尺寸 輸出類型 工作溫度 儲存溫度 電源電壓
NP2520SA 156.25 NSC5300A 2.5x2.0 LVPECL -40?+85 -55?+125 +2.5±0.125
NP2520SA 156.25 NSC5300B 2.5x2.0 LVPECL -40?+85 -55?+125 +3.3±0.33
NP2520SB 156.25 NSC5301A 2.5x2.0 LVDS -40?+85 -55?+125 +2.5±0.125
NP2520SB 156.25 NSC5301B 2.5x2.0 LVDS -40?+85 -55?+125 +3.3±0.33
NP2520SAB 156.25 NSC5326A 2.5x2.0 LVPECL -40?+85 -55?+125 +2.5±0.125
NP2520SAB 156.25 NSC5326B 2.5x2.0 LVPECL -40?+85 -55?+125 +3.3±0.33
NP2520SBB 156.25 NSC5327A 2.5x2.0 LVDS -40?+85 -55?+125 +2.5±0.125
NP2520SBB 156.25 NSC5327B 2.5x2.0 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SA 100 NSC5080A 3.2x2.5 LVPECL -40?+85 -55?+125 +2.5±0.125
NP3225SA 122.88 NSC5080A 3.2x2.5 LVPECL -40?+85 -55?+125 +2.5±0.125
NP3225SA 125 NSC5080A 3.2x2.5 LVPECL -40?+85 -55?+125 +2.5±0.125
NP3225SA 156.25 NSC5080A 3.2x2.5 LVPECL -40?+85 -55?+125 +2.5±0.125
NP3225SA 175 NSC5080A 3.2x2.5 LVPECL -40?+85 -55?+125 +2.5±0.125
NP3225SA 100 NSC5341B 3.2x2.5 LVPECL -40?+85 -55?+125 +3.3±0.33
NP3225SA 122.88 NSC5341B 3.2x2.5 LVPECL -40?+85 -55?+125 +3.3±0.33
NP3225SA 125 NSC5341B 3.2x2.5 LVPECL -40?+85 -55?+125 +3.3±0.33
NP3225SA 156.25 NSC5341B 3.2x2.5 LVPECL -40?+85 -55?+125 +3.3±0.33
NP3225SA 175 NSC5341B 3.2x2.5 LVPECL -40?+85 -55?+125 +3.3±0.33
NP3225SA 100 NSC5189A 3.2x2.5 LVPECL -40?+105 -55?+125 +2.5±0.125
NP3225SA 122.88 NSC5189A 3.2x2.5 LVPECL -40?+105 -55?+125 +2.5±0.125
NP3225SA 125 NSC5189A 3.2x2.5 LVPECL -40?+105 -55?+125 +2.5±0.125
NP3225SA 156.25 NSC5189A 3.2x2.5 LVPECL -40?+105 -55?+125 +2.5±0.125
NP3225SA 175 NSC5189A 3.2x2.5 LVPECL -40?+105 -55?+125 +2.5±0.125
NP3225SA 100 NSC5342B 3.2x2.5 LVPECL -40?+105 -55?+125 +3.3±0.33
NP3225SA 122.88 NSC5342B 3.2x2.5 LVPECL -40?+105 -55?+125 +3.3±0.33
NP3225SA 125 NSC5342B 3.2x2.5 LVPECL -40?+105 -55?+125 +3.3±0.33
NP3225SA 156.25 NSC5342B 3.2x2.5 LVPECL -40?+105 -55?+125 +3.3±0.33
NP3225SA 175 NSC5342B 3.2x2.5 LVPECL -40?+105 -55?+125 +3.3±0.33
NP3225SA 200 NSC5235A 3.2x2.5 LVPECL -40?+85 -55?+125 +2.5±0.125
NP3225SA 212.5 NSC5235A 3.2x2.5 LVPECL -40?+85 -55?+125 +2.5±0.125
NP3225SA 200 NSC5235B 3.2x2.5 LVPECL -40?+85 -55?+125 +3.3±0.33
NP3225SA 212.5 NSC5235B 3.2x2.5 LVPECL -40?+85 -55?+125 +3.3±0.33
NP3225SA 200 NSC5237A 3.2x2.5 LVPECL -40?+105 -55?+125 +2.5±0.125
NP3225SA 212.5 NSC5237A 3.2x2.5 LVPECL -40?+105 -55?+125 +2.5±0.125
NP3225SA 200 NSC5237B 3.2x2.5 LVPECL -40?+105 -55?+125 +3.3±0.33
NP3225SA 212.5 NSC5237B 3.2x2.5 LVPECL -40?+105 -55?+125 +3.3±0.33
NP3225SB 50 NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 100 NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 125 NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 135 NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 148 NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 156.25 NSC5343A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 200 NSC5236A 3.2x2.5 LVDS -40?+85 -55?+125 +2.5±0.125
NP3225SB 50 NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 100 NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 125 NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 135 NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 148 NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 156.25 NSC5343B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 200 NSC5236B 3.2x2.5 LVDS -40?+85 -55?+125 +3.3±0.33
NP3225SB 50 NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 100 NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 125 NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 135 NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 148 NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 156.25 NSC5344A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 200 NSC5238A 3.2x2.5 LVDS -40?+105 -55?+125 +2.5±0.125
NP3225SB 50 NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 100 NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 125 NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 135 NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 148 NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 156.25 NSC5344B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SB 200 NSC5238B 3.2x2.5 LVDS -40?+105 -55?+125 +3.3±0.33
NP3225SC 100 NSC5082A 3.2x2.5 HCSL -40?+85 -55?+125 +2.5±0.125
NP3225SC 156.25 NSC5082A 3.2x2.5 HCSL -40?+85 -55?+125 +2.5±0.125
NP3225SC 100 NSC5345B 3.2x2.5 HCSL -40?+85 -55?+125 +3.3±0.33
NP3225SC 156.25 NSC5345B 3.2x2.5 HCSL -40?+85 -55?+125 +3.3±0.33
NP3225SC 100 NSC5191A 3.2x2.5 HCSL -40?+105 -55?+125 +2.5±0.125
NP3225SC 156.25 NSC5191A 3.2x2.5 HCSL -40?+105 -55?+125 +2.5±0.125
NP3225SC 100 NSC5346B 3.2x2.5 HCSL -40?+105 -55?+125 +3.3±0.33
NP3225SC 156.25 NSC5346B 3.2x2.5 HCSL -40?+105 -55?+125 +3.3±0.33
