產品簡介

NKG晶振|S5CA晶振|S5CA36.0000F12E2Z-EXT|6G無線網絡晶振,NKG晶振,S5CA無源晶振,石英晶體,S5CA36.0000F12E2Z-EXT晶振,進口貼片晶振,5032晶振,SMD晶體,二腳封裝晶振,頻率36MHz,負載12pF,頻率容差20ppm,工作溫度范圍-20~70°C,小體積晶振,高可靠性晶振,抗震性晶振,6G無線網絡晶振,微處理器晶振,調制解調器晶振,移動通信晶振.

產品詳情

yijin-1 NKG晶振|S5CA晶振|S5CA36.0000F12E2Z-EXT|6G無線網絡晶振,NKG晶振,S5CA無源晶振,石英晶體,S5CA36.0000F12E2Z-EXT晶振,進口貼片晶振,5032晶振,SMD晶體,二腳封裝晶振,頻率36MHz,負載12pF,頻率容差20ppm,工作溫度范圍-20~70°C,小體積晶振,高可靠性晶振,抗震性晶振,6G無線網絡晶振,微處理器晶振,調制解調器晶振,移動通信晶振.

NKG晶振|S5CA晶振|S5CA36.0000F12E2Z-EXT|6G無線網絡晶振特點：

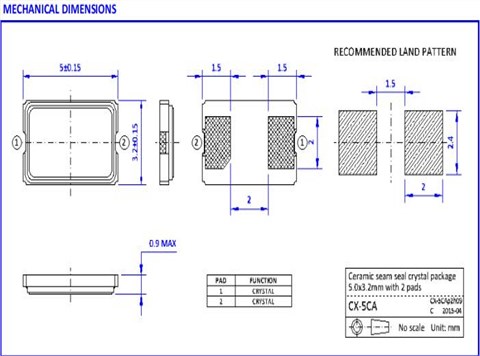

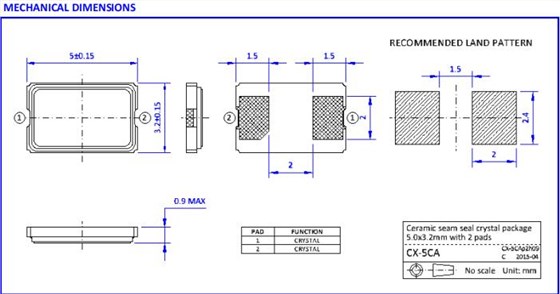

●小包裝尺寸5.0x 3.2 x 0.8mm, 2個襯墊。

●優異的耐熱性和抗震性。

●高可靠的縫封封裝，低老化。

●符合AEC-Q200標準的汽車級產品可供選擇。

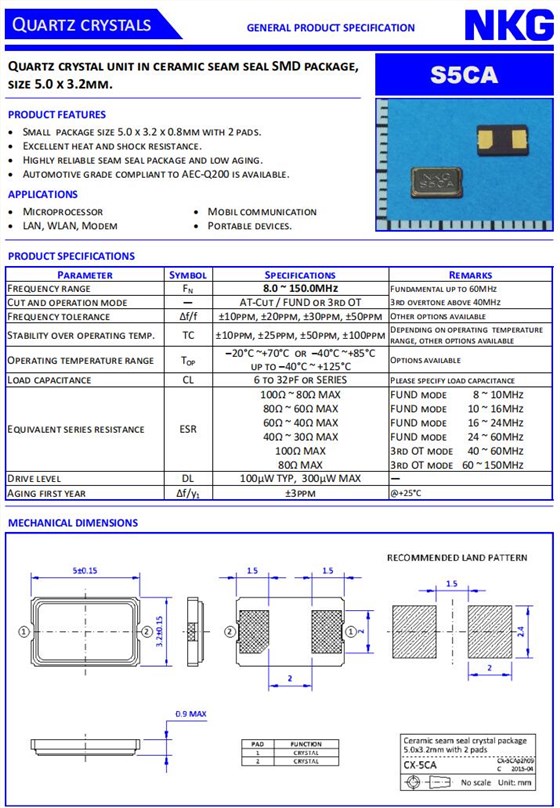

yijin-2 NKG晶振|S5CA晶振|S5CA36.0000F12E2Z-EXT|6G無線網絡晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	36MHz	-
Cut and operation mode	-	AT-Cut / FUND or 3rd OT	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±25ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	12pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω~30Ω MAX	FUND mode 24 ~ 60MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
