產品簡介

NKG Crystal|CT20M晶振|CT20M19.200F10V1Y-100|熱敏晶振,NKG Crystal,CT20M熱敏石英晶體,進口貼片晶振,CT20M19.200F10V1Y-100晶振,無源晶振,2016mm晶振,石英晶體諧振器,四腳封裝晶振,頻率19.2MHz,負載10pF,頻率容差10ppm,工作溫度范圍-30~85°C,超小型晶振,高精度晶振,低老化晶振,藍牙模塊晶振,電信應用程序晶振,便攜式設備晶振,移動通信晶振.

產品詳情

yijin-1 NKG Crystal|CT20M晶振|CT20M19.200F10V1Y-100|熱敏晶振,NKG Crystal,CT20M熱敏石英晶體,進口貼片晶振,CT20M19.200F10V1Y-100晶振,無源晶振,2016mm晶振,石英晶體諧振器,四腳封裝晶振,頻率19.2MHz,負載10pF,頻率容差10ppm,工作溫度范圍-30~85°C,超小型晶振,高精度晶振,低老化晶振,藍牙模塊晶振,電信應用程序晶振,便攜式設備晶振,移動通信晶振.

NKG Crystal|CT20M晶振|CT20M19.200F10V1Y-100|熱敏晶振特點：

●內置熱敏電阻100kΩ用于溫度測量

●非常適合與內置溫度補償振蕩器電路的ic一起使用

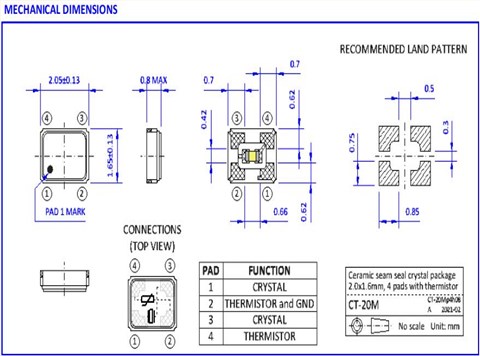

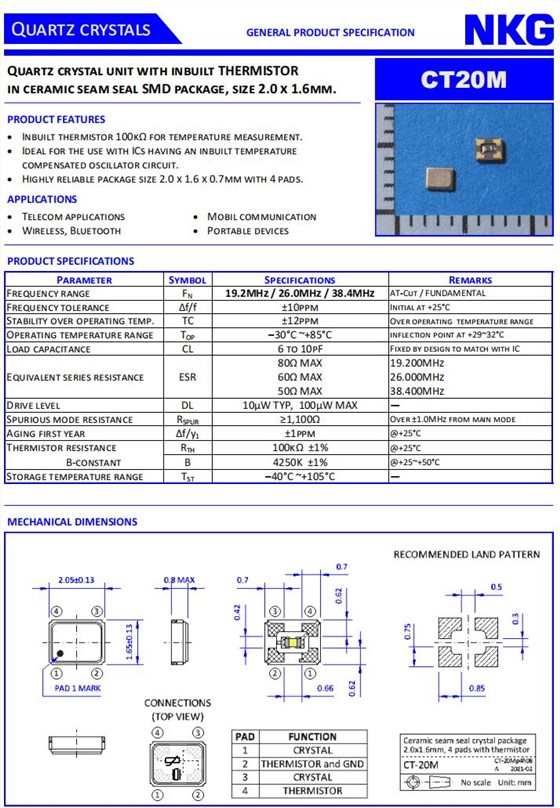

●高度可靠的包裝尺寸2.0 x 1.6 x 0.7mm，帶有4個襯墊 yijin-2 NKG Crystal|CT20M晶振|CT20M19.200F10V1Y-100|熱敏晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	19.2MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±10ppm	Other options available
Stability over operating temp.	TC	±15ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–30°C ~+85°C	Options available
Load capacitance	CL	10pF	Please specify load capacitance
Drive level	DL	10µW TYP, 100µW MAX	-
Spurious mode resistance	RSPUR	≥1,100Ω	Over ±1.0MHz from main mode
Aging first year	Δf/y1	±1ppm	@+25°C
Thermistor resistance B-constant	RTH	100kΩ±1%	@+25°C
Thermistor resistance B-constant	B	4250K ±1%	@+25~+50°C
Storage temperature range	TST	–40°C ~+105°C	—
