IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振

IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振

產品簡介

IQD晶振|CFPX-180晶振|LFXTAL065272RL3K |3225進口晶振,IQD晶振,CFPX-180無源晶振,石英晶體,LFXTAL065272RL3K晶振,晶體諧振器,3225進口晶振,四腳貼片晶振,SMD晶振,頻率32.768MHz,負載20pF,頻率容差50ppm,工作溫度范圍-40~85°C,輕薄小晶振,高品質晶振,無鉛環保晶振,消費電子產品晶振,家用網關晶振,調制解調器晶振,顯示和控制面板晶振.

產品詳情

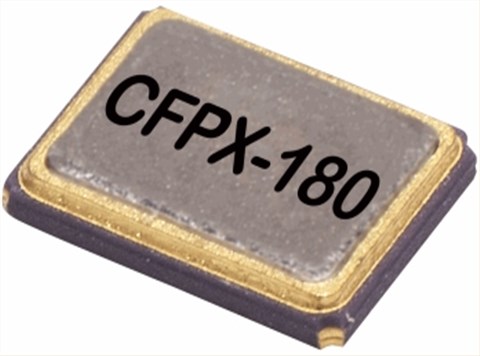

yijin-1

Y-2IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振,IQD晶振,CFPX-180無源晶振,石英晶體,LFXTAL065272RL3K晶振,晶體諧振器,3225進口晶振,四腳貼片晶振,SMD晶振,頻率32.768MHz,負載20pF,頻率容差50ppm,工作溫度范圍-40~85°C,輕薄小晶振,高品質晶振,無鉛環保晶振,消費電子產品晶振,家用網關晶振,調制解調器晶振,顯示和控制面板晶振.

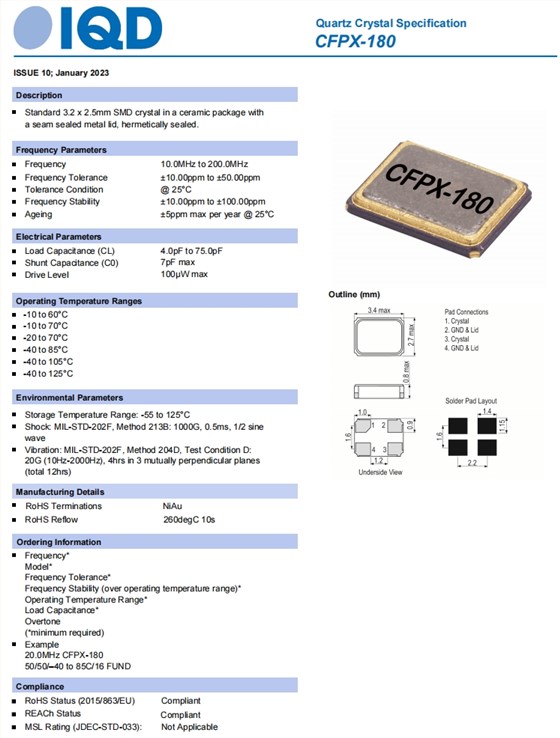

yijin-2IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振規格表

參數 數值
頻率 32.768MHz
頻率容差@ 25°C ± 3°C ±50ppm
頻率穩定性 ±50ppm
工作溫度 -40~85°C
儲存溫度 -55~125°C
負載 20pF
并聯電容 7pFmax
驅動電平
300µW max.
老化@ 25°C ± 3°C
±5.0ppm peryearmax

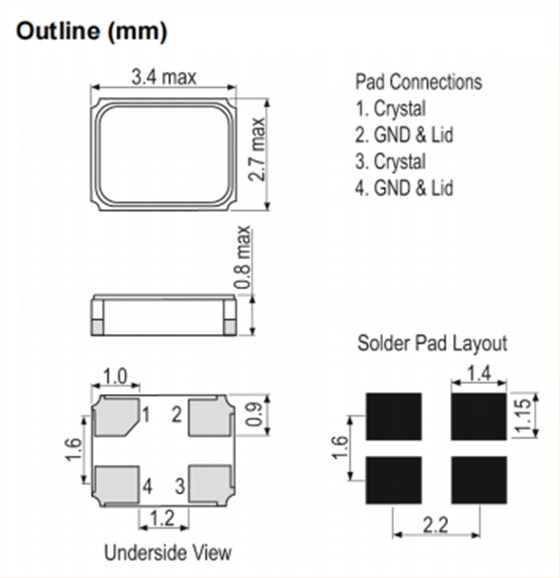

yijin-3IQD晶振|CFPX-180晶振|LFXTAL065272RL3K|3225進口晶振尺寸圖

CFPX-180-1

CFPX-180

編碼 型號 頻率 頻率容差 頻率穩定性 工作溫度 負載
LFXTAL071952RL3K CFPX-218 12.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL072016Reel CFPX-218 12.0MHz ±10ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL072016RL3K CFPX-218 12.0MHz ±10ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL079264Reel CFPX-218 12.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL079389Cutt CFPX-218 12.0MHz ±20ppm ±30ppm -10°C to 60°C 10.00pF
LFXTAL052180Cutt CFPX-218 16.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL052180RL3K CFPX-218 16.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL052895Bulk CFPX-218 16.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL054342Cutt CFPX-218 16.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL061817RL3K CFPX-218 16.0MHz ±10ppm ±20ppm -30°C to 85°C 8.00pF
LFXTAL062065Cutt CFPX-218 16.0MHz ±10ppm ±15ppm -30°C to 85°C 8.00pF
LFXTAL062065RL3K CFPX-218 16.0MHz ±10ppm ±15ppm -30°C to 85°C 8.00pF
LFXTAL062487Cutt CFPX-218 16.0MHz ±10ppm ±15ppm -10°C to 60°C 22.00pF
LFXTAL068297RL3K CFPX-218 16.0MHz ±10ppm ±10ppm -20°C to 75°C 8.00pF
LFXTAL069392Cutt CFPX-218 16.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069392Reel CFPX-218 16.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069392RL3K CFPX-218 16.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL071094RL3K CFPX-218 16.0MHz ±15ppm ±15ppm -10°C to 70°C 8.00pF
LFXTAL078960Cutt CFPX-218 16.0MHz ±15ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL069395Cutt CFPX-218 16.384MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069395Reel CFPX-218 16.384MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069395RL3K CFPX-218 16.384MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069400Cutt CFPX-218 18.432MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL069400Reel CFPX-218 18.432MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL069400RL3K CFPX-218 18.432MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL061682Cutt CFPX-218 19.2MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL069404Cutt CFPX-218 19.2MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069404Reel CFPX-218 19.2MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069404RL3K CFPX-218 19.2MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082080Cutt CFPX-218 19.2MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082080RL3K CFPX-218 19.2MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL090565RL3K CFPX-218 19.2MHz ±25ppm ±25ppm -40°C to 105°C 8.00pF
LFXTAL090181Reel CFPX-218 19.6608MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL052896Bulk CFPX-218 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL052896Cutt CFPX-218 20.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL069381Cutt CFPX-218 20.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069381Reel CFPX-218 20.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069381RL3K CFPX-218 20.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082081Cutt CFPX-218 20.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082081RL3K CFPX-218 20.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL053106Bulk CFPX-218 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL053106Cutt CFPX-218 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL053106Reel CFPX-218 24.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL061685Cutt CFPX-218 24.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL069383Cutt CFPX-218 24.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069383Reel CFPX-218 24.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069383RL3K CFPX-218 24.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL071973Cutt CFPX-218 24.0MHz ±10ppm ±10ppm -20°C to 70°C 8.00pF
LFXTAL081439RL3K CFPX-218 24.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL081970RL3K CFPX-218 24.0MHz ±10ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL082082Cutt CFPX-218 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082082RL3K CFPX-218 24.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082790RL3K CFPX-218 24.0MHz ±20ppm ±50ppm -40°C to 85°C 8.00pF
LFXTAL090514RL3K CFPX-218 24.0MHz ±30ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL052183Cutt CFPX-218 24.576MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL053107Bulk CFPX-218 24.576MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL053107Cutt CFPX-218 24.576MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL069387Cutt CFPX-218 24.576MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069387Reel CFPX-218 24.576MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069387RL3K CFPX-218 24.576MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL036577Cutt CFPX-218 25.0MHz ±10ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL037011Cutt CFPX-218 25.0MHz ±30ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL053108Bulk CFPX-218 25.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL059198Cutt CFPX-218 25.0MHz ±10ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL061687Cutt CFPX-218 25.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL061687RL3K CFPX-218 25.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL063334Cutt CFPX-218 25.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL063334Reel CFPX-218 25.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL063334RL3K CFPX-218 25.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL063742RL3K CFPX-218 25.0MHz ±30ppm ±30ppm -20°C to 70°C 18.00pF
LFXTAL064865Cutt CFPX-218 25.0MHz ±10ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL064865Reel CFPX-218 25.0MHz ±10ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL069179Cutt CFPX-218 25.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL075452RL3K CFPX-218 25.0MHz ±15ppm ±25ppm -40°C to 85°C 8.00pF
LFXTAL078719Cutt CFPX-218 25.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078719RL3K CFPX-218 25.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL079273Cutt CFPX-218 25.0MHz ±10ppm ±15ppm -20°C to 70°C 12.00pF
LFXTAL050991Cutt CFPX-218 26.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL050991Reel CFPX-218 26.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL050991RL3K CFPX-218 26.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL052185Cutt CFPX-218 26.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL056504RL3K CFPX-218 26.0MHz ±30ppm ±30ppm -10°C to 60°C 15.00pF
LFXTAL062381Cutt CFPX-218 26.0MHz ±10ppm ±20ppm -40°C to 85°C 12.00pF
LFXTAL063922Cutt CFPX-218 26.0MHz ±20ppm ±20ppm -40°C to 85°C 20.00pF
LFXTAL081865Cutt CFPX-218 26.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL081865RL3K CFPX-218 26.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL061689RL3K CFPX-218 27.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL069405Cutt CFPX-218 27.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL069405Reel CFPX-218 27.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL069405RL3K CFPX-218 27.0MHz ±20ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL079297Cutt CFPX-218 27.0MHz ±30ppm ±15ppm -30°C to 85°C 10.00pF
LFXTAL079297RL3K CFPX-218 27.0MHz ±30ppm ±15ppm -30°C to 85°C 10.00pF
LFXTAL082084Cutt CFPX-218 27.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082084RL3K CFPX-218 27.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL072522Cutt CFPX-218 27.12MHz ±15ppm ±15ppm -10°C to 70°C 8.00pF
LFXTAL036792RL3K CFPX-218 30.0MHz ±10ppm ±20ppm -10°C to 60°C 12.00pF
LFXTAL065132RL3K CFPX-218 30.0MHz ±20ppm ±30ppm -40°C to 85°C 10.00pF
LFXTAL069407Cutt CFPX-218 30.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069407Reel CFPX-218 30.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069407RL3K CFPX-218 30.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL072844Cutt CFPX-218 30.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL072844RL3K CFPX-218 30.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL052187Cutt CFPX-218 32.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL053109Cutt CFPX-218 32.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL056767RL3K CFPX-218 32.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL069268Cutt CFPX-218 32.0MHz ±15ppm ±18ppm -40°C to 85°C 10.00pF
LFXTAL069390Cutt CFPX-218 32.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069390Reel CFPX-218 32.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL069390RL3K CFPX-218 32.0MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL075523Cutt CFPX-218 32.0MHz ±10ppm ±15ppm -40°C to 85°C 12.00pF
LFXTAL078207Cutt CFPX-218 32.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078207RL3K CFPX-218 32.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL078382Reel CFPX-218 32.0MHz ±10ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL082427RL3K CFPX-218 32.0MHz ±10ppm ±15ppm -20°C to 70°C 8.00pF
LFXTAL053110Cutt CFPX-218 40.0MHz ±50ppm ±50ppm -10°C to 60°C 18.00pF
LFXTAL081564RL3K CFPX-218 40.0MHz ±20ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082087Cutt CFPX-218 40.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082087RL3K CFPX-218 40.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082854RL3K CFPX-218 40.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL083762RL3K CFPX-218 40.0MHz ±10ppm ±10ppm -20°C to 70°C 15.00pF
LFXTAL090186RL3K CFPX-218 48.0MHz ±10ppm ±20ppm -20°C to 70°C 20.00pF
LFXTAL061851Cutt CFPX-218 50.0MHz ±20ppm ±20ppm -10°C to 60°C 18.00pF
LFXTAL082088Cutt CFPX-218 50.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL082088RL3K CFPX-218 50.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL086178RL3K CFPX-218 62.5MHz ±15ppm ±15ppm -40°C to 85°C 8.00pF
LFXTAL065272RL3K CFPX-180 32.768MHz ±50ppm ±50ppm -40°C to 85°C 20.00pF
LFXTAL088666RL3K CFPX-180 32.768MHz ±30ppm ±50ppm -20°C to 70°C 16.00pF
LFXTAL059672Cutt CFPX-180 36.0MHz ±10ppm ±10ppm -10°C to 60°C 10.00pF
LFXTAL075445RL3K CFPX-180 38.4MHz ±10ppm ±10ppm -20°C to 75°C 8.50pF
LFXTAL076107RL3K CFPX-180 38.4MHz ±30ppm ±50ppm -40°C to 85°C 15.00pF
LFXTAL082763RL3K CFPX-180 38.4MHz ±30ppm ±30ppm -20°C to 70°C 9.00pF
LFXTAL083279Cutt CFPX-180 38.4MHz ±20ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL035270Bulk CFPX-180 40.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL035270Cutt CFPX-180 40.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL059648Cutt CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059648Reel CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL059648RL3K CFPX-180 40.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL076900Cutt CFPX-180 40.0MHz ±10ppm ±10ppm -20°C to 75°C 9.00pF
LFXTAL082077RL3K CFPX-180 40.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL054093Cutt CFPX-180 41.0MHz ±50ppm ±50ppm -10°C to 60°C 10.50pF
LFXTAL069379Cutt CFPX-180 44.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL009549Bulk CFPX-180 48.0MHz ±50ppm ±50ppm -10°C to 60°C 16.00pF
LFXTAL053866Cutt CFPX-180 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL053866RL3K CFPX-180 48.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL055570Cutt CFPX-180 48.0MHz ±30ppm ±50ppm -40°C to 85°C 12.00pF
LFXTAL062288RL3K CFPX-180 48.0MHz ±30ppm ±30ppm -10°C to 60°C 18.00pF
LFXTAL071958Cutt CFPX-180 48.0MHz ±30ppm ±20ppm -40°C to 85°C 18.00pF
LFXTAL079244Cutt CFPX-180 48.0MHz ±15ppm ±25ppm -40°C to 85°C 8.00pF
LFXTAL080495RL3K CFPX-180 48.0MHz ±50ppm ±30ppm -40°C to 85°C 16.00pF
LFXTAL080873RL3K CFPX-180 48.0MHz ±30ppm ±50ppm -20°C to 70°C 10.00pF
LFXTAL082068RL3K CFPX-180 48.0MHz ±10ppm ±10ppm -20°C to 70°C 10.00pF
LFXTAL083249Cutt CFPX-180 48.0MHz ±30ppm ±30ppm -40°C to 85°C 12.00pF
LFXTAL084993RL3K CFPX-180 48.0MHz ±20ppm ±20ppm -20°C to 70°C 18.00pF
LFXTAL090184RL3K CFPX-180 48.0MHz ±10ppm ±20ppm -20°C to 70°C 20.00pF
LFXTAL060843Cutt CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL060843Reel CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL060843RL3K CFPX-180 50.0MHz ±25ppm ±25ppm -20°C to 70°C 10.00pF
LFXTAL069349Cutt CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 8.00pF
LFXTAL072787Cutt CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL072787RL3K CFPX-180 50.0MHz ±20ppm ±30ppm -40°C to 85°C 18.00pF
LFXTAL082006Cutt CFPX-180 50.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL082006RL3K CFPX-180 50.0MHz ±10ppm ±10ppm -20°C to 70°C 12.00pF
LFXTAL082078Cutt CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082078Reel CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082078RL3K CFPX-180 50.0MHz ±10ppm ±20ppm -40°C to 85°C 8.00pF
LFXTAL082568RL3K CFPX-180 50.0MHz ±10ppm ±15ppm -40°C to 85°C 12.00pF
LFXTAL082637RL3K CFPX-180 50.0MHz ±15ppm ±20ppm -40°C to 85°C 10.00pF
LFXTAL083481RL3K CFPX-180 50.0MHz ±20ppm ±20ppm -40°C to 85°C 16.00pF
LFXTAL062546Cutt CFPX-180 54.0MHz ±15ppm ±20ppm -20°C to 70°C 19.00pF
LFXTAL062546RL3K CFPX-180 54.0MHz ±15ppm ±20ppm -20°C to 70°C 19.00pF
LFXTAL083943Cutt CFPX-180 200.0MHz ±50ppm ±50ppm -40°C to 85°C 12.00pF

我要下單

  • 姓名
  • 手機
  • 留言

返回頭部
