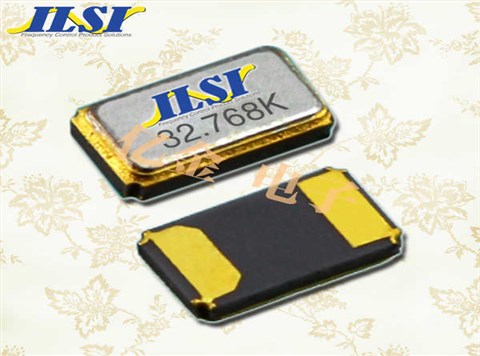

IL3X2-HX5F6-32.768KHz,ILSI鐘表電子晶振,3215mm,測量應用晶振，美國進口晶振，ILSI晶振，艾爾西晶振，型號：IL3X2，編碼為：IL3X2-HX5F6-32.768KHz，頻率：32.768K晶振，負載電容：6pF，頻率容差：±20ppm，工作溫度范圍：-40℃至+85℃，小體積晶振尺寸：3.2x1.5x0.9mm封裝，兩腳貼片晶振，石英晶振，無源晶振，SMD晶振，手表晶體，石英晶體諧振器，音叉表晶，符合RoHS和REACH。具有超小型，輕薄型，高性能，高品質，耐熱及耐環境特點。特別適用于：實時時鐘晶振，鐘表電子晶振，測量晶振，儀表晶振，工業控制，時間參考等應用。

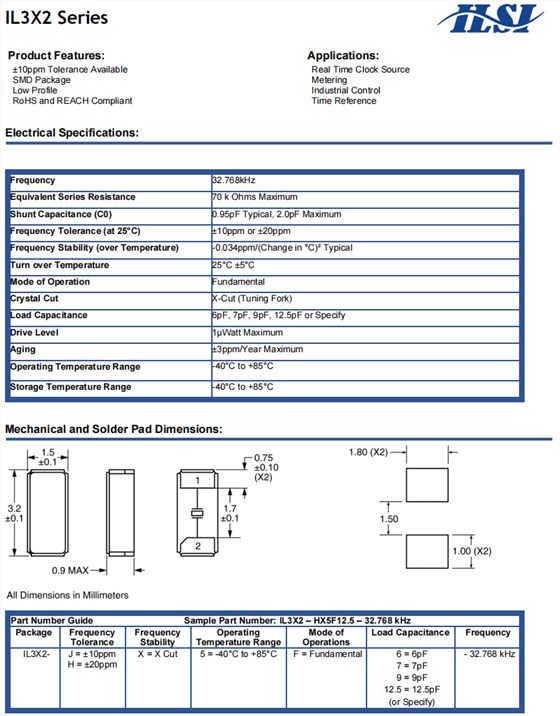

IL3X2-HX5F6-32.768KHz,ILSI鐘表電子晶振,3215mm,測量應用晶振,參數表
| Frequency | 32.768kHz |
| Equivalent Series Resistance | 70 k Ohms Maximum |
| Shunt Capacitance (C0) | 0.95pF Typical, 2.0pF Maximum |
| Frequency Tolerance (at 25°C) | ±10ppm or ±20ppm |
| Frequency Stability (over Temperature) | -0.034ppm/(Change in °C)² Typical |
| Turn over Temperature | 25°C ±5°C |
| Mode of Operation | Fundamental |
| Crystal Cut | X-Cut (Tuning Fork) |
| Load Capacitance | 6pF, 7pF, 9pF, 12.5pF or Specify |
| Drive Level | 1µWatt Maximum |
| Aging | ±3ppm/Year Maximum |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -40°C to +85°C |

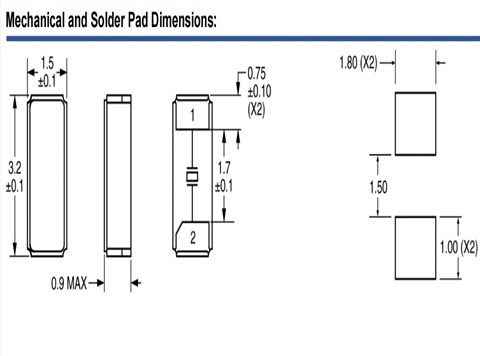

IL3X2-HX5F6-32.768KHz,ILSI鐘表電子晶振,3215mm,測量應用晶振,尺寸圖
| 產品編碼 | 品牌 | 型號 | 頻率 | 長度 | 寬度 | 高度 |
| IL3X-HX5F12.5-32.768KHz | ILSI晶振 | IL3X | 32.768 kHz | 3.2mm | 1.5mm | 0.9mm |
| IL3X2-HX5F12.5-32.768KHz | ILSI晶振 | IL3X2 | 32.768 kHz | 3.2mm | 1.5mm | 0.9mm |
| IL3X2-HX5F6-32.768KHz | 石英晶振 | IL3X2 | 32.768 kHz | 3.2mm | 1.5mm | 0.9mm |
| IL3X2-HX5F7-32.768kHz | ILSI晶振 | IL3X2 | 32.768 kHz | 3.2mm | 1.5mm | 0.9mm |
| IL3X2-HX5F9-32.768kHz | ILSI晶振 | IL3X2 | 32.768 kHz | 3.2mm | 1.5mm | 0.9mm |
