日本進口2016村田晶振HCR2016,XRCGB26M000F3A00R0貼片晶振，日本muRata晶振公司,2016晶振,無源晶振,金屬面晶振,石英晶振,貼片晶振,日本進口晶振,村田晶振,HCR2016晶振,XRCGB26M000F3M01R0晶振,四腳晶振,超小型晶振,通訊設備晶振,陶瓷諧振器,多媒體設備晶振,XRCGB25M000FAN12R0晶振,XRCGB27M000F0Z00R0晶振,XRCGB30M000F3N00R0晶振。

yijin-2

日本進口2016村田晶振HCR2016,XRCGB26M000F3A00R0貼片晶振

晶振規格	單位	晶振頻率范圍	石英晶振基本條件
標準頻率	f_nom	26MHZ	標準頻率
儲存溫度	T_stg	-40°C～+105°C	裸存
工作溫度	T_use	-40°C～+105°C	標準溫度
激勵功率	DL	200μW Max.	推薦:1μW～100μW
頻率公差	f_— l	±20 × 10-6(標準), (±15 × 10-6～±50 × 10-6可用)	+25°C對于超出標準的規格說明, 請聯系我們以便獲取相關的信息
頻率溫度特征	f_tem	±30 × 10-6/-20°C～+70°C	超出標準的規格請聯系我們.
負載電容	CL	6pF	超出標準說明,請聯系我們.
串聯電阻(ESR)	R1	如下表所示	-40°C — +85°C,DL = 100μW
頻率老化	f_age	±5 × 10-6/ year Max.	+25°C,第一年

yijin-3

yijin-4

日本進口2016村田晶振HCR2016,XRCGB26M000F3A00R0貼片晶振

在使用村田晶振時應注意以下事項:

陶瓷振蕩子具備小型和價格低廉的特點,而石英晶體振蕩器雖然價格比較昂貴,卻具備了高精度的特性.考慮到成品問題在消費電子產品市場中,許多電子設備都采用了陶瓷振蕩子.年代不同口味也有所挑剔了電子產品也是一樣USB等接口的數據傳輸速度高速化,告別了以前慢慢吞吞的傳輸速度,因此應用于HDD的振蕩子也和石英元件貼片晶振一樣要求小型化,薄片化,高精度,準確性.

早期主要以陶瓷系列為主的村田公司在2009年也開始研發石英系列,村田和東京電波建立了業務合作關系之后,通過利用東京電波擁有的高品質的石英晶體元件,加上村田的生產技術,共同開發出符合市場要求的定時元件

1. 焊接條件(1) 回流焊接如右側溫度曲線所示,對陶瓷振蕩子施加一個熱應力;然后在自然狀態下放置1小時后,對振蕩子進行測量.(a) 預熱條件為+150到+180℃,60到120秒鐘.溫度升高到+150℃的時間應長于30秒鐘.(b) 加熱條件為最低溫度+230℃時不超過40秒鐘,峰值溫度狙應低于+260℃
2．烙鐵將溫度為+300±5℃的烙鐵置于振蕩子電極上方0.5mm處.將通過烙鐵熔化的焊料施加到電極上 3±1秒鐘;然后,在自然狀態下放置24小時后,對振蕩子進行測量.日本村田晶振,XRCGB16M000FXN00R0晶振,2016小體積晶振

日本進口2016村田晶振HCR2016,XRCGB26M000F3A00R0貼片晶振

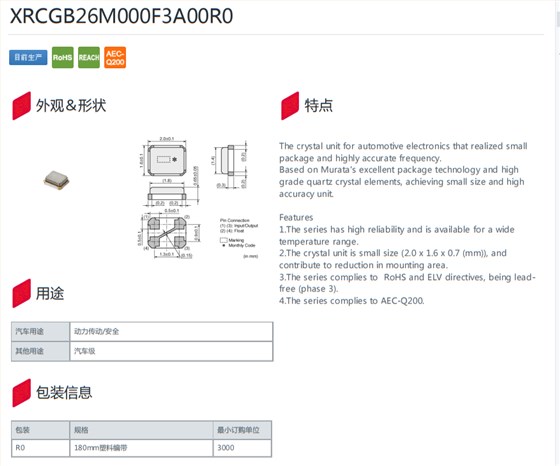

XRCGB26M000F3A00R0(1)

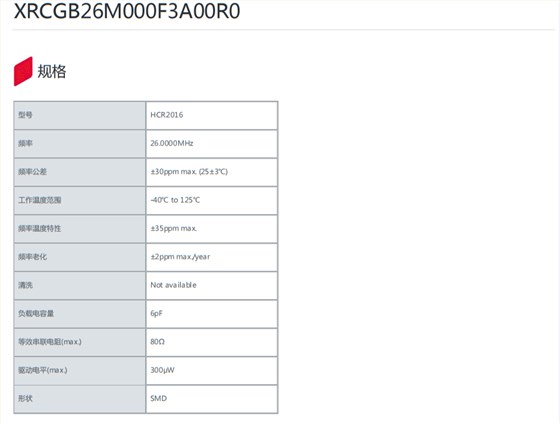

XRCGB26M000F3A00R0(2)

村田晶振原廠編碼	型號	頻率	頻率公差	頻率溫度特性	頻率老化	等效串聯電阻(max.)	負載電容量
XRCGB24M000F0G00R0	HCR2016	24.0000MHz	±100ppm max. (25±3℃)	±50ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M000F0L00R0	HCR2016	24.0000MHz	±100ppm max. (25±3℃)	±50ppm max.	±50ppm max.	150Ω	6pF
XRCGB24M000F0Z00R0	HCR2016	24.0000MHz	±100ppm max. (25±3℃)	±100ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M000F1H00R0	HCR2016	24.0000MHz	±10ppm max. (25±3℃)	±10ppm max.	±2ppm max./year	80Ω	6pF
XRCGB24M000F1H01R0	HCR2016	24.0000MHz	±10ppm max. (25±3℃)	±10ppm max.	±2ppm max./year	80Ω	8pF
XRCGB24M000F1H02R0	HCR2016	24.0000MHz	±10ppm max. (25±3℃)	±10ppm max.	±2ppm max./year	80Ω	10pF
XRCGB24M000F1H03R0	HCR2016	24.0000MHz	±10ppm max. (25±3℃)	±10ppm max.	±2ppm max./year	80Ω	12pF
XRCGB24M000F2P00R0	HCR2016	24.0000MHz	±20ppm max. (25±3℃)	±20ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M000F2P01R0	HCR2016	24.0000MHz	±20ppm max. (25±3℃)	±20ppm max.	±5ppm max./year	150Ω	8pF
XRCGB24M000F2P02R0	HCR2016	24.0000MHz	±20ppm max. (25±3℃)	±20ppm max.	±5ppm max./year	150Ω	10pF
XRCGB24M000F3A00R0	HCR2016	24.0000MHz	±30ppm max. (25±3℃)	±35ppm max.	±2ppm max./year	120Ω	6pF
XRCGB24M000F3G00R0	HCR2016	24.0000MHz	±30ppm max. (25±3℃)	±50ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M000F3M00R0	HCR2016	24.0000MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M000F3M01R0	HCR2016	24.0000MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	150Ω	8pF
XRCGB24M000F3M02R0	HCR2016	24.0000MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	150Ω	10pF
XRCGB24M000F3M13R0	HCR2016	24.0000MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	120Ω	8.5pF
XRCGB24M000F3M19R0	HCR2016	24.0000MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	100Ω	6pF
XRCGB24M000F3N00R0	HCR2016	24.0000MHz	±30ppm max. (25±3℃)	±30ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M000FAN00R0	HCR2016	24.0000MHz	±25ppm max. (25±3℃)	±25ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M000FBP12R0	HCR2016	24.0000MHz	±15ppm max. (25±3℃)	±20ppm max.	±2ppm max./year	80Ω	6pF
XRCGB24M576F0G00R0	HCR2016	24.5760MHz	±100ppm max. (25±3℃)	±50ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M576F0L00R0	HCR2016	24.5760MHz	±100ppm max. (25±3℃)	±50ppm max.	±50ppm max.	150Ω	6pF
XRCGB24M576F0Z00R0	HCR2016	24.5760MHz	±100ppm max. (25±3℃)	±100ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M576F3G00R0	HCR2016	24.5760MHz	±30ppm max. (25±3℃)	±50ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M576F3M00R0	HCR2016	24.5760MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M576F3M01R0	HCR2016	24.5760MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	150Ω	8pF
XRCGB24M576F3M02R0	HCR2016	24.5760MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	150Ω	10pF
XRCGB24M576F3N00R0	HCR2016	24.5760MHz	±30ppm max. (25±3℃)	±30ppm max.	±5ppm max./year	150Ω	6pF
XRCGB24M576FAN00R0	HCR2016	24.5760MHz	±25ppm max. (25±3℃)	±25ppm max.	±5ppm max./year	150Ω	6pF
XRCGB25M000F0G00R0	HCR2016	25.0000MHz	±100ppm max. (25±3℃)	±50ppm max.	±5ppm max./year	150Ω	6pF
XRCGB25M000F0L00R0	HCR2016	25.0000MHz	±100ppm max. (25±3℃)	±50ppm max.	±50ppm max.	150Ω	6pF
XRCGB25M000F0Z00R0	HCR2016	25.0000MHz	±100ppm max. (25±3℃)	±100ppm max.	±5ppm max./year	150Ω	6pF
XRCGB25M000F1H00R0	HCR2016	25.0000MHz	±10ppm max. (25±3℃)	±10ppm max.	±2ppm max./year	80Ω	6pF
XRCGB25M000F1H01R0	HCR2016	25.0000MHz	±10ppm max. (25±3℃)	±10ppm max.	±2ppm max./year	80Ω	8pF
XRCGB25M000F1H02R0	HCR2016	25.0000MHz	±10ppm max. (25±3℃)	±10ppm max.	±2ppm max./year	80Ω	10pF
XRCGB25M000F1H03R0	HCR2016	25.0000MHz	±10ppm max. (25±3℃)	±10ppm max.	±2ppm max./year	80Ω	12pF
XRCGB25M000F2P00R0	HCR2016	25.0000MHz	±20ppm max. (25±3℃)	±20ppm max.	±5ppm max./year	150Ω	6pF
XRCGB25M000F2P01R0	HCR2016	25.0000MHz	±20ppm max. (25±3℃)	±20ppm max.	±5ppm max./year	150Ω	8pF
XRCGB25M000F2P02R0	HCR2016	25.0000MHz	±20ppm max. (25±3℃)	±20ppm max.	±5ppm max./year	150Ω	10pF
XRCGB25M000F3A00R0	HCR2016	25.0000MHz	±30ppm max. (25±3℃)	±35ppm max.	±2ppm max./year	100Ω	6pF
XRCGB25M000F3G00R0	HCR2016	25.0000MHz	±30ppm max. (25±3℃)	±50ppm max.	±5ppm max./year	150Ω	6pF
XRCGB25M000F3M00R0	HCR2016	25.0000MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	150Ω	6pF
XRCGB25M000F3M01R0	HCR2016	25.0000MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	150Ω	8pF
XRCGB25M000F3M02R0	HCR2016	25.0000MHz	±30ppm max. (25±3℃)	±40ppm max.	±5ppm max./year	150Ω	10pF
