SMI晶振|21SMX貼片晶振|21M400-8|6G基站晶振,SMI晶振,21SMX石英晶振,21M400-8晶振,日本進口晶振,無源晶振,2016貼片晶振,石英晶體諧振器,頻率40MHz,負載8pF,工作溫度-20~70°C,頻率容差30ppm,高穩定性晶振,低老化晶振,6G基站晶振,消費電子產品晶振,網絡系統晶振,攝像機和視頻設備晶振.

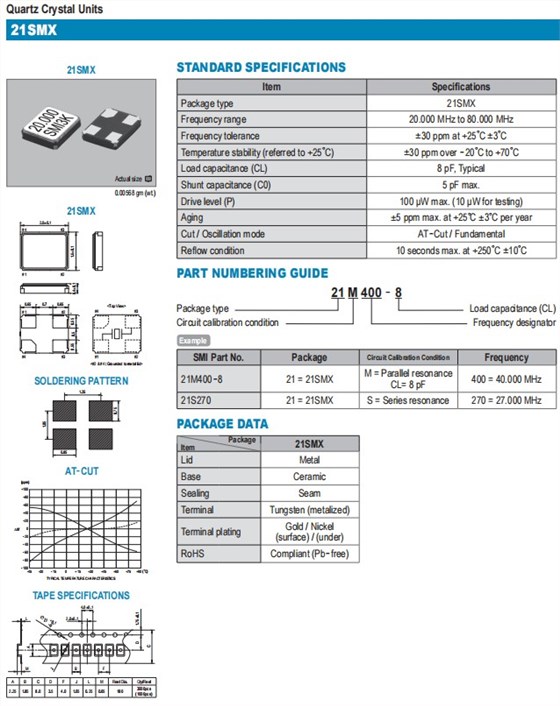

SMI晶振|21SMX貼片晶振|21M400-8|6G基站晶振規格表
參數
數值
封裝
21SMX
頻率
40MHz
頻率容差@ 25°C ± 3°C
±30ppm
頻率穩定度
±30ppm
工作溫度
-20~70°C
負載
8pF
并聯電容
5pF Max
驅動電平
老化@ 25°C ± 3°C

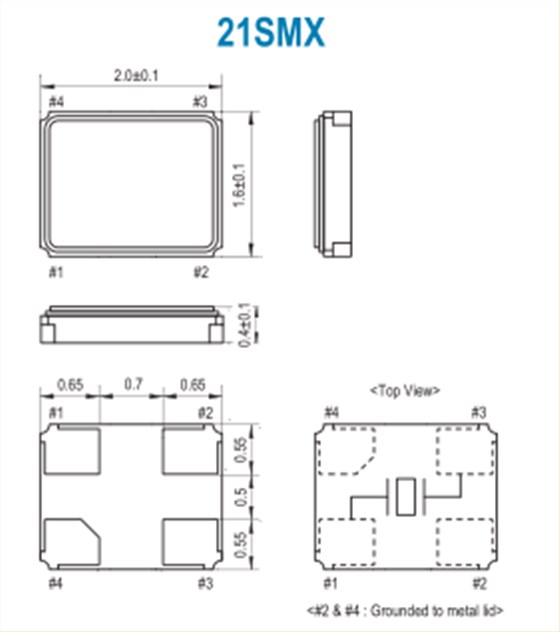

SMI晶振|21SMX貼片晶振|21M400-8|6G基站晶振尺寸圖
