產品簡介

NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振,香港進口晶振,NKG晶振,SCO8有源晶振,石英晶體振蕩器,SCO8-6A-20M000-WTS晶振,2016mm貼片晶振,四腳封裝晶振,頻率20MHz,電壓3.3V,負載15pF,頻率穩定性25ppm,工作溫度范圍-40~85°C,超小型晶振,高穩定性晶振,耐老化晶振,移動通信晶振,無線局域網晶振,USB設備晶振,智能手機晶振.

產品詳情

yijin-1 NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振,香港進口晶振,NKG晶振,SCO8有源晶振,石英晶體振蕩器,SCO8-6A-20M000-WTS晶振,2016mm貼片晶振,四腳封裝晶振,頻率20MHz,電壓3.3V,負載15pF,頻率穩定性25ppm,工作溫度范圍-40~85°C,超小型晶振,高穩定性晶振,耐老化晶振,移動通信晶振,無線局域網晶振,USB設備晶振,智能手機晶振.

NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振特點：

-超小尺寸的SMD封裝尺寸為2.0 x 1.6 x 0.8mm，帶有4個襯墊

-高可靠的縫封封裝，低老化

-低抖動和相位噪聲版本可用

-符合AEC-Q200標準的汽車級產品可供選擇

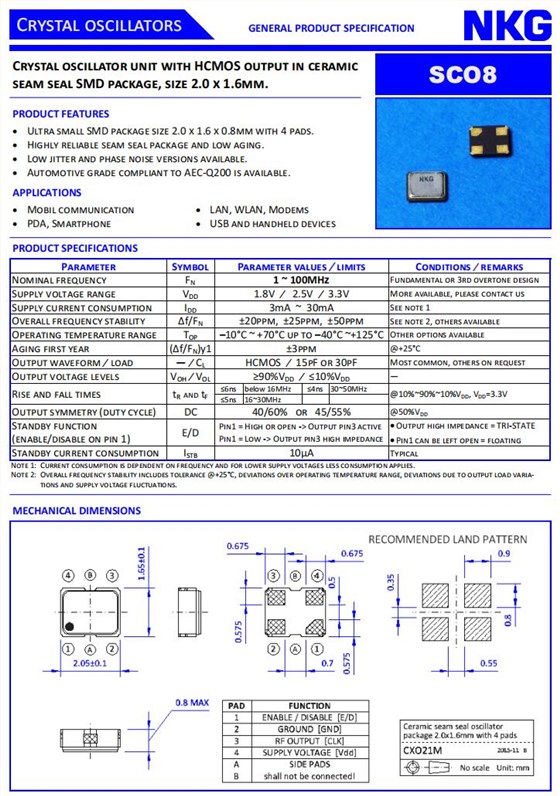

yijin-2 NKG晶振|SCO8|SCO8-6A-20M000-WTS|2016有源晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	20MHz	Fundamental or 3rd overtone design
Supply voltage range	VDD	3.3V	More available, please contact us
Supply current consumption	IDD	3mA ~ 30mA
Overall frequency stability	?f/FN	±25ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Aging first year	(Δf/FN)y1	±3ppm	@+25°C
Output waveform ? load	— ? CL	HCMOS /15pF or 30pF	Most common, others on request
Output voltage levels	VOH ? VOL	≥90%VDD /≤10%VDD	-
Output symmetry (duty cycle)	DC	40/60% or 45/55%	@50%VDD
Standby function (enable/disable on pin 1)	E/D	Pin1 = High or open -> Output pin3 active Pin1 = Low -> Output pin3 high impedance	?Output high impedance = TRI-STATE ?Pin1 can be left open = floating
Standby current consumption	ISTB	10µA	Typical
