產品簡介

香港NKG晶振|S7M晶振|S7M24.0000F12M23-EXT|7050mm晶振,香港進口晶振,NKG晶振,S7M無源晶振,石英晶振,S7M24.0000F12M23-EXT晶振,7050貼片晶振,石英晶體諧振器,SMD晶體,四腳封裝晶振,頻率24MHz,負載12pF,頻率容差20ppm,工作溫度范圍-40~85°C,耐高溫晶振,高穩定性晶振,高品質晶振,無線路由器晶振,調制解調器晶振,網絡設備晶振,電信交換機晶振.

產品詳情

yijin-1 香港NKG晶振|S7M晶振|S7M24.0000F12M23-EXT|7050mm晶振,香港進口晶振,NKG晶振,S7M無源晶振,石英晶振,S7M24.0000F12M23-EXT晶振,7050貼片晶振,石英晶體諧振器,SMD晶振,四腳封裝晶振,頻率24MHz,負載12pF,頻率容差20ppm,工作溫度范圍-40~85°C,耐高溫晶振,高穩定性晶振,高品質晶振,無線路由器晶振,調制解調器晶振,網絡設備晶振,電信交換機晶振.

香港NKG晶振|S7M晶振|S7M24.0000F12M23-EXT|7050mm晶振特點：

●小包裝尺寸7.0x 5.0 x 1.1mm, 4個襯墊。

●優異的耐熱性和抗震性。

●高可靠的縫封封裝，低老化。

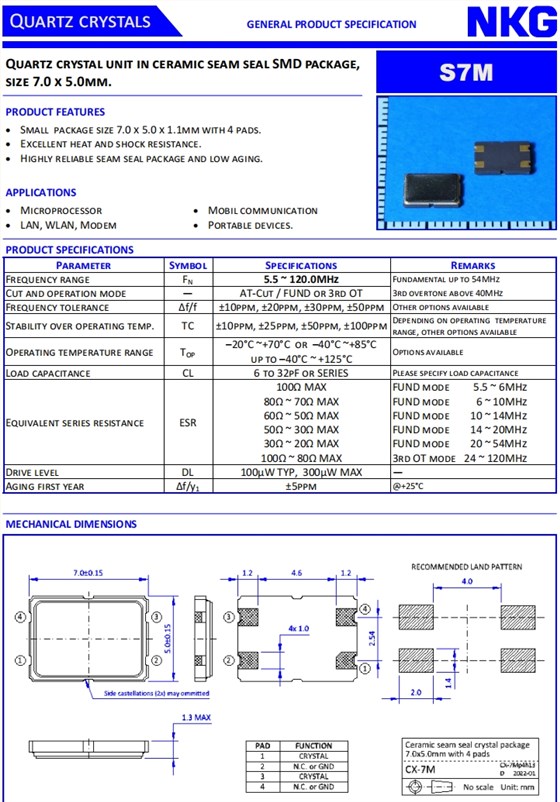

yijin-2 香港NKG晶振|S7M晶振|S7M24.0000F12M23-EXT|7050mm晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	24MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	12pF	Please specify load capacitance
Equivalent series resistance	ESR	30Ω ~ 20Ω MAX	FUND mode 20 ~ 54MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
