產品簡介

NKG晶振|S6CA晶振|S6CA12.0000F10M23-EXT|6G通信設備晶振,香港進口晶振,NKG晶振,S6CA貼片石英晶體,無源晶振,S6CA12.0000F10M23-EXT晶振,晶體諧振器,6.0x3.5mm石英晶體,SMD晶體,二腳封裝晶振,頻率12MHz,負載10pF,頻率容差20ppm,工作溫度范圍-40~85°C,低老化晶振,耐熱性晶振,高穩定性晶振,6G通信設備晶振,無線局域網晶振,便攜式設備晶振,家庭自動化晶振.

產品詳情

yijin-1 NKG晶振|S6CA晶振|S6CA12.0000F10M23-EXT|6G通信設備晶振,香港進口晶振,NKG晶振,S6CA貼片石英晶體,無源晶振,S6CA12.0000F10M23-EXT晶振,晶體諧振器,6.0x3.5mm石英晶體,SMD晶體,二腳封裝晶振,頻率12MHz,負載10pF,頻率容差20ppm,工作溫度范圍-40~85°C,低老化晶振,耐熱性晶振,高穩定性晶振,6G通信設備晶振,無線局域網晶振,便攜式設備晶振,家庭自動化晶振.

NKG晶振|S6CA晶振|S6CA12.0000F10M23-EXT|6G通信設備晶振特點：

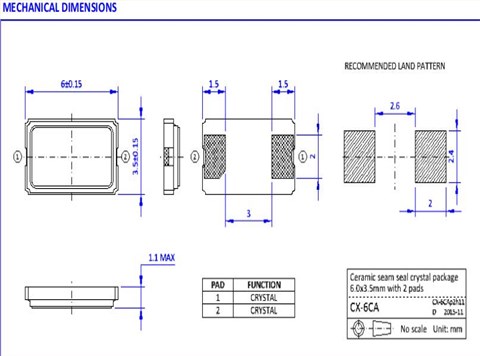

●小包裝尺寸6.0x 3.5 x 1.0mm, 2個襯墊。

●優異的耐熱性和抗震性。

●高可靠的縫封封裝，低老化。

●符合AEC-Q200標準的汽車級產品可供選擇。

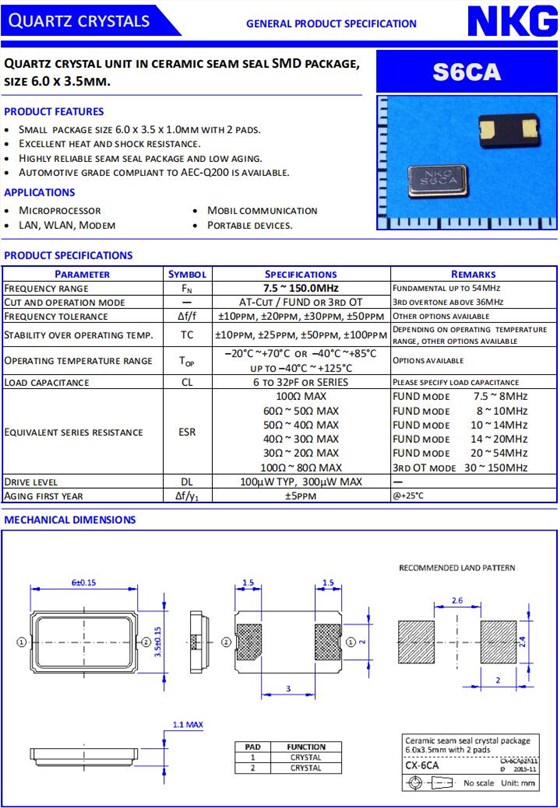

yijin-2 NKG晶振|S6CA晶振|S6CA12.0000F10M23-EXT|6G通信設備晶振規格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	12MHz	-
Cut and operation mode	-	AT-Cut / FUND or 3rd OT	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	10pF	Please specify load capacitance
Equivalent series resistance	ESR	50Ω~40Ω MAX	FUND mode 10 ~ 14MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
